10-005
|
Filter Bag, Mesh; (Single)
|
|
90-002
|
Replacement Fine Filter Bag for Aquabot
|
|
10-003
|
Grommet (rubber) Thunderjet
|
|
10-014
|
BUSHING, .5 ID, NYLON, WHITE; (EA/4/4)
|
|
10-020
|
SPACER , BLACK; (EA/1/1)
|
|
10-021
|
FLOAT, UNDER MOTOR; (EA/1/1)
|
|
10-023
|
FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)
|
|
10-034
|
BRACKET, FLOAT; (EA/1/1)
|
|
10-035
|
HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
|
|
10-039
|
TENSION ROLLER, BLACK; (EA/2/2)
|
|
10-040
|
FLANGE, PULLEY, BLACK; (EA/2/2)
|
|
10-044
|
GROOVED PIN COVER; (EA/1/1)
|
|
10-047
|
FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
|
|
10-051
|
PLUG, PLASTIC, PUSH IN; (EA/2/2)
|
|
10-053
|
HANDLE, S/S; (EA/1/1)
|
|
10-060
|
CAP PLUG, WHITE, 1.125"; (EA/1/1)
|
|
10-067
|
TUBING, CLEAR, POWER WASH; (EA/2/2)
|
|
10-068
|
RIVET, PLASTIC, SNAP HEAD; (EA/10/10)
|
|
10-071
|
PLUG, CAP, BLACK; (EA/1/1)
|
|
10-074
|
ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
|
|
10-082
|
OUTLET, TOP, BLUE; (EA/1/1)
|
|
10-087
|
OUTLET, BOTTOM, BLUE, LARGE; (EA/1/1)
|
|
10-091
|
BUSHING, NYLON, BLACK; (EA/2/2)
|
|
10-100
|
NOZZLE, JET TUBE, WHITE; (EA/2/2)
|
|
10-101
|
BRACKET, PP, BLUE, PW NOZZLE SUPPORT; (EA/2/2)
|
|
10-103
|
MIDDLE PLATE, BLUE; (EA/1/1)
|
|
10-104
|
WHEEL- BLACK-SMALL
|
|
10-116
|
LOCK TAB, NATURAL; (EA/2/2)
|
|
10-127
|
BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
|
|

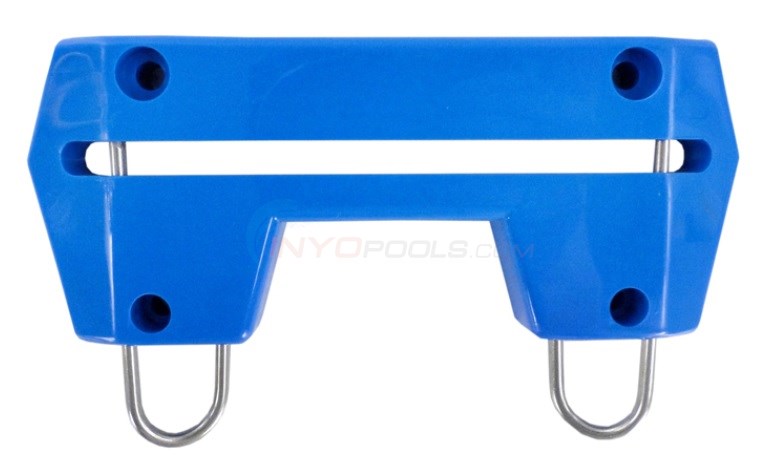

10-130
|
BRACKET ASSY, HANDLE, BASIC, BLUE, COMPLETE; (EA/1/1)
|
|
10-132
|
SIDE PLATE ASSY, BLUE, ROUND, 4 HOLES; (EA/1/1)
|
|
10-153
|
SK DRIVE BELT SET; DMX DRIVE BELT (2), ROLLERS, WASHERS; (1/1/EA)
|
|
10-154
|
SK DRIVE PULLY ASSY, W FLANGE WASHERS (2); (EA/1/1)
|
|
10-155
|
SK HANDLE ASSY; PLASTIC, BLACK, INC SCREWS/NUTS; (EA/1/1)
|
|
10-165
|
SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
|
|
10-175
|
BUSHING, PET, PRESS FIT, FOR COMMERCIAL SIDE PLATE
|
|
20-025
|
WHEEL TUBE ASSY; 12", ADMXDUO, ADMXTRIO; (EA/1/1)
|
|
20-026
|
WHEEL TUBE ASSY, 12", CENTER, ADMXTRIO; (EA/1/1)
|
|
20-028
|
SK WHEEL, ASSY, 2.75" ODx1/2" ID”, DRILLED, INSERT, SCREW (EA/2/2)
|
|
20-029
|
SK BRUSH, RUBBER EZ, BLUE, 12", 2 BRUSHES, 2 PINS;(EA/1/1)
|
|
20-037
|
SK AXLE REPLACEMENT KIT, DMXTRIO; (EA/1/1)
|
|
20-041
|
SPARE PARTS KIT, HI HARD BRUSH, 12", 6 BRUSHES, 6 PINS; (EA/1/1)
|
|
30-001
|
SCREW, S/S, PH-PN; (EA/4/4)
|
|
30-003
|
INSERT, BRASS, PRESS-IN; (EA/4/4)
|
|
30-004
|
SCREW, 6-32 .500", S/S, PH-PN; (EA/4/4)
|
|
30-006
|
SCREW, 8-18 .75", S/S, PH-FIL; (EA/4/4)
|
|
30-007
|
SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
|
|
30-013
|
SCREW - LOCK TAB -BODY ASS./DUMAX
|
|
30-017
|
WASHER, 510/515 X .750 X .032, DELRIN; (EA/2/2)
|
|
30-018
|
WASHER, .515 X 1.00 X .125, DELRIN ACETAL; (EA/2/2)
|
|
30-020
|
SCREW, #8 .6875", S/S, PH-PN; (Single)
|
|
30-025
|
SCREW, 8-32 2.75", S/S, PH-PN; (EA/4/4)
|
|
30-026
|
SCREW, 10-32 2.50", S/S, PH-PN; (EA/2/2)
|
|
30-027
|
SCREW, 5/16-18 1.250", S/S, ALLEN CAP (EA/2/2)
|
|
30-028
|
NUT, 5/16-18, S/S, HEX W/NYLON INSERT; (EA/2/2)
|
|
30-030
|
SCREW, S/S, 3.5"; (EA/2/2)
|
|
30-034
|
SCREW, S/S, PH-PN, 10-32 x 2.108 (EA/8/8)
|
|
30-035
|
NUT, S/S, HEX LOCK M5; (EA/2/2)
|
|
30-037
|
WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
|
|
30-039
|
BUSHING, S/S, ADMXX; (EA/4/4)
|
|
30-041
|
BLOCK INSERT - REVERSO; BRASS; (EA/2/2)
|
|
30-046
|
NUT, S/S, LOCK; (EA/1/1)
|
|
30-052
|
SCREW, S/S, 3.25"; (EA/2/2)
|
|
30-062
|
LOCK NUT, S/S; (EA/4/4)
|
|
60-012
|
POWER SUPPLY ASSY, US, 115/36 VAC, 9 PRM, ADMXTRIO; (EA/1/1)
|
|
70-020
|
CABLE, ASSY, 4C/150', 2-14/2-16 AWG, FLT, BLUE, 9PRF, 1638; (EA/1/1)
|
|
80-002
|
TIE, PANDUIT, 7.4"; (EA/4/4)
|
|
80-011
|
P CLIP, 5/8", COATED, BLACK, 4,7,9 WIRE; (EA/2/2)
|
|
80-014
|
CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
|
|
80-016
|
CONNECTORS, 4 PIN, 1 MALE, 1 FEMALE; 19", BLACK; (EA/1/1)
|
|
80-017
|
TIE, PLT PANDUIT, MINI; (EA/2/2)
|
|
80-020
|
TIE, PLT PANDUIT, 6"; (EA/4/4)
|
|
80-024
|
TRANSMITTER , FCC STYLE, 4 BUTTON; (EA/1/1)
|
|
80-031
|
SK JUNCTION BOX, ADMXTRIO, 1-SKMS03; (EA/1/1)
|
|
80-037
|
SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
|
|
95-002
|
ROPE ASSY, 10', 5 FLOAT; ADMXTRIO; (EA/1/1)
|
