Commercial Pool Unblockable Cover 28" X 30"

Model CPP102008

Meets ALL ASME/ANSI A112.19.8 Standards for Field Fabricated Cover/Grate For Retrofit and Floor Installation Only.

Specs:

• 28" x 30" outside dimension
• 1.36 feet per second flow rate.
• 1.37 square foot open area.
• 450 gallons per minute
• For single or multiple drains.

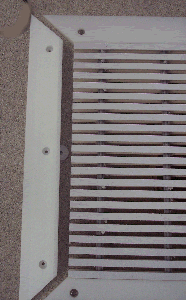

This cover, nicknamed "unblockable cover" technically is a field fabricated suction cover. By installing this cover (correctly) you meet all the Federal Virginia Graeme Baker Pool and Spa Safety Act, Section 1404(c)(1)(A)(i) requirements for the grate/cover. Pools must still comply with the sump requirements, which is a seperate issue from the field fabricated unblockable cover. With this cover you do not need a vacuum breaking device. This cover is listed on the US Consumer Product Safety Commission (CPSC) web site as approved manufacturers of ASME/ANSI Approved Drain Covers. As you can see by the photo, the cover has a 1" thick outside frame that is fastened into the concrete with 12 stainless steel anchors. The outside frame has a shallow pitch. 1" rise in 3.5", so vacuums won't get hung up on it and it will be comfortable for bathers to walk on. The cover comes with easy to follow instructions. The pool must be empty to install the cover. 1.36 feet per second flow rate. 1.37 square foot open area.The covers ASME specifications are:Field fabricated cover/grate for retrofit and floor drains only. For single or multiple drains. Maximum flow rate (sect. 2.3.1.7) is 450 gallons per minute
