How To Replace a Hayward DE Filter Pressure Gauge

WRITTEN BY:

  0 out of 5 stars on 0 ratings
(Click on a star to add your rating)

After use, the pressure gauge on your pool filter may be damaged to the point it is unreadable or inaccurate. This guide shows you how to replace the Pressure Gauge on a Hayward DE Filter.

Video

Step by Step

Top

Step 1

ORDER PARTS - Order a Pressure Gauge to have it on hand to replace the broken Pressure Gauge. If you want to match the pressure gauge to the one above with a dial, see "Pressure Gauge w/ Dial Hayward Oem Back Mount". The dial allows you to set the upper psi limit at which you should backwash your filter.

Step 2

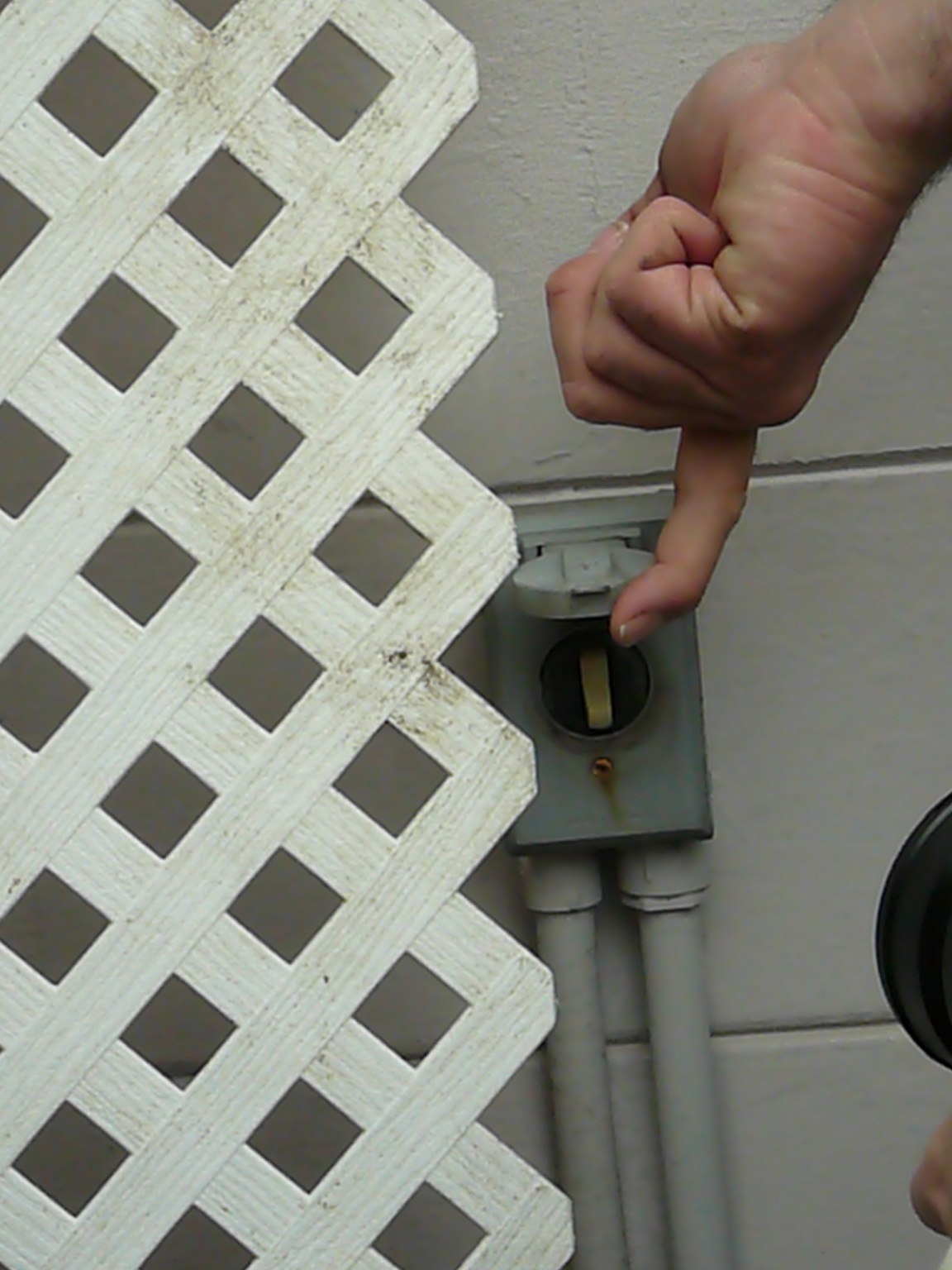

TURN OFF PUMP - Before you remove the broken Pressure Gauge make sure you TURN OFF the pool pump.  For maximum safety turn off the power at the circuit breaker to the pump.

Step 3

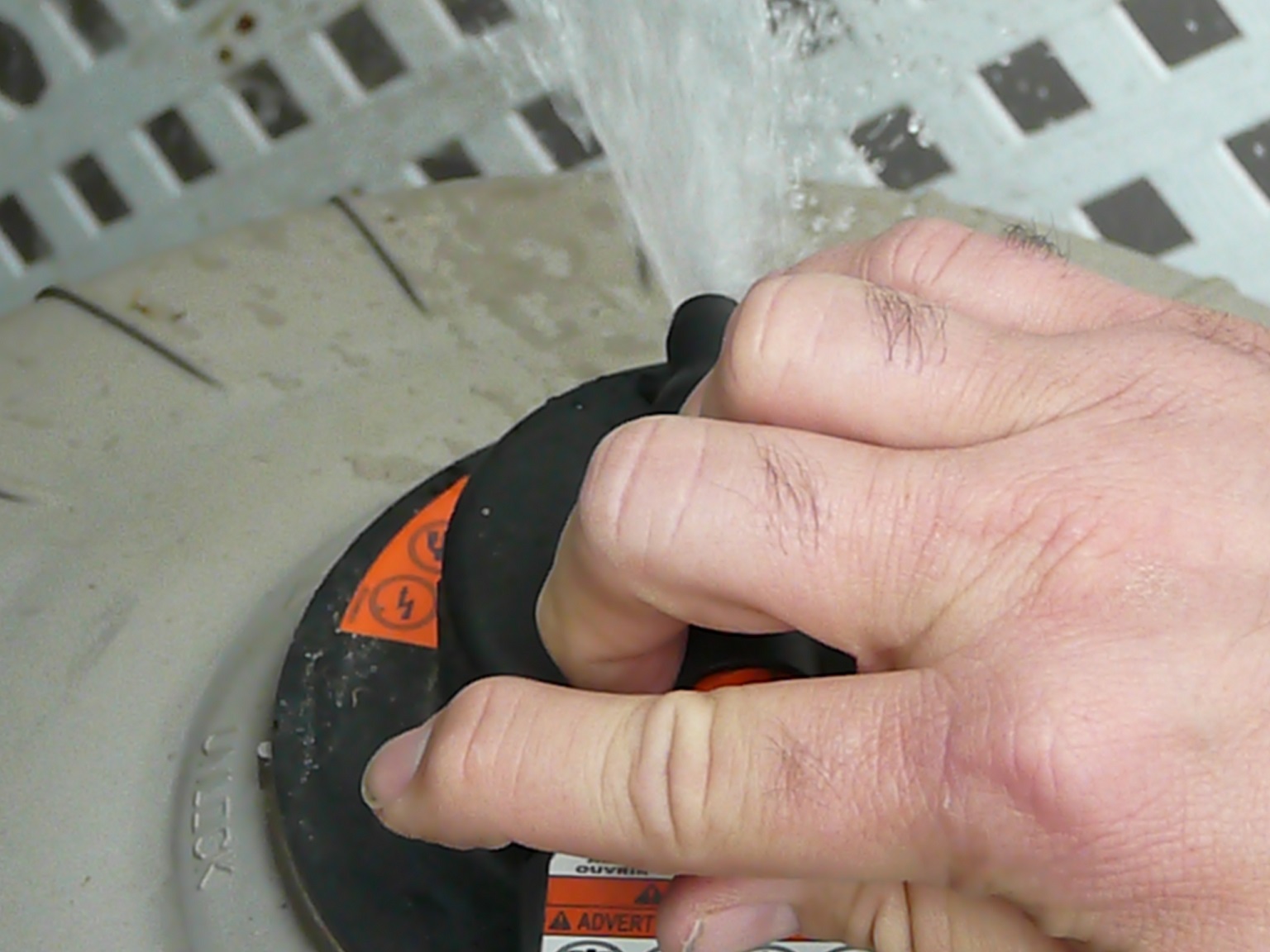

RELIEVE PRESSURE - Next you will have to relieve the pressure that builds up in the filter during operation. To relieve pressure turn the relief valve lever on top of the filter counter-clockwise. Water may spray out initially as you see the pressure on the pressure gauge go to 0 psi.

Step 4

REMOVE PRESSURE GAUGE - The Pressure Gauge is located on the end of the Air Relief Valve on the Hayward DE Filter. Twist the Gauge off in a counter-clockwise direction. If it does not turn easily, use an open end wrench on the brass nut at the base of the Gauge.

Step 5

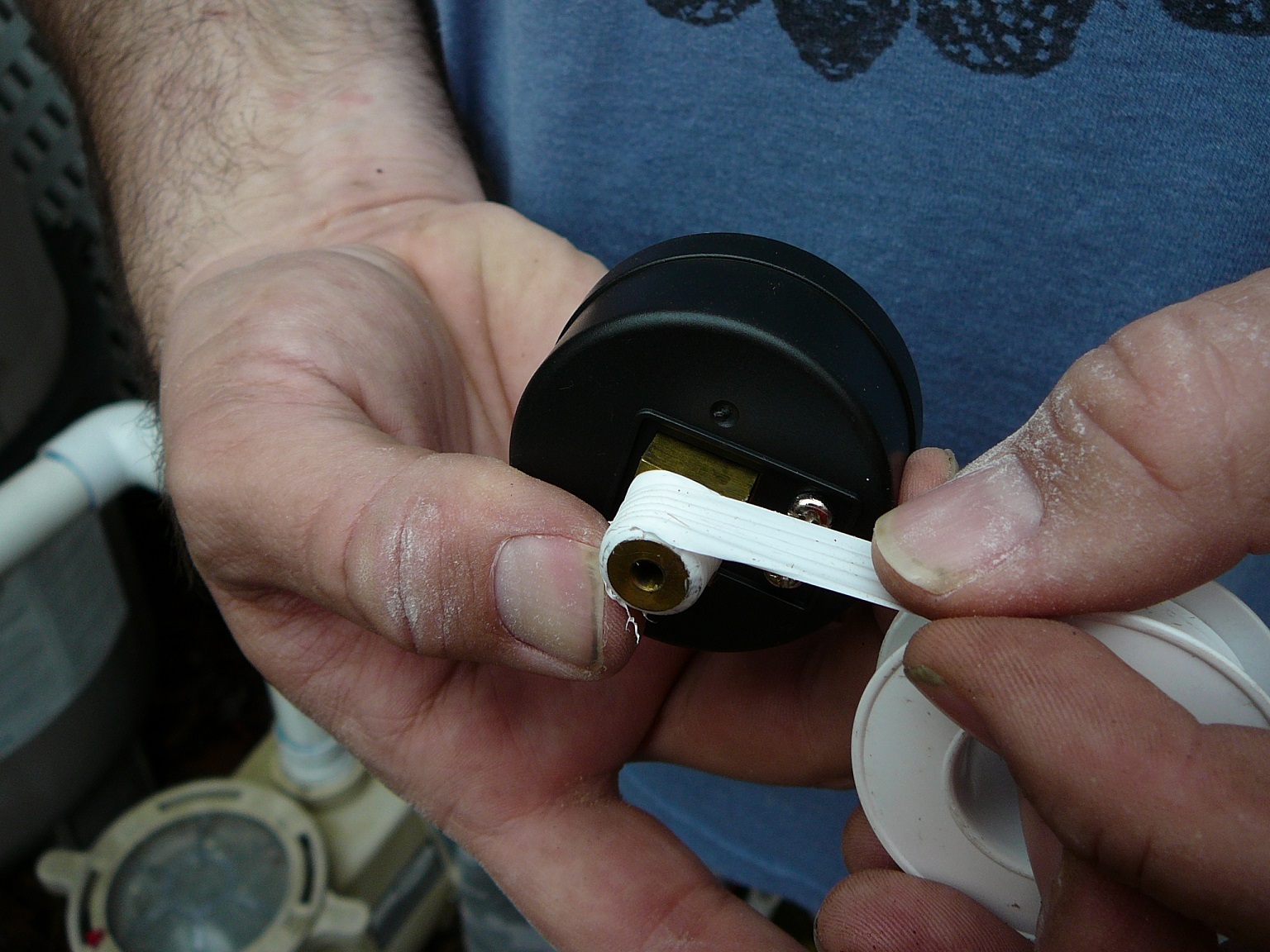

TAPE THREADS - Put 2-3 layers of plumber's Teflon tape on the threads of the new Pressure Gauge. Wrap the tape in a clockwise direction so it will stay on as you screw the Gauge on.

Step 6

SCREW ON PRESSURE GAUGE - Thread the Pressure Gauge into the Air Relief Valve in a clockwise direction. Use an open end wrench to tighten the last 1/2 turn. Do not over tighten.

Step 7

TURN ON PUMP - Turn ON the power to the pump at the breaker box.

Step 8

CLOSE RELIEF VALVE - When a steady stream of water shoots out of the Air Relief Valve, close the Valve.

Step 9

CHECK READING - Check the pressure reading on the Pressure Gauge. It should read about 10-15 psi.  When the pressure moves up to 10 psi or so higher, it is time to backwash your filter.
