Intermatic Control Panels with Timers

Intermatic Control Panels

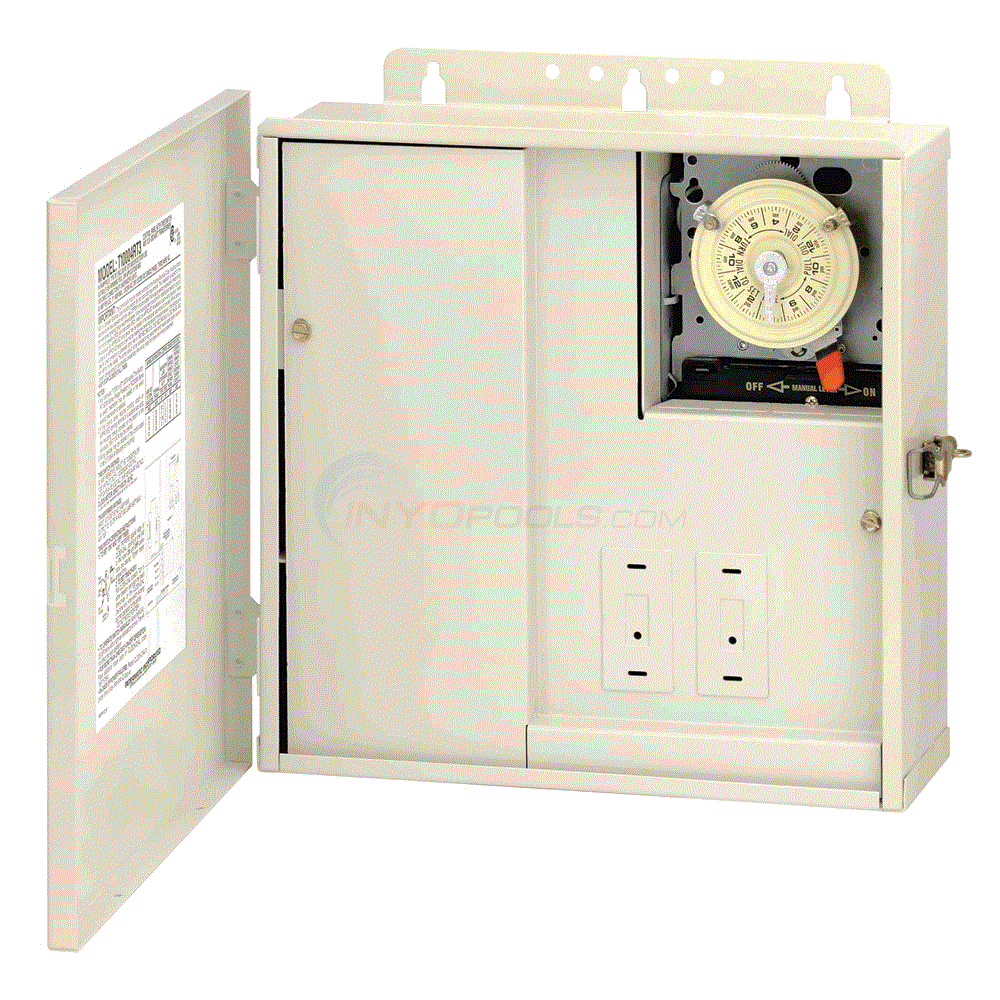

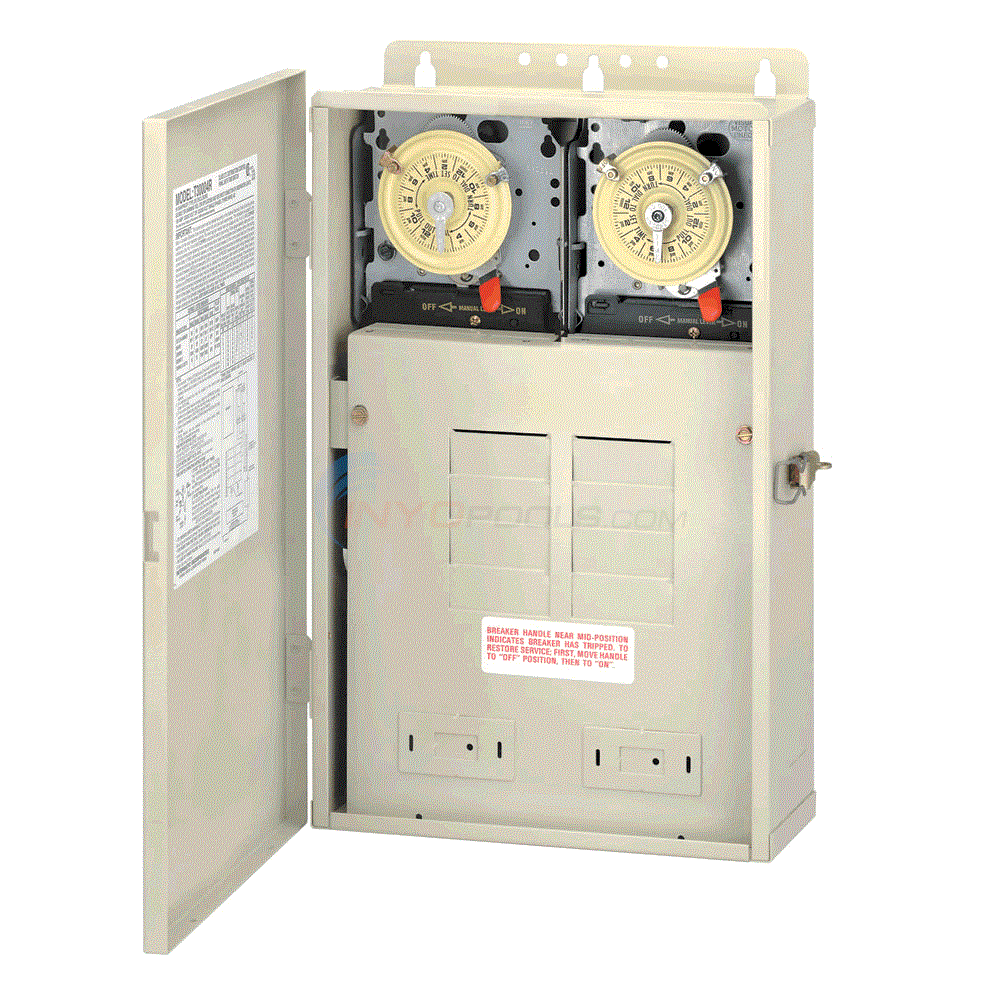

Intermatic's Control Centers reduce installation costs and provide all of the electrical requirements for any pool and/or spa installation. All Enclosures are now approved for direct underwater light connection "NO J-BOX REQUIRED" Intermatic Control Panels offer an all-in-one electrical control center which can be customer wired for a wide variety of requirements, eliminating the need for additional junction boxes and service panels. The enclosures are designed to accept any combination of T100M, P1353ME, RC2000M or PF1000M Series mechanisms.

Features

1. Pre-painted and offset mounting brackets (top and bottom) are assembled to the fully coated enclosure... for better rust protection. Full-length brackets allow easy installation to any flat surface, center post or conduit.
2. Accommodates conduit connection through the top.
3. Industry's most reliable time controls.
4. Choice of circuit breaker brands.
5. Molded plastic interior base for maximum insulation and reliability. (Reversible for top entry.)
6. Lockable hasp makes the rugged enclosure tamper proof.
7. Full dead front prevents accidental contact with live parts.
8. Numerous combination 1/2"-3/4" and 3/4"-1" knockouts on bottom, back, and sides provide wiring flexibility.
9. 1-3/4" x 2-3/4" rectangular knockout for mounting switches and GFCI receptacles.
10. Welded flanges.
11. Flanged sides for rigidity and better seal.
12. Heavy-duty plated steel with a durable electrostatically applied finish to resist corrosion.
13. Side-hinged door and riveted hinges... removable for ease of installation.
14. Large vinyl label provides easy-to-read wiring and replacement information... won't fade, wrinkle or peel.
