Details

Top

Model # IP11502

Product Description

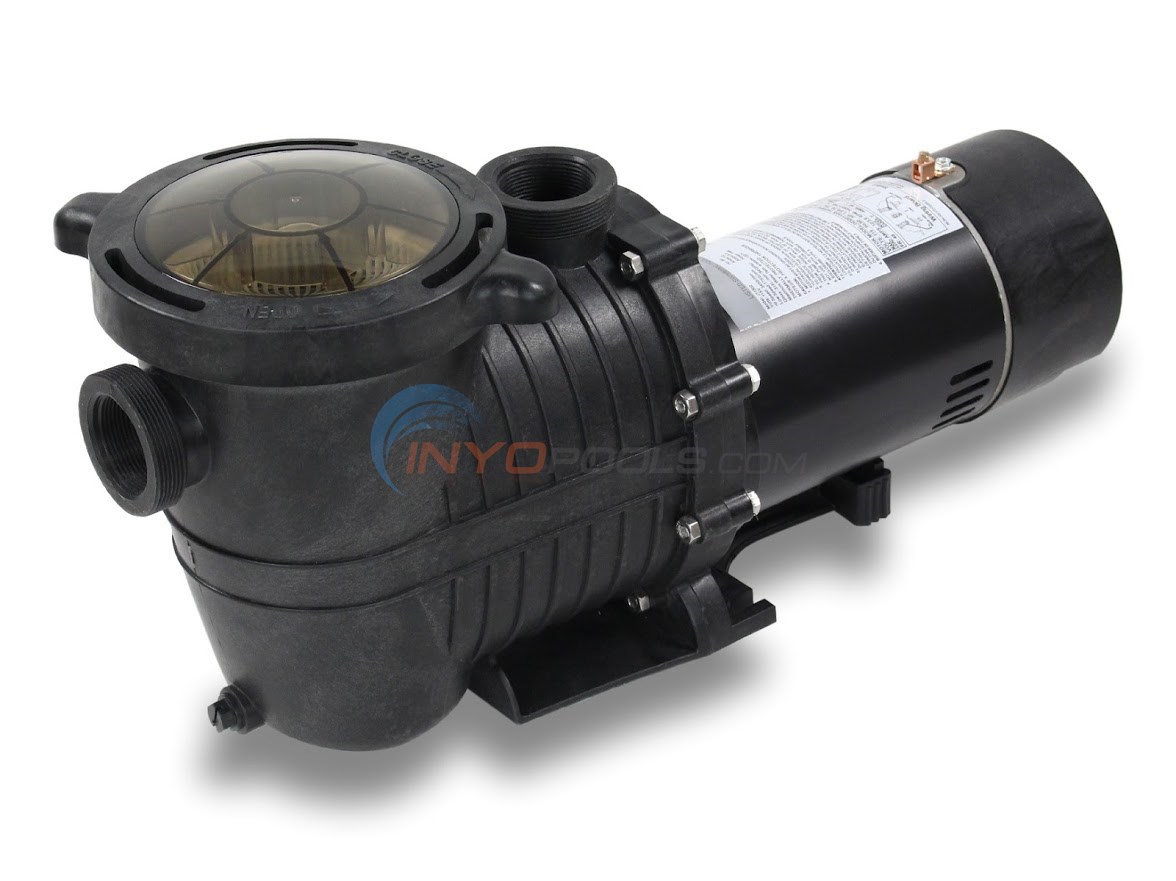

Reliance 1.5 Hp In Ground Dual Speed Pool Pump

Same Quality as Hayward, Pentair, Sta-Rite, Jandy, Jacuzzi & Waterway!

The Reliance line of self-priming pool pumps used advanced technology with high efficiency and minimized noise.

Click here for the Above Ground Pool Version of this Pump

Application

  • Swimming pools of all types and size (including in-floor cleaning systems, solar heating systems, water features or water garden)
  • In-ground spas or in-ground pool/spa combinations

Features

  • Self-priming (suction lift up to 6’ above water level)
  • Strainer basket cover removes easily for cleaning
  • Transparent strainer basket cover lets know when basket needs cleaning
  • All components molded of corrosion-proof reinforced thermoplastic for extra durability and long life
  • Drain plug for easy pump winterization
  • Mechanical seals are made from carborundum & graphite for long life and low noise
  • Motor shaft is stainless steel grade 304

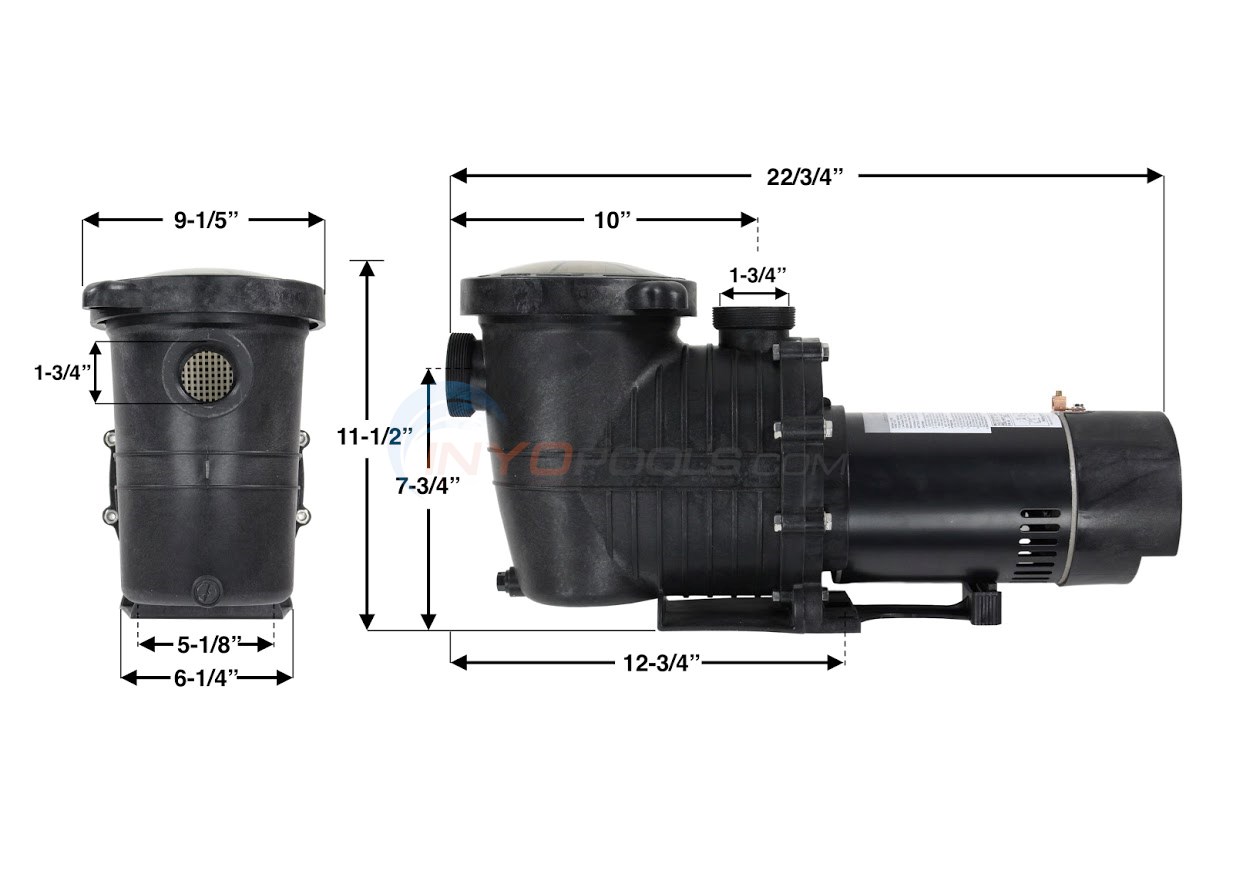

Dimensions

Pump Curve

Product Specifications

HP:
1.5 HP
Port Size:
1 1/2 in.
Speed:
Dual
Volts:
115 V
Top
Ask A Question

?     Asked on 11/25/2015by ronnie

How do u control the speed? Does it have a switch?
 Reply

A  Answered on 12/1/2015 by InyoPools Product Specialist Lennox H.

Hi Ronnie, This pump does not have a switch so you would have to connect it to a Dual Speed Timer (T106R) to alternate speed.
 Reply


?     Asked on 3/28/2016by Robbie

I have a pool that is 8ft deep and my current pump pulls water from the bottom and the skimmer then feeds it into a sand filter before the water is returned to the pool. The pool is about 17,000 gallons. Will this motor be a sufficient replacement?
 Reply

A  Answered on 3/28/2016 by InyoPools Product Specialist Hector F.

If this pump's gallons per minute rating falls in line with the gallons per minute rating that your filter can handle then yes it would be sufficient. Please refer to the pump curve on this pump's page on our site.
 Reply
