Part # 34-270-2004
Manufacturer Code 321JF10-1150
Product Description
Waterway Genesis Generation Energy Efficient Bath Pump 115 Volts w/Air Switch
Spa Pump Features:
- Center Discharge
- 1-1/2" intake and discharge
- 3' NEMA power cord
- Single Speed, 3450 RPM, 60 hz
- Dimensions: (H x W x L) 7-1/4" x 5-3/8" x 12-1/2"
There are two barbed fittings on the face of the pump for small lines, these come from the factory plug. If needed, they can be drilled out easily.

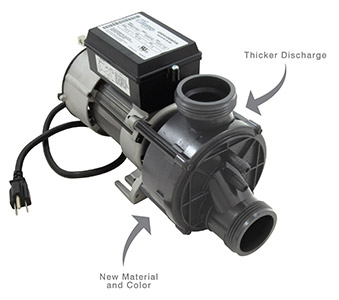

Waterway has made improvements to the Genesis Bath Pump:
- The discharge wall thickness of the volute has been made thicker to allow for greater consistencies in the molding process and to increase strength.
- Changed to a new highly engineered glass reinforced co-polymer material. This new material will be made in gray so that it is easily distinguishable from the older material. (This is the same material being used in our high-end pool pumps and filters).
Product Specifications
Model:
Genesis 321JF10-1150
Discharge Port:
1-1/2 in.
Discharge Location:
Center
Plumbing Port Type:
Male Buttress Thread (mbt)
