Model # MKIT1VS16

Hayward MaxFlo VS Motor Upgrade Kit - 1.65HP - MKIT1VS16

Name: Hayward MaxFlo VS Motor Upgrade Kit - 1.65HP - MKIT1VS16
SKU: MKIT1VS16
Price: 685.52 USD
Availability: InStock

Hayward MaxFlo VS Motor Upgrade Kit - 1.65HP - MKIT1VS16

$685.52

Qty:

IN STOCK

FREE SHIPPING

ADD TO CART

OR

CHAT WITH US

IN STOCK

FREE SHIPPING

Details Q&A: Ask a Question Q&A: See Answers(3) Customer Reviews(0) Documents(2) Parts(1)

Model # MKIT1VS16

Questions? Ask Our Experts

Live Chat: Chat Now

Details

Top

Model # MKIT1VS16

Alternate Part #'s AOSEVC165, EVC165, MGT-60-4054

Product Description

Hayward MaxFlo Variable Speed Motor Upgrade Kit

This upgrade kit will convert a Hayward MaxFlo into a 1.65HP variable speed pump. We've packaged the correct sized impeller to ensure maximum efficiency and a heavy-duty shaft seal for ultimate durability. *Requires a Timer or Automation System for the on/off feature, it does not provide full functionality with automation systems.

Upgrade Kit Includes:

Century 1.65HP Variable Speed Motor

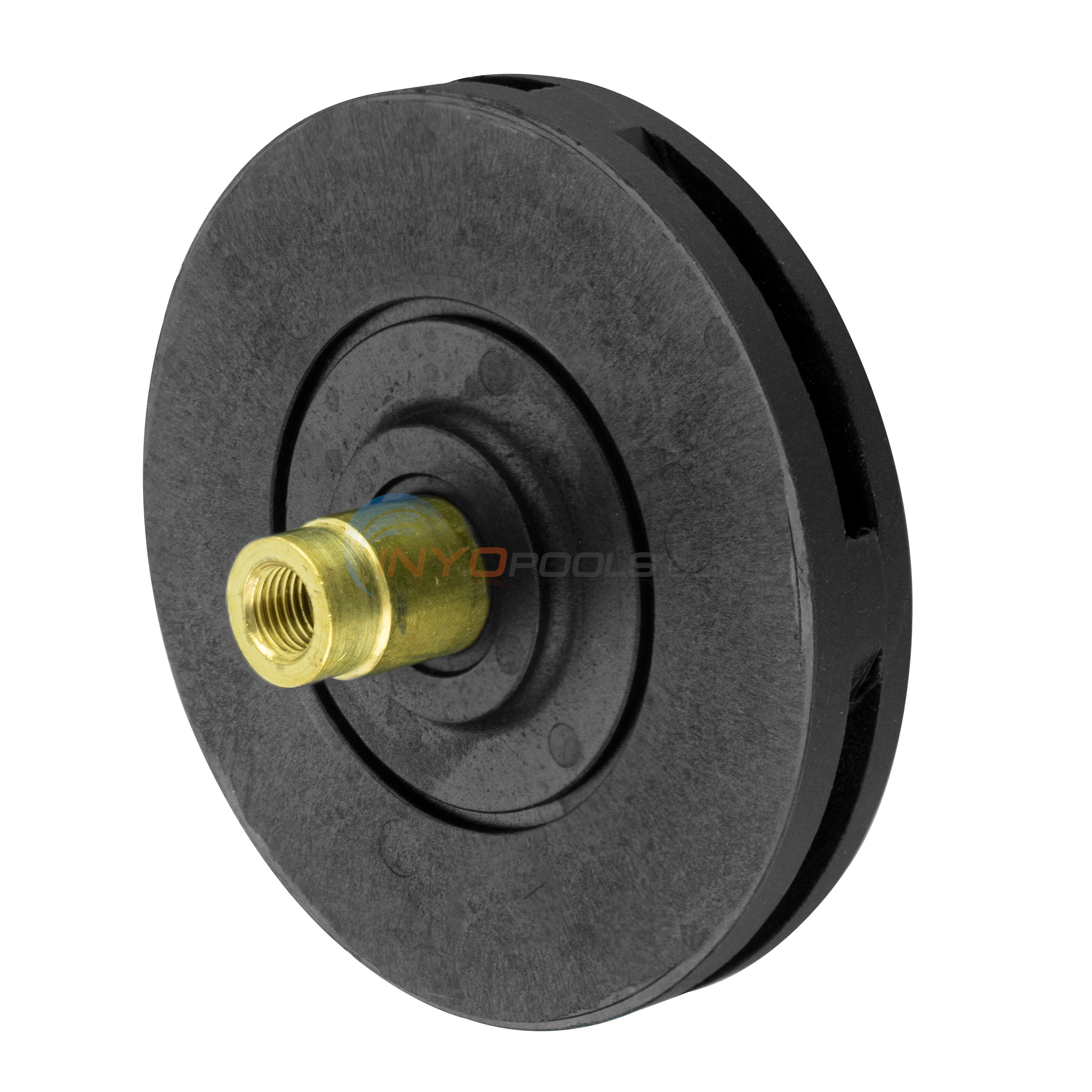

1.5THP Impeller (For MaxFlo Models Manufactured Since 1984)

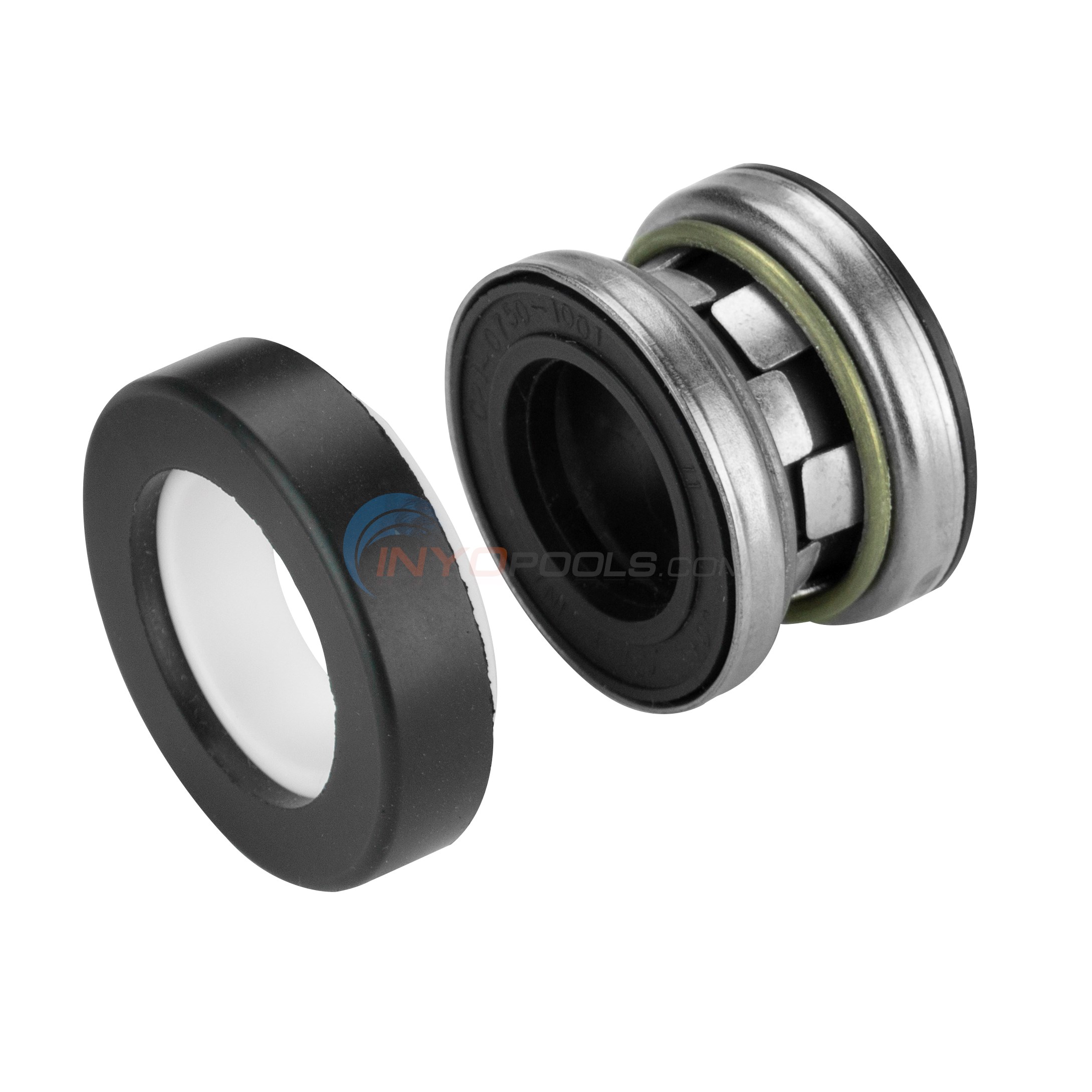

Heavy-Duty Shaft Seal (Suitable for Saltwater Pool)

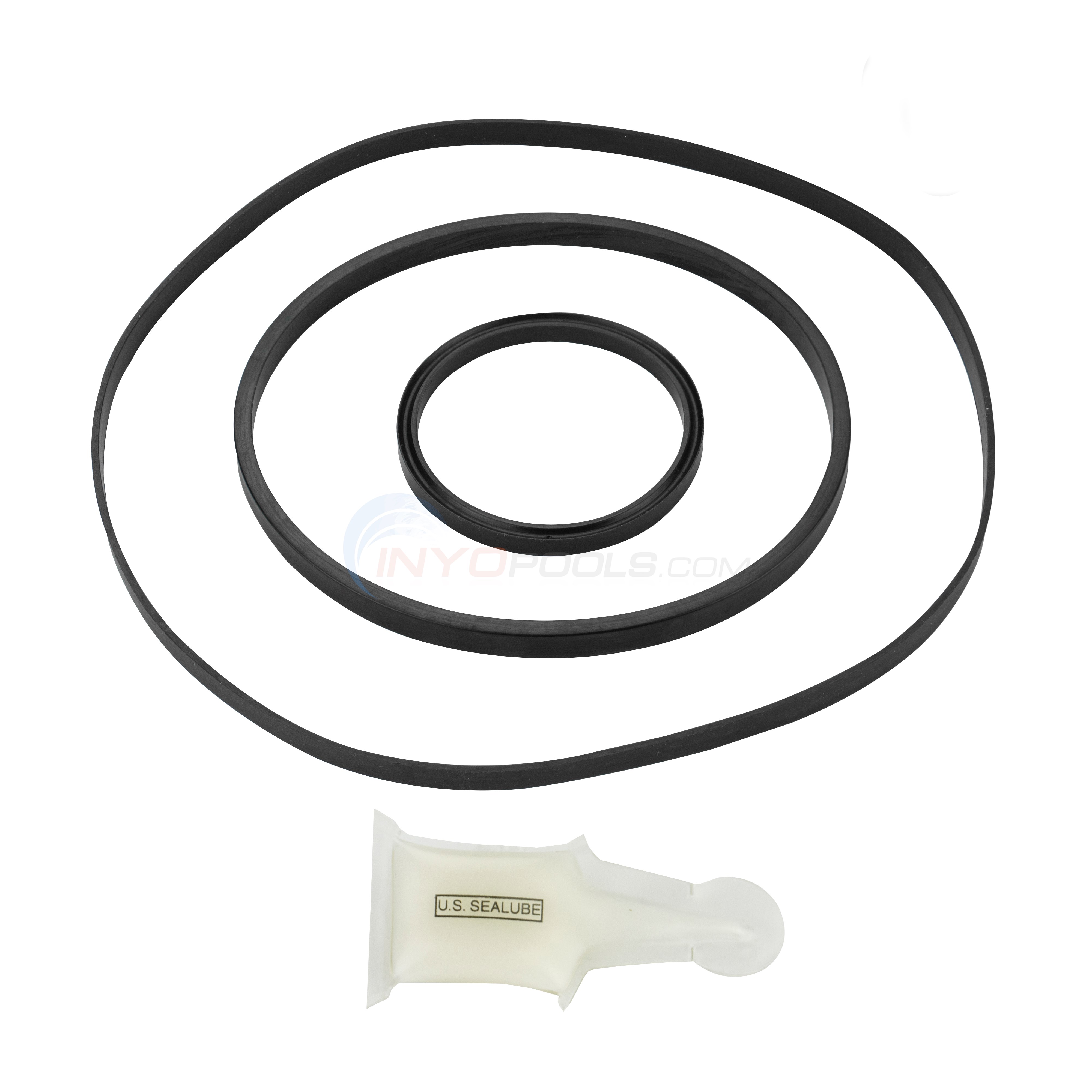

Housing Gasket
Diffuser Gasket
Lid O-Ring
Lube Pillow Pack

THP	RPM	VOLTS	AMPS	SERVICE FACTORS	FLANGE	VGREEN EVO™ MOTOR STOCK NUMBER
1.65*	600-3450	230/115	10.5/17.7	1.0	C-Face	EVC165
2.25*	600-3450	230/115	13.5/17.4	1.0	C-Face	EVC225
*When motor is running at 115VAC the total horsepower is 1.65 THP.

Product Specifications

Volts:

115/230 V

HP:

1.65 HP

Speed:

Variable

Total HP:

1.65 HP

Q&A (3)

Top

Ask A Question

? Asked on 5/25/2022by Kari

Does this motor come with a build in timer to automatically change the run time at different speeds or do I need to buy a separate gray box timer sort of thing? I'm looking to replace my Hayward 1607-z-1-MX single speed pump.
Reply

A Answered on 5/25/2022 by InyoPools Product Specialist Craig C.

Hello Kari. The Hayward MaxFlo VS Upgrade Kit MKIT1VS16 features the Century Motors V-Green 165 Variable Speed Motor. The V-Green 165 Motor is user programmed (pump speed and duration) to operate on a 24-hour cycle. The use of an external timer is not necessary. Attached please find the V-Green 165 User Manual for reference. Please note Section 3, Quick Start Instruction, page 5.
Reply

? Asked on 9/8/2022by Emiliano

Hello, I have a Hayward MAX-FLO XL (model# SP2310X15). Is this kit compatible? Thanks! Emiliano
Reply

A Answered on 9/8/2022 by InyoPools Product Specialist Craig C.

Hello Emiliano. The Hayward MaxFlo VS Motor Upgrade Kit MKIT1VS16 is NOT compatible with the Hayward MaxFlo XL model SP2310X15. The V-Green 1.65 HP Square Flange 48Y Variable Speed Motor - ECM16SQU in conjunction with the Pump Shaft Seal, Seal Plate O-Ring, and Diffuser O-Ring are the parts required to upgrade Hayward MaxFlo XL SP2310X15 to a variable speed pump. An impeller change is not necessary for this conversion. Attached please find the Hayward MaxFlo XL SP2300X Series exploded parts diagram for reference.
Reply
