Model # 600-7200-CPVC

Dimensions 6.5" L x 6" W x 6" D

Alternate Part #'s 25913-154-000

Product Description

CLEARANCE Item! - Order Today and Save Big!!

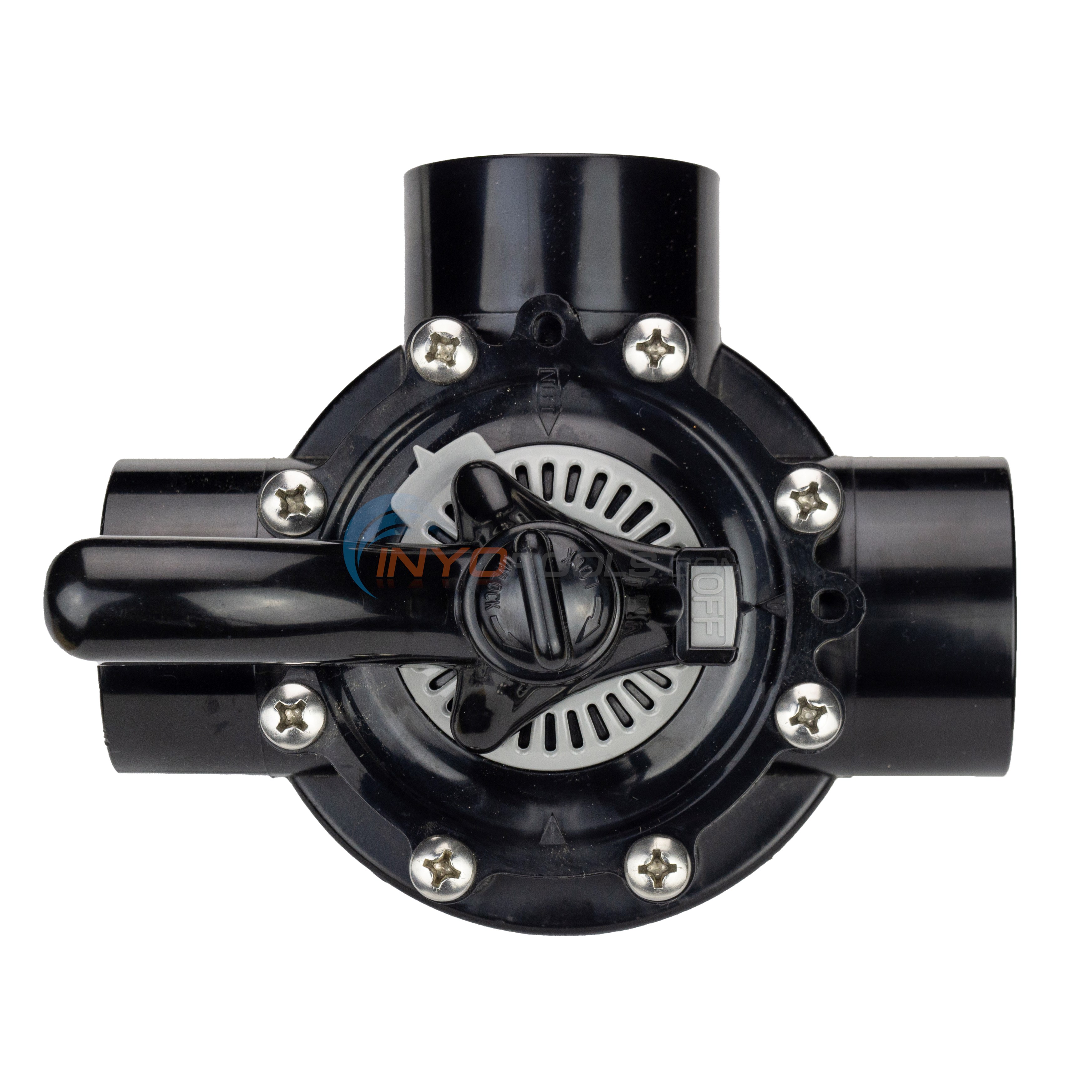

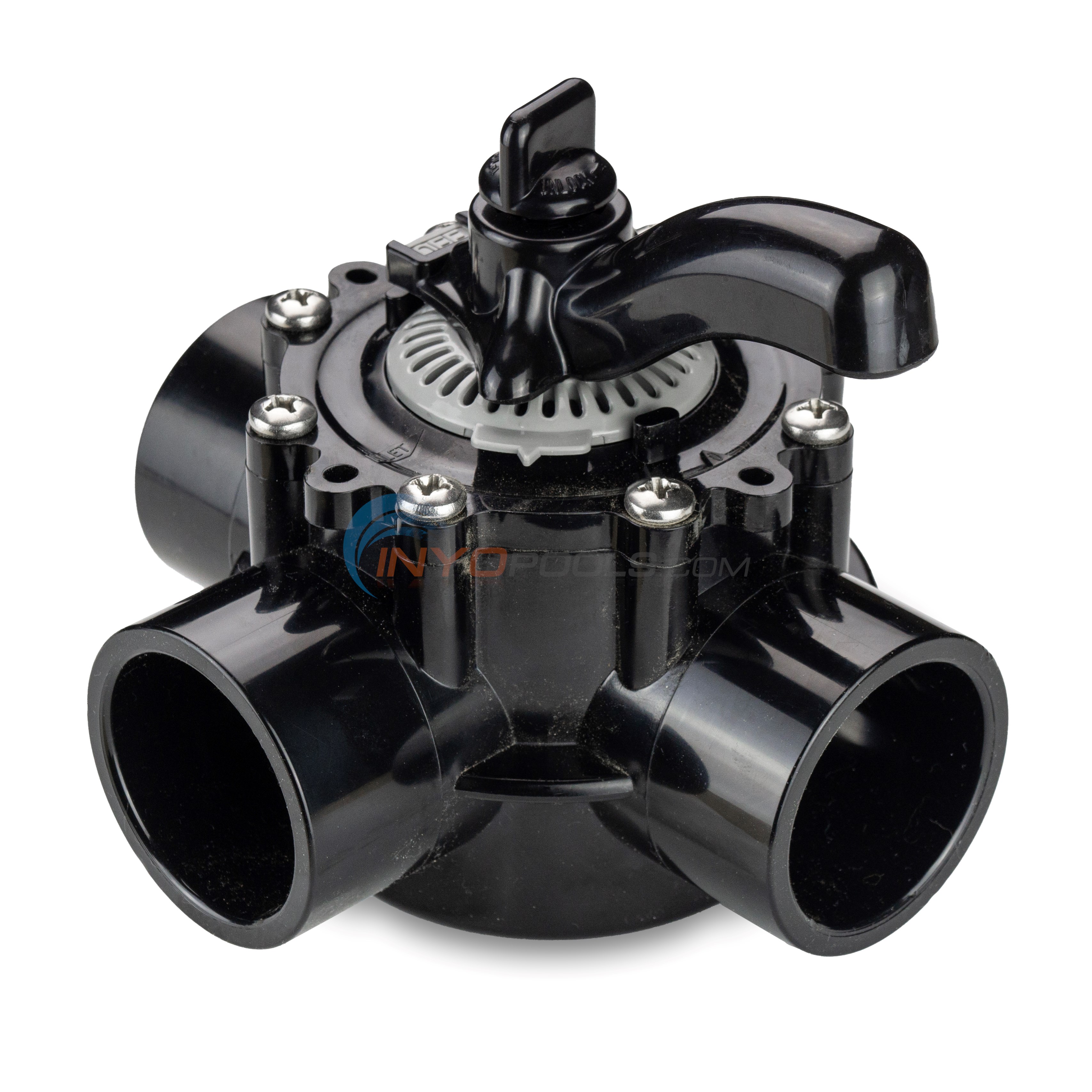

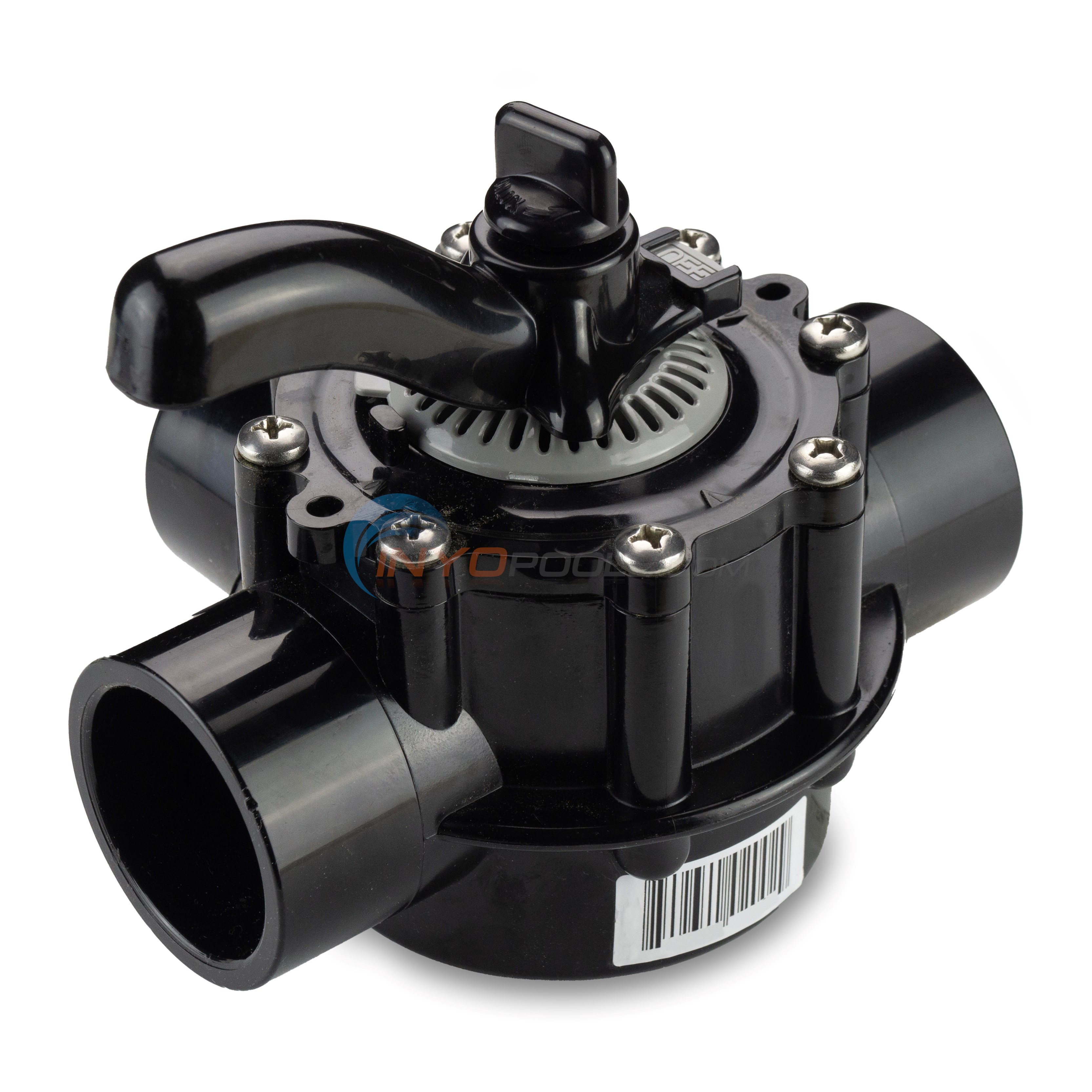

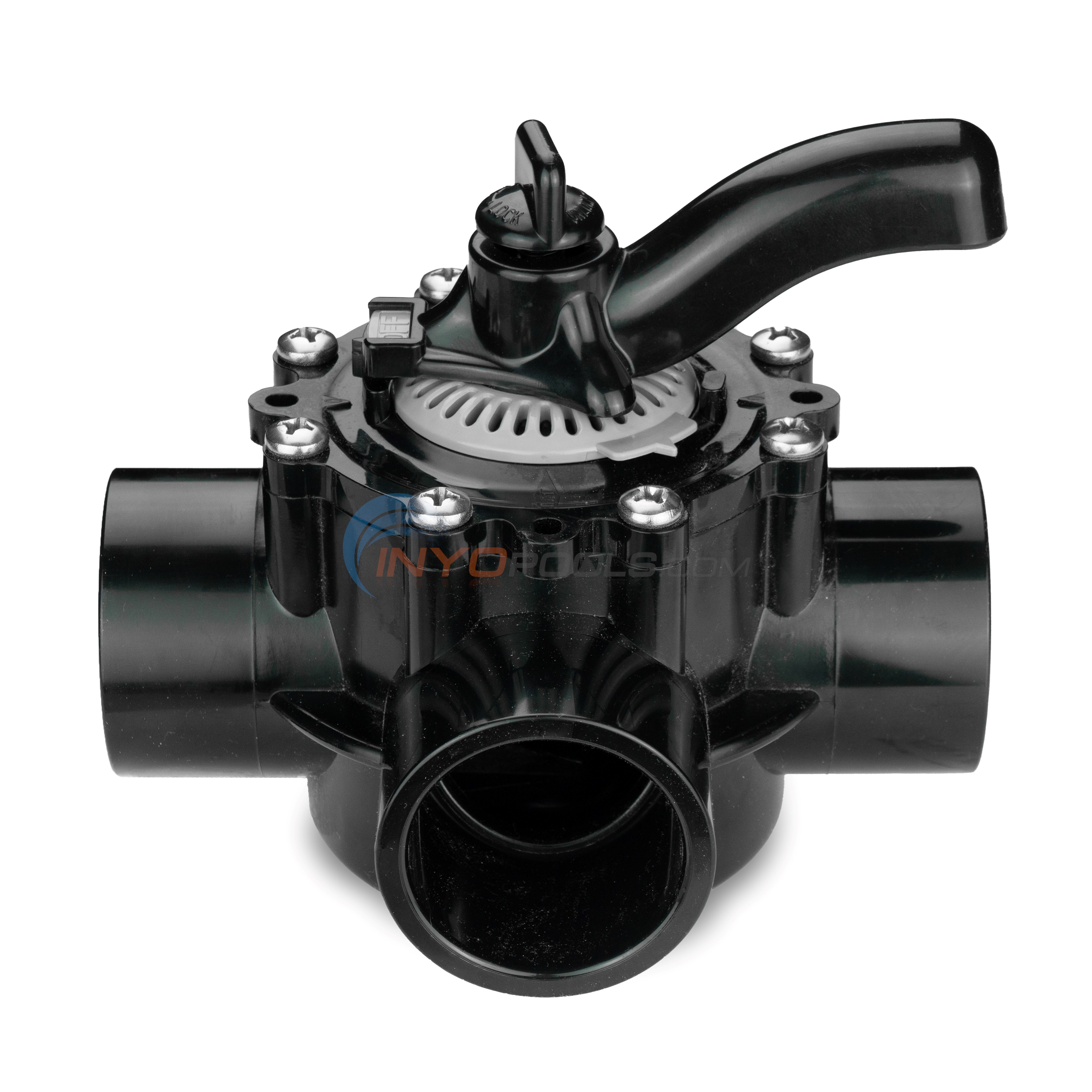

Waterway TruSeal Diverter Valve - Comparable to Jandy Neverlube valve but at half the price!

  • The diverter valve seal is Teflon laminated silicone. A unique manufacturing process is used called TruSeal - which results in a seal that never needs lubrication.
  • TruSeal valves have deeper sockets than other valves providing better glue joint bonding.
  • The exclusive click & lock handle has 72 locking positions / points for virtually any setting desired.
  • Exclusive flow labels gives your plumbing a "finished" look and more value.
  • Universal shaft spline pattern adapts to most actuators.
  • Maximum Pressure 100psi
  • TruSeal Diverter valves are made in the USA.
  • Valve Seal Lifetime manufacturer's warranty

Additional Information:

  • 1.5" ID Socket x 1.5" ID Socket x 1.5" ID Socket
  • Also has 2" Spigot connections
  • Water in bottom out both sides
  • Water in bottom right side closed
  • Water in bottom left side closed
  • 72 locking positions / points for virtually any setting desired.

Product Specifications

Inside Diameter:
1 1/2 in.
Valve:
3 Way
Outside Diameter:
2 in.
Top

?     Asked on 5/18/2021by Jared Bachman

Can this valve be rotated so that the input is one of the “straight” sides and the outputs are then straight and 90 degrees to the right?
 Reply

A  Answered on 5/18/2021 by InyoPools Product Specialist Danny R.

Yes, that will work assuming you plumb it that way.
 Reply


?     Asked on 8/2/2021by habib i

can the 2 straight pipe be in flow and out flow 100% and the "t" be restricted? i will be using the "t" pipe for an inline chlorinator hc-pentair 3351
 Reply

A  Answered on 8/3/2021 by InyoPools Product Specialist Craig C.

Hello Habib.  Yes, the 1.5" 3 Way Diverter Valve can be aligned in the configuration expressed in your communication.  The valve handle has 72 locking positions that provide the flexibility required for this installation.
 Reply
