Part # 7511

5 Average

CMP HydroSeal Check Valve, 90 Degree, 1-1/2" Slip Inside, 2" Slip Outside, 2 LB Spring, 25830-764-000 - 7511

Name: CMP HydroSeal Check Valve, 90 Degree, 1-1/2&quot; Slip Inside, 2&quot; Slip Outside, 2 LB Spring, 25830-764-000 - 7511
Brand: Custom Molded Products
SKU: 7511
Price: 55.89 USD
Availability: InStock
Rating: 5 (1 reviews)

Custom Molded Products CMP HydroSeal Check Valve, 90 Degree, 1-1/2" Slip Inside, 2" Slip Outside, 2 LB Spring, 25830-764-000 - 7511

CMP HydroSeal Check Valve, 90 Degree, 1-1/2" Slip Inside, 2" Slip Outside, 2 LB Spring, 25830-764-000 - 7511

$55.89

Qty:

IN STOCK

ADD TO CART

OR

CHAT WITH US

IN STOCK

Details Q&A: Ask a Question Q&A: See Answers(4) Customer Reviews(0) Parts(1) How To's(1)

Part # 7511

By Custom Molded Products

5 Average

Questions? Ask Our Experts

Live Chat: Chat Now

Details

Top

Part # 7511

Alternate Part #'s 25830-764-000, 26-295-1206

Product Description

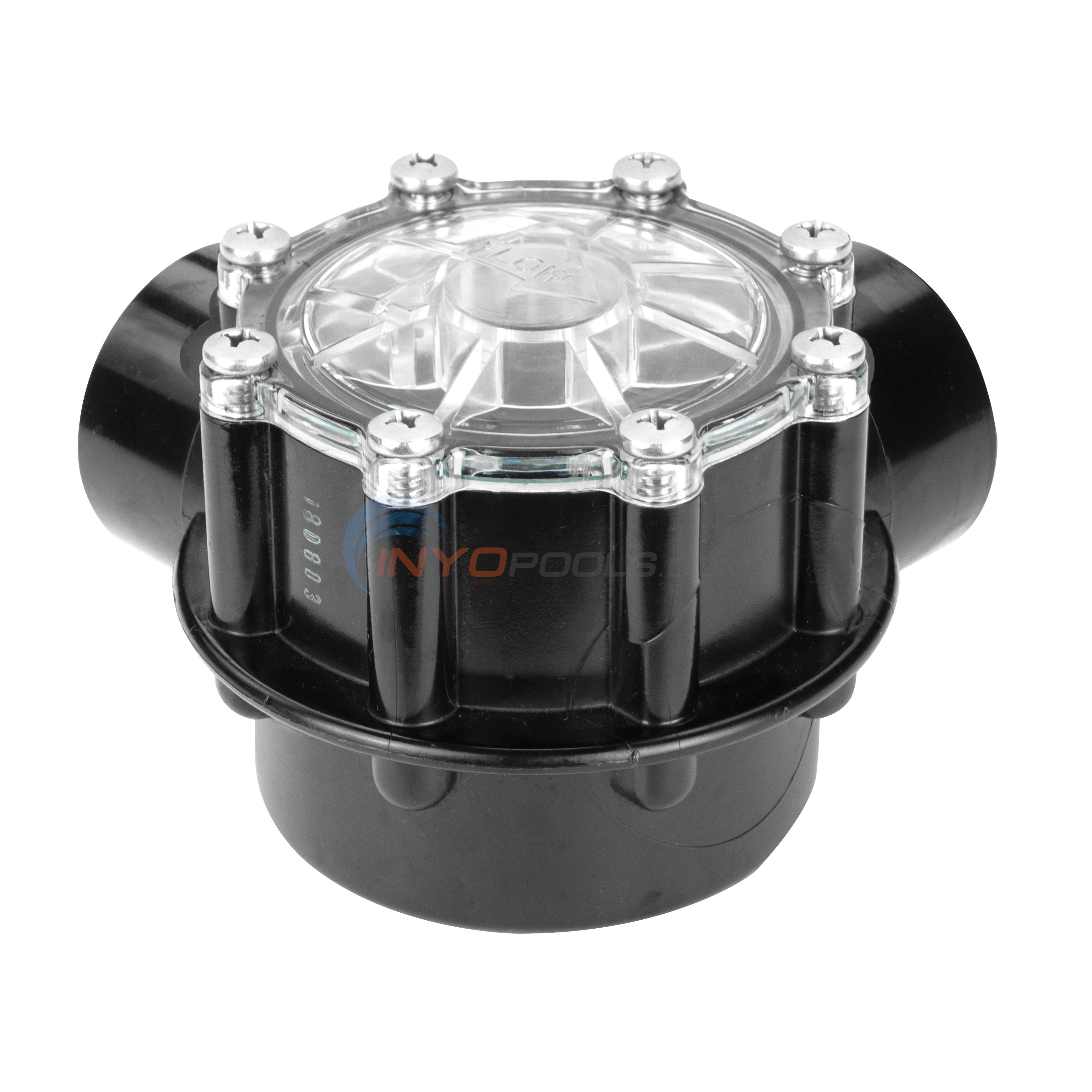

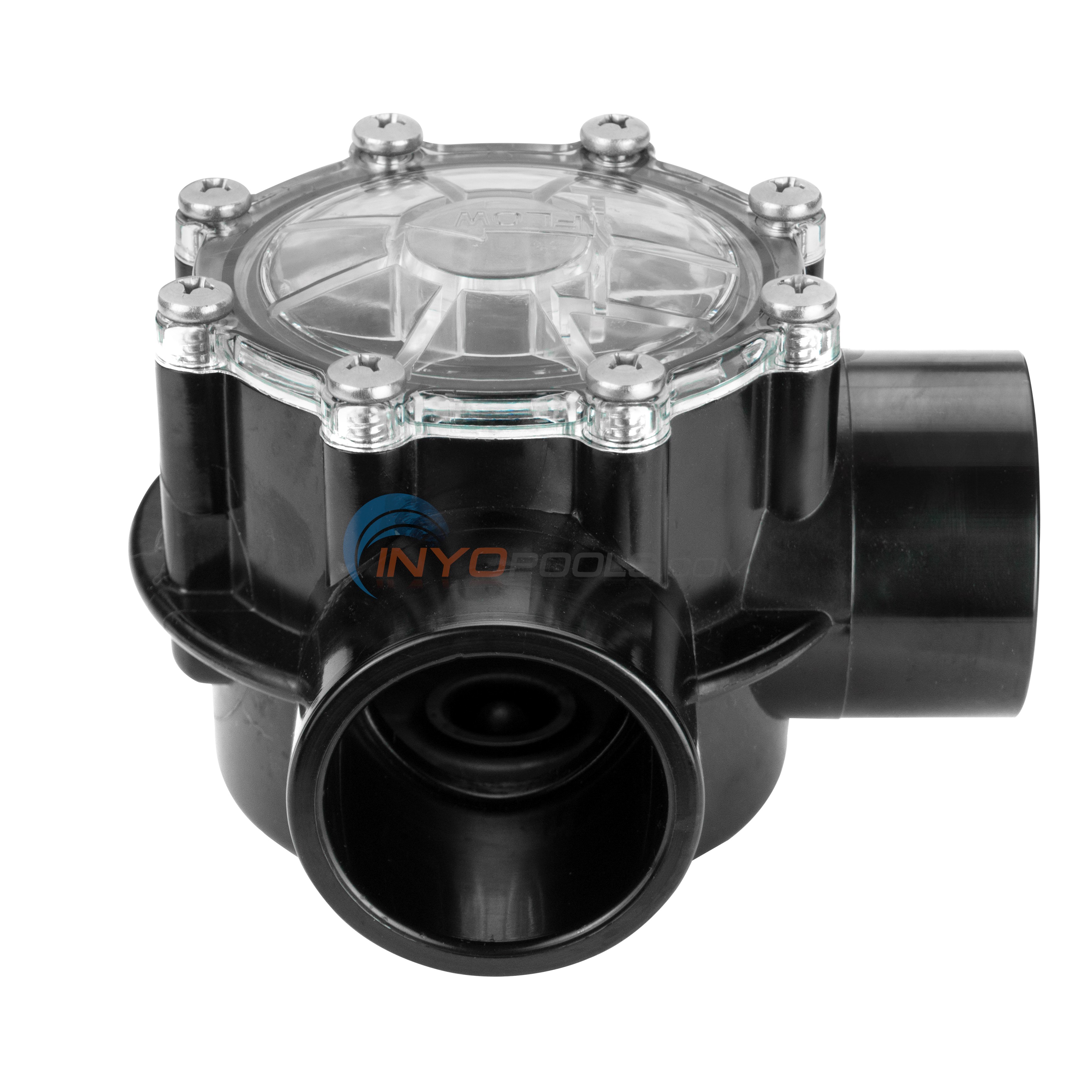

Jandy Check Valves are constructed of the same tough CPVC material used on the NeverLube. Our Jandy Check Valve’s clear lid and red seal plate let you easily see and access debris. It features a unique swing/spring design for both return and intake water. The diverter swings completely open with minimal back pressure and no water turbulence.

Jandy Check Valves Feature:

Minimal hydraulic loss

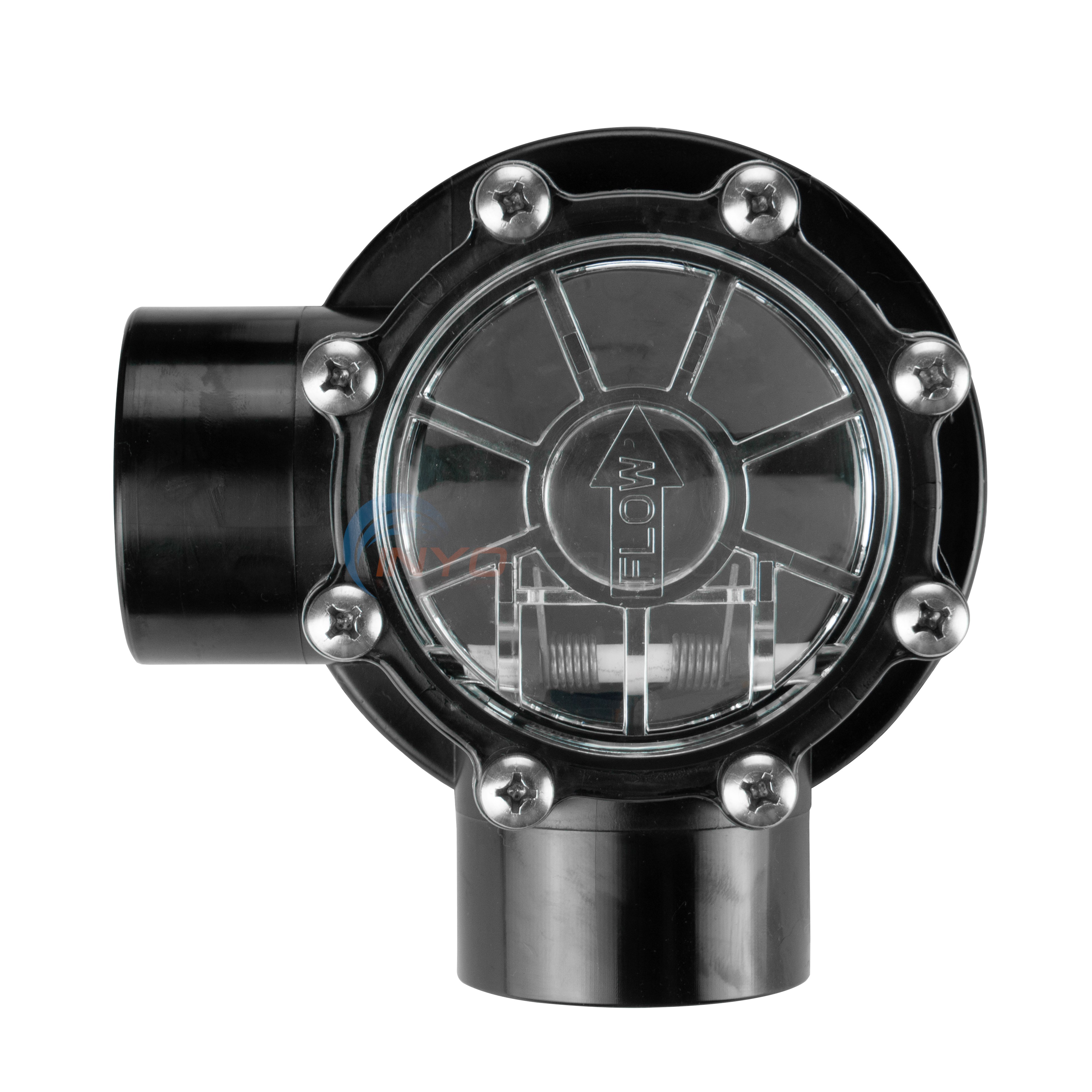

Clear lid for easy inspection
Easy to disassemble when clearing debris
Jandy Check Valves are available in straight-through and 90°
Corrosion resistant stainless steel swing
Highly resistant to Chlorine

Click here for more Jandy Check Valves

Note: We may ship Jandy or CMP version of this valve based on availability

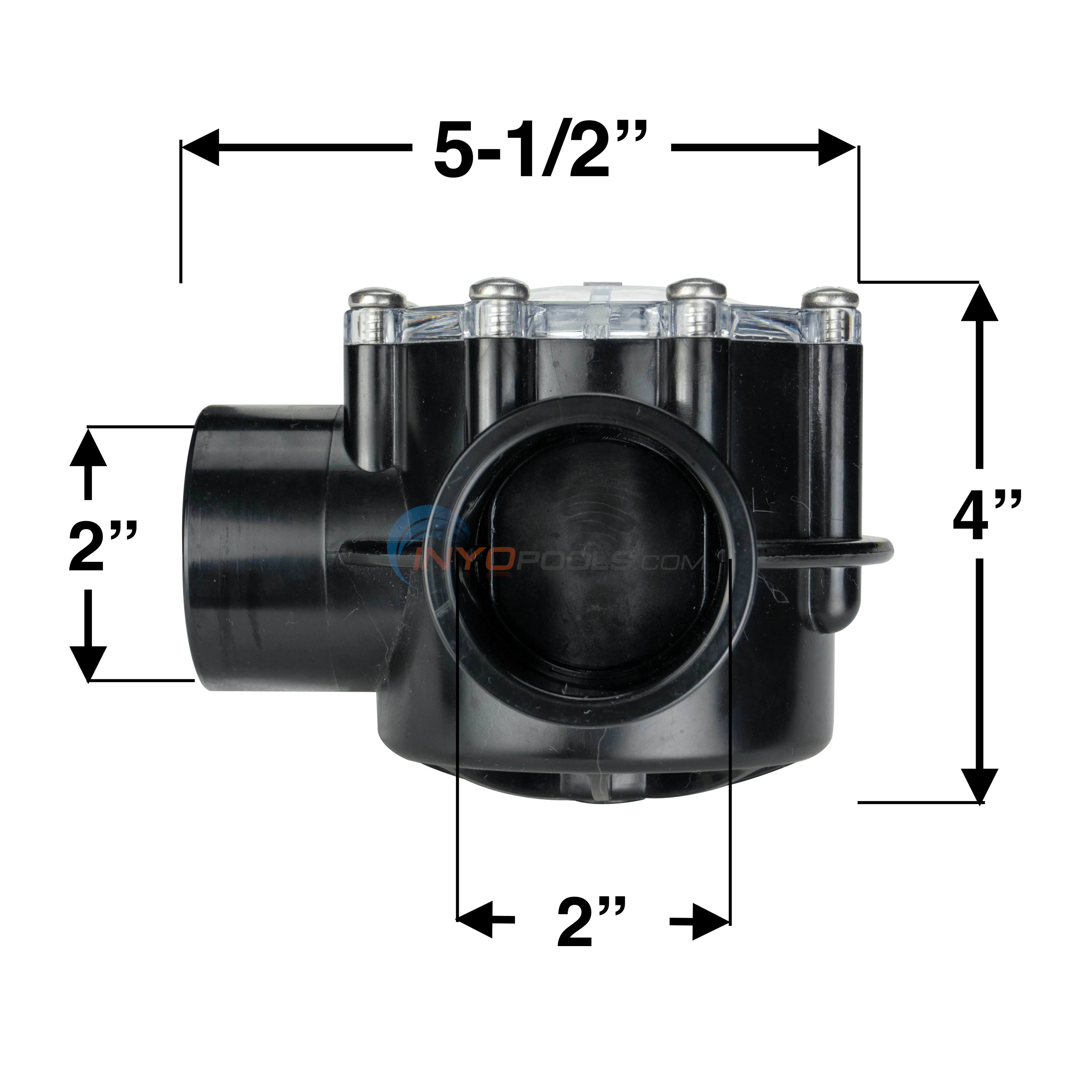

Product Specifications

Inside Diameter:

1 1/2 in.

Outside Diameter:

2 in.

Degree:

Q&A (4)

Top

Ask A Question

? Asked on 2/13/2012by Guest

Can this valve be mounted vertically?
Reply

A Answered on 2/13/2012 by InyoPools Product Specialist Patrick P.

Yes, the valve can be mounted vertically. The flow of the water must be moving up. The flow of the water cannot be moving down.
Reply

? Asked on 6/25/2015by Jim

You say the water cannot be moving down. What does that mean? My water would be coming horizontally into the check valve and then turning down back to the spa
Reply

A Answered on 6/27/2015 by InyoPools Product Specialist Lennox H.

Hi Jim, The Flapper Style Check Valve is for vertical flow, you will need to get a Spring Style Check Valve for horizontal water flow.
Reply

? Asked on 3/21/2016by Inyo Visitor

I plan to mount this so the water will enter the valve horizontally and exit the valve vertically going upwards. Is a flap valve appropriate in this setting? What is the water enter horizontally and exits vertically going downwards? Would I need a spring valve for this? Thanks.
Reply
