$235.17

Qty:

By Pentair Pool Products


Details

Top

Part # 4686-20

Manufacturer Code 27002-0100S

Dimensions 13" X 18.25"

Alternate Part #'s 270020100S, AT63100, STA05246, 17-102-1225, PEN270020100S

Product Description

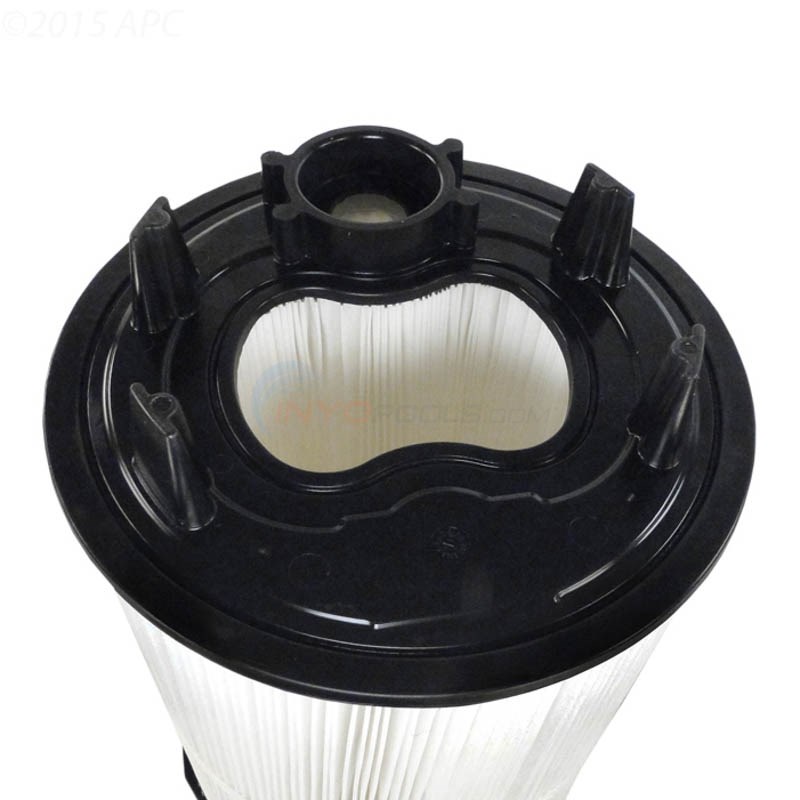

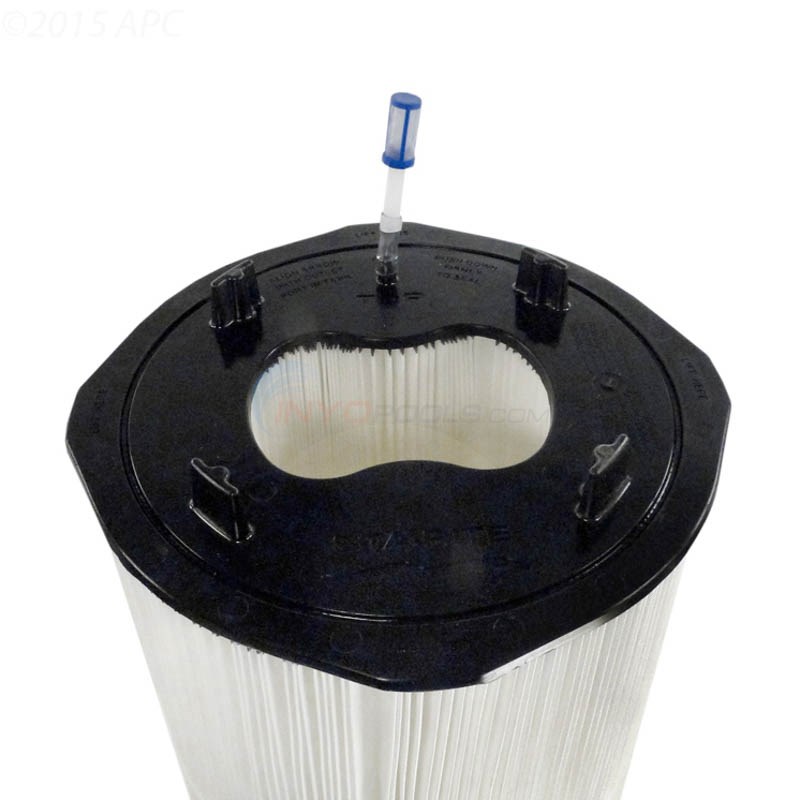

PLEATS: 217 DIAMETER: 13" (ROUND PART ONLY) TOP HOLE: FIGURE 8 SHAPE 6-1/4" x max 4-1/2" BOTTOM HOLE: SAME AS TOP, AND THERE IS ALSO A BODY ONLY HEIGHT: 18-3/8" . ROUND HOLE 1-9/16" DIAMTER ON THE SIDE TOTAL HEIGHT: 21-1/4" THIS CARTRIDGE INCLUDES AIR BLEED ASS'Y, MFG# 24800-0121. FITS SYSTEM 3 MODULAR MEDIA FILTER MODEL PLM100 MOD MEDIA, MFG# 27002-0100S PLEAT COUNT: 217

Product Specifications

Filter Model:
PLM100 System:2
Diameter:
13 in.
Length:
18 - 1/4 in.
Top Style:
Open
Bottom Style:
Open
Filtration Area:
100 sq. ft.
OEM #:
27002-0100S
Top

?     Asked on 6/28/2016by Daniel Stedfast

will this cartridge fit an Aqua Tools filter model # AT8230?
 Reply

A  Answered on 7/4/2016 by InyoPools Product Specialist Lennox H.

Hi Daniel, The PLM100 Module can fit into the AT8230 which will convert it to a cartridge filter.
 Reply


?     Asked on 9/4/2018by Rein

I see anywhere from $103 on up for this filter. Why are the prices so different? Are their different makers for the same part number?
 Reply

A  Answered on 9/4/2018 by InyoPools Product Specialist Hector F.

You may come across different prices for the same model filter because there are indeed multiple manufacturers of the same filter. Some are aftermarket generic types and then there are the original Sta-Rite versions.
 Reply


?     Asked on 7/30/2019by John J Byrnes Jr

can I clean the filter, and when should I replace it. Thanks
 Reply

A  Answered on 7/31/2019 by InyoPools Product Specialist Matt S.

Hello - yes, the cartridge can be cleaned with a hose. Here's a guide on how to do so: How To Clean a Pool Cartridge Filter. The cartridge should be replaced when hosing off or chemically soaking the cartridge no longer lowers the PSI reading on your pressure gauge.
 Reply


?     Asked on 8/6/2019by Steve Ethier

I might need this filter soon. What O-ring do I need to get for this filter? Thank you.
 Reply

A  Answered on 8/6/2019 by InyoPools Product Specialist Michelle B.

Hello, This cartridge goes to 3 different filters. Can you please confirm the model number of your filter so I can look into this for you?
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

Dirty filter

Written on 4/8/2022 by Guest

Removed cover and placed new filter in. Price was very reasonable compared to others.
