$13.44

Qty:

By Custom Molded Products


Details

Top

Part # 3260-A020

Manufacturer Code A20

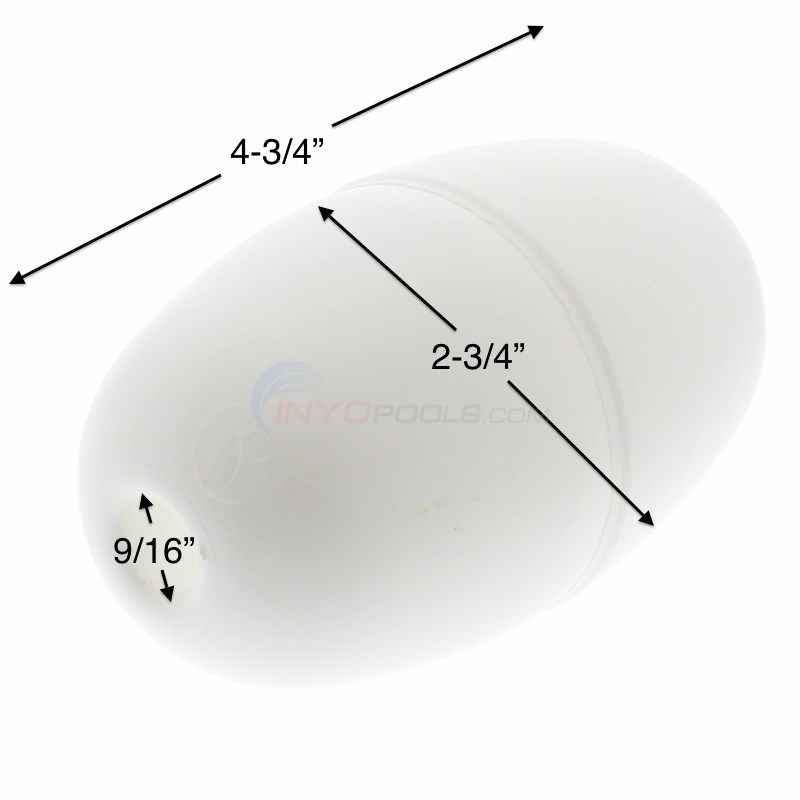

Dimensions 4.77" L x 2.8" W x 2.8" D

Alternate Part #'s 181046, A20, EA20, LA20, LET2012055, LLA20, POL2013223, R181046, 25563-120-000, 87-104-1025, PLSA20, POL-201-3223, PVA20, ZODA20

Product Description

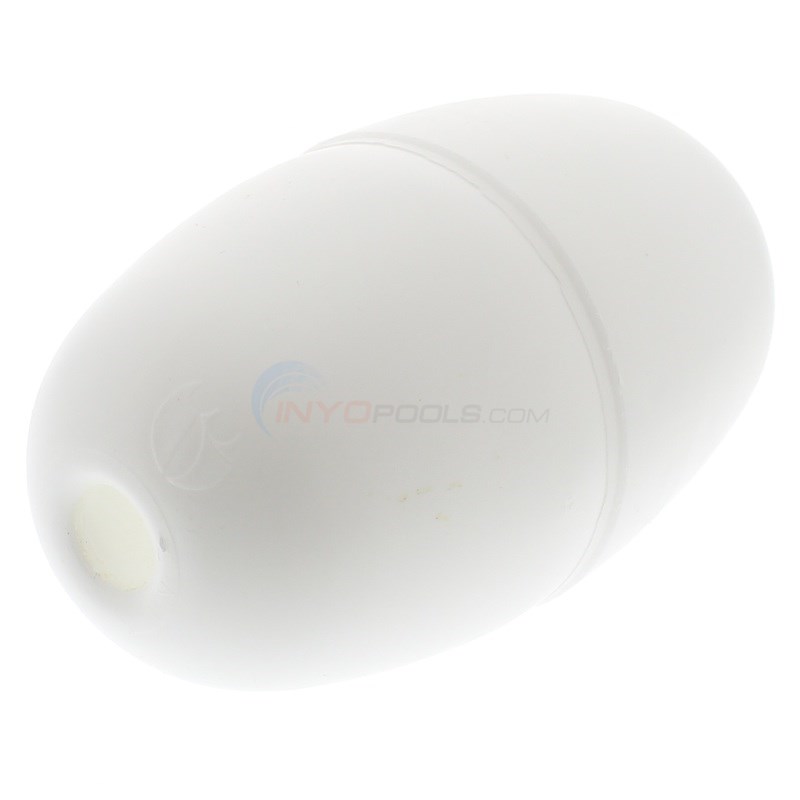

Replacement head float for Polaris and Pentair Pressure Cleaners by CMP

Commonly Used On

  • Polaris 180
  • Polaris 280
  • Polaris 360
  • Polaris 380
  • Pentair Legend
  • Pentair Legend II
  • Pentair Legend Platinum (Pre-2011)
  • Kreepy Krauly Legend II
Top

?     Asked on 9/15/2014by Guest

Sometimes my Polaris cleaner cat walks and I was told that this float a20 could be the problem. Is this true?
 Reply

A  Answered on 9/15/2014 by InyoPools Product Specialist Patrick P.

Yes this sometimes can be the issue. The best way to be sure is by taking this float off and checking to see if water has filled it or gotten inside. This will make the rear of the cleaner weigh more than designed causing the cleaner to cat walk.
 Reply


?     Asked on 12/1/2014by Mike Hempel

Does this come with the screw on piece that connects this to the unit, and is it a difficult job? thanks, mike
 Reply

A  Answered on 12/2/2014 by InyoPools Product Specialist Robert M.

Hello Mike - All that is included is the float. The installation is simple. The head float threads onto the feed pipe.
 Reply


?     Asked on 11/30/2015by Keith

Does this part control the forward direction of the vacunm?
 Reply

A  Answered on 12/1/2015 by InyoPools Product Specialist Brian M.

No, the float is there to bring the cleaner upright if it falls from the walls. What controls the forward direction are the belts inside the cleaner.
 Reply


?     Asked on 4/20/2016by Inyo Visitor

What is making my Polaris 360 float to the top of water and not want to stay on the bottom?
 Reply

A  Answered on 4/20/2016 by InyoPools Product Specialist Lennox H.

Hi, The following things will cause you cleaner to float: Air in the unit or lines or the Base Weight is missing or out of place.
 Reply


?     Asked on 4/21/2016by Inyo Visitor

Not sure where the base weight is located. Is it attached on the bottom middle of unit?
 Reply

A  Answered on 4/21/2016 by InyoPools Product Specialist Alan M.

Hello, The base weight is located on the bottom half of the unit near the center pipe.
 Reply
