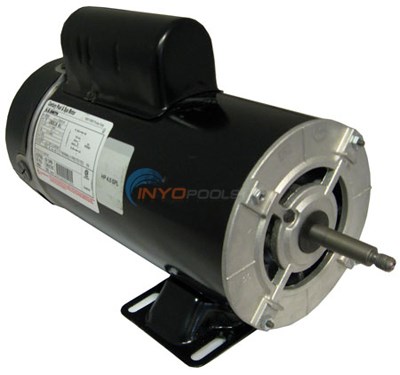

Part # 5266N
..... CAPACITOR (2) LENGTH: 12" EXCLUDING SHAFT SHAFT LENGTH: 2 1/4" DIAMETER: 5 5/8" ..... DIMENSIONS LABEL HORSEPOWER: 3.0, 4.0 & 4.5 (NOT TWO SPEED) PART # 7-186510-01 ..... HORSEPOWER CATALOG # BN41 MAGNETEK-THRU BOLT-48 FRAME UPRATED EFFECTIVE HORSEPOWER: NOT KNOWN SERVICE FACTOR: 1.0 START CAPACITOR, 53-64 UF 250 VAC (OPT# 5270-24) RUN CAPACITOR, 50 UF 370 VOLTS (OPT# 5270-06) ..... ELECTRICAL VOLTAGE: 230 VOLTS SINGLE PHASE AMP DRAW: 12.0 AT 230 VOLTS ..... SHIPPING WEIGHT: 31.95 LBS ..... INCLUDES STAND WELDED ON MOTOR & HAS A PLASTIC BACK COVER. (4) THRU BOLTS 10 5/8" LONG. IS BOUGHT THROUGH WATERWAY FOR NOW.
What is Service Factor?
Reply
Service Factor(SF) is a multiplier that when multiplied by the horsepower of the motor indicates the total permissible horsepower loading that may be carried when the motor is operating at rated voltage and frequency. The most important thing to remember when replacing a motor is that the replacement motor's horsepower times its service factor must be equal to or greater than the original motor's horsepower times its service factor. The Service Factor rating can be found on the motor label. See Step 4 of our How to Read a Pool Motor Label guide.
