$123.95

Qty:

By Pentair Pool Products


Details

Top

Part # 4600-5308

Manufacturer Code 195308

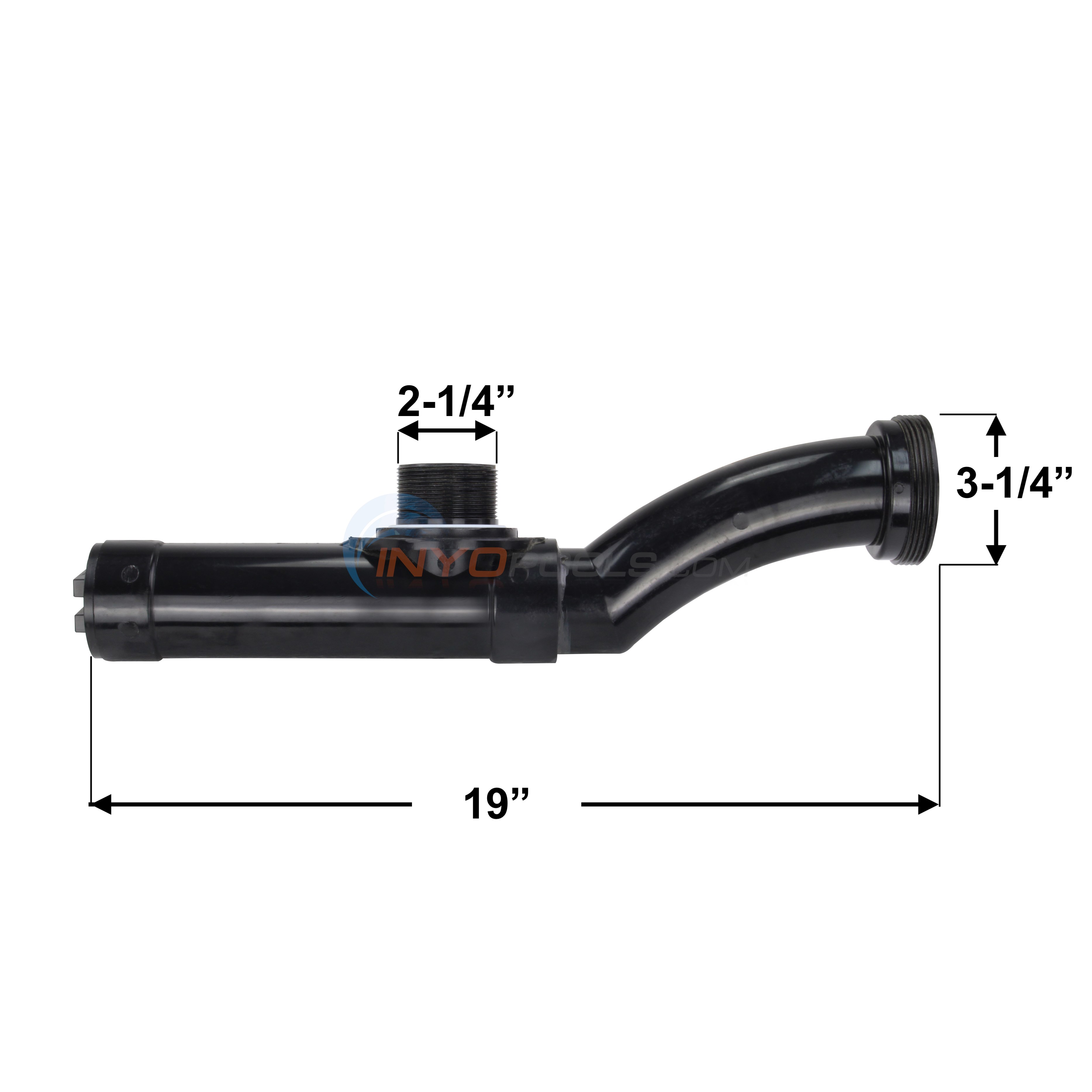

Dimensions 19.5" L x 4" W x 4" D

Alternate Part #'s 195308, PAC0518100, 17-110-1720, PEN195308

Product Description

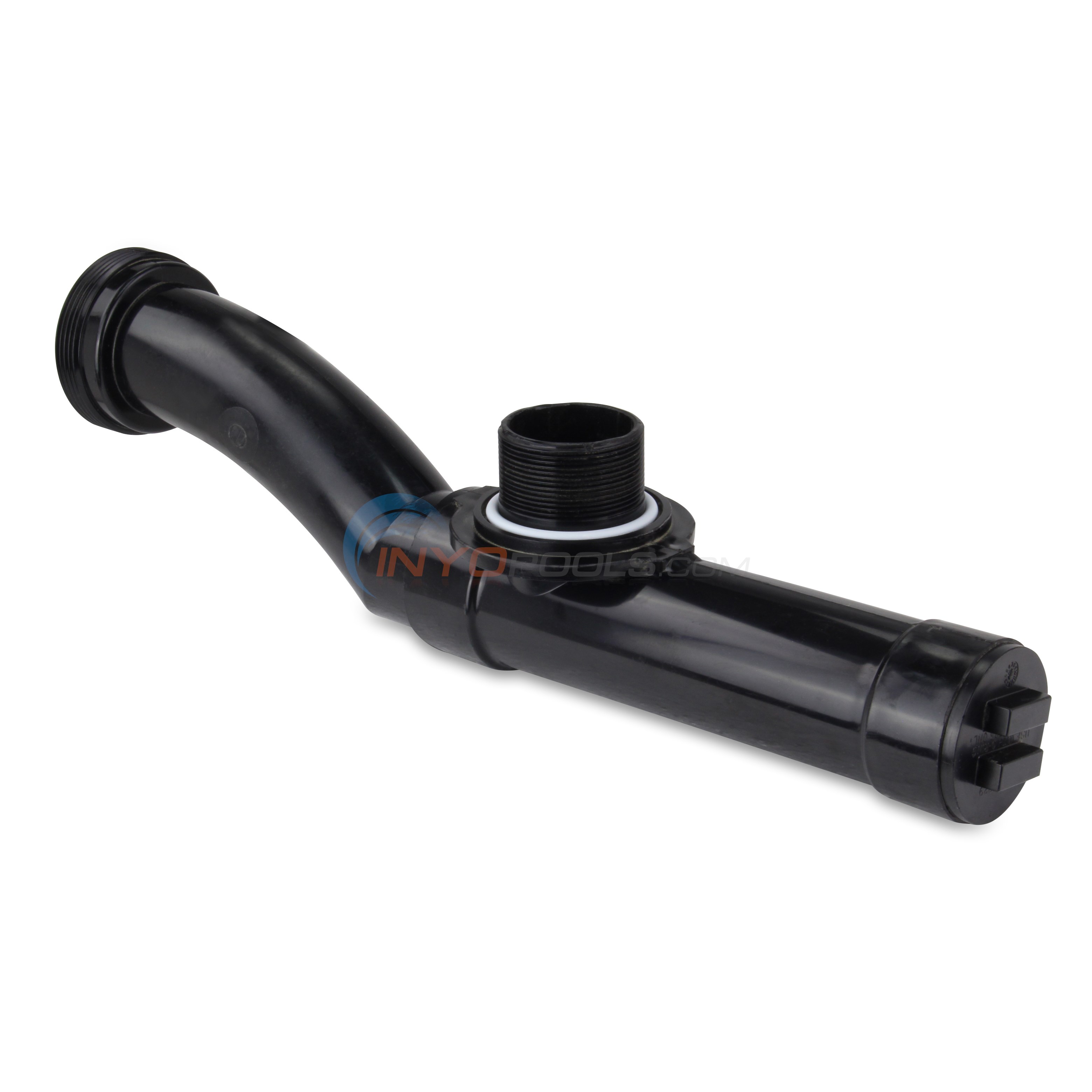

USED ON PAC FAB NAUTILUS, MODELS FNS & INS MADE OCT 1, 1992 THRU CURRENT TOP PIPE WHICH GOES THRU BOTTOM OF FILTER IS . 2" MPT THREADED, THREADS COVER WHOLE PIPE . LENGTH OF THIS PIPE IS 1-5/8" TOP PIPE ON FILTERS MADE BEFORE OCT 1, 1992, . ARE 2-1/2" LONG, AND THE PIPE THREADS DO NOT . EXTEND THE FULL LENGHT OF THE PIPE THIS IS INYO# 4600-5107

Top

?     Asked on 5/21/2015by Chris

My 195308 only has one o-ring. Your photo shows two. where does the second o-ring go?
 Reply

A  Answered on 5/21/2015 by InyoPools Product Specialist Wes B.

Hi Chris, There is only one o-ring with the assembly. It's only a second picture to show you the O-ring in a closer view.
 Reply


?     Asked on 4/21/2016by Roque Bellotti

Does the curved piece also come with it and does it need to be glued together
 Reply

A  Answered on 4/22/2016 by InyoPools Product Specialist Lennox H.

Hi Roque, The curved piece is included, if it does come in two pieces you will need to glue it together.
 Reply


?     Asked on 2/24/2018by Steve

I have an older Nautilus FNS48 filter which the drain pipe fitting broke off of the main drain pipe which is in tact, but is loose Will this drain assembly work? If it does is there a special tool to use on the interior & exterior nut?
 Reply

A  Answered on 2/27/2018 by InyoPools Product Specialist Lennox H.

Hi, Steve. This Lower Piping Assy - 195308 will only work with FNS filter manufactured after OCT 1, 1992.
 Reply


?     Asked on 4/3/2018by Guillot françois

Can i paid in EUROS . Today 1 dollar = 0,81 Euros or 107,99 Dollar = 87,59 Euros
 Reply

A  Answered on 4/3/2018 by InyoPools Product Specialist Lennox H.

Hi, Guillot. You can only pay using USD. Your bank will make the conversion from Euros to Dollars using an electronic payment.
 Reply
