$66.89

Qty:

By Hayward Pool Products


Details

Top

Part # 3550-01

Manufacturer Code SPX0540A

Dimensions 10-13/16" x 1-7/8"

Alternate Part #'s 3012083, 57-150-1556, HAYSPX0540A, SP540A, SP540A2, SPX0540A, SPX540A, HPPSPX0540A

Product Description

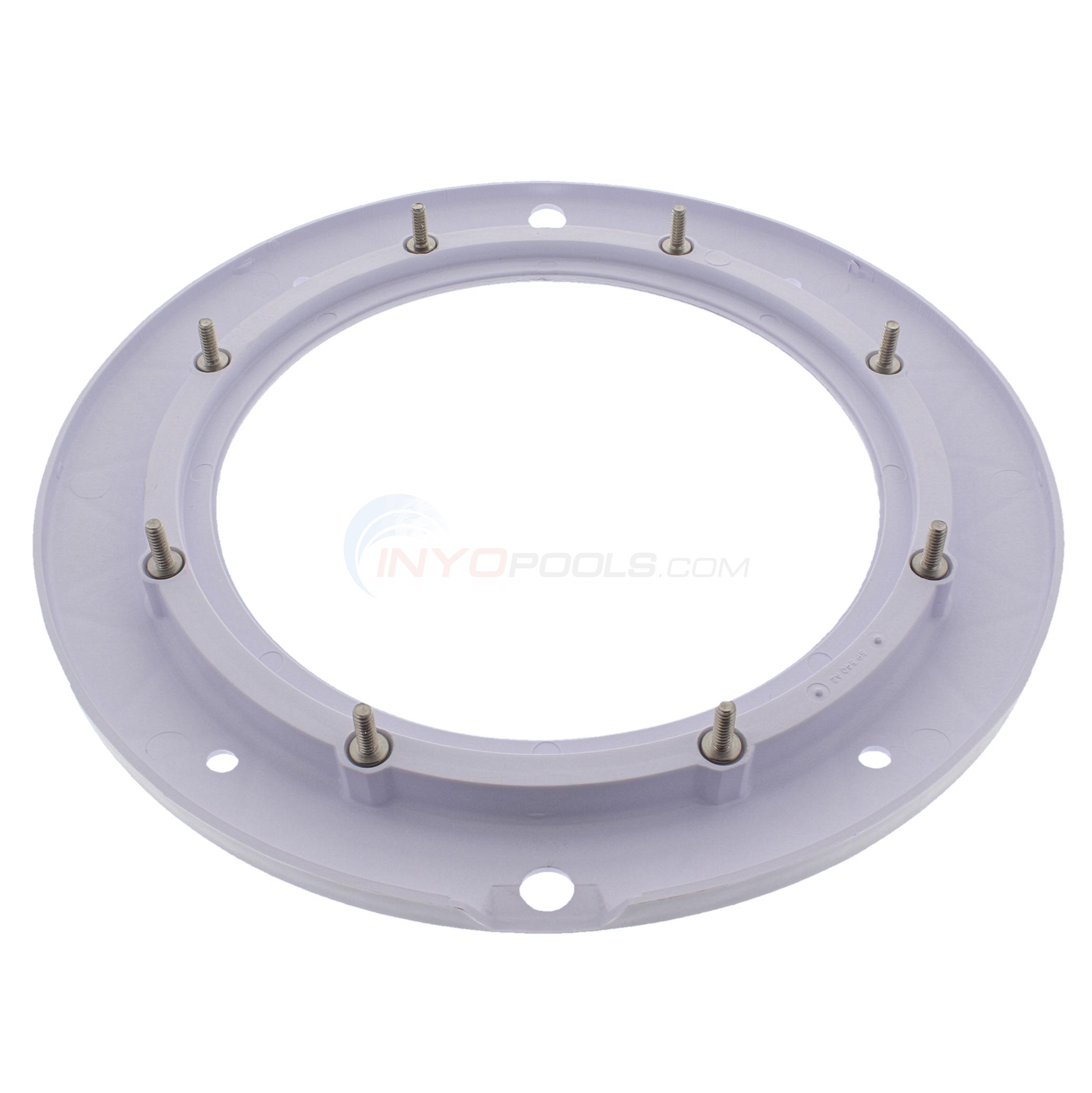

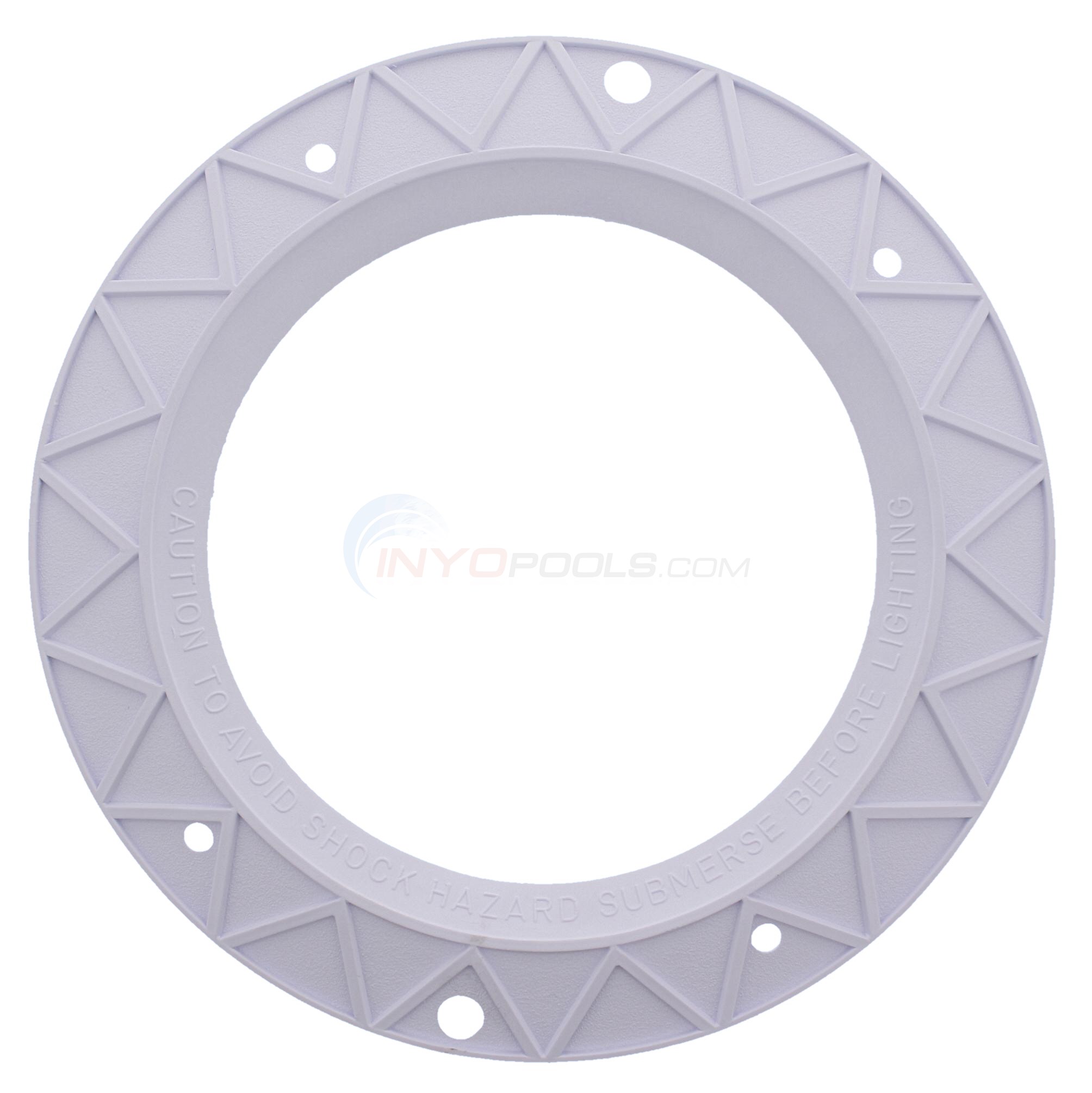

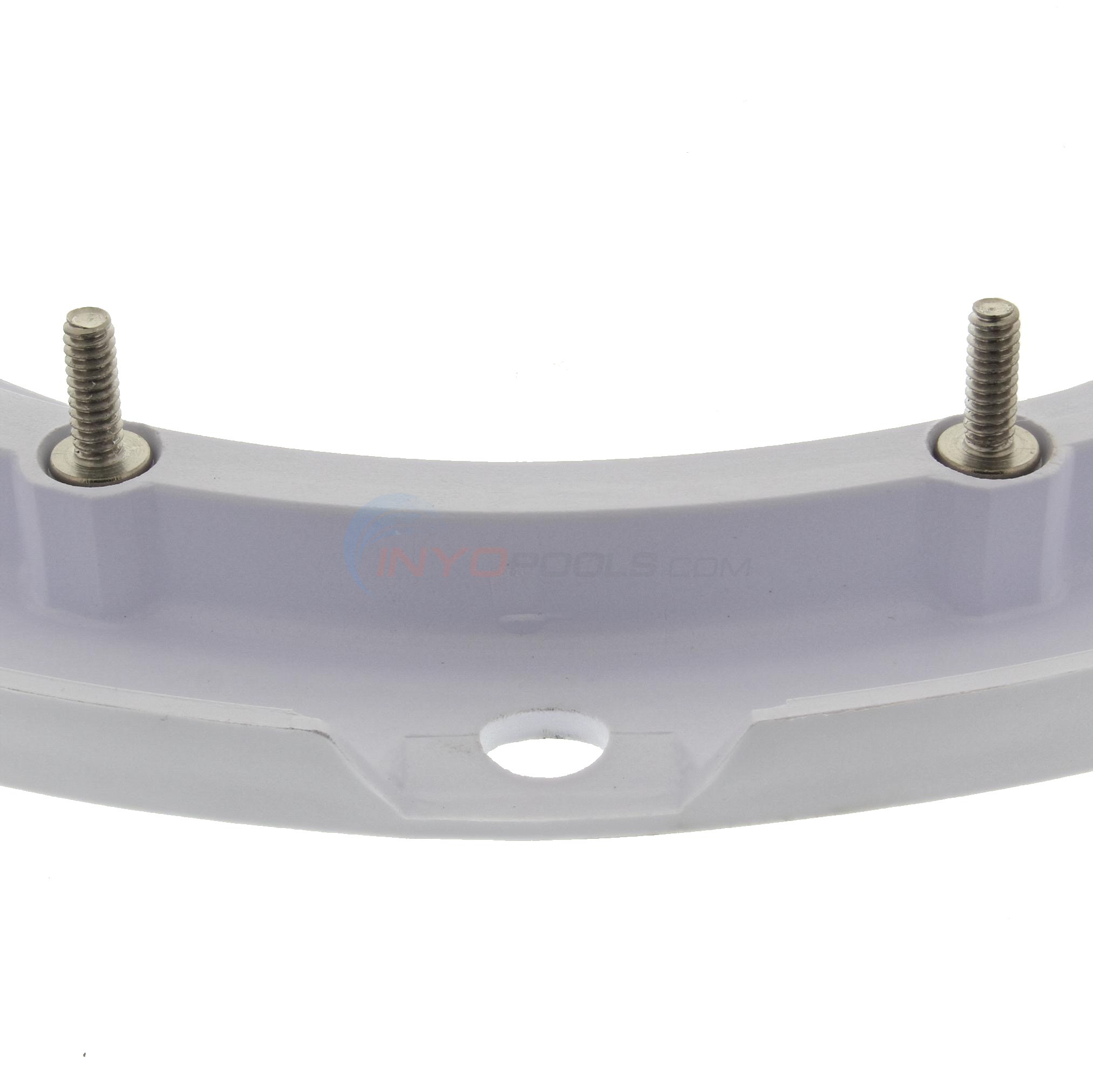

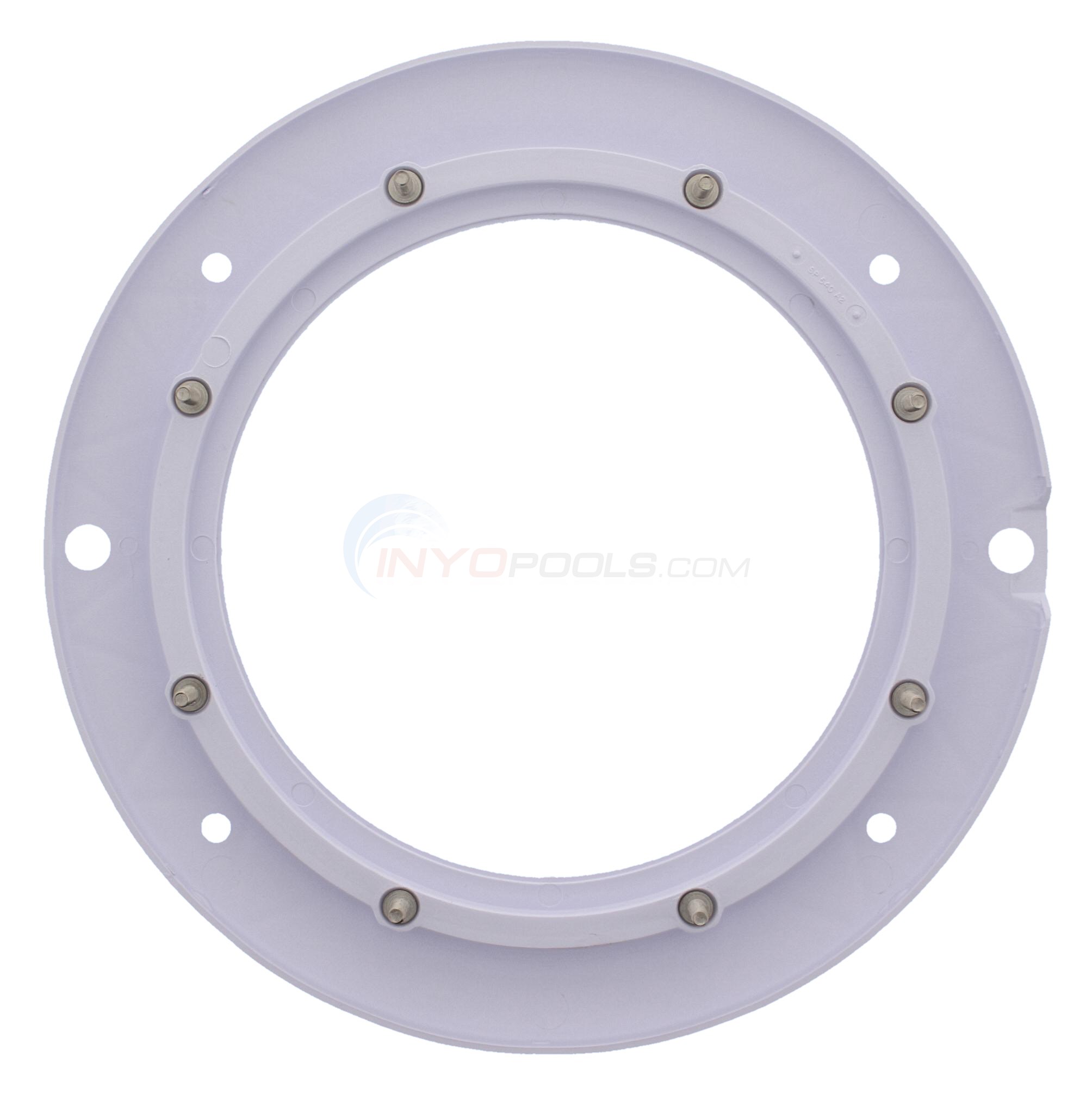

FITS THE HAYWARD STARLITE, THE OUTER DIAMETER MEASURES 10 7/8", INNER DIAMETER IS 7", (PLASTIC) THERE ARE 8 MOUNTING BOLTS ON BACK SIDE. MOLDED # ON BACK SIDE (SP540A2)

Top

?     Asked on 4/24/2016by Inyo Visitor

Is this the correct face for lens that has gasket SP-580-z2 on it. Which i am ordering. My cover only has two mounting screw holes. One at top and bottom. It has 8 mounting studs on back. Both look the same except the other two holes on this one.
 Reply

A  Answered on 4/26/2016 by InyoPools Product Specialist Lennox H.

Hi, The Astrolite Plastic Face Rim (SPX0580A) will be the correct part you're looking for.
 Reply


?     Asked on 5/18/2017by mike

this part looks like the one i need for a Hayward Light sp 506 my cover does not have any screws on the back, it clamped around the light /bulb can i send pictures to you to compare?? Mike
 Reply

A  Answered on 5/20/2017 by InyoPools Product Specialist Lennox H.

Hi, Mike. That would be great, you can email pictures to upload@inyopools.com.
 Reply


?     Asked on 6/2/2017by John

My lens says SP -540-z-1-I and my face ring part says so-560 I am not sure which gasket and Faceframe I need? The face frame has a clamp with one bolt to tighten it ?
 Reply

A  Answered on 6/8/2017 by InyoPools Product Specialist Lennox H.

Hi, John. The replacement lens gasket is p/n SPX580Z2 and the face plate is p/n SPX0580A1.
 Reply


?     Asked on 1/12/2018by Inyo Visitor

Old rim has this number SP540A2. It is 10 7/8 outer diameter with 8 studs. Is this the same as the one you are selling?
 Reply

A  Answered on 1/15/2018 by InyoPools Product Specialist Megan C.

The Rim, Cycolac Face With Studs (spx0540a) is the correct replacement. It FITS THE HAYWARD STARLITE, THE OUTER DIAMETER MEASURES 10 7/8", INNER DIAMETER IS 7", (PLASTIC) THERE ARE 8 MOUNTING BOLTS ON BACK SIDE. MOLDED # ON BACK SIDE (SP540A2). Hayward Starlite schematic.
 Reply


Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver, Wrench Set

1     0

Cracked glass and plastic rim on the old pool light.

Written on 1/19/2021 by Guest

I had very little to base my purchase off of. The old light unit had no markings for what parts to buy. Thankfully The pictures for this product is what saved me. The Hole pattern and Grid on the front lined up with what I had.

This is the rubber gasket SPX540Z2, the new glass lens SPX0540Z1, and light bulb "LED Pool Bulb Color Changing 12V 18W" That worked for my unit.

1. remove the screws holding light plate into the housing unit.
2. if light has long enough cord pull unit out of water and set on ground. (if light cord is not long enough you will need to drain pool below the light housing to avoid getting water into unit when you open it.)
3. look on backside of light housing and remove nuts holding on the face plate.
4.once nuts are off remove faceplate, change out light as needed.
5.recomended replacing the rubber gasket at this point as well. make sure it is seated correctly with lens
6. put the nuts back on the unit and tighten down at a crisscross pattern to apply equal pressure on the rubber gasket.
7. install light unit back into housing, making sure not to pinch or kink wire on back and re install screw into face to mount unit back onto housing.

Were these instructions helpful?
