  4. Hayward Perflex D.E. FIlters EC-30, EC-40 & EC-40AC
  5. 4810-15A

$67.16

Qty:
 ADD TO CART

By Hayward Pool Products

Details

Top

Part # 4810-15A

Manufacturer Code ECX1009

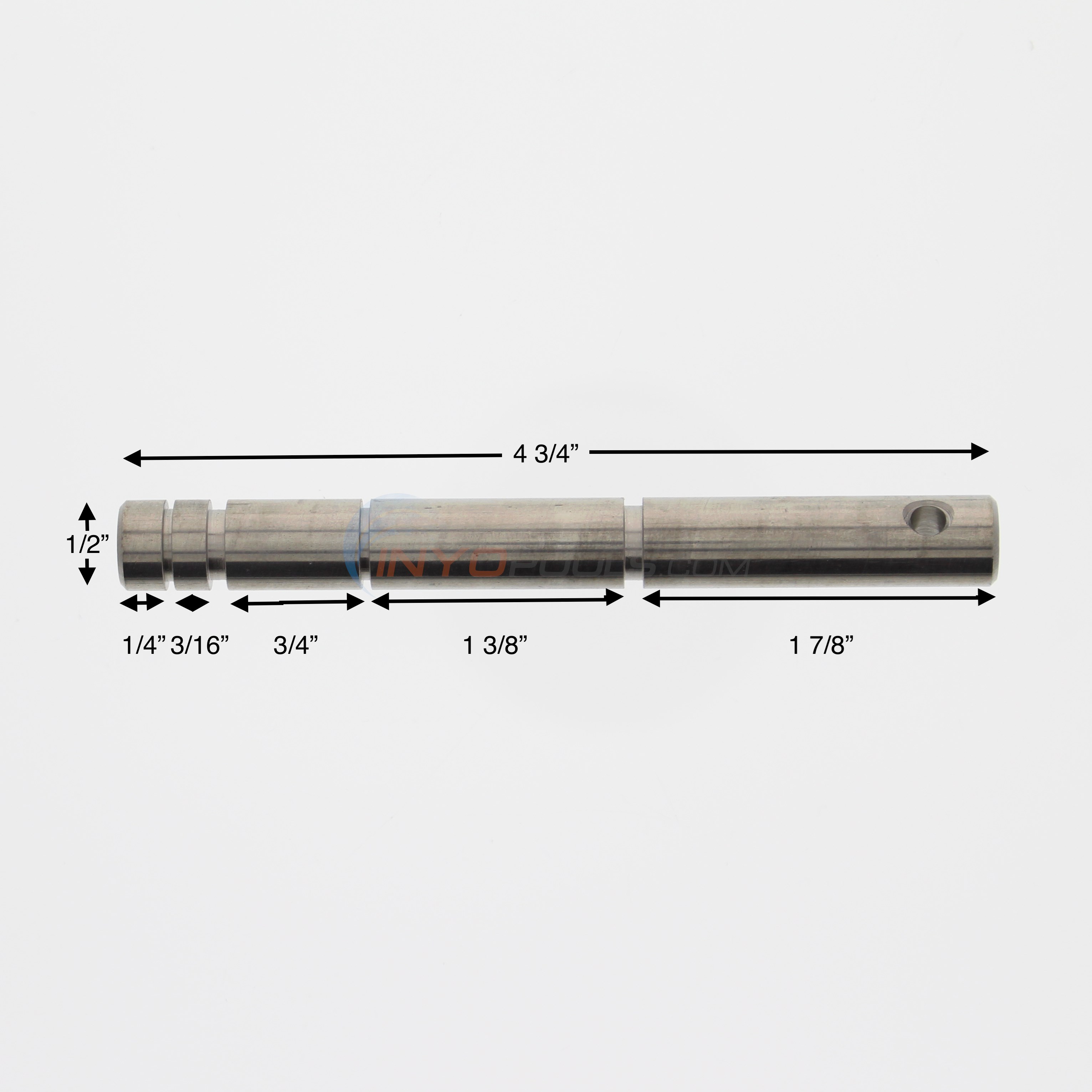

Dimensions 4.75" L x 0.5" W x 0.5" D

Alternate Part #'s EC1009, ECX1009, HAY0511822, 14-150-1026, HAYECX1009, HPPECX1009

Product Description

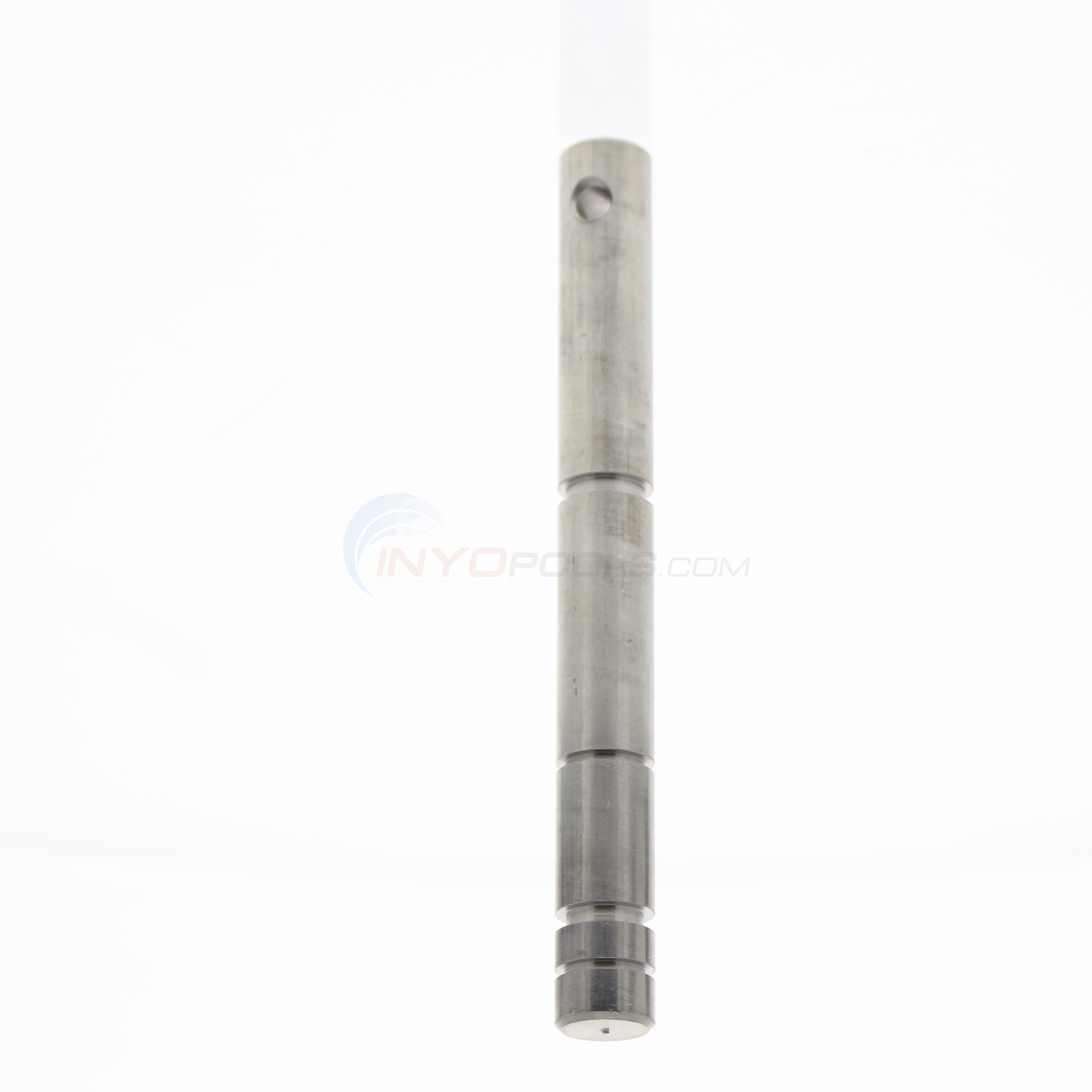

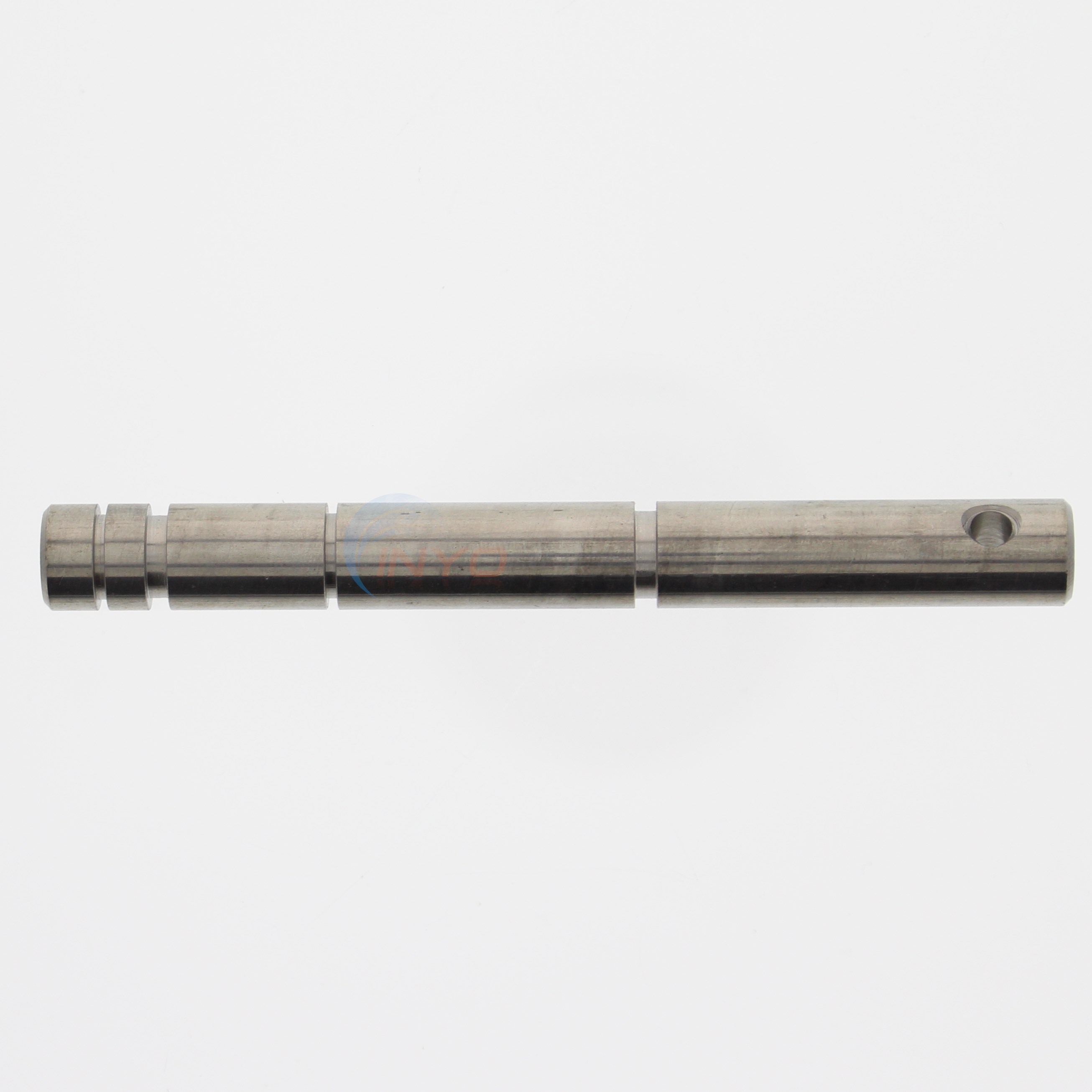

SHAFT, BUMP (1/2") (ECX1009)

Top
Ask A Question

?     Asked on 6/16/2015by Inyo Visitor

how many 0-rings go on this and were do they go
 Reply

A  Answered on 6/18/2015 by InyoPools Product Specialist Lennox H.

They're is 2 o-rings that goes on the Bump Shaft for the EC30 and EC40. When installing you will have start from the bottom up. 1) A e-clip is installed in the last shaft slot, then a washer. 2) An o-ring is place in the second slot from the bottom, then the bottom Tube Sheet. 3) The top Tube sheet goes on followed by a washer then the second e-clip. 4) The last o-ring goes into the top slot.
 Reply


?     Asked on 6/16/2015by Inyo Visitor

were on the bump shaft do the retainers go
 Reply

A  Answered on 6/18/2015 by InyoPools Product Specialist Lennox H.

The retainers or e-clip goes on the last and third shaft from the bottom of the shaft, with the washers in the middle.
 Reply
