$271.90

Qty:

By Hayward Pool Products


Details

Top

Part # 4810-44A

Manufacturer Code SP0715XR50

Alternate Part #'s 27516-204-000, SP0715XR50, SP715XR50, 26-150-1510, HPPSP0715XR50

Product Description

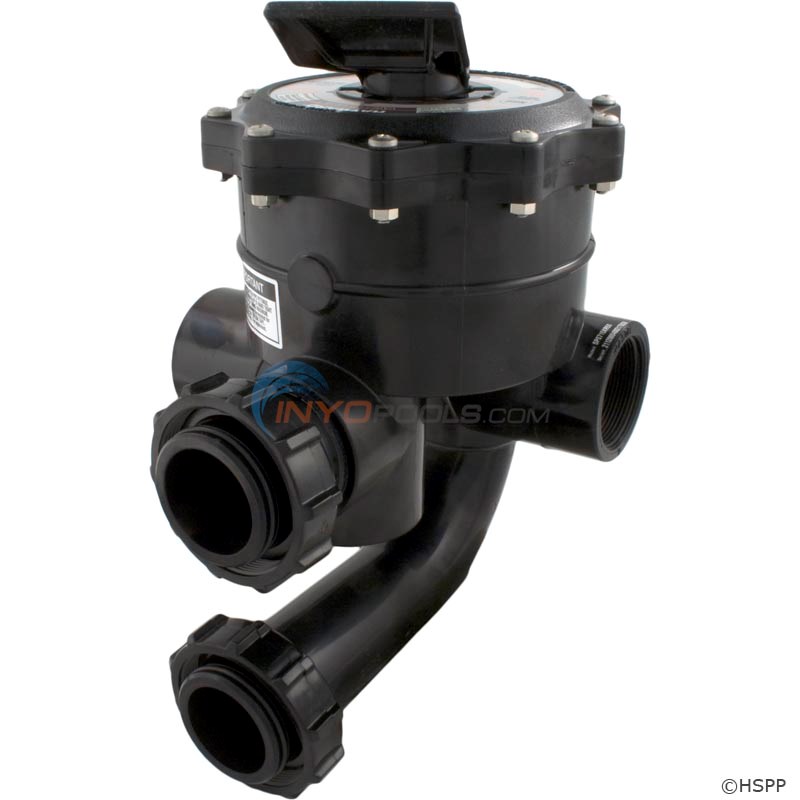

Hayward Vari-Flo XL multiport control valve, made of our exclusive PermaGlass XL™ material and engineered for maximum flow at lower pressure drops will be the choice in multiport valves. It will retrofit any filter that has an SP071113 valve that needs replacement and upgrading.

All Vari-Flo control valves feature an easy-to-use lever action handle that lets you "dial" up to six valve/filter functions: filter, backwash, waste, rinse, closed or recirculate. Complete with an integral sight glass that lets you see when the backwashing cycle is completed, our wide selection of valve configurations allows you to match the right Vari-Flo valve to the proper application; residential, commercial, top-mount or side mount.

Vari-Flo Control Valve Functions

  • Filter – For normal filtering and regular vacuuming
  • Backwash – For cleaning filter sand bed of accumulated debris
  • Rinse – Use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste
  • Waste – By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line.
  • Recirculate – Water is recirculated through the valve by-passing the filter
  • Closed – Shuts off the flow from the pump to the filter
  • Winter – For winterizing (SP0714T only)

* The following valves are used with the Hayward Micro-Clear and Pro-Grid DE filters.

Click here for more Backwash Valves

Top

?     Asked on 5/21/2015by Inyo Visitor

What is the part # for the input/output port O-ring gasket?
 Reply

A  Answered on 5/21/2015 by InyoPools Product Specialist Lennox H.

The o-ring that goes on the in/out ports of the multiport valve that connects the valve to the bulkhead of the filter tank is p/n SX200Z4
 Reply


?     Asked on 5/28/2015by Mike Kopistansky

I have a hayward variflo valve 715xr50. Can you tell me what go kit to use for replacement parts.
 Reply

A  Answered on 5/28/2015 by InyoPools Product Specialist Lennox H.

Mike, The you can use SP715 Multiport Valve O-Ring Kit w/ Spring or SP715 Multiport Valve O-Ring Kit w/o Spring tune up kits for the Hayward Variflo SP715XR50 Valve.
 Reply


?     Asked on 6/19/2015by RC

IS this Vari Flo valve used as a DE or Sand mutiport.
 Reply

A  Answered on 6/19/2015 by InyoPools Product Specialist Brian M.

This Vari-Flo valve is for a Pro-Grid DE Side Mount filter.
 Reply


?     Asked on 3/29/2016by nancy

when replacing the spider gasket on 715XR50 do I place it in or glue it in?
 Reply

A  Answered on 3/29/2016 by InyoPools Product Specialist Lennox H.

Hi Nancy, It is required to glue in the spider gasket.
 Reply


?     Asked on 5/31/2016by Chris

Hi. The handle on my Hayward Vari-flow SP0715XR50 just broke off of the Key and Stem assembly inside the sealed valve. Is it possible to just replace the Key and Stem assembly? And if so, which gaskets etc should I also replace during this repair? Thanks for your time and expert advice.
 Reply

A  Answered on 6/5/2016 by InyoPools Product Specialist Lennox H.

Hi Chris, You can replace the Key, Cover & Handle Assembly-SPX0715BA3 along with the Spider Gasket-SPX0715D and Cover O-ring-SPX715Z1.
 Reply


Top
