Product Description

Stenner Tank systems are shipped pre-assembled, mounted vertically with a rain roof and are available with an adjustable or fixed output single head pump in the Classic series.

Features:

• Shipped pre-assembled for easy installation and convenience
• Includes rain roof to help protect motor (Classic series only)
• Vertically mounted for solution containment
• Child-resistant lid
• Polyethylene construction is lightweight and rugged UV-resistant gray or translucent white

Specifications:

• Pump: 45 Series, Single Head Variable Output
• Output: 3.0 gpd / 25 psi
• Voltage & Hertz: 220V 60Hz
• Suction and discharge tubing: 1/4" UV Black
• Pump tube material: Santoprene
• Tank: 15-Gallons UV Gray

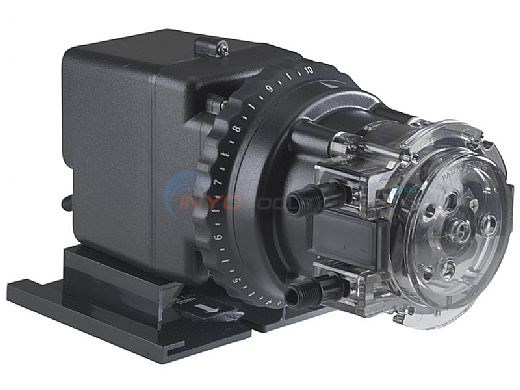

The Single Head Adjustable Output PumpIs one of four types in Stenner's Classic Series and is an ideal choice for treating problem water. The pump can inject water treatment solutions for pH control or to oxidize iron, hydrogen sulfide or manganese for removal by filtration. Disinfection, pH control or adjustment, corrosion and scale control and oxidation are common water treatment applications found in markets such as Water Conditioning, Animal Health, Industrial Process, Water and Wastewater, and Cooling Towers. The versatility of the product expands into other markets as well, such as Legionella prevention in Cooling Towers, sprinkler head cleaning in Irrigation and Horticulture and plating bath treatment in the Metal Finishing industry. The pumps are widely popular in the commercial pool industry for sanitizing swimming pool water or maintaining the equipment. Pump Features

• 3-point roller design assists in anti-siphon protection
• Pump head requires no valves, allows for easy maintenance
• Self-priming against maximum working pressure, foot valve not required
• Pump does not lose prime or vapor lock
• Pumps off-gassing solutions and can run dry
• Output volume is not affected by back pressure
• Injection check valve included with models rated 100 psi (6.9 bar) maximum
• Easy to change pump tube; lubrication is not required
• Pump tubes and pump heads interchange between models
• Models (Santoprene® only) tested by Water Quality Association to conform to ANSI/NSF STD 61
• Adjustable models (Santoprene® only) tested by ETL to conform to ANSI/NSF STD 50

The Tank

The polyethylene construction is both lightweight and rugged. The tank has incremental solution level indicators and is equipped with a child resistant lid. The pumps are vertically mounted over the tank's containment basin. A rain roof is included with Classic series models to help protect the motor in outdoor installations.Tanks are also sold separately.

Materials

Tank: Polyethylene, certified to NSF/ANSI 61Lid with child resistant lock: Polypropylene Grommets: VitonScrews: Stainless steel

Dimensions

15-gallon: 20.5 OD x 25.3 in. (52.1 OD x 64.1 cm)
