Part # 25831-004-000

Alternate Part #'s SP0410X502S, CMP25831004000

Product Description

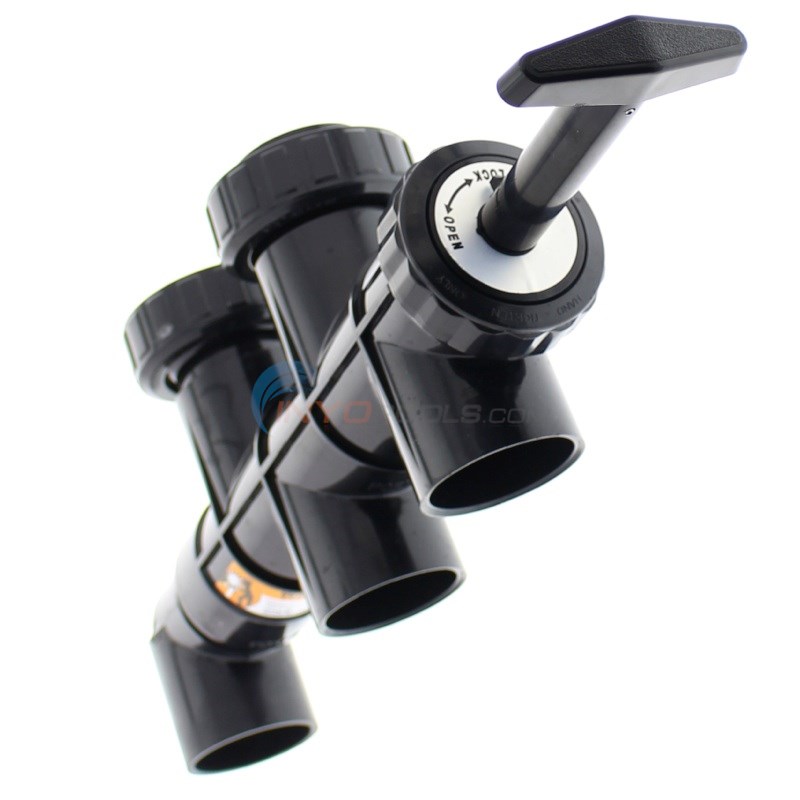

Generic Hayward push pull valve (2") Hayward# SP0410X502S

This valve is used on the Hayward Micro clear and Pro Grid series de filters

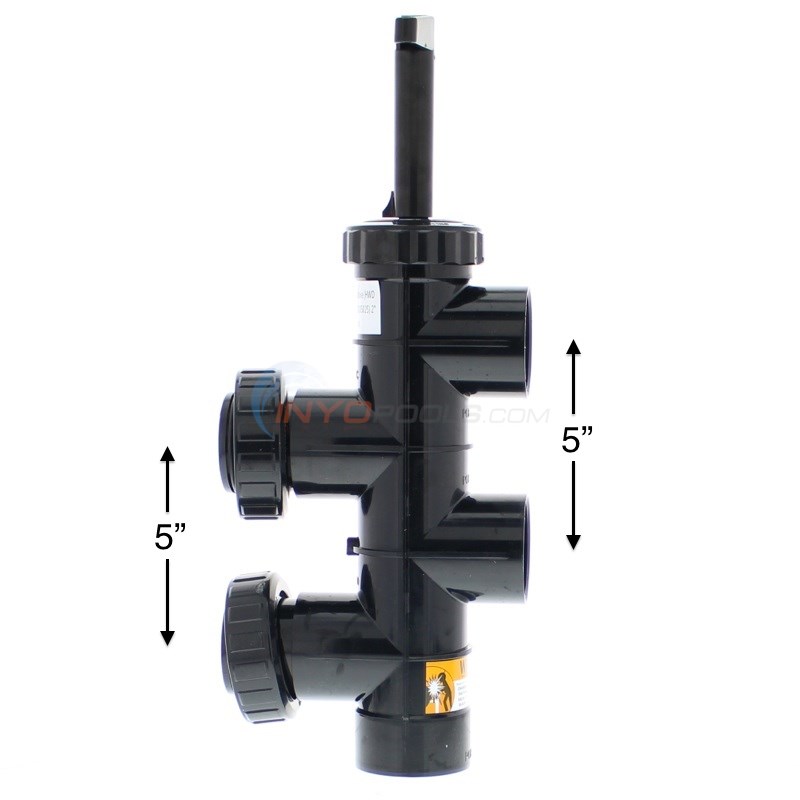

This valve includes filter connections valve color is black round cover, attaches to body with SP-722D nut no model# on cover, "SP-410-A" on the body dimensions height is 13-1/2" (excluding bottom ell & handle). Centerline spacing on pipes is: between port A & B is 5", between C & D is 5", inside distance between each set is 2-1/4". Used on DE2400, DE3600, DE4800, DE6000, DE360s, DE480s, DE600s, DE720s.
..... valve positions (clockwise from top) open (backwash), lock (filter)..... port arrangement (clockwise from top) starting above lock position port b, port a above this (these are short 2" slip
.. pipes - inside diameter about 2-3/8" on the opposite side of the valve body port d, port c above this (these attach to filter
.. with threaded bulkhead nuts marked s-200-r
.. inside thread diameter of nuts about 3-1/8" on the bottom of the valve port e - 2" slip, a 2" slip x spigot 90 degree
.. elbow glues into this (used for backwash line)
..... includes plumbing connectors for filter 2" slip x spigot 90 degree elbow (sp-410-f) handle height adds 4-1/2" to this

Vari-Flo Control Valve Functions

  • Filter - For normal filtering and regular vacuuming
  • Backwash - For cleaning filter sand bed of accumulated debris
  • Rinse - Use after completing backwash cycle to ensure all dirty water is rinsed out of the filter to waste
  • Waste - By-passes the filter for draining or lowering pool water level and for vacuuming heavy debris directly to waste line.
  • Recirculate - Water is recirculated through the valve by-passing the filter
  • Closed - Shuts off the flow from the pump to the filter
  • Winter - For winterizing (SP0714T only)
  • 1 year warranty



Product Specifications

Manufacturer:
Custom Molded Products
Valve Type:
Slide
Filter Type:
D.E.
Filter Model:
Micro-Clear, Pro-Grid
Mount:
Side
Port Size:
2 in.
Port Type:
Slip (s)
Top

?     Asked on 3/26/2017by STANLEY OTTO

Is there a repair kit for a 2 1n slide valve
 Reply

A  Answered on 3/27/2017 by InyoPools Product Specialist Lennox H.

Hi, Stanley. They are replacement kits for this valve, the parts can be found on the Hayward Slide Valve 2" SP410X Parts page.
 Reply


?     Asked on 6/27/2018by Inyo Visitor

How do I change the O ring on the handle shaft.
 Reply

A  Answered on 6/27/2018 by InyoPools Product Specialist Lennox H.

Hi. Servicing Instructions are available in the CMP Hayward DE Slide Valve Manual - 25831-004-000.
 Reply


?     Asked on 5/17/2019by Steve

When using a slide valve on a DE filter. What position should I put the valve to empty the pool? As there are only two positions, can I only use Normal and Backwash, then place it in Backwash to empty the pool? Thanks for the info
 Reply

A  Answered on 5/18/2019 by InyoPools Product Specialist Lennox H.

Hi. Using a slide, the backwash position will double as waste.
 Reply


?     Asked on 5/26/2021by Sean

I have a old swim quip aluminum filter. The backflow valve is worn. It is made out of brass and I'm unable to get parts for it. Will this work?
 Reply

A  Answered on 5/27/2021 by InyoPools Product Specialist Patrick P.

Hi, Could you send us a few photos of your filter to include a photo of the label on your filter tank, your filter valve, and a wide-shot of the complete filter and valve? To supply photos simply click the reply link below and upload your photos. Once we get those photos we can make the proper recommendation.
 Reply
