$43.20

Qty:

By Custom Molded Products


Details

Top

Part # 25830-714-000

Alternate Part #'s 7305, CMP25830714000

Product Description

Check Valves - Serviceable Check Valves

  • 2" Socket
  • 2-1/2" Spigot
  • CPVC Body (Black)
  • Clear Lid
  • Lock Nut
  • 2 Pound Spring

For more Pool Valves

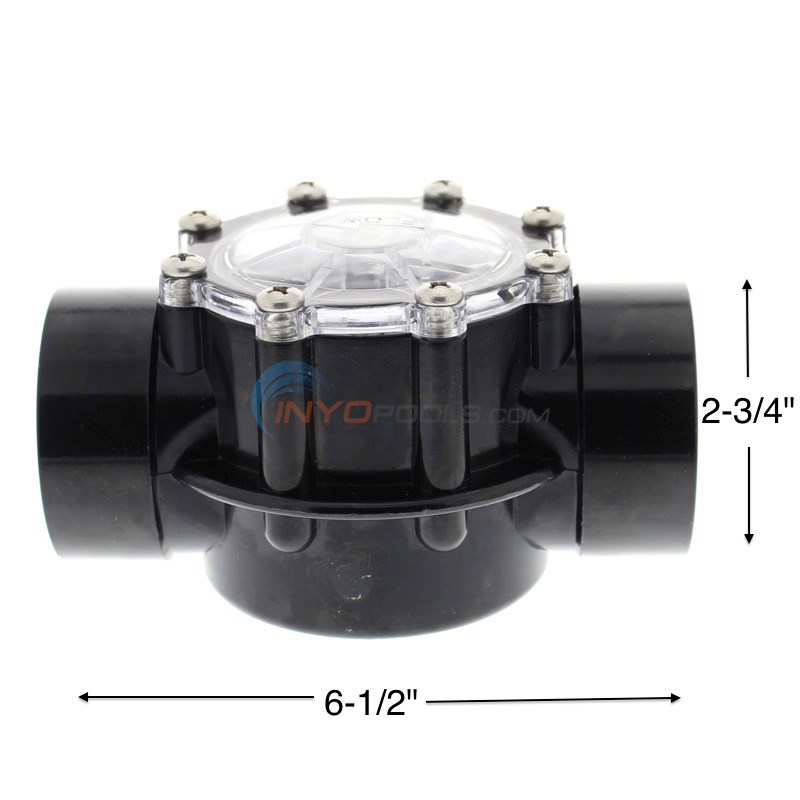

Product Specifications

Inside Diameter:
2 in.
Outside Diameter:
2 1/2 in.
Spring:
2 lbs.
Top

?     Asked on 2/16/2017by peter valencia

is this a Jandy check valve?
 Reply

A  Answered on 2/16/2017 by InyoPools Product Specialist Lennox H.

Hi, Peter. This particular valve is manufactured by Custom Molded Products (CMP).
 Reply


?     Asked on 6/13/2017by Dean

Can I use this to replace a Jandy check valve?
 Reply

A  Answered on 6/22/2017 by InyoPools Product Specialist Lennox H.

Hi, Dean. Yes, you can use this CMP Check Valve to replace a Jandy Check Valve depending on the application.
 Reply


?     Asked on 6/27/2017by Inyo Visitor

are the valves chemical resistant
 Reply

A  Answered on 6/28/2017 by InyoPools Product Specialist Hector F.

These valves are chemically resistant to the typical swimming pool and spas chemicals that are kept within average ranges for those bodies of water.
 Reply


?     Asked on 7/20/2017by ROBERT CROSBY

CAN THIS VALVE BE USED WITH PVC PIPE ? I SEE IT'S MADE OF BLACK "CPVC" WHAT CEMENT/SOLVENT WOULD BE USED ? ?
 Reply

A  Answered on 7/20/2017 by InyoPools Product Specialist Alex V.

Robert, Yes, this can be used with PVC piping. You can use pvc cement.
 Reply


?     Asked on 9/21/2018by Taylor

Do you have this check valve with a 1/2lb spring? I only see CMP check valves listed with 2lb springs. Thanks
 Reply

A  Answered on 9/25/2018 by InyoPools Product Specialist Lennox H.

Hi, Taylor. This check valve is not available with a 1/2 lb spring; however, the 1/2 Lb Spring - 61064-092-519 can be purchased separately.
 Reply


Top
Difficulty

Est. Repair Time

1 to 2 hrs

Tools Needed

Screwdriver, PVC gluing and cutting

2     0

Valve housing broke during Freeze

Written on 3/24/2021 by Guest

Bought this replacement valve from InYo to replace mine that had cracked during the freeze. If you can cut and glue PVC you can do this. Just plan your cuts so you leave your self enough pipe. I had to spread the existing pipes open a little to allow the valve housing to fit in and the overlap the pipe enough to seal. Plan it out, Do a test fit Without glue to be sure it will work. I removed the valve guts to avoid getting glue on them and it also allowed me to see how much pipe was inside the valve body.
