$270.33

Qty:

By AquaStar Pool Products


Details

Top

Model # 1216101

Alternate Part #'s 55-300-1290, AS1216101

Product Description

Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act (ANSI/APSP 16-2011 and NSF 50-2008)

Retrofits over all existing sumps/frames up to 15". For single or multiple drain use (see installation instructions). Frame easily and safely retrofits most brands’ existing 12" frame* with epoxy or screws or both; cover anchors into inmolded brass inserts in frame with four fine thread machine screws. Ideal for retrofitting over all existing sumps/frames up to 15" by anchoring directly into pool finish (plaster, tile, fiberglass, etc.) using four brass anchors and stainless screws in kit #BIK4. Trademarked VGB compliance button easily identifies VGB 2008 compliant cover from on deck and underwater. Manufactured rom superior UV-resistant engineered polymers.

Features:

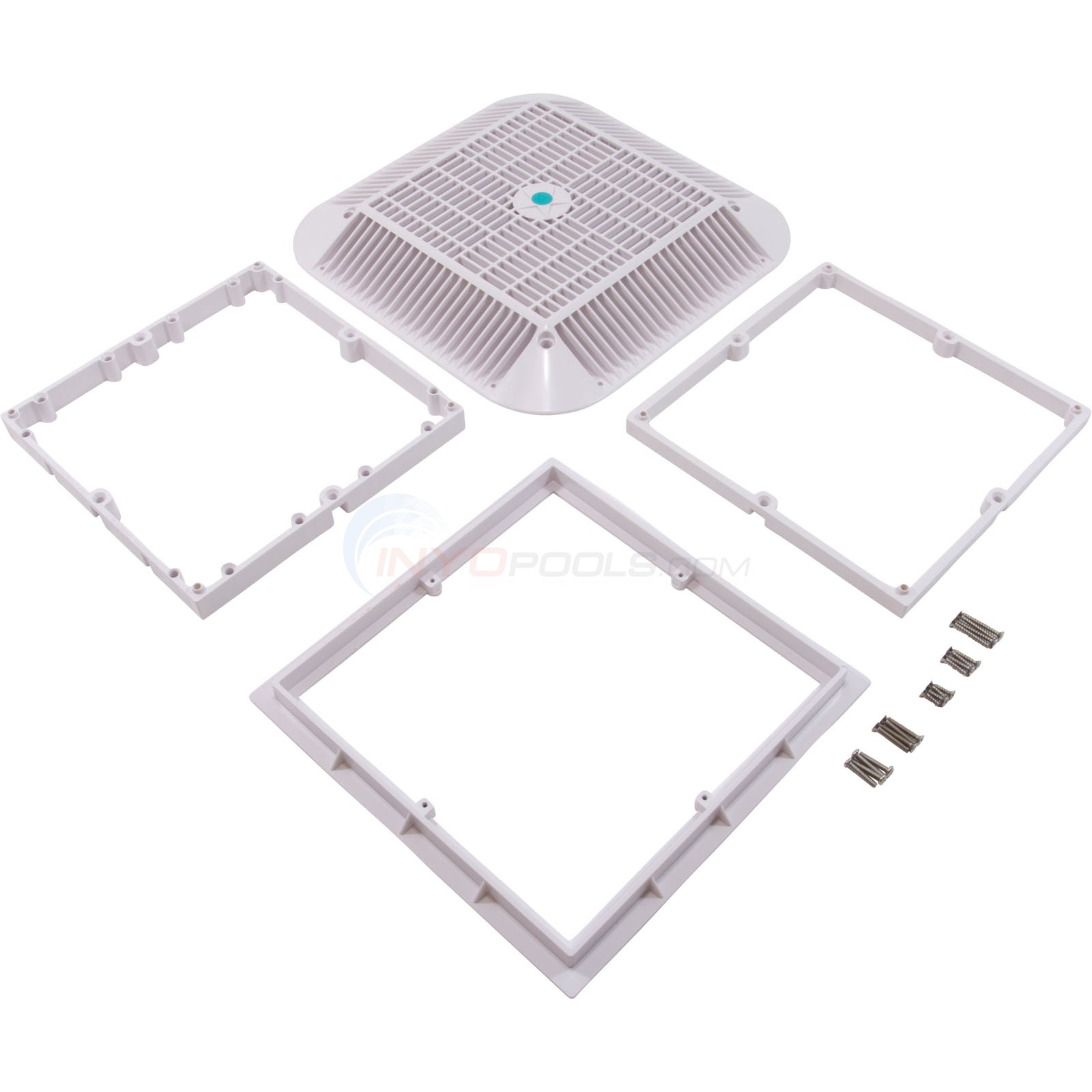

  • 16" x 16" anti-entrapment suction outlet cover
  • 12" to 16" squareconversion frame
  • 12"x12" square drain frame
  • 10-32 x 1" pan head phillipsmachine screw, 316ss
  • #10 x 3/4" flat head phillips type-a screw, 316ss”


Dimensions:
aquastar 1216 series

Product Specifications

Floor GPM:
460 GPM at 1.46 fps
Wall GPM:
445 GPM at 1.4 fps
Opening Size:
101 sq. in.
Color:
White
Cover Shape:
Square
Manufacturer:
Aquastar
Size:
12 x 12 in.
Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

Screwdriver

Expired Drain Cover

Written on 5/31/2017 by Guest

I needed to replace our drain covers because for some reason they expire after 5 years.
INYO was very friendly to work with and sent them to me promptly.
