$56.92

Qty:

By AquaStar Pool Products


Details

Top

Part # A10RCFR101

Dimensions 11.5" L x 11.5" W x 3" D

Alternate Part #'s API-25-3101, APPA10RCFR101

Product Description

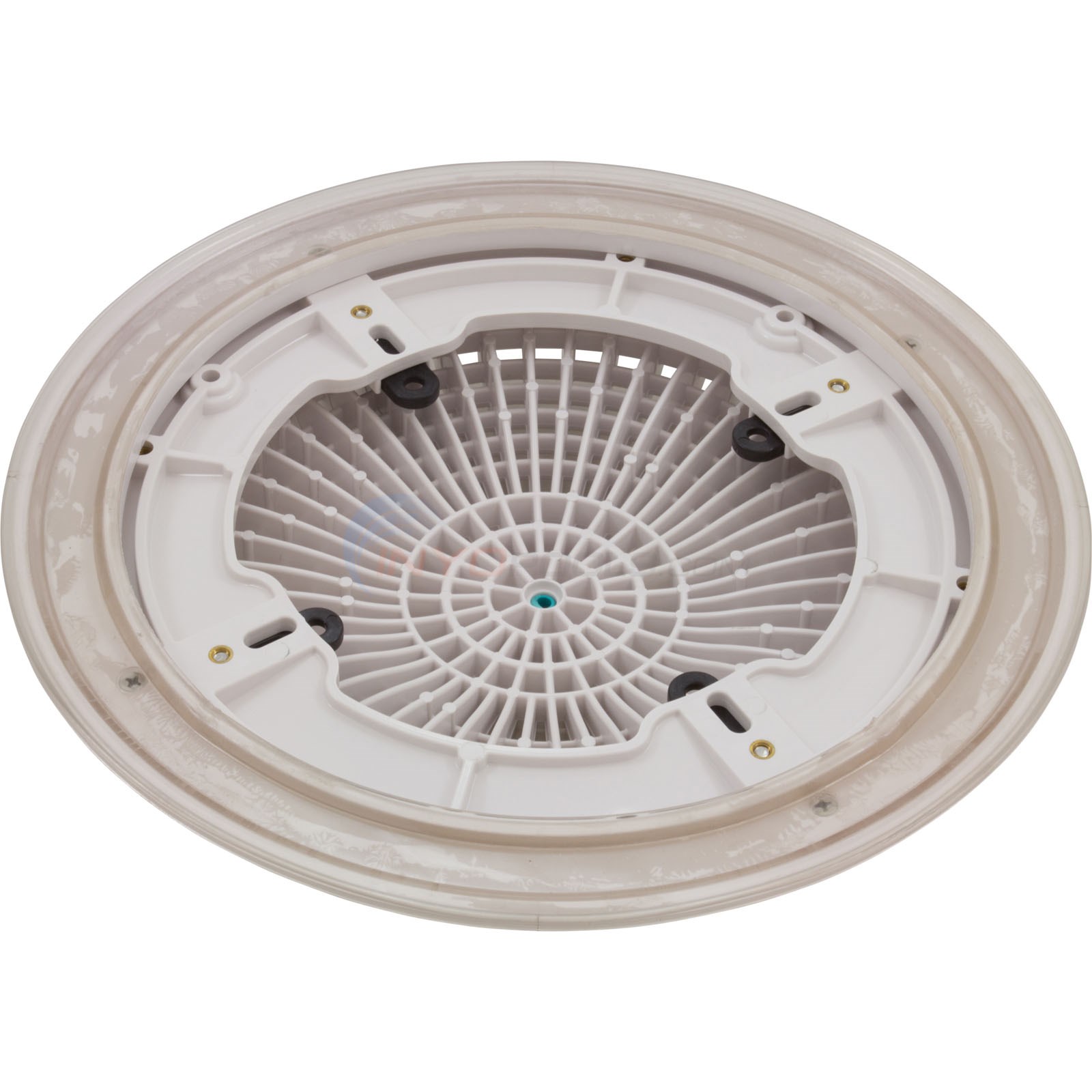

quaStar 10" Universal Suction Outlet Cover

The Round Star sumpless suction/main drain cover outlet includes a universal adapter kit that will fit over all round sumps/frames up to 10".

Round Star Suction Outlet Cover Features:

  • Retrofits to fit virtually all main drain sumps/frames up to 10"
  • Made from UV-resistant engineered polymer
  • No sump required
  • Includes cover, adapter plate, frame screws and plastic concrete anchors
  • #316 Stainless steel screws
  • Product meets or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards
  • Compliant with the Virginia Graeme-Baker Pool and Spa Safety Act
  • Replace every five years from the date of purchase
  • Color: White

Single - Sumpless Specifications:

  • Floor - 170 gallons per minute at 1.7 fps
  • Wall - 170 gallons per minute at 1.7 fps
  • Floor/wall: 147.3 gallons per minute at 1.5 fps
  • Floor/Wall: 98.2 gallons per minute ate 1.0 fps
  • 31 1/2 square inch opening

AquaStar A10RCFR101

AquaStar A10RCFR101

Product Specifications

Single:
Sumpless
Floor GPM:
170 GPM at 1.7 fps
Wall GPM:
170 GPM at 1.7 fps
Floor/Wall:
147.3 GPM at 1.5 fps
Opening Size:
31 sq. in.
Color:
White
Cover Shape:
Round
Manufacturer:
Aquastar
Size:
10 in.
