Part # 1081407100

Product Description

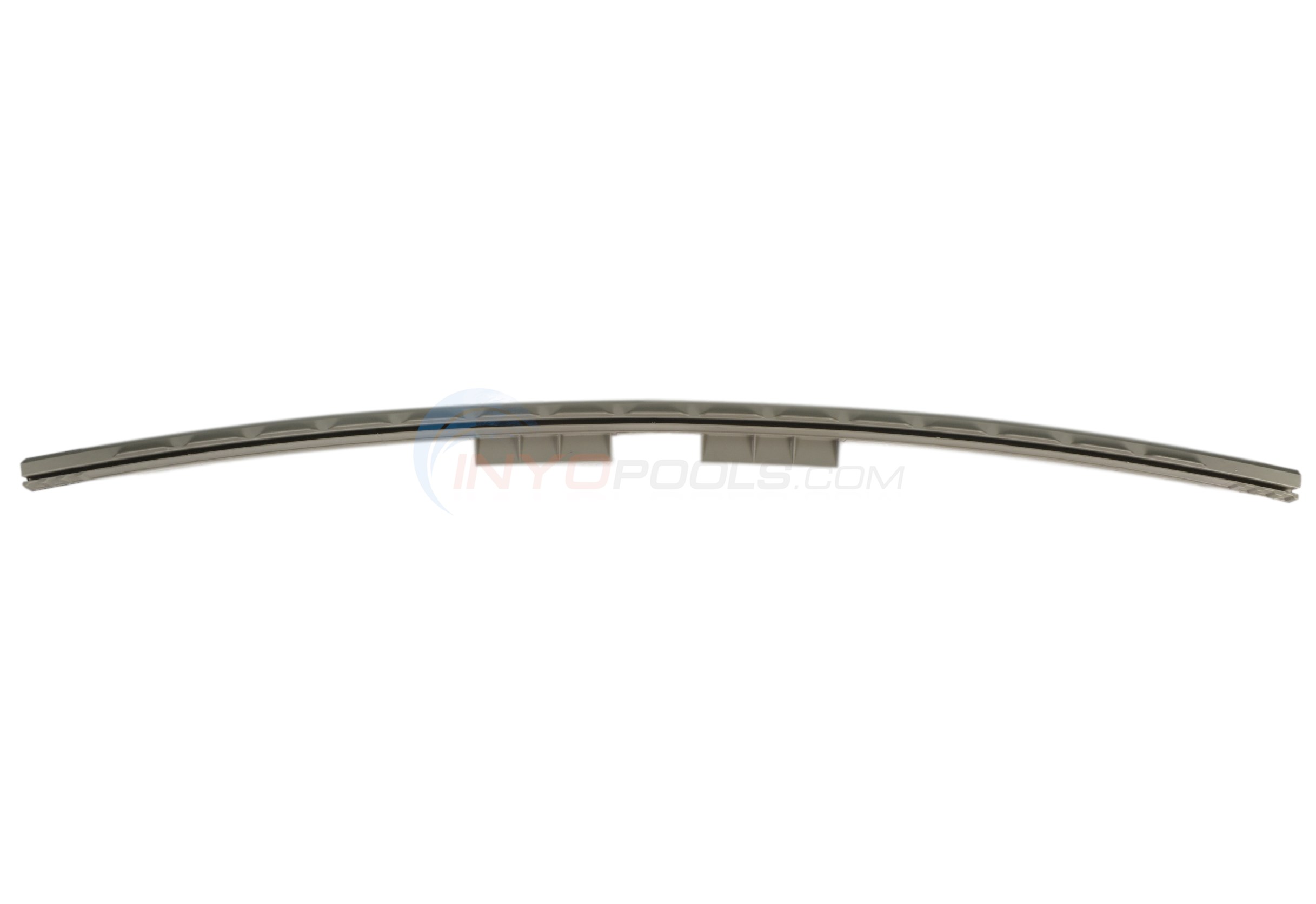

Bottom Rail Concerto - Resin (Single)

Above ground pool parts are not universal and can be difficult to identify. Inyo wants to make every effort  that your order meets your requirements. If you are not confident that you have chosen the right parts - Please send the following information that is requested below.  Inyo will forward to the information provided to the manufacturer to see if they can determine if the pool is one of their models.

Click here to submit the information requested below.

*   Size of the pool & approximate age of the pool?

*   Image of the pool wall.

*   Image of the upright

*   Image of the top rail connection to the upright.

*   Name & age of the pool (if known)

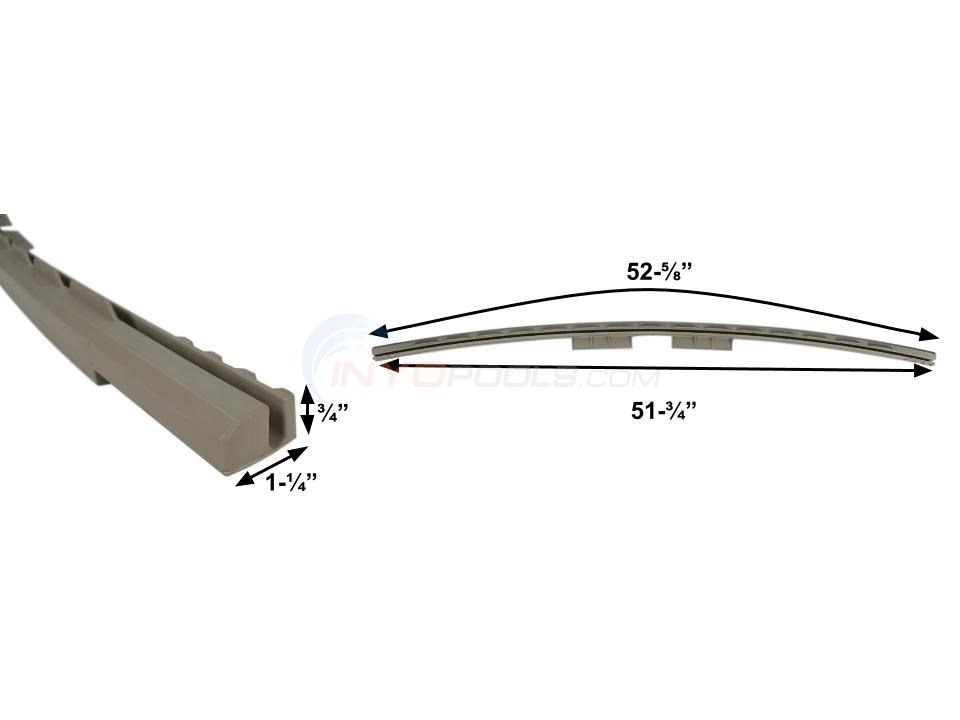

Product Specifications

Material:
Resin
A:
52-5/8 in.
B:
51-3/4 in.
C:
1-1/4" in.
Top
Difficulty

Est. Repair Time

Less than 1 hr

Tools Needed

None

Missing piece

Written on 10/7/2020 by Guest

Pool was moved and I thought we got everything. The replacement was a perfect fit.

Were these instructions helpful?


Difficulty

Est. Repair Time

More than 8 hrs

Tools Needed

Screwdriver, Nut Drivers

Had a few broken bottom rails from disassembling the pool

Written on 5/28/2019 by Guest

I had disassembled the pool last year and as we took the bottom rails out of the old sand a few broke. So upon reassembly, I had ordered the amount of replacement rails necessary for building the pool back.

The first step was to lay out the circle of the pool. Which we laid it out to be a 24-foot circle for a 21-foot pool to allow extra on each side. Then we removed 5 inches of topsoil and ensured our grade was level. Then I brought in 2 tons of sand and spread it equally around the newly graded are. Then I laid out the bottom rails and started to assemble the pool.
