My aqua rite main circuit board has a part #066012c-1 rev c. what is the replacement board?
Reply
This item here (GLXPCBRITE) is backward compatible with all older versions of the Aquarite meaning that it will work on all versions of the Aquarite.
Reply
Are the glx-pcb-main and the glx-pcb-rite the same?
Reply
Allison, The GLX-PCB-RITE is for the AquaRite Salt System and the GLX-PCB-MAIN is for the AquaLogic Automated Control System. The AquRite would be a standard salt system where the AquaLogic is an Automated Control System with a Salt System. This means that the AquaLogic would normally also control equipment like lights, pumps, air blower etc. The control of this equipment is done through a remote control. So if you have the AquaRite you require the GLX-PCB-RITE and if you have an AquaLogic you require the GLX-PCB-MAIN
Reply
Hi, My pool co says my Power Interface Board is out (the capacitor is cracked). If I decide to try to replace the board myself, which part should I order. Here are some names & numbers he read off the panel: Aquarite Generator, 215 - 230, GLC21011 (Goldline Controls), Part# G1-066012E-1 year 2009.
Thanks,
Chris
Reply
Hi Chris this would be the Aquarite PCB board that you require based on the numbers you provided. We have a Video on How To Replace an AquaRite PCB Board which should make things pretty simple for you.
Reply
I have a 2009 Aqua Rite system (PN: G1-066012E-1) that needs to be replaced. Can you tell me what is the replacement board for it?
Thanks!
Reply
Hi Peter, This would be the correct replacement PCB board for your Hayward AquaRite. This is the newest board and is backwards compatible to all older AquaRite units. We have a good Video on How to Replace an AquaRite PCB Board which should make this repair pretty easy.
Reply
I have a Goldline Prologic saltwater system for my inground pool. I have been told I need to replace the circuit board. The panel shows GLX-PCB-PRO. The circuit board itself shows Goldline PN G1-066008K-1.
Do you stock the circuit board and at what price?
Thanks,
Reply
Hi Chad, if you need the GLX-PCB-PRO attached is the link to that board.
Reply
Hi I have an aquarite system and the pcb PN is Goldline 132623 REV F. Your new board looks to be the same and compatible, an I correct in this assumption?
Reply
Hi Chris, Yes the GLXPCBRITE would be the correct replacement board for your Goldline 132623 REV F board.
Reply
Our pool guy is saying that none of the lights are on indicating that mother board is out. Is this the right replacement board?
Reply
Cindy, This would be the correct board if you have the Hayward/Goldline Aquarite system. If you don't you will need a different board.
Reply
I have the Aqua Rite system about 10 yrs old. Green power lite for "Generating" comes on momentarily, then off. No green power lite. Salt indicator stuck at 3000. Temp indicator and flow indicator seem fine. Not generating. Any ideas? are these boards replaceable, and do you sell them?
pn: 132604 rev: F
Main board pn: 066012B-1 rev: B
Reply
Hi Rich, It does sound like your board is bad and I would feel cofident that replacing your board would fix your problem. This would be the correct AquaRite replacement board based on the part #'s you supplied.
Reply
I put on a new turbo cell 5/21/15 it seem to work the next day open the door just the power light on salt reading o no generating chlorine please help.
Reply
Hi Craig, The symptoms the power light on and no salt reading and no generating chlorine reading indicates a bad Main PCB. We would suggest replacing your current Aquarite board with the board listed on this page.
Reply
I have a Goldline AquaRite chlorinator 9in ground. Reading the above the texts, I understand my original mother board (pn:066012C-1 Rev C) should be replaced by part number GLX-PCB-Rite. Can you tell me what is the correct part number for the Display board as well? The part number on it is 132604 Rev F.
Thanks Jim
Reply
Hi Jim, Here is the AquaRite Display Board you will need. Also our Video on How to Replace an AquaRite Display Board as well as our Video on How to Replace a AquaRite Main PC Board should be helpful when you do your replacement.
Reply
I have a Hayward swim pure plus system. No flow light blinks for while, then all lights off. Internet says I need to replace circuit board. My board has G1--011056B-1. Ones on Internet have G1-011056-1-RevB or RevC. Are they the same?
Reply
Hi yes this is going to be the replacement board for you
Reply

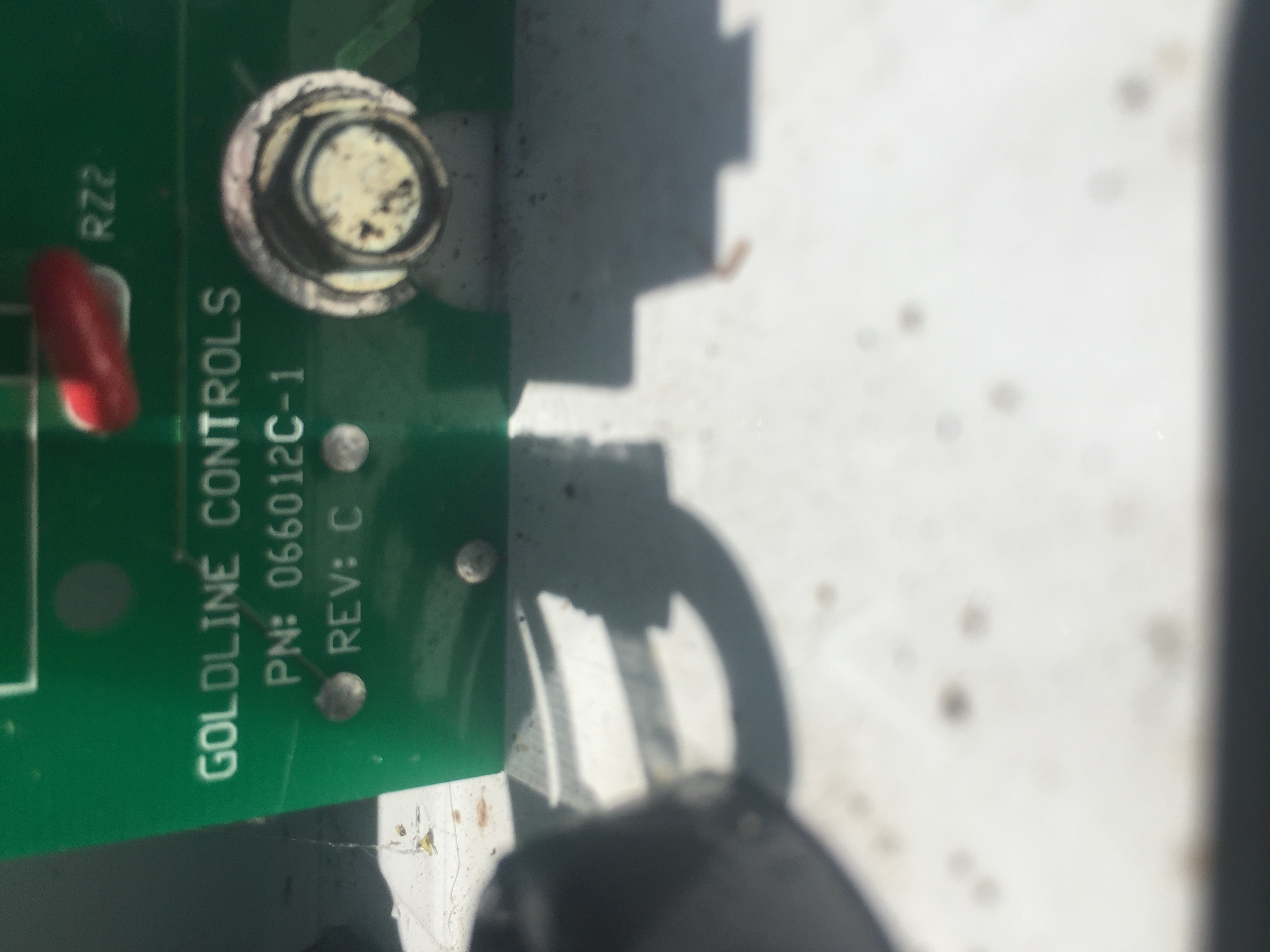

I have a main PCB part number 066012C-1 Rev.C. The display board reads HOT and I have been told the likely culprit is the main PCB. Am I correct in understanding that the replacement for this is GLX-PCB-RITE?
Reply
Hi Michael, You can unplug the cell then press the diagnostic button. The PCB should read 77. If this is the case, verify that the water is not above 140 degrees (solar possibly on). If the water is not that warm, the cell will need to be replaced. The PCB would need to be replaced only if the temp still read hot after unplugging the cell and cycling through the diagnostics. This would be an extremely rare seen problem.
Reply
I know this was 5 years ago, but any idea what part on the board is bad? My temp is 162 and only drops to 155 when I unplug the cell.
Reply
I have the aqua rite system and I am not getting a salt reading or an instant
salinity reading (Both reading 0). When the system is turned on after a minute or so, Check Salt and Check cell lights come on. Is this a PCB problem or bad cell, Everything was fine yesterday. No readings today.
yesterday
Reply
Make sure that your cell cable is plugged in securely. Then have a local pool store check your salt level to verify that it is not too low whick turns off your chlorine generation. If these suggestion do not work and your average salt reading is still showing 0, you probably have a faulty PCB.
Reply
I have a goldline g1-066012c-1 . the display board shows plc on the screen , what does that mean? do i need to replace the board?
Reply
Hi Ted, I'm unable to find "PLC" as an error code in the Goldline Aquarite Owners Manual, you may need to call Hayward Tech Support at 908.355.7995 to find out what that means before replacing the Aqua Rite Main PCB (GLX-PCB-RITE).
Reply
Can I use the old display when installing a new RITE board
Reply
Billy, The Aqua Rite Control Unit has two PCBs, the main PCB and the Display PCB. The display is integrated into the Display PCD. You do not have to buy a new Display PCB when you replace the Main PCB unless it was damaged.
Reply
I have an Aqua Rite salt system its around 10 years old. i added salt ( may be too much ) and i have no power lights or any lights but the display led still reads 2800 but no generation. I called hayward the tech had me push the diognostics twice it read 5.5 he then said the main pcb board is gone. On your web site under tips it said if the board is gone all lights would be yellow. i have no lights?
Reply
Hi Scott, There are several things that can happen to indicate that the PCB Board on a Aqua-Rite system is bad, no light is one. You also troubleshoot it with Hayward Tech Support and they indicated that the board needs to be replaced.
Reply
My Goldline Aqua rite system is not generating. The power line is not lite and the chlorinate lite will only come on for a minute. Do I need a new board? Where do I find the model number or part number?
Reply
Hi Vickie, yes your issues are most likely due to a bad AquaRite PC Board. As long as you have an Aquarite salt system then this is the correct PC Board as this board is backwards comptible to all older versions of the Aquarite.
Reply
I have four year old Aqua Rite Salt Chlorine Generator. PCB G1-011056-1 RevB. System not generating chlorine. CUR Limiter AS32 2R025 is cracked and may be the reason system is not working. Can this part be replaced on existing PCB board and if so what is procedure to replace. Thank you
Reply
Unfortunately we do not carry nor have instructions on board component parts and replacement. You may want to get with a company that does. Hayward recommends that these boards be replaced.
Reply
I have a Hayward Goldline Aqua Rite T-9 salt system. I notice today that there is no lights on the "Generating" or "Power on". I checked the 20 amp fuse and it is OK. What could be the problem?
Reply
Hello Benny, attached is a Diagnostics manual to help you find the issue with your system.
Reply
Is GLX-PCB-RITE the board I need for a Aqua Rite T=9 cell? If so ,what is the software revision for this board?
Reply
Hello, This board is the latest Revision which will allow you to choose the different cell types Hayward offers.
Reply
My circuit board is Gold Line Controls P/N 066012C-1 Rev C. Can this be done by a DYI?
Reply
Hello Chuck - The GLXPCBRITE will work with all the revisions of the Aqua Rite. We have a guide on "How to Replace an Aqua Rite Main PCB".
Reply
I have no cell power readying on my Aqua Logic Automation and Chlorination Goldline Controls PN# G1-066008M-1. If I need to be a new circuit board which one do I need to buy? I'm also thinking about replacing the Omron G8P-1C4P 24VDC to see if a new one will fix the issue before I buy a new board. Is that a good idea?
Thanks for your time. Jay
Reply
Hi Jay, You can try to replace Omron G8P-1C4P 24VDC but if that does not solve your problem you will have to replace the AquaLogic PCB Circuit Board (GLXPCBMAIN).
Reply
Hi. I need the four plastic foots that hold the Main PBC and the four legs that hold the screen panel. How can I make the order, What is the correct name for these pieces and where I can found it?
Thanks
Reply
Hello Hector, the clips are going to be our part number GLX-STDOFF.
Reply

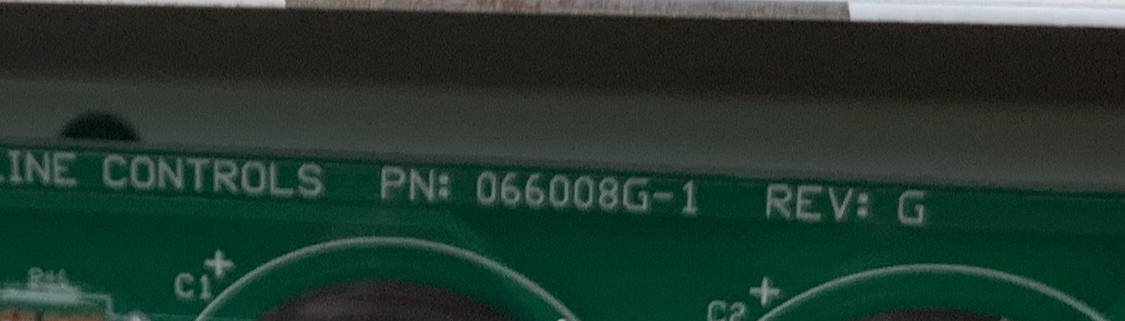

The part number on my board is G1-066008G-1 Rev. G. Is this the correct board to replace it. Mine is a chlorine pool not salt.
Reply
Hello James- The GLXPCBRITE would be the correct replacement for the G1-006008G.-1. This board is for a Hayward Aqua Rite salt system.
Reply
I have a 10+ year old bad that needs replaced. The PN is 066008G-1. Would the correct replacement be the GLXPCBMAIN PCB Circuit Board AquaLogic Version 2.6 or the GLX-PCB-RITE? It is for a TCell 15. I asked the question before and got a question back asking if had the salt system or full automation system, and I don't know that answer (how would you find that out?). I have the part number above and see on 2 different Q&A threads 2 different answers given, so no idea what to purchase.
Reply
Hi Brain, Can you send us photos of your controller we can confirm which unit you.
Reply
Why is my temperature reading lower then it actually is?
Reply
Hi Brenda, It could be the temperature sensor in the cell or the PCB is going bad. I can't say for certain. You can call Hayward 908.355.7995 to troubleshoot your system.
Reply
I have a pn 066012E-1 board that needs replacing. is the Aqua Rite Main PCB (GLX-PCB-RITE) board the replacement? And if so I can use the generic board instead and save the 100 dollars as you suggest?
Thx
Reply
Hello, Eric. Yes the Aqua Rite Main PCB (GLX-PCB-RITE) is the correct replacement for the 066012E-1 board. You may replace it with either the Orignal Manufacturer Replacement Board PART# GLXPCBRITE or with the Generic Aqua Rite Replacement Main PCB (GLX-PCB-RITE) PART# PL7100.
Reply
I have the G1-066012F-1 REV A board. Will this replacement board work for my system? Can you use the aftermarket generic version?
Thank you,
Roman
Reply
I have a Hayward Swim Pure Plus with a Goldline Controls circuit board part number G1-066012C-1 REV:C. Is the GLX-PCB-RITE the correct replacement?
Reply
Hi, The GLX-PCB-RITE is the correct circuit board for the Hayward Swim Pure Plus.
Reply
control board g1-066012c-1 rev:c I have 2 push pin where do they go
Reply
Hi Al, You can watch our How To Replace an Aqua Rite Main PCB for installation instructions.
Reply
My system show no cell power 2?
any ideas what parts I need to replace /or repair?
Thank you
Reply
Hi, No Cell Power 2 refers to the ProLogic System which indicates that the ProLogic PCB will have to be replaced.
Reply
Hi,
I received the board and have installed. looks like it is functioning, but the display is off. I referred to the manual and used the diagnostic button but it will not change.The display shows 4.7?? not 2400-3700 Also when I turn up the % the over chlorine lights steady and the display shows sh1? . Reset and turn down % and it works fine? Not sure if all is working? Please help
Reply
Hi Eric, If the display is not responding then it's possible that the displace could be bad or the PCB is not communicating with the Display board. I would recommend contacting Hayward at 905.355.7995 to troubleshoot your unit.
Reply
hi . good morning . I have no power light display and the other green light is on for a short time then cuts out. The pool supply store said that can change a fuse first or I may need to replace the board. Thanks
Reply
Hi Laz, 9 times out of 10 the issue is the PCB Board so that is what I would replace.
Reply
I have a Goldline Controls P/N 066008G-1 Rev G. Will this replace that board, if not do you have a replacement part? When I turn on the filter, it runs for 30 seconds and then trips the breaker. Transformer checks out ok, replaced the GFI breaker, still trips. When I unplug the turbo cell it works fine
Reply
Hi Pete, yes this board is the replacement for the AquaRite 066008G-1 Rev G and from what you are explaining it sounds consistent with a bad board.
Reply
I have an Aqua Rite salt system and need a new mother board. The ones I'm looking at on line doesn't look like the one I currently have. Are they standard now or what or where do I need to look.
Reply
Hi Gim, The PCB's are standard for the Hayward/Goldline Aqua-Rite Salt System.
Reply
How long does a new circuit board last
Reply
Hello Betty, Unfortunately there is no specific time frame a circuit board lasts. The GLXPCBRITH Aqua Rite Main PCB board does have a 1 year manufacturer's warranty.
Reply
I have a goldline control pcb that needs replacing pn g1-066012d-1 What is the correct replacement board?
Reply
Hi Jack, this PCB board would be the correct PCB board and is the OEM board made by Hayward. We also carry the PureLine After Market AquaRite PCB Board which is about $100 less and we have had great success with that board.
Reply
My Aqua Rite display keeps Saying - "HI" after I have replaced the salt Cell recently. Hayward said they thought the temperture sensor was bad on the first cell and suggested I get another. I am on my second "Brand New" Cell and I am still getting this error. I have not added salt in over three months and I really don't understand what to do next - Could I have a bad board?
Reply
Wrenn, it sounds to me as you have a bad board. The Aquarite boards go bad quite often and the majority of the time when we see issues like this it is the board.
Reply
I have Hayward Aqua Rite Pro system. The system turns on but the Check System light is on. There is no response when I push the right and left arrows to try to determine the nature of the problem. I have checked the fuse, all connections, flow valve, cleaned the SWG. At a loss. Does is sound like the board is blown? Is there anything else i can do before buying a new board? Is your replacement board exact duplicate for OEM Thanks
Reply
Edward, It sounds like a bad board is a possibility. The PL7100 is not an exact copy. There are some differences illustrated in the pictures.
Reply
I purchased the generic replacement board as you suggested. Nothing seems to be working properly. The readings are all off and it is not generating chlorine as it should. Every time I turn up the control it goes into failure saying too much salt and over chlorine.
I need help ?? Or should I bite the bullet and buy a non generic version of the board as I was originally.
PS also reset the diagnostics several time.
Reply
Eric, It sounds like the cell size was not properly selected on the board. Please confirm that the cell size on the board (press diagnostics 8x) and the cell size you actually have are the same.
Reply
pt # G1-09122 WITH 15 CELL. Is this the right pcb for our Hayward. thank you
Reply
Hi Aj, I was not able to cross reference p/n G1-09122 to a specific Hayward unit or PCB. If you can provide us with the model or name on the unit we can confirm if this is the correct PCB for your unit.
Reply
My part # is G1-011056-1 Rev B, GLC 21411 / 090003-158-01 #3111 /. #015005-40E. 3011. 17833. I do not have a light for power or generation when
I tap on the capacitor the lights come for a short time then go out. Can the problem be the capacitor if so can the capacitor be replaced & fix my problem or must I replace the board & is this the board I need
Reply
Hi Bob, Unfortunately, the capacitor can not be replaced; you will have to replace the entire board.
Reply
all I get when turn on system is power light comes on for about 3 seconds and cuts off and then the no flow stays on, has new flow switch.board is about 1 yr old
Reply
Hi Ken, It definitely sounds like the PCB is in need of being replaced again.
Reply
does the aftermarket pcb 167.99 board come with the display board on the top of it?
Reply
The Aqua Rite Replacement Display PCB Board is not included with the Aqua Rite Main PCB. You can click on the link to view the Display PCB Board's current pricing.
Reply
I replaced my motherboard on the standard aqua rite salt system last year. My recent problem is when the system turns on it starts generating but shortly thereafter the check salt and check lights come on. Sometimes they flash other times they just stay lit. The salt cell is fine and the salt level is 3200. Is this another noard issue or an issue with the sensor?
Reply
Hi Gary, They are a few steps that you can try that is located in the Aqua-Rite Troubleshooting Guide to find out the cause.
Reply
I have the hayward aqua TRol salt chlorine generator that reads 0.00 when I called hay ward they said it was the cell call service man which said it was the cell Help
Reply
Hi Maggie, If the salt generator is not displaying the salt level then the cell is not sending the correct reading to the unit. So you will have to replace the cell.
Reply
Our Goldline is not reading the salt correctly even when reset. The cell is clean and has been checked. We took the board out but don't see any burn marks or loose solders. We have solid lights on Power, Check Salt and Check Cell (no generating). I've done a reset and get it to fast blinking & generating - but that goes to solid the next day. The pool shop says my salt is 4800 (high) but the Goldline reads 2700 (up from 2600 after the reset). Ideas?
Reply
Hi Alaina, The cell could be bad not reading the correct salt level. You can contact you local pool store to see if they can test your cell.
Reply
I'm looking for the panel board whose part # is G1-066012E-1
Reply
That is part number GLXPCBRITE.
Reply
The part number on the existing control board is PN 132603 Rev F.
Will the replacement board Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE work?
Reply
Hi Art, Based on the info found this Aqua-Rite Main PCB (GLX-PCB-RITE) will work as a replacement.
Reply
What software revision does your generic board have?
Reply
Inyo Pools now offers an affordable replacement for the Hayward AquaRite Main PC board (GLX-PCB-RITE).Our PC board is an exact replacement for your original Hayward Goldline Aquarite PC board and performs the same exact functions. It is guaranteed to be compatible with any Aquarite T-CELL-15 or T-CELL-9 system. If you have the T-CELL-5 or T-CELL-3 or an automation system (AquaLink, AquaLogic, ProLogic, IntelliTouch and EasyTouch), then we suggest the Hayward OEM Circuit Board GLX-PCB-RITE. If you want to check out how easy install would be there is a video. Compatible with Hayward AquaRite (T-CELL-15 & T-CELL-9 Models), Goldline Aquarite (T-CELL-15 & T-CELL-9 Models)
Reply
is this part returnable if it does not work?
Reply
Hello Patricia, our return policy is * Must be Within 30 Days of Purchase* Must be in New, Unused Condition* Must be in original packaging with no markings on the product or packaging* Customer is Responsible for Outbound & Return Shipping Charges* Original outbound shipping & handling fee are non-refundable. If it is installed and has a problem then it is through the manufacturer Hayward.
Reply
Need new board. Mine reads:
goldline controls pn: g1-066008n-1
What is the correct part number for this replacement?
Reply
Hello Heath, if you need the main PCB, this Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE is the correct part. There is a how to guide on this as well
Reply
The part number on your photo matches mine exactly. g1-066012f-1 Rev A (c) 2012.
Is this the same part you will be sending me?
Reply
Good afternoon, The part picture is the one you will receive. g1-066012f-1 is the part number.
Reply
will this board replace my PN 066012c-1 Rev C?
My board has a large burn mark in the center.
Thank you,
David
Reply
Hi, David. Yes, this Aqua Rite Main PCB (GLX-PCB-RITE) will replace the p/n 066012C-1 Rev C.
Reply
Which PCB replaces G1-066008N-1?
Reply
The original manufacturer replacement board is part number GLXPCBRITE and our generic line is part number PL7100.
Reply
this is what i need for AQUA LOGIC Automation and Chlorination system? i was told on help line to order PCB Circuit board AquaLogic version 2.6- GLXPCBMAIN. is this the same thing?
thank you
Reply
Hello Kevin- This Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE is not the PCB board that you will need for your Aqualogic. You will need PCB Circuit Board AquaLogic Version 2.6 - GLXPCBMAIN, which is not interchangeable with the GLXPCBRITE.
Reply
which PCB replaces Goldline G10011056-1 RevB (GLC 30711) PN:G1-066012E-1
AuaRite Electronic Chlorine Generator. The 1" diode in upper right part of panel broke in half.
Reply
Yes, the GLXPCBRITE is the correct replacement board for your system.
Reply
i am replacing a Goldline circuit board in a Swim Pure salt system one of the bare codes is G1-011058G-1A, will this be the same as your replacement?
Thanks
Reply
Hello Scott- The Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE is going to be the correct replacement board for your Swim Pure salt system.
Reply
which board replaces Goldline Controls PN: 066012B-1 REV: B
Reply
Hello Joseph- The Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE would be the correct replacement for your salt system.
Reply
I replaced the board but it does not appear to com alive. I tested the power supply on its terminals and it is energized but the LCD does not show any sign of being alive.
What should I troubleshoot next ?
Do I new the LCD component?
Reply
Hi. You can follow the steps shown on pages 9-12 in the Aqua-Rite Troubleshooting Guide to confirm if the LCD Display is bad.
Reply
Does this replace a 066012C-1?
Reply
The part number 066012C-1 is missing the prefix that would determine which Hayward Control it belongs to. Does your control box say AquaTrol, AquaRite, or AquaLogic.
Reply
I have a aqua-rite box with a bad board part number 066012c-1 which part should I order from you? I want to make sure that I order the correct one the first time
Thx
Reply
Yes, that would be the correct main board for your AquaRite.
Reply
Hi when replacing the GLXPCBRITE in my AquaRite salt system do I need an electrician or is it something pretty simple a homeowner can do?
Reply
Hi Donna, It is pretty basic, we do have a Video on How to Replace an AquaRite Main PCB Board which should give you an idea if this is something you can tackle on your own. In the video we are using the PL7100 After Market AquaRite PCB Board $167
Reply
I have a G1-011056B-1 for a T-15 cell and would like to replace the IC at the bottom of the board just above the barcode. 4 of the pins corroded away (due to me letting moisture in by mistake). I do electronics so am comfortable with this. I have already ordered the "aftermarket" from you but would like to repair this boards well. Can you tell me what this 18 pin IC is? It has no markings. Thanks
Reply
Hi, Brinsden. Unfortunately, replacement parts are not available for the Aqua-Rite PCB.
Reply
pn -066008G-1 which one is thati need im lost is to many
Reply
Hello Alfredo, This references Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE.
Reply
I need a replacement for the following Part. This was installed in 2003. Goldline Controls PN: 066012A REV: A.
I use a T-15 Cell for a 38,000 Gallon Pool.
Is this the correct board?
Reply
Hi, Michael. Yes, this is the correct replacement PCB.
Reply
I need a replacement for a goldline controls pn: 066012B-1. It does not matter whether it is Goldline but one that fits this . I see some that might be it, however I am unsure.
It is a chlorine generator control board.
thanks
Reply
Hi, Faye. The pn on the board's change depending on when they were manufactured so we can not use that number as a cross reference guide. This is the correct replacement board for the Goldline Aqua-Rite chorine generator.
Reply
HI. I WANT TO REPLACE A G1-011056-B-1 AQUARITE 20 ELECTRONIC BOARD...DO YOU HAVE IT AND HOW MUCH IT WILL COST?
TANK'S
Reply
Hi, J.Losa. The number provided is a match to this Aqua Rite Main PCB.
Reply
We have a Gold Line Aqua Logic that needs a new circuit board, the numbers on the current one s GL-066008N-1 he also sees GLC04913. Is the GLX-PCB-RITE the correct item?
Reply
Samantha, This is not the correct replacement PCB for the Aqualogic controller, you'll need the AquaLogic PCB - GLXPCBMAIN.
Reply
Hi... I have been having problems w/my Aqua Rite SWG and saw this OEM board as well as the generic version. Does the generic board perform as well as the Hayward OEM board? What are the warranty terms for both and does Hayward suggest using the generic board?
Thanks,
-Ronnie-
Reply
Hi, Ronnie. The Aftermarket Board is as good as the OEM. Both boards have a 1 year warranty, the OEM board must be professionally installed. NOTE: If you have the T-CELL-5 or T-CELL-3 or an automation system (AquaLink, AquaLogic, ProLogic, IntelliTouch and EasyTouch), then we suggest the Hayward OEM Circuit Board GLX-PCB-RITE.
Reply
I need to replace the mother board for a Hayward Swim Pure Plus Electronic Chlorine Generator the part no. I see when I open the panel shows G1-085013J-2T. What is the replacement mother board for this part.
Reply
Hi, Clay. This Main PCB is compatible with the Hayward Swim Pure Plus Controller.
Reply
I have an Infinity pool with 2 motors and a Polaris motor. The filter moter would come on but the booster motor or the Polaris would not. I ordered a new board and installed--still same problem--Its the panel on the front of the board that has the push buttons on it. GLC 06209 Do you carry it.
Reply
Hi, John. The issue could be the motor or the relay if you have an automation controller. I will need to know the model of the controller in order to provide troubleshooting suggestions.
Reply
I have a Goldline Aqua Logic 066008F-1. Is this a seamless Replacement? If not, do you know what is the replacement?
Thanks!
Reply
Bob, If you have an AquaLogic system, you will need the GLXPCBMAIN circuit board.
Reply
I have an Aqua Rite goldline salt generator control with a PN: G1-066604F-1 circuit board. The power led does not light. The green led for salt generation comes on briefly, then goes out and there no lights lit. Where can I get a replacement board. Also what is a compatible PN board. Is the G1-066604K-1 a compatible board? Any and all advise is appreciated. Thank you
Reply
Hi, Sal. This Aqua Rite Main PCB - GLX-PCB-RITE is the correct replacement board that will resolve the issue that you're having with the controller.
Reply
I have a aqua rite goldline chlorine generator that is not producing chlorine. I had the cell tested and it is good. I have good lights and display. I believe the board is bad. The board # is G1-066012G-1 rev A. Will the generic board work or do I have to go with the Hayward board?
Reply
Hi, Gary. The Aftermarket Aqua Rite PCB - PL7100 will work if you're using the TCELL15 or TCELL9, if not you will have to use the OEM board.
Reply
Where would I find the circuit board 2003 Goldline Controls: PN 066015C-1 or replacement that will work and fit exactly into the system?
Thanks
Reply
Hi, DJS. I was not able to cross-reference PN 066015C-1 to this replacement board. However, this PCB will work as long as it's being installed in an Aqua-Rite controller that does not have automation.
Reply
I have a G1-011056-1RevC board. The sticker at the top of the container box says G1-013001C-1-2. Will this board work?
Reply
Hi, Dave. Yes, this Aqua Rite Main PCB - GLX-PCB-RITE will work as a replacement.
Reply
do i need a new lcd screen with this board and how can i tell if the screen is good i have replaced this system 3 times in 17 years thank you for your help charles cypher
Reply
Hi, Charles Cypher. Only if the LCD Board is bad you will need to replace it. You can use the Aqua Rite Diagnostics Manual to troubleshoot the display and the main pcb.
Reply
I think my PCB P/N has G1-066012F-1 Rev B. I have not seen this part number on anyone elses post. Is this part number compatible?
Reply
I believe you sent another question in confirming that you have the T CELL 5. If so and you have the standard stand-alone Aquarite salt system then your board part number is the original part number GLXPCBRITE.
Reply
I have a Goldline controls, Aqua Rite Electronic Chlorine Generator, the face has 3 bubbles on it. it has started doing strange things and I am not able to get to the T-Cell type setting anymore. G1-066012C-1 Rev C is the PN for the board. I have replaced the (thermistor?) 2R025 but it still will not go to the T-Cell type and as you scroll thru, the numbers may count down to zero for amps, instant chlorine, etc. none of the online help looks like the cover I have.
Irritated!
Reply
Hi. You can only change the cell size if your software revision is 1.5 or higher. Getting zeros for the amp and instant salinity reading could be a PCB issue or cell. You can have the cell tested at your local pool store if they have that capability.
Reply
Will this circuit board work for G1-011056-1 REVC?
Reply
Hi, Stephanie. Yes, this Aqua Rite Main PCB - GLXPCBRITE work as a replacement for G1-011056-1 REVC.
Reply
Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE - looking for a replacement part from this pcb G1- 066012g-1 rev a
RZ2 . RZ1 is s20 k150 . are they the same part?THANKS
Reply
Hello Gary- The Aqua Rite Main PCB (GLX-PCB-RITE) - GLXPCBRITE is the correct replacement for your aquarite.
Reply
I have a 2008 Goldline Controls PN: G1-066012D-1 circuit board that needs to be replaced... can you recommend the correct replacement?
Reply
Hi, Jessica. This Aqua Rite Main PCB (OEM - GLXPCBRITE is the correct replacement board.
Reply
I have a Goldline Controls Circuit Board PN:066012C-1, REV: C
It is from approximately 2006 and runs Ver. 1.40
What is the correct replacement board?
Thanks
Reply
Hi, John. This Aqua Rite Main PCB - GLXPCBRITE is the correct replacement.
Reply
I have a G1-011056-1 Rev B board and I replaced it with GLX-PCB-Rite, is that the correct board? I am asking because my power light was not working, so I swapped them out and it is still not working.
Reply
Hi, Mike. Yes, Part # GLX-PCB-RITE is the correct replacement board. You can have wired the board incorrectly overlooking the jumpers placement, use our How To Replace an Aqua Rite Main PCB for instructions.
Reply
Will this work with a Hayward t-cell 15 40,000 gallon in ground pool.
Reply
Hi. Yes, it will if you have one of these controllers, Hayward AquaRite, Goldline AquaRite, BioGuard Mineral Springs, or SwimPure Plus.
Reply
I have a T-3 aqua rite system and am getting an average salt reading of Zero, flucuating voltage readings and zero amps reading... Power is 120 to board. Please assist in trouble shooting.
Reply
Hi, Michael. To troubleshoot your issue, get the cell tested at an authorized Hayward warranty center. If the cell pass, then the PCB will need to be replaced.
Reply
I need to replace the board in my Aqua Rite Chlorine Generator. Current board is a Hayward G1-066012G-1 Rev A. It looks like I need to order the GLXPCBRITE but want to confirm that with you before I place the order.
Reply
Will this circuit board be compatible with my current system, I'm using a T-3 cell and the current board is a G1-011056G-1 A?
Reply
Hi, John. This AquaRite Main PCB (OEM) - GLX-PCB-RITE is the correct replacement and is compatible with the TCELL3.
Reply
I have cell power issue. PN: 066008G-1 REV: G I repaired it last year using the soldering suggestions. However, it comes back intermittently. What part do I need and is there aftermarket options?
Hello, We recommend contacting Hayward on that question. You can reach them at 1-800-429-9273.
Reply
I have a Hayward/Gold Line Aqua Rite salt generator. My original t-cell was a T-cell-9. I replaced it with a T-cell-3 this year. I am looking @ replacing the main circuit board. due to age (10 years). The original circuit board has a part # on it ( G1-085013J-2 T). Is your part # GLX-PCB-RITE the same as my original.
Reply
Yes, you may replace your current board with the AquaRite Main PCB (OEM) - GLX-PCB-RITE
Reply
Is this part the replacement for Goldline Controls pn: G1-066012C-1 REV:C
Reply
Hi Jeff, Yes this is the proper replacement board for the G1-066012C-1 REV:C we also carry this PureLine Main PCB for the Hayward AquaRite which will work as well.
Reply
What is the difference in the after market board and the board made for automated systems? Can you confirm this board will work for my application? Photos enclosed.
Hi, Curtis. The PL7100 board does not have the RS485 terminal for automation. This OEM Main PCB - GLXPCBRITE is the correct replacement.
Reply
I have board 066012C-1 Rev C, but my board has a white terminal at the top center which this board does not.
Hi, John. This is the correct replacement board based on your current PCB PN and revision.
Reply
Just installed circuit board and has power to the unit but no display.
Do the displays go bad and how much are they ?
Reply
Displays do go bad, we will need to know model info about your system to determine the correct display.
Reply
how do I install a new Aquarite main pcb (oem) glx-pcb-rite that I just purchased from you
Reply
Please check out our How To Replace an Aqua Rite Main PCB guide which has an installation video as well.
Reply
my AquaRite was installed in 2004, we have only replaced an Ametherm once and recently replaced the T15 cell for the 2nd time. Now, there is no lights on the AquaRite. I can power it off & then back on, the lights come on but only for seconds, then go off. is a replacment board needed? current board with green background, has "Goldline Controls PN# 132604 Rev F" on the top and in the lower left corner, "PN: 066012 A Rev: A". If I need to replace the board what is the correct replacement?
Hi, Sheila. Based on your explanation, the Man PCB is bad and will need to be replaced. This AquaRite Main PCB (OEM) - GLX-PCB-RITE is the correct replacement.
Reply
Hi, my Aquarite PCB is G-1-011056G-1. This looks identical, but just want to make sure.. See what happened to mine. Also, is it possible to replace the wiring on the T15 cell rather than buy a whole new cell?
Hi, Tristan. This is the correct replacement board. Unfortunately, the entire cell will have to be replaced.
Reply
What is your return policy if this in not the correct replacement? Please advise.
Reply
Hi Jeanine, please see our return policy page for details.
Reply
Troubleshooting Aquarite chorine generator with T15 cell. When I turn on, No flow light blinks for 60sec, then generating light on for 10 sec. Then all lights off. LCD still works. Does this sound like I need new board? Current board 066012B-1 rev B. Would the generic board work with this as well? Thanks for your help.
Hi, Damien. The symptoms that you're experiencing will be resolved by replacing the AquaRite Main PCB (OEM) - GLX-PCB-RITE.
Reply
What is the correct replacement board for G1-011056-1 RevC?
Reply
The correct replacement for your Hayward PCB G1-011056-1 is the GLX-PCB-RITE.
Reply
I have a Hayward Swimpure+. Main board is G1-066012F-1 Rev A; display board G1-066604K-1. Most of the time the system works fine. Other times, the LCD goes out, is dim, has random segments lit, all status lights are on, or all lights flicker. Is this just a loose connection between the main board and display board or do I need to think about replacing one or the other or both. In the past I've had to replace the current limiter (AS32 2R025) twice on the main board. I am using a T-15 cell.
Reply
Hi Glenn, The circuit limiter is definitely a weak point on these boards. We have found that the circuit limiter can be repaired or replaced a few times but after a few repairs then the main pcb board will need to be replaced. I would suggest replacing the main board first as many times this will fix the issue with the dim display board. If the dimness doesnt improve at that point then you will need both boards. For the SwimPure Plus you will need this Swimpure Plus Main PCB Board and this Swimpure Plus Display Board.
Reply
Can this PCB be a replacement for Goldline Aquarite: Hayward PN G1-066012F-1 Rev A. Pic Attached.
-GLX-PCB-RITE-ae94bd1f-94df-461e-a6e9-611da5dbe0c9.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-ae94bd1f-94df-461e-a6e9-611da5dbe0c9.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
Hello Curt. The Goldline Controls AquaRite Main PCB (OEM) model GLX-PCB-Rite is the correct replacement for your Hayward part number G1-066012F-1 Rev. A.
Reply
Can you confirm this is the right PCB? I have the Swim Pure + with Gold Line Part # G1-066012E-1. But I also see another number Part # G1-011056B-1. I included some pictures. Thanks
Yes, the GLX-PCB-RITE is the drop-in replacement for both the Hayward AquaRite G1-011056B-1 and G1-066012E-1 board.
Reply
I am replacing a Goldline control board 132603 REV F. Will board G1 066012C-1 REV B work as a replacement. Thanks
Reply
Good day, yes based on your number provided the Goldline Controls AquaRite Main PCB (OEM) - GLX-PCB-RITE would be the correct board.
Reply

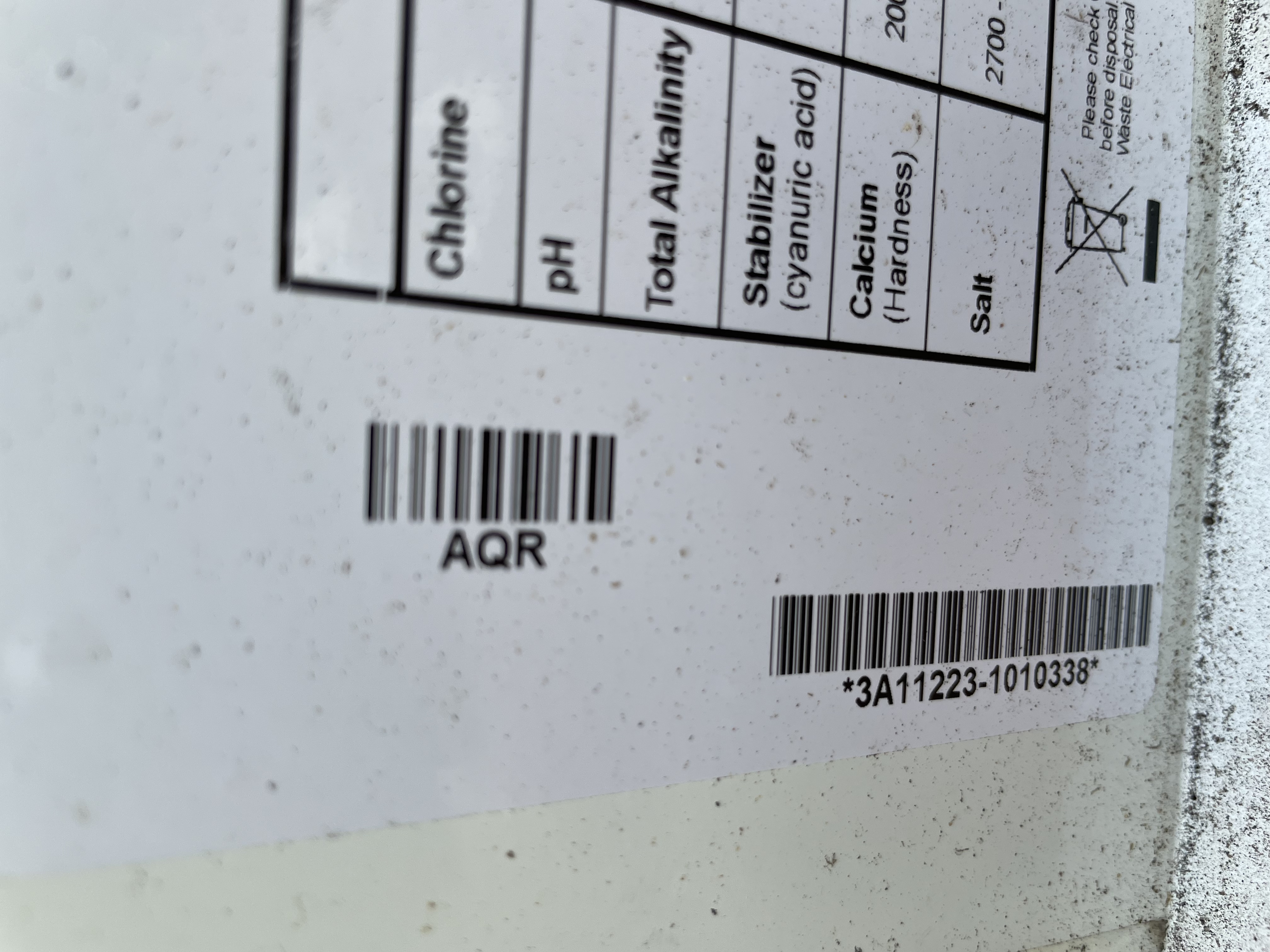

I am not sure if this is correct part for aqr main pcb
The only numbers I could find on unit is serial number and AQR. Please help
Hello Karen. The Hayward AquaRite Main PCB (OEM) GLX-PCB-RITE is the correct replacement Main PCB for the AquaRite Saltwater Chlorine Generating System.
Reply
Is your GLXPCBRITE a replacement for my existing board G1-011056G-1?
Reply
Hello. The Hayward AquaRite Main PCB (OEM) GLX-PCB-RITE is the direct replacement for the Hayward Main PCB G1-011056G-1
Reply
Is the Goldline Controls AquaRite Main PCB (OEM) model GLX-PCB-Rite is the correct replacement for Hayward part number G1-066012G-1 Rev. A.??
Reply
Hello Richard, yes this Hayward/Goldline Aquarite main PCB board is the replacement for your PCB board model number G1-066012G-1.
Reply
Will this work with a tcell925
-GLX-PCB-RITE-d136bcc3-32d1-48ae-a65f-c545ecd4f34d.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-d136bcc3-32d1-48ae-a65f-c545ecd4f34d.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
Hello Bill. The Hayward AquaRite Main PCB (OEM) GLX-PCB-RITE is compatible with the Hayward TCELL925. Prior to attaching the TCELL925 power cord to the new Main PCB please follow the steps outlined in the attached Aqua-Rite Troubleshooting Guide, page 10, How To: Set TurboCell Type. A reminder message is included in Main PCB I/O instructions.
Reply
Do you also have the LCD readout screen forGLXPCBRITE?
Reply
Hello Larry. The Hayward Aquarite Goldline Display Board - GLX-PCB-DSP is the OEM Display Board for the Hayward AquaRite Salt System. Attached please find the Hayward / Goldline AquaRite replacement parts listing for reference.
Reply

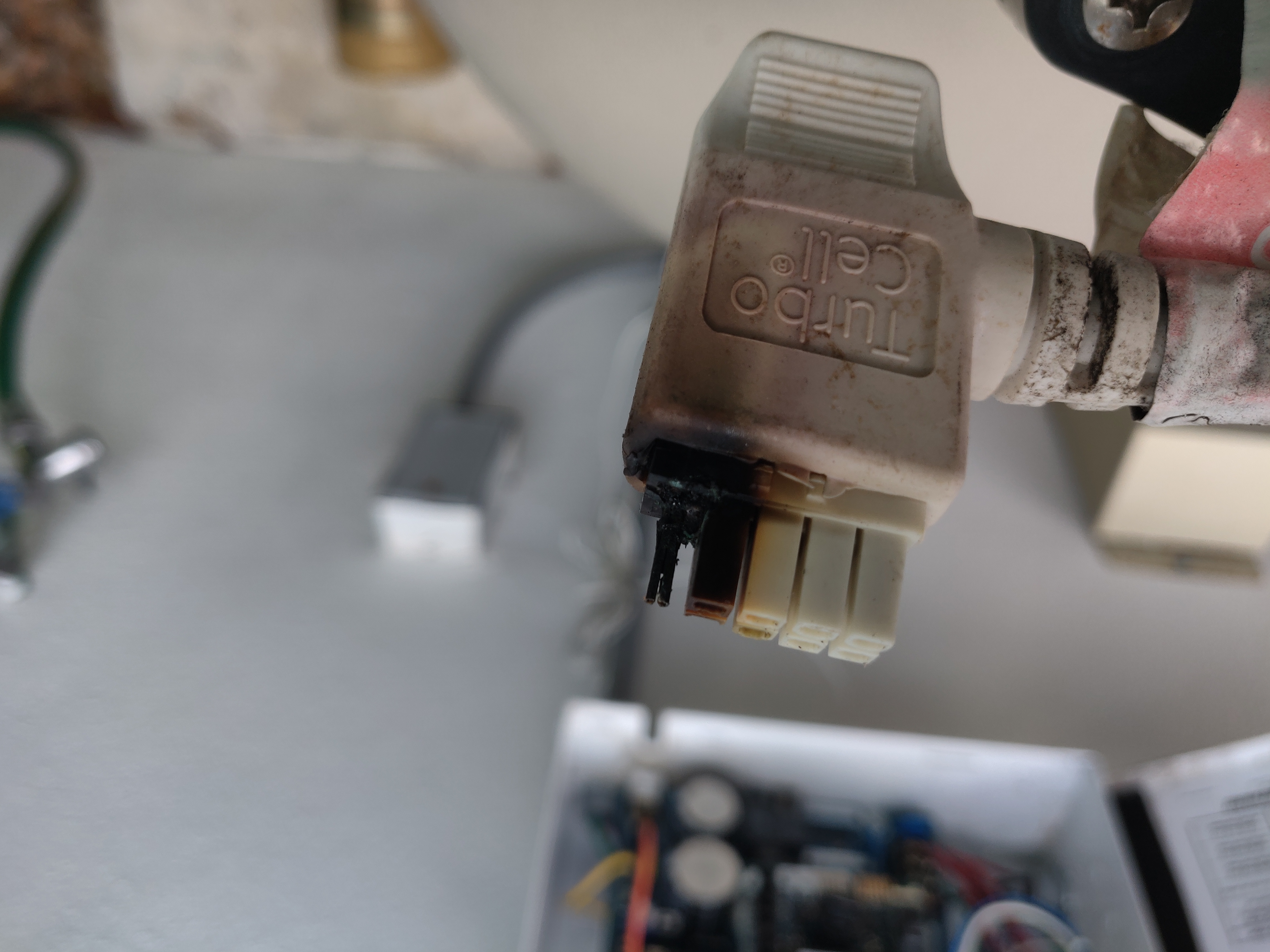

After not using my salt system for several years, due to a bad Turbo Cell, I replaced the Cell. Now, the power light blinks on and off and the chlorine read numbers are unreadable . Do you think I need to replace the board?
Hello Michael, there are a number of things that you will want to test/check to confirm what the issue is with your salt system. Here is our "Troubleshooting Your Hayward Aqua Rite System" guide that we put together that should assist.
Reply
Do you also carry the power supply for this board?
Reply
Does this PCB Board work for an Aqua Plus Goldline Control system PN: G1-066008N-1 ? I don't see that number listed above?
Hello, yes, the Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE would be the correct replacement board for the G1-066008N-1
Reply
Is there a way to calibrate my salt level on/with this board (G1-066008N-1))?
Testing at my local pool store says the salt is at 3000, but the system is telling me Salt is Low… add Salt.
Jim, based on your image, you have an AquaLogic system that uses the GLXPCBMAIN, not the GLXPCBRITE. I did not see any instructions on recalibrating the salt level in the owner's manual. If the system is reading low salt, you will want to inspect and clean the cell. Depending on the age of the cell (older than 3-5 years), the cell may need to be replaced.
Reply
-GLX-PCB-RITE.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-93fa18e0-2565-4cd9-b24f-ff41cb2694f3.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-2587e482-a19a-470d-9b56-5841c6ac1214.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-93fa18e0-2565-4cd9-b24f-ff41cb2694f3.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-2587e482-a19a-470d-9b56-5841c6ac1214.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-5d389f4b-9575-4236-8c8b-a9cea9e687fe.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-fc2fe602-5de7-44e4-afe6-aa0e5a656595.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-687d2253-ed6b-48c3-813c-7ac98b7f51ce.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-5d389f4b-9575-4236-8c8b-a9cea9e687fe.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-fc2fe602-5de7-44e4-afe6-aa0e5a656595.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-687d2253-ed6b-48c3-813c-7ac98b7f51ce.jpg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-74f1cc8d-80ea-4eb6-a9e6-a1a6e5e6b856.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-d3d17848-ca5c-4fb2-9d2e-e9094eb58ef7.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-74f1cc8d-80ea-4eb6-a9e6-a1a6e5e6b856.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-d3d17848-ca5c-4fb2-9d2e-e9094eb58ef7.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-66c69a66-fd89-4783-9e7b-ae7ab95d182e.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-b54159a9-eb62-4a7d-a7a2-ef7f0728eaf7.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-66c69a66-fd89-4783-9e7b-ae7ab95d182e.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-b54159a9-eb62-4a7d-a7a2-ef7f0728eaf7.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE-53209e9a-50fd-4348-bfa6-9d55bc1648c2.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&height=75&width=75&mode=pad)
-GLX-PCB-RITE.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
-GLX-PCB-RITE-53209e9a-50fd-4348-bfa6-9d55bc1648c2.jpeg?format=jpg&scale=both&anchor=middlecenter&autorotate=true&mode=pad&width=650&height=650 "Hayward Aquarite Replacement Main PCB Printed Circuit Board for Salt Chlorination System - GLX-PCB-RITE")
