?     Asked on 11/4/2014by Beto

sorry I mean Magic lube nor glue.......how often you can do that. i mean over the tank O ring. the when clean the filter you removed the half of the tank cover. I mean the big gasket big O ring. assembly the entire tank.
 Reply

A  Answered on 11/5/2014 by InyoPools Product Specialist Brian M.

Ideally, every time you open the tank to clean or inspect you should wipe off the old lube and put new on.
 Reply


?     Asked on 1/13/2016by Cathy cannedy

will this fit Hayward c5025
 Reply

A  Answered on 1/13/2016 by InyoPools Product Specialist Megan C.

Hi, Cathy. Yes, the 4820-02 is the correct part number for the filter tank O-Ring, that is used on the Hayward SwimClear Cartridge Filter Model C5025. I would best recommend purchasing Magic Lube O-ring Lubricant 1 Oz. Teflon, to help seal and protect the O-Ring.
 Reply


?     Asked on 4/15/2016by Rob Tomfoed

Is this gasket steel reinforced? If not do you carry an O-ring which is inforced for Hayward 4025 canister?
 Reply

A  Answered on 4/15/2016 by InyoPools Product Specialist Lennox H.

Hi Rob, The Reinforced Gasket for the Hayward C4025 is p/n DEX2422Z2.
 Reply


?     Asked on 4/25/2016by JUan Valadez

I NEED A SEAL FOR MY HAYWARD PRO-GRID VERTICAL DE-6000
 Reply

A  Answered on 4/25/2016 by InyoPools Product Specialist Lennox H.

Hi Juan, This Tank O-ring will fit the Hayward Pro-Grid DE6000 filter. You can locate other parts for that model filter via the Hayward Micro Clear D.E. Parts.
 Reply


?     Asked on 5/11/2016by Bob

Does this O-ring fit a Hayward Pro-Grid DE2420?
 Reply

A  Answered on 5/11/2016 by InyoPools Product Specialist Hector F.

Yes that o ring will work for that model filter.
 Reply


?     Asked on 5/12/2016by Inyo Visitor

Will this fit a Hayward Micro Clear DE 3600?
 Reply

A  Answered on 5/12/2016 by InyoPools Product Specialist Matt S.

Yes, the O-429 tank O-ring is compatible with the DE3600 Hayward Micro-Clear.
 Reply


?     Asked on 5/27/2016by steve

I have a De 4820 is this the correct ring?
 Reply

A  Answered on 5/28/2016 by InyoPools Product Specialist Patrick P.

Hi Steve, Yes this is the correct o-ring for the Hayward DE4820.
 Reply


?     Asked on 5/28/2016by Gerald Kokoska

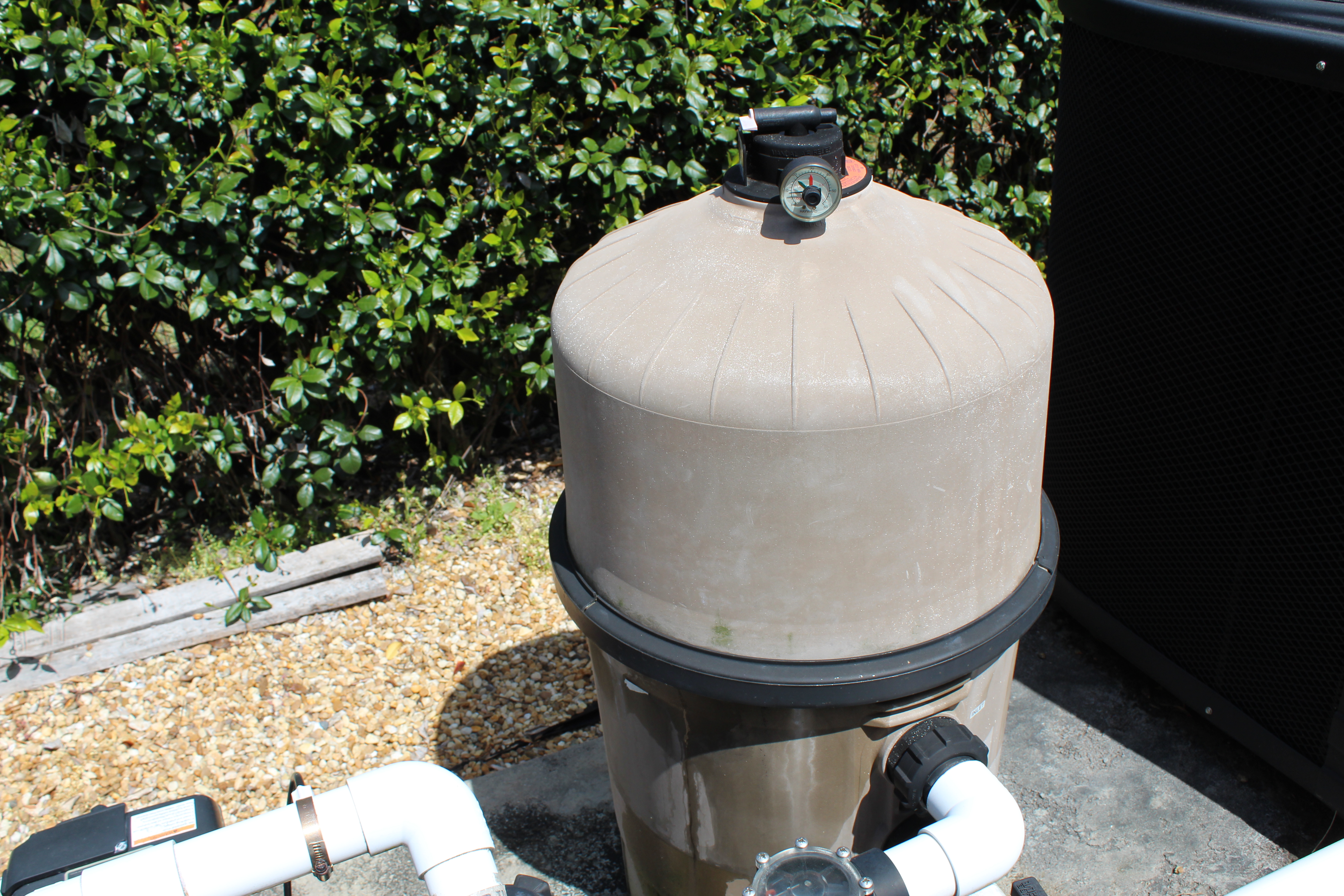

This gasket seats between the dome and the tank?
 Reply

A  Answered on 5/30/2016 by InyoPools Product Specialist Lennox H.

Hi Gerald, Yes, this is the o-ring that seals the top and bottom for certain Hayward filter's.
 Reply


?     Asked on 5/31/2016by Tom Kerr

Does this o ring fit a Hayward de 4800 filter?
 Reply

A  Answered on 6/1/2016 by InyoPools Product Specialist Lennox H.

Hi Tom, This Generic Tank O-ring will fit the Hayward DE4800 Filter.
 Reply


?     Asked on 6/14/2016by Doug

will this o-ring fit a DE3620
 Reply

A  Answered on 6/14/2016 by InyoPools Product Specialist Patrick P.

Yes this O-ring does fit a Hayward DE3620 filter.
 Reply


?     Asked on 6/15/2016by Steve

Will this seal work for my Hayward Swimclear model C2030?
 Reply

A  Answered on 6/16/2016 by InyoPools Product Specialist Lennox H.

Hi Steve, The Hayward SwimClear C2030 filter uses the Metal Reinforce Seal-DEX2422Z2.
 Reply


?     Asked on 6/20/2016by Krystle Van Epps

Im looking for the large gasket for my pump model #DE4820
 Reply

A  Answered on 6/20/2016 by InyoPools Product Specialist Alan M.

Hello, The O-ring, Tank - Generic (o-429) is the correct replacement gasket for the DE4820 model DE filter.
 Reply


?     Asked on 9/14/2016by Paula Hardin

Will this gasket fit a Hayward Crystal Clear II filter housing with model number DE-LE-42054? Also if it fits...can I get it shipped overnight.
 Reply

A  Answered on 9/14/2016 by InyoPools Product Specialist Stacey M.

Hello Paula, Yes this O-ring, Tank - Generic (o-429) will fit, any Expedited orders placed after 1 PM EST will ship the following business day. Saturday, Sunday and National holidays are not classified as business days, for example if you placed an order via 2 Day Air on Thursday before 1 PM EST your order would be delivered in 2 business days which would mean delivery on Monday. There isn't an overnight option, there is Next day air, 2 day, 3 day, or ground shipping. Please make sure to double check your order and anything after 1pm will be processed next business day.
 Reply


?     Asked on 12/13/2016by R

I have a Hayward DE4800 Micro Clear. This o-ring works at first, but after the second start up of the pump, it leaks. I re-lubed it four times and same results. I can run the pump for four days straight after I lube it up and no leaks, but once the pump sits idle after a night, the next time it starts up, it drips. It appears this new o-ring is just a hair too small in thickness for my filter. Any suggestions? Thanks
 Reply

A  Answered on 12/13/2016 by InyoPools Product Specialist Adam Y.

Good afternoon, The OEM o-ring for your filter is  Filter Tank O-ring - DEX2400K this is the correct o-ring.
 Reply


?     Asked on 1/9/2017by Boyd Pace

will it work on a hayward 2025
 Reply

A  Answered on 1/10/2017 by InyoPools Product Specialist Lennox H.

Hi, Boyd. Yes, this Generic Tank O-ring - O-429 will fit the Hayward SwimClear C2025 Filter.
 Reply


?     Asked on 4/24/2017by Leo V

Will this work for Hayward de progrid 7200?
 Reply

A  Answered on 4/24/2017 by InyoPools Product Specialist Matt S.

Yes, this is the correct replacement for the DE7200 main body gasket.
 Reply


?     Asked on 4/24/2017by Leo V

Will this work for Hayward de progrid 7200?
 Reply

A  Answered on 4/24/2017 by InyoPools Product Specialist Matt S.

Yes, this is the correct replacement for the DE7200 main body gasket.
 Reply


?     Asked on 6/1/2017by Inyo Visitor

Will this work with C4520 Series Hayward filter?
 Reply

A  Answered on 6/1/2017 by InyoPools Product Specialist Hector F.

Yes, this is the o-ring for that model filter.
 Reply


?     Asked on 6/2/2017by Inyo Visitor

what is the diameter of this o-ring
 Reply

A  Answered on 6/3/2017 by InyoPools Product Specialist Patrick P.

18-7/16" Inside Diameter and 19-7/16" Outside Diameter
 Reply


?     Asked on 6/10/2017by Inyo Visitor

will this fit a hayward made for leslies crystal clear 42052 de filter lid
 Reply

A  Answered on 6/11/2017 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Tank O-ring - O-429 will fit the Leslie's Crystal Clear DE Filter- 42052.
 Reply


?     Asked on 7/28/2017by Jerry DeGiorgio

What o-ring lid seal for Hayward Swim Clear Filter model # C2020 ? Thanks
 Reply

A  Answered on 7/28/2017 by InyoPools Product Specialist Lennox H.

Hi, Jerry.  This is the correct tank o-ring for the Hayward C2020 cartridge filter.
 Reply


?     Asked on 7/28/2017by Inyo Visitor

It looks like the o-ring seal for my Hayward Swim Clear filter (C2020) is INYO 4820-02. When replacing what is a good lubricant ?
 Reply

A  Answered on 7/28/2017 by InyoPools Product Specialist Lennox H.

Hi. That is correct, you can use the Magic Lube O-ring Lubricant 1 Oz. Teflon - 630
 Reply


?     Asked on 7/28/2017by Vic

Hi, Will this fit model c5530BHMB swimclear?
 Reply

A  Answered on 7/29/2017 by InyoPools Product Specialist Lennox H.

Hi, Vic. Yes, this Tank O-ring will fit the Swimclear Filter.
 Reply


?     Asked on 8/29/2017by David

I'm pretty sure this O-Ring will fit my Blue Haven Hayward filter 5520BH, Right? What is the filter cartridge repl. #? I will need 4 of these...
 Reply

A  Answered on 9/5/2017 by InyoPools Product Specialist Lennox H.

Hi, David. Yes, this Generic Tank O-ring - O-429 will fit the 5520BH filter. The CX1380RE (OEM) or the PL0115 (Aftermarket) cartridge is the replacement cartridge.
 Reply


?     Asked on 1/5/2018by Inyo Visitor

does this O ring fit the C3000s tank
 Reply

A  Answered on 1/8/2018 by InyoPools Product Specialist Lennox H.

Hi. This Tank O-ring will fit the Hayward Super Star Clear Cartridge Filter - C-3000 model.
 Reply


?     Asked on 4/2/2018by Jose

Will this fit Pro-Grid Vertical DE series part DEX2422Z2? Thaks
 Reply

A  Answered on 4/3/2018 by InyoPools Product Specialist Hector F.

No, that metal reinforced seal is specific to a certain Hayward series and cannot be replaced with this o ring.
 Reply


?     Asked on 5/2/2018by Steve

Will this fit a Hayward DE 3600 filter?
 Reply

A  Answered on 5/2/2018 by InyoPools Product Specialist Kevin G.

Hello, yes this part will fit.
 Reply


?     Asked on 5/16/2018by Ron Zinger

Will it fit an older Hayward (manufactured for Leslie's pools) DE-LE 42054 that is for 48" sq ft?
 Reply

A  Answered on 5/17/2018 by InyoPools Product Specialist Alex V.

Ron, Yes, this will fit your filter tank.
 Reply


?     Asked on 6/30/2018by Inyo Visitor

Will it fit an DE 4800 model?
 Reply

A  Answered on 6/30/2018 by InyoPools Product Specialist Lennox H.

Hi. Yes, this Tank O-ring will fit the DE4800 model.
 Reply


?     Asked on 10/22/2018by myreen

will this o ring fit Hayward c5025 filter cartridge?
 Reply

A  Answered on 10/22/2018 by InyoPools Product Specialist Lennox H.

Hi, Myreen. Yes, this Tank O-ring - O-429 will fit the C5025 unit using the old style clamp assembly.
 Reply


?     Asked on 1/26/2019by Inyo Visitor

will it fit a swimclear C3030 tank
 Reply

A  Answered on 1/28/2019 by InyoPools Product Specialist Lennox H.

Hi. This Tank O-ring will not fit the C3030, you will need to use the Metal Reinforced Seal - DEX2422Z2
 Reply


?     Asked on 1/27/2019by David

I have a DE Pro Grid 6020 from approx. 2002. Will this fit it? The metal reinforced one DEX2422Z2 seems too small in thickness and leaks.
 Reply

A  Answered on 1/28/2019 by InyoPools Product Specialist Lennox H.

Hi, David. If you still have the old stainless steel clamp assembly, then this is the correct replacement Tank O-ring. If not, then you will need the Metal Reinforced Seal - DEX2422Z2
 Reply


?     Asked on 3/24/2019by Terry

I have a Blue Haven Hayward filter model 4025 filter, I think? It has black steel clamp with the spring loaded nut. I received an update from Blue Haven for parts and it say c4520bhme. The o-ring currently installed is rubber without the steel reinforcement suggested by the new model number. Will this rubber seal work with my filter? Thanks for any help or assistance you can offer.

 Reply

A  Answered on 3/24/2019 by InyoPools Product Specialist Lennox H.

Hi, Terry. Yes, this Tank O-ring - O-429 is compatible with your style model.
 Reply


?     Asked on 4/8/2019by Davida

I have an old de-4800 filter. What size "O" ring do I need for tank?
 Reply

A  Answered on 4/10/2019 by InyoPools Product Specialist Michelle B.

Hello, What would be the brand and the model of the current DE filter you have?
 Reply


?     Asked on 4/8/2019by davida

I researched and found that the inside diameter on the oem O ring was 19 7/8". The one you show is 18 7/8". This would be too small correct? Thanks for help!
 Reply

A  Answered on 4/10/2019 by InyoPools Product Specialist Michelle B.

Hello, In order to find the correct o-ring you will need, we will need to know the brand and the model of the filter. If you are unsure of which one you have, you can replay to this E-mail with a picture of your filter and we will be able to identify it for you.
 Reply


?     Asked on 4/17/2019by Bill Awalt

I have a Hayward DE 6000 filter and the current o ring that seals the top and bottom leaks. Do you have an O ring that would seal properly. The O rings I find at the local pool supplies seem to be too small in diameter.
 Reply

A  Answered on 4/18/2019 by InyoPools Product Specialist Lennox H.

Hi, Bill. This Tank O-ring - O-429 (Generic) or  DEX2400K (OEM) will fit your model canister.
 Reply


?     Asked on 5/16/2019by Inyo Visitor

I have a DE 4800 filter. I want to replace the O ring that seal the top and bottom of the filter assembly. what size should I purchase? john
 Reply

A  Answered on 5/16/2019 by InyoPools Product Specialist Lennox H.

Hi. This Tank O-ring, Generic - O-429 is the correct replacement for the Hayward DE4800 filter.
 Reply


?     Asked on 5/24/2019by John C Lee

I have Hayward model 3025. Will this O-ring fit it?
 Reply

A  Answered on 5/24/2019 by InyoPools Product Specialist Patrick P.

Hi John, Yes this is the proper replacement o-ring for your Hayward model 3025
 Reply


?     Asked on 7/29/2019by Robert H.

hi, does this fit hayward c4000 series?
 Reply

A  Answered on 7/30/2019 by InyoPools Product Specialist Michelle B.

Hello, Yes, this would be the correct oring.
 Reply


?     Asked on 7/30/2019by Tom Mays

I have a Hayward C-2000 filter holder will this O-ring fit.
 Reply

A  Answered on 7/30/2019 by InyoPools Product Specialist Lennox H.

Hi, Tom. Yes, this Tank O-ring, Generic - O-429 will fit the Hayward C-2000  model filter.
 Reply


?     Asked on 8/13/2019by Annie

Hi! We have a DE Microclear filter #DE2400z2. Will this tank band work for our filter?
 Reply

A  Answered on 8/13/2019 by InyoPools Product Specialist Lennox H.

Hi, Annie. Yes, this Tank O-ring is the correct replacement.
 Reply


?     Asked on 8/14/2019by Joe

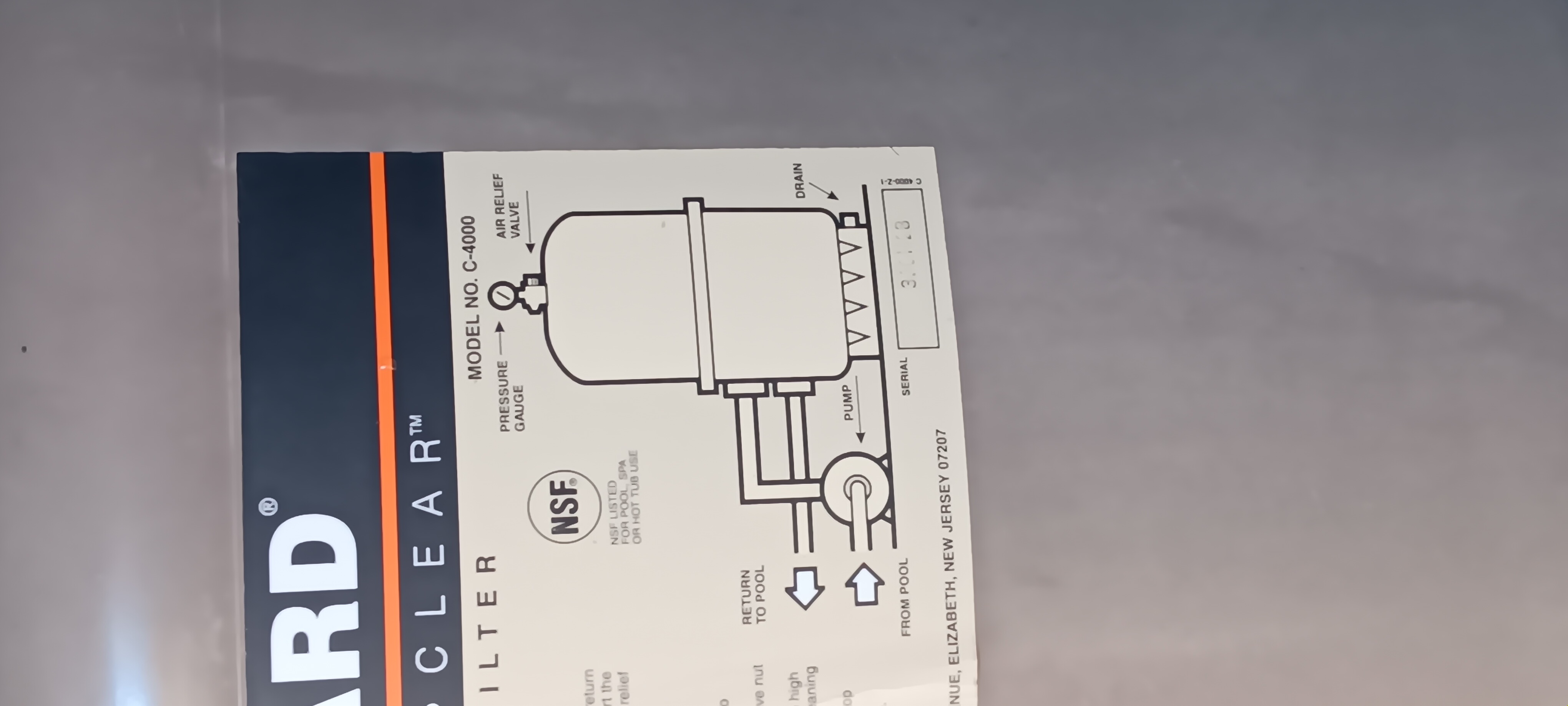

Is the O-ring O-429 correct for an older Hayward C4000 (Star Clear)? Is the measurement 19 7/16" the INSIDE dimension/radius?
 Reply

A  Answered on 9/18/2019 by InyoPools Product Specialist Hector F.

Yes, this would be the correct lid o ring for the model Hayward C-4000 filter.
 Reply


?     Asked on 9/14/2019by Scott J Garrabrant

Does this o-ring fit the Hayward C-3000?

 Reply

A  Answered on 9/17/2019 by InyoPools Product Specialist Michelle B.

Hello, Yes, this will be the correct o-ring.
 Reply


?     Asked on 11/3/2019by helen schwartzentruber

Does this ring fir Hayward model G300- Serial 330E30 Super star clear?
 Reply

A  Answered on 11/4/2019 by InyoPools Product Specialist Lennox H.

Hi, Helen. Yes, this Tank O-ring - O-429 will fit the Super Star Clear Cartridge filter.
 Reply


?     Asked on 11/3/2019by Inyo Visitor

Is this the proper ring for Hayward model C3000 serial 330E30 Super Star Clear?
 Reply

A  Answered on 11/4/2019 by Industry Professional

This is a direct replacement for the DEX2400K.
 Reply


A  Answered on 11/4/2019 by Industry Professional

Yes it is
 Reply


?     Asked on 4/7/2020by Inyo Visitor

Is this the proper body o-ring for a Hayward DE2420?
 Reply

A  Answered on 4/7/2020 by InyoPools Product Specialist Patrick P.

Yes this is the correct o-ring for a Hayward DE2420, you can also upgrade this Hayward DE Filter Heavy Duty Metal ReInforced O-Ring either will work for your filter.
 Reply


?     Asked on 5/14/2020by Edward Wolm

will this o ring fit Hayward DEX2422Z2
 Reply

A  Answered on 12/7/2020 by InyoPools Product Specialist Hector F.

Hi Edward, If you still have the old stainless steel clamp assembly, then this is the correct replacement Tank O-ring. If not, then you will need the Metal Reinforced Seal - DEX2422Z2
 Reply


?     Asked on 5/31/2020by Audrie Minnis

how do I know what is the correct size for the tank or body o ring de6000a
 Reply

A  Answered on 10/20/2020 by InyoPools Product Specialist Hector F.

Hello Audrie, this o ring part number 4820-02 is compatible with the Hayward model DE6000 Micro Clear D.E. filter and under its main image on its page is a "size" option that provides all of the dimensions that we have measured of it.
 Reply


?     Asked on 6/5/2020by Audrie Minnis

Hello, I need this to fit my DE6000
 Reply

A  Answered on 6/5/2020 by InyoPools Product Specialist Hector F.

Yes, this o-ring is compatible with your model Hayward Micro Clear DE6000 filter.
 Reply

  • Commented on 6/6/2020 by Product Owner

    Hello, Do you have clamp assembly with spring assembly for hayward DE6000
     Reply

    • Commented on 8/27/2020 by InyoPools Product Specialist Lennox H.

      Audrie, Unfortunately, that part has been discontinued.
       Reply


?     Asked on 6/25/2020by Tim

do you carry the filter tank o ring for a hayward micro-clear DE-3600?
 Reply

A  Answered on 10/23/2020 by InyoPools Product Specialist Hector F.

Hi Tim, this o ring is compatible with the Hayward Micro Clear D.E. filter series.
 Reply


?     Asked on 10/3/2020by Daniel Sullivan

Will this work with a Hayward model DE-6000?
 Reply

A  Answered on 10/15/2020 by InyoPools Product Specialist Hector F.

Yes, this is the correct tank o ring for the model Hayward Micro Clear DE6000.
 Reply


?     Asked on 5/17/2021by Inyo Visitor

Will this fit an old Hayward DE 3600
 Reply

A  Answered on 5/17/2021 by InyoPools Product Specialist Patrick P.

Yes this o-ring does fit the Hayward DE3600 Micro Clear DE filter.
 Reply


?     Asked on 5/25/2021by Robert Schiano

will this fit hayward DE4820
 Reply

A  Answered on 5/27/2021 by InyoPools Product Specialist Patrick P.

Yes this does fit the Hayward DE4820 filter.
 Reply


?     Asked on 6/17/2021by derik

what O ring body tank can fit in De3600 hayward

 Reply

A  Answered on 6/17/2021 by InyoPools Product Specialist Danny R.

Here is a link to the complete parts breakdown for your Hayward DE3600.Hayward Micro Clear D.E. Parts BreakdownThis 48020-02 is the oring for the filter tank.
 Reply


?     Asked on 9/8/2021by Neeru

Will this fit Hayward C6060 swimclear filter body?
 Reply

A  Answered on 9/9/2021 by InyoPools Product Specialist Craig C.

Hello Neeru.  The Aladdin Tank O-ring 4820-02 is NOT compatible with the Hayward SwimClear Multi-Element Series Filters.  The correct O-ring for the Hayward SwimClear Multi-Element Filter Series is DEX2422Z2.    Tank Lid Metal Reinforced O-ring - DEX2422Z2
 Reply


?     Asked on 10/9/2021by Dana

will this fit a Hayward Progrid clear DE model number DE7220s? thanks
 Reply

A  Answered on 10/12/2021 by InyoPools Product Specialist Joe S.

Good afternoon, you would need to order "New Style" O-429 *DEX2400K 2007 And After* MicroClear & Pro-Grid Vertical Grid Perma GlassXL Pre-09 PART # DEX2400K
 Reply


?     Asked on 11/11/2021by jack

Does this o-ring fit to Micro Clear DE filter Model DE720s?
 Reply

A  Answered on 11/11/2021 by InyoPools Product Specialist Rich N.

Hi Jack.  This does not fit your DE720S.  You need this O-ring, Filter Tank, O-430 since you have the stainless steel version of this filter.
 Reply


?     Asked on 11/27/2021by Randy

Does this seal work on the DE360S tank?
 Reply

A  Answered on 12/8/2021 by InyoPools Product Specialist Rich N.

Hi Randy, this fits on the Hayward Micro Clear D.E. filters with the Duralon or Permaglass tank, but the Hayward Micro Clear D.E. Stainless Steel tank requires the 0-430 filter tank o-ring.
 Reply


?     Asked on 12/5/2021by Scott Alan Morris

Will this fit my Hayward Swimclear C3025 cartridge filter housing?
 Reply

A  Answered on 12/6/2021 by InyoPools Product Specialist Rich N.

Hi Scott, the Tank O-ring - O-429 will fit your Hayward SwimClear Cartridge Filter C3025 perfectly.  Be sure to clean it and lubricate it when you service your filter so it lasts a long time.
 Reply


?     Asked on 6/15/2022by matt

would this gasket fit the Hayward de3620?
 Reply

A  Answered on 6/15/2022 by InyoPools Product Specialist Craig C.

Hello Matt.  The Filter Tank O-ring for Hayward ProGrid is compatible with the Hayward DE3620 Filter.
 Reply


?     Asked on 9/3/2022by Jana

I would like to know if this O ring -429 fit my Hayward DE 6020 filter, my filter was made before 2009. Thank you.
 Reply

A  Answered on 11/10/2022 by InyoPools Product Specialist Hector F.

Hello Jana, yes this is the correct tank lid o ring for the Hayward Pro Grid DE filter model DE6020 Pre 2009 models.
 Reply


?     Asked on 9/18/2022by caryn

Will this fit an older Hayward progrid with reinforced metal?
 Reply

A  Answered on 10/8/2022 by InyoPools Product Specialist Hector F.

Hi Caryn, yes this filter tank o-ring is compatible with the Hayward Micro Clear and Pro Grid series D.E. filters.
 Reply


?     Asked on 5/15/2023by john s ward

does part # 4820-02 fit hayward filter DE 3620
 Reply

A  Answered on 5/15/2023 by InyoPools Product Specialist Hector F.

Hello John, yes this o ring is compatible with the Hayward Micro Clear DE filter series.
 Reply


?     Asked on 7/27/2023by Ed Rudek

Will this o-ring fit the Hayward DE-3600 Micro Clear filter?
 Reply

A  Answered on 7/29/2023 by InyoPools Product Specialist Hector F.

Hello Ed, yes this is the correct lid o ring for your filter model.
 Reply


?     Asked on 5/29/2024by Abelardo C. Carbonel

Does it fit to Model C 3000?
 Reply

A  Answered on 6/5/2024 by InyoPools Product Specialist Alex V.

Abelardo, Yes, this o-ring will fit the Hayward C-3000 filter.
 Reply


?     Asked on 9/20/2024by Tony

Will this seal fit my old Hayward super star clear c-4000 filter? My seal seems to be more of a "D" shaped ring vs an "O" ring but maybe it has compressed over time and that is why it is beginning to leak? Thanks

 Reply

A  Answered on 9/20/2024 by InyoPools Product Specialist Rich N.

Hi Tony, the 4820-02 Filter Tank O-ring should be perfect for your Hayward SuperStar filter.  Your old o-ring has the "D" shaped profile as a result of being compressed over the years.  Get the new o-ring, put some lubricant on it, clean the sealing surfaces and you'll be good to go!
 Reply
