American Products 5 & 8 Position Top Mount Models 501151, 501181, 501182, 501183 Parts

1 1/2" MULTIPORT MODELS 501151, 501181, 501182, 501183

PRIMARILY USED ON ECLIPSE AND METEOR MODELS SINCE '95

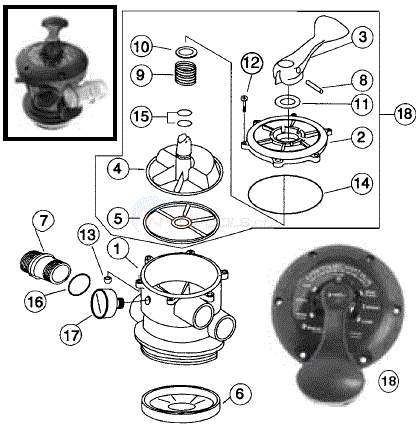

American Products 5 & 8 Position Top Mount Models 501151, 501181, 501182, 501183 Diagram

Click to zoom in

Diagram #	Part Title
1	No Longer Available BODY, 1 1/2", Replace With 4600-0099
2	LID, 8 POSITION
3	HANDLE, 8 POSITION
4	ROTOR, SPIDER GASKET ASSEMBLY
5	GASKET, SPIDER
6	DIFFUSER
7	SIGHT GLASS F/18 & 20" SAND FILTER
8	PIN, HANDLE
9	Spring
10	WASHER, THRUST
11	WASHER, HANDLE
12	SCREW, PAN HEAD
13	NUT
14	O-RING, LID (4700-05AX=)
15	No Longer Available O-RING Replace With 4700-08A
16	O-RING, SIGHT GLASS
17	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
18	VALVE TOP ASSEMBLY, 8 WAY (272528) (ALSO REPLACES 5 WAY)
*	COMPLETE VALVE, TOP MT. METEOR 18IN & 20IN EQFV WG
*	COMPLETE VALVE, TOP MOUNT 22IN EQFV
*	COMPLETE VALVE, TOP MOUNT F/26IN EQFV WG (50118300) (AFTER 11-95)
*	COMPLETE VALVE, TOP MOUNT 2IN F/30IN EQFV (50123100) (AFTER 11-95)

View Parts List

Diagram #	Part Title
1	No Longer Available BODY, 1 1/2", Replace With 4600-0099
2	LID, 8 POSITION
3	HANDLE, 8 POSITION
4	ROTOR, SPIDER GASKET ASSEMBLY
5	GASKET, SPIDER
6	DIFFUSER
7	SIGHT GLASS F/18 & 20" SAND FILTER
8	PIN, HANDLE
9	Spring
10	WASHER, THRUST
11	WASHER, HANDLE
12	SCREW, PAN HEAD
13	NUT
14	O-RING, LID (4700-05AX=)
15	No Longer Available O-RING Replace With 4700-08A
16	O-RING, SIGHT GLASS
17	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
18	VALVE TOP ASSEMBLY, 8 WAY (272528) (ALSO REPLACES 5 WAY)
*	COMPLETE VALVE, TOP MT. METEOR 18IN & 20IN EQFV WG
*	COMPLETE VALVE, TOP MOUNT 22IN EQFV
*	COMPLETE VALVE, TOP MOUNT F/26IN EQFV WG (50118300) (AFTER 11-95)
*	COMPLETE VALVE, TOP MOUNT 2IN F/30IN EQFV (50123100) (AFTER 11-95)

Available Parts:

1

No Longer Available BODY, 1 1/2", Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028146.htm">4600-0099</a>

Mfg # 51006800

No Longer Available BODY, 1 1/2", Replace With 4600-0099

NOT AVAILABLE

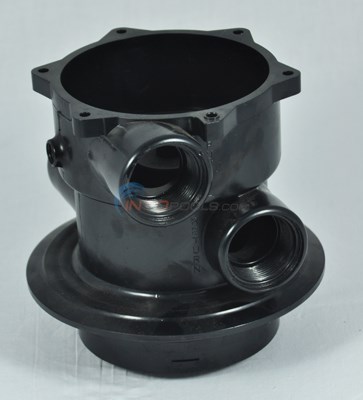

BODY, 1 1/2", 8" FLANGE-THRD.

Part # 4659-31F Mfg # 51006900

BODY, 1 1/2", 8" FLANGE-THRD.

$111.94

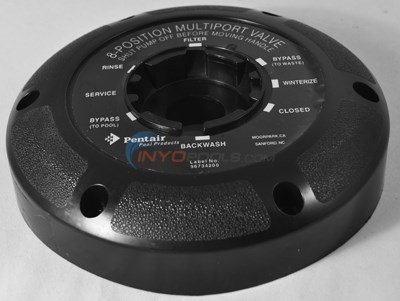

LID, 8 POSITION

Part # 4659-25D Mfg # 50133100

LID, 8 POSITION

$88.48

2

OBSOLETE LID, 5 POSITION

Mfg # 50133000

OBSOLETE LID, 5 POSITION

NOT AVAILABLE

HANDLE, 8 POSITION

Part # 4659-21C Mfg # 50131100

HANDLE, 8 POSITION

$55.43 IN STOCK

Qty:

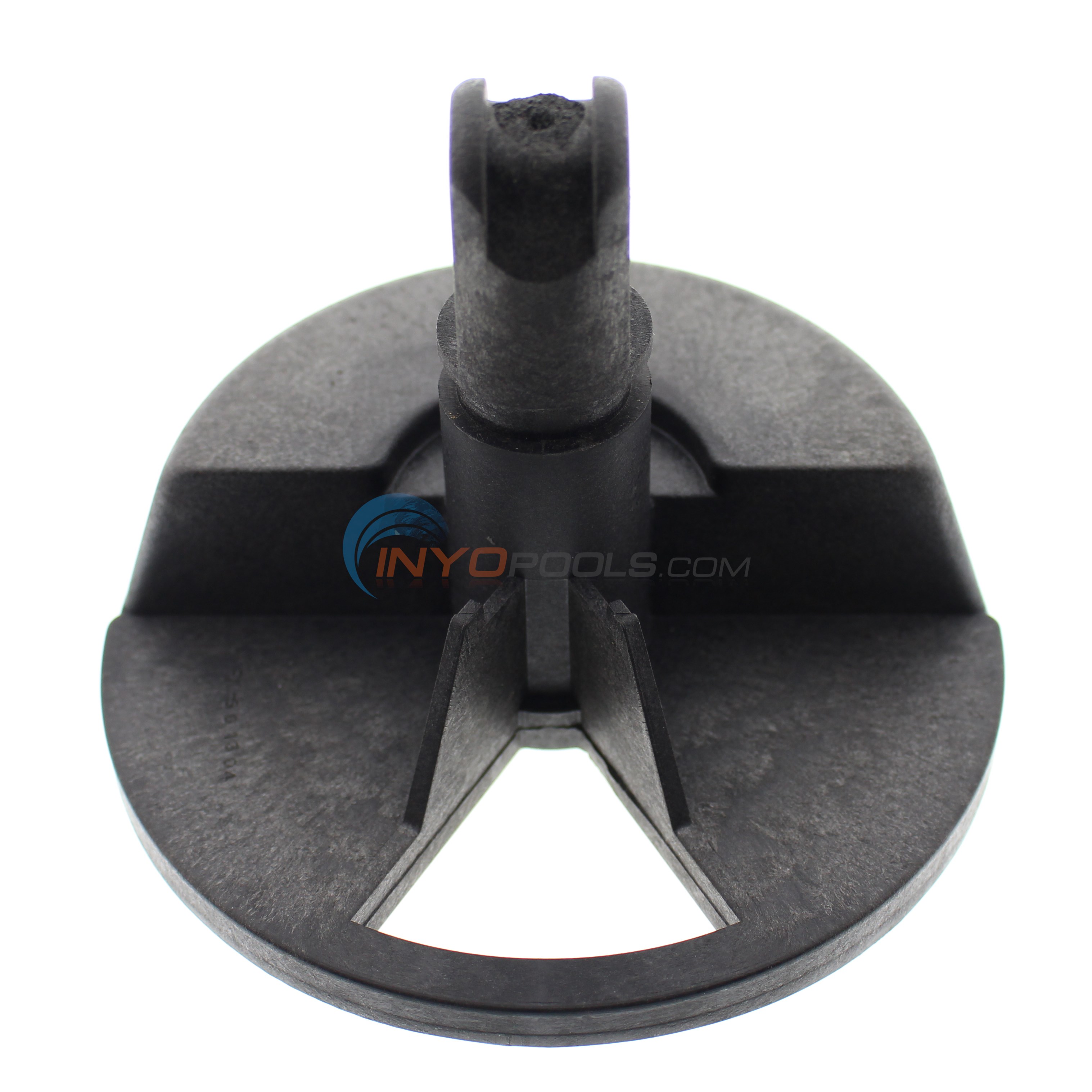

ROTOR, SPIDER GASKET ASSEMBLY

Part # 4659-29C Mfg # 50131400

ROTOR, SPIDER GASKET ASSEMBLY

$54.36

GASKET, SPIDER

Part # 4659-30D Mfg # 50131000

GASKET, SPIDER

$33.58 IN STOCK

Qty:

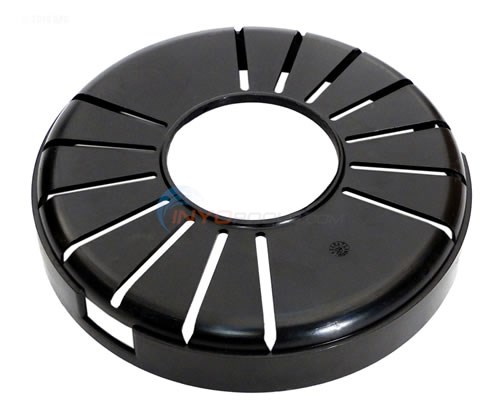

DIFFUSER

Part # 4659-40 Mfg # 51030000

DIFFUSER

$41.57

SIGHT GLASS F/18 & 20" SAND FILTER

Part # 4659-41 Mfg # 85019000

SIGHT GLASS F/18 & 20" SAND FILTER

$60.76 IN STOCK

Qty:

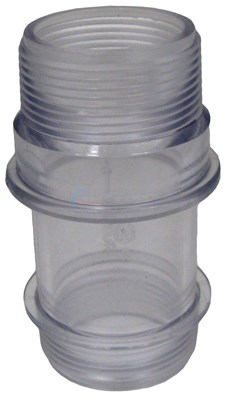

SIGHT GLASS, 1 1/2' ID

Part # 4659-41A Mfg # 85019100

SIGHT GLASS, 1 1/2' ID

$42.64 IN STOCK

Qty:

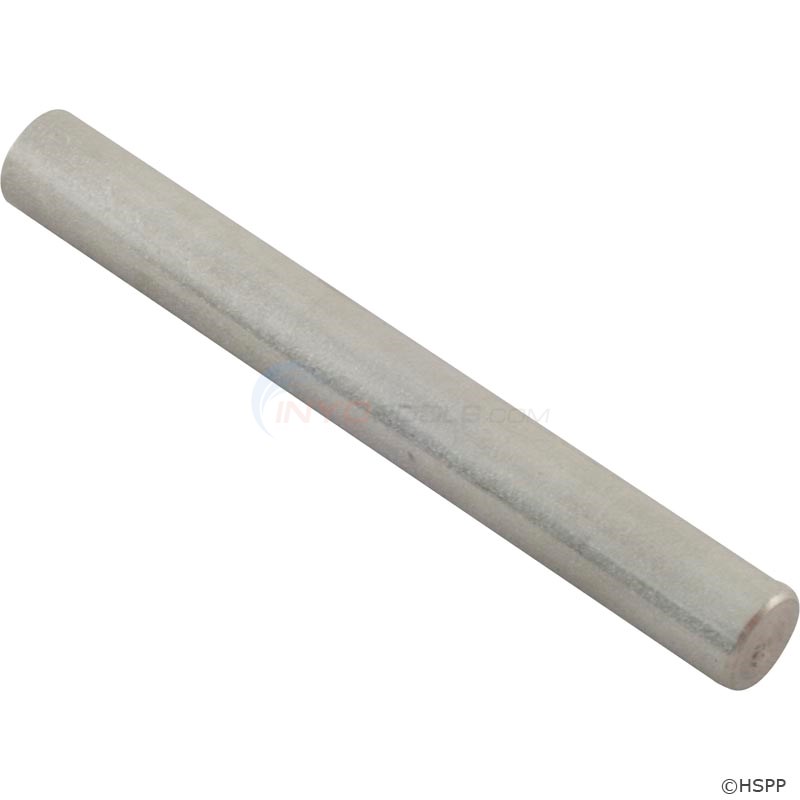

PIN, HANDLE

Part # 4659-22B Mfg # 50151400

PIN, HANDLE

$22.37

Spring

Part # 4659-08 Mfg # 51000700

Spring

$42.43

WASHER, THRUST

Part # 4659-20 Mfg # 51021600

WASHER, THRUST

$22.15

WASHER, HANDLE

Part # 4659-23C Mfg # 51025700

WASHER, HANDLE

$12.07

SCREW, PAN HEAD

Part # 4659-05 Mfg # 98209000

SCREW, PAN HEAD

$12.78 IN STOCK

Qty:

NUT

Part # 4659-19 Mfg # 98211400

NUT

$12.78 IN STOCK

Qty:

O-RING, LID (4700-05AX=)

Part # 4659-36A Mfg # 50151700

O-RING, LID (4700-05AX=)

$13.42 IN STOCK

Qty:

15

No Longer Available O-RING Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352023213.htm">4700-08A</a>

Mfg # 50151900

No Longer Available O-RING Replace With 4700-08A

NOT AVAILABLE

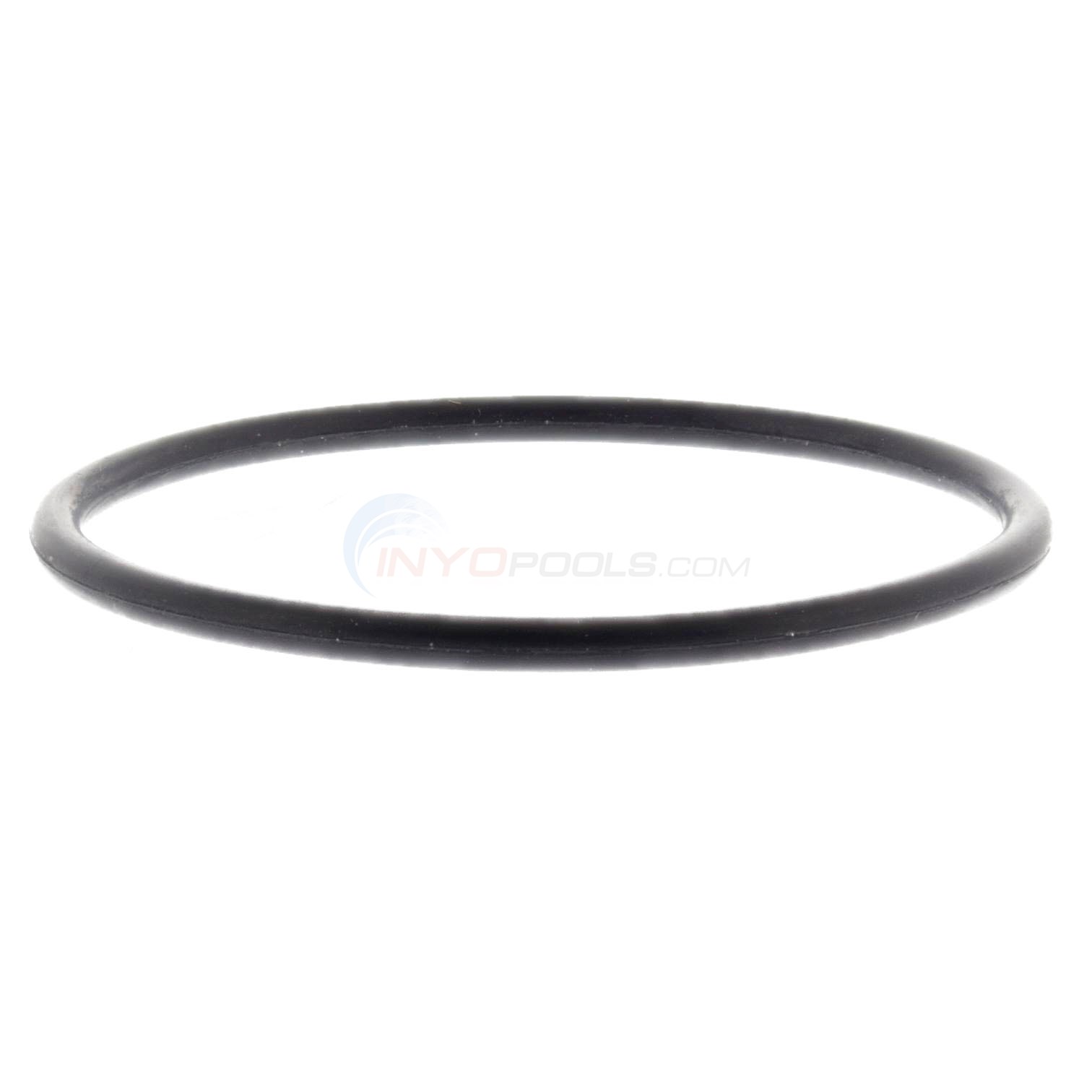

O-RING, SIGHT GLASS

Part # 4659-42 Mfg # 50152300

O-RING, SIGHT GLASS

$19.18 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$10.65 IN STOCK

Qty:

VALVE TOP ASSEMBLY, 8 WAY (272528) (ALSO REPLACES 5 WAY)

Part # 4659-44 Mfg # 272528

VALVE TOP ASSEMBLY, 8 WAY (272528) (ALSO REPLACES 5 WAY)

$140.73

COMPLETE VALVE, TOP MT. METEOR 18IN & 20IN EQFV WG

Part # 4650-01C Mfg # 50118100

COMPLETE VALVE, TOP MT. METEOR 18IN & 20IN EQFV WG

$272.94

COMPLETE VALVE, TOP MOUNT 22IN EQFV

Part # 4650-01 Mfg # 50118200

COMPLETE VALVE, TOP MOUNT 22IN EQFV

$324.12

COMPLETE VALVE, TOP MOUNT F/26IN EQFV WG (50118300) (AFTER 11-95)

Part # 4650-01A Mfg # 50118300

COMPLETE VALVE, TOP MOUNT F/26IN EQFV WG (50118300) (AFTER 11-95)

$320.91

COMPLETE VALVE, TOP MOUNT 2IN F/30IN EQFV (50123100) (AFTER 11-95)

Part # 4650-01B Mfg # 50123100

COMPLETE VALVE, TOP MOUNT 2IN F/30IN EQFV (50123100) (AFTER 11-95)

$238.82

* NOT SHOWN
