Aquabot JetStream Parts

Click to zoom in

Diagram #	Part Title
90-005	Filter Bag, Mesh; (Single)
10-055	Filter Bag Clips (set Of 2) (8000)
10-006	CLAMP, WHITE PLASTIC, FOR FLOAT; (EA/2/2)
10-023	FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)
10-034	BRACKET, FLOAT; (EA/1/1)
10-035	HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
10-048	FILTER SCREEN, NYLON, ROUND, BLUE; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-073	ELBOW, LONG, ASSEMBLED, ABS
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-075	TUBE, OVAL, 12", BLUE, JETS; (EA/1/1)
10-076	HANDLE, SIDE, BLUE, ABJR STYLE; (EA/1/1)
10-093	WHEEL, 6", WHITE RIM, BLUE TIRE, WHITE HUB CAP; (EA/1/1)
10-095	PIN, PLASTIC LOCKING, BLUE, JET UNITS; (EA/1/1)
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-105	WHEEL, SMALL, 2", WHITE; (EA/1/1)
10-106	SIDE PLATE, BLUE, JET UNITS; (EA/1/1)
10-114	COVER, JET WINDOWS, RND BODY, BLUE; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-124	VALVE HOUSING ASSY, BLUE, 4 OPENINGS; (EA/1/1)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-135	FLOAT, UNDER MOTOR, 1" x 4" x 1"T; (EA/1/1)
10-161	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (EA/1/1)
20-004	AXLE, FG TUBING, 16.156", JET UNITS; (EA/1/1)
20-027	AXLE ASSY, SWITCHING WEDGE, INC AXLE, WEDGE; (EA/1/1)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-011	SCREW, 10-32 .5", S/S, PH-PN; (EA/2/2)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX

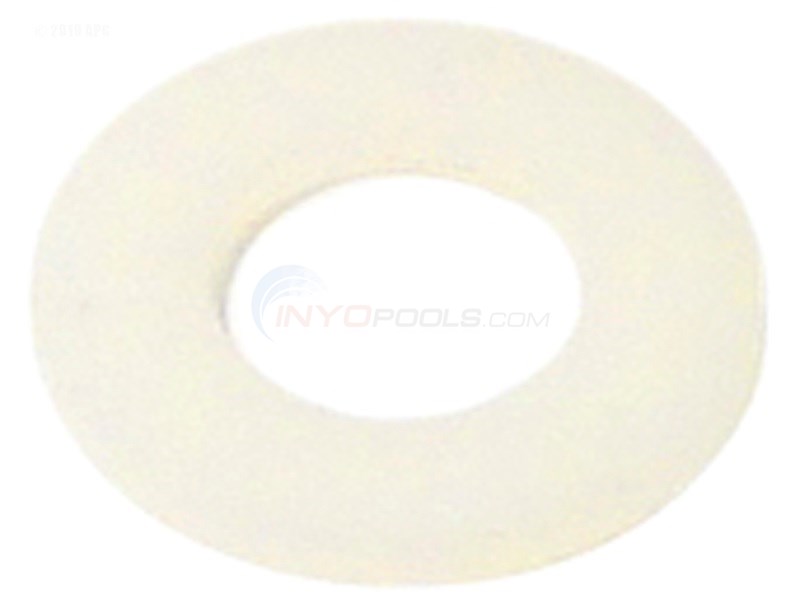

30-016	WASHER, .625 x .257 x .125 , NYLON; (EA/2/2)
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-040	SCREW, S/S, #8x1" PH, PH, HL, BP; (EA/4/4)
30-046	NUT, S/S, LOCK; (EA/1/1)
60-007	POWER SUPPLY, 120/36VAC, 90S, DIGITAL, 2PRF; (EA/1/1)
70-017	CABLE, ASSY, 2C/50’, 17AWG, GRAY, LDP, 2PRM, 2PRM, GROMMET, SHRINK (EA/1/1)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
80-083	SPRING, TEMPERED S/S 301 COIL.010"THICK. COMPLETE WILL REPL,S8371

View Parts List

Diagram #	Part Title
90-005	Filter Bag, Mesh; (Single)
10-055	Filter Bag Clips (set Of 2) (8000)
10-006	CLAMP, WHITE PLASTIC, FOR FLOAT; (EA/2/2)
10-023	FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)
10-034	BRACKET, FLOAT; (EA/1/1)
10-035	HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
10-048	FILTER SCREEN, NYLON, ROUND, BLUE; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-073	ELBOW, LONG, ASSEMBLED, ABS
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-075	TUBE, OVAL, 12", BLUE, JETS; (EA/1/1)
10-076	HANDLE, SIDE, BLUE, ABJR STYLE; (EA/1/1)
10-093	WHEEL, 6", WHITE RIM, BLUE TIRE, WHITE HUB CAP; (EA/1/1)
10-095	PIN, PLASTIC LOCKING, BLUE, JET UNITS; (EA/1/1)
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-105	WHEEL, SMALL, 2", WHITE; (EA/1/1)
10-106	SIDE PLATE, BLUE, JET UNITS; (EA/1/1)
10-114	COVER, JET WINDOWS, RND BODY, BLUE; (EA/1/1)
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-124	VALVE HOUSING ASSY, BLUE, 4 OPENINGS; (EA/1/1)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-135	FLOAT, UNDER MOTOR, 1" x 4" x 1"T; (EA/1/1)
10-161	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (EA/1/1)
20-004	AXLE, FG TUBING, 16.156", JET UNITS; (EA/1/1)
20-027	AXLE ASSY, SWITCHING WEDGE, INC AXLE, WEDGE; (EA/1/1)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-011	SCREW, 10-32 .5", S/S, PH-PN; (EA/2/2)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-016	WASHER, .625 x .257 x .125 , NYLON; (EA/2/2)
30-020	SCREW, #8 .6875", S/S, PH-PN; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-040	SCREW, S/S, #8x1" PH, PH, HL, BP; (EA/4/4)
30-046	NUT, S/S, LOCK; (EA/1/1)
60-007	POWER SUPPLY, 120/36VAC, 90S, DIGITAL, 2PRF; (EA/1/1)
70-017	CABLE, ASSY, 2C/50’, 17AWG, GRAY, LDP, 2PRM, 2PRM, GROMMET, SHRINK (EA/1/1)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
80-083	SPRING, TEMPERED S/S 301 COIL.010"THICK. COMPLETE WILL REPL,S8371

Available Parts:

90-005

Part # PL8112

Filter Bag, Mesh; (Single)

$39.99 IN STOCK

Qty:

ADD TO CART

10-055

Part # 3288-065 Mfg # SP8000

Filter Bag Clips (set Of 2) (8000)

$41.99
