Baker Hydro HRV Sand Filter Parts

SIDE MOUNT VERSIONS 1969-80, 1980-84, 1984-CURRENT.
ALSO SOLD AS FOXX SAND FILTER MODEL F-3-24-63

Baker Hydro HRV Sand Filter Diagram

Click to zoom in

Diagram #	Part Title
1	OBSOLETE TANK ONLY
2	OBSOLETE BASE HRV18
8	SQUARE O-RING USED ON THREADED & V-BAND ON LIDS
8A	Gasket, Lid U-cup
9A	LID, CLEAR TWIST LOCK(ORIGINAL WAS CLEAR, CURRENT IS BLACK)
9B	OBSOLETE LID, THREADED FILTER
10	DISTRIBUTOR, HYDRO DOME
11	HEADER, DISTRIBUTOR- 24IN
12	COLLECTOR, ASSEMBLY 24" HRV
13*	LATERAL, THREADED 18IN AND 24IN (10 REQ.)
14	TUBE, VENT. ASSY.-24" TANK
16	ADAPTER, UNION WITHOUT O-RING
17	O-RING
20	WASHER, KEY 18IN & 24IN
21	GASKET, BULKHEAD SEAL 18IN & 24IN
22	BULKHEAD ASSY. 18IN & 24IN
23	SCREEN,AIR DRAIN
24	Bottom Mount Pressure Gauge 0-60 1/4" NPT
26-28	PARTS NO LONGER AVAILABLE
29	O-RING, BULKHEAD FTG.
30	OBSOLETE COUPLING
31	OBSOLETE SCREW
32	CLAMP, ASSSEMBLY LID
33	LID, V-BAND
34	CLAMP ASSEMBLY, V-BAND
36	SCREEN, WINTERDRAIN 1 1/2IN
38	WINTERDRAIN ASSEMBLY With ELBOW
39	CAP, 1" FPT
41	GASKET, BULKHEAD
46	BULKHEAD FITTING COMPLETE
47	NUT, 5/16"
48	CARRIAGE, BOLT 5/16 - 18 X 2 1/2IN
49	WASHER SS 5/16"ID X 3/4"OD
*	Baker Hydro Multiport Valve 1 1/2" Sidemount Sand

View Parts List

Diagram #	Part Title
1	OBSOLETE TANK ONLY
2	OBSOLETE BASE HRV18
8	SQUARE O-RING USED ON THREADED & V-BAND ON LIDS
8A	Gasket, Lid U-cup
9A	LID, CLEAR TWIST LOCK(ORIGINAL WAS CLEAR, CURRENT IS BLACK)
9B	OBSOLETE LID, THREADED FILTER
10	DISTRIBUTOR, HYDRO DOME
11	HEADER, DISTRIBUTOR- 24IN
12	COLLECTOR, ASSEMBLY 24" HRV
13*	LATERAL, THREADED 18IN AND 24IN (10 REQ.)
14	TUBE, VENT. ASSY.-24" TANK
16	ADAPTER, UNION WITHOUT O-RING
17	O-RING
20	WASHER, KEY 18IN & 24IN
21	GASKET, BULKHEAD SEAL 18IN & 24IN
22	BULKHEAD ASSY. 18IN & 24IN
23	SCREEN,AIR DRAIN
24	Bottom Mount Pressure Gauge 0-60 1/4" NPT
26-28	PARTS NO LONGER AVAILABLE
29	O-RING, BULKHEAD FTG.
30	OBSOLETE COUPLING
31	OBSOLETE SCREW
32	CLAMP, ASSSEMBLY LID
33	LID, V-BAND
34	CLAMP ASSEMBLY, V-BAND
36	SCREEN, WINTERDRAIN 1 1/2IN
38	WINTERDRAIN ASSEMBLY With ELBOW
39	CAP, 1" FPT
41	GASKET, BULKHEAD
46	BULKHEAD FITTING COMPLETE
47	NUT, 5/16"
48	CARRIAGE, BOLT 5/16 - 18 X 2 1/2IN
49	WASHER SS 5/16"ID X 3/4"OD
*	Baker Hydro Multiport Valve 1 1/2" Sidemount Sand

Available Parts:

1

OBSOLETE TANK ONLY

OBSOLETE TANK ONLY

NOT AVAILABLE

2

OBSOLETE BASE HRV18

Mfg # 15Q0315

OBSOLETE BASE HRV18

NOT AVAILABLE

BASE HRV24

Part # 4640-02A Mfg # 15Q0312

BASE HRV24

$165.24

2

OBSOLETE BASE HRV30

Mfg # 15Q0313

OBSOLETE BASE HRV30

NOT AVAILABLE

BASE HRV36

Part # 4640-70B Mfg # 15Q0314

BASE HRV36

$226.02

SQUARE O-RING USED ON THREADED & V-BAND ON LIDS

Part # 4640-08B Mfg # O-215

SQUARE O-RING USED ON THREADED & V-BAND ON LIDS

$22.27 IN STOCK

Qty:

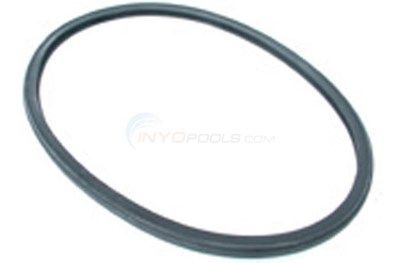

Gasket, Lid U-cup

Part # 4640-08 Mfg # O-241

Gasket, Lid U-cup

$24.50 IN STOCK

Qty:

LID, CLEAR TWIST LOCK(ORIGINAL WAS CLEAR, CURRENT IS BLACK)

Part # 4640-09 Mfg # 15B0086

LID, CLEAR TWIST LOCK(ORIGINAL WAS CLEAR, CURRENT IS BLACK)

$154.58 IN STOCK

Qty:

9B

OBSOLETE LID, THREADED FILTER

Mfg # 15B0071

OBSOLETE LID, THREADED FILTER

NOT AVAILABLE

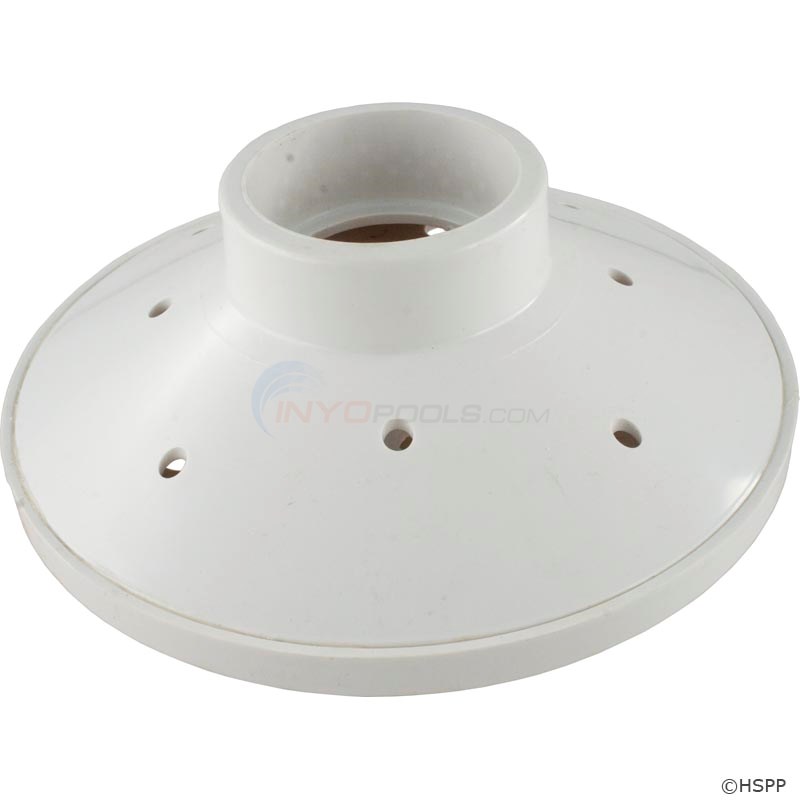

DISTRIBUTOR, HYDRO DOME

Part # 4640-10 Mfg # 15B0043

DISTRIBUTOR, HYDRO DOME

$77.11 IN STOCK

Qty:

HEADER, DISTRIBUTOR- 24IN

Part # 4640-11 Mfg # 15B0020

HEADER, DISTRIBUTOR- 24IN

$78.89 IN STOCK

Qty:

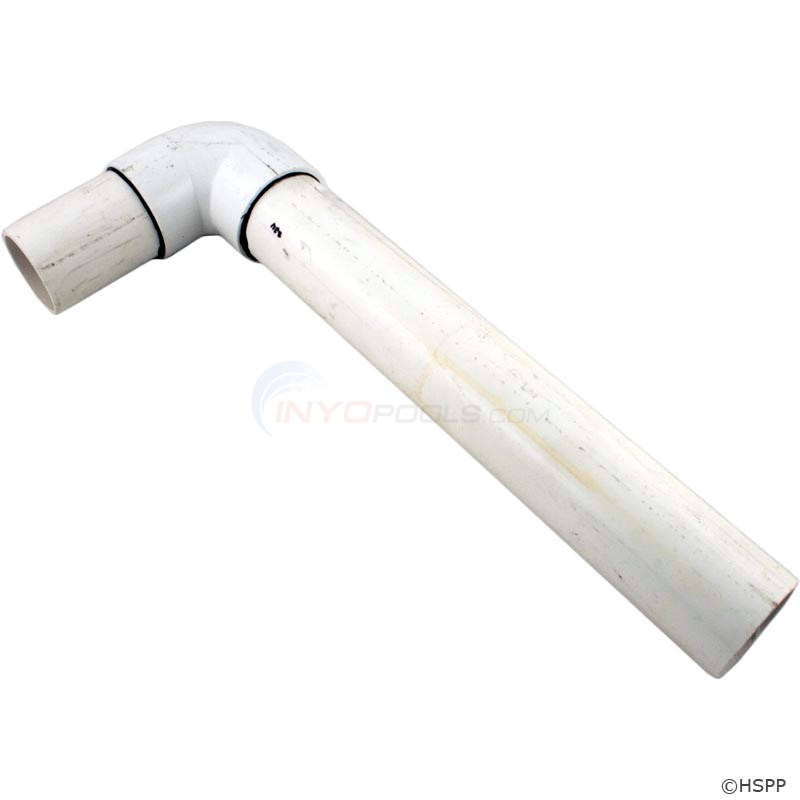

HEADER, DISTRIBUTOR- 30IN

Part # 4640-11A Mfg # 15B0024

HEADER, DISTRIBUTOR- 30IN

$95.94 IN STOCK

Qty:

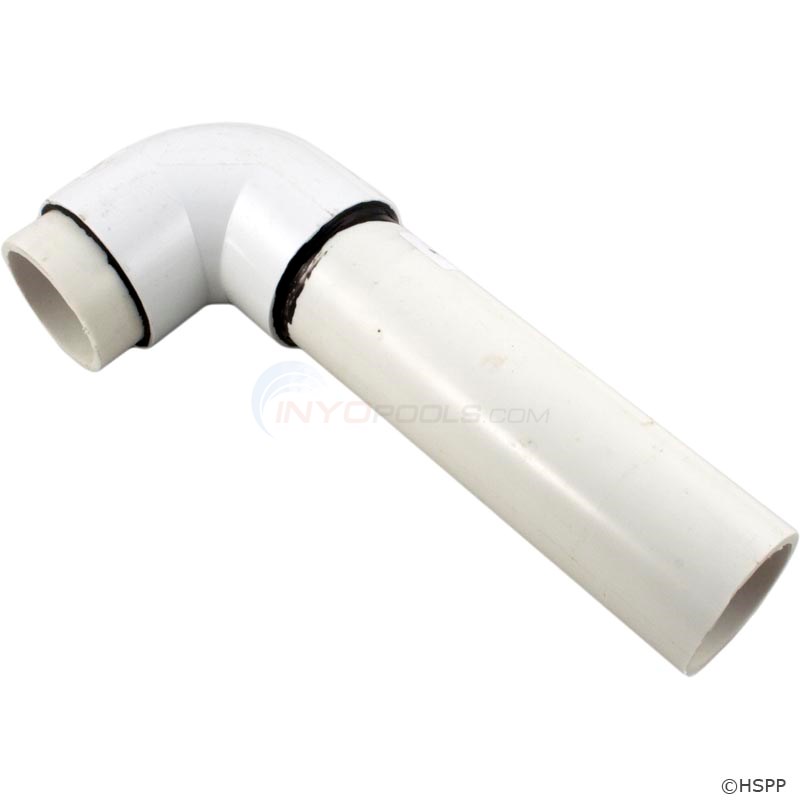

HEADER, DISTRIBUTOR- 18IN

Part # 4640-11B Mfg # 15B0177

HEADER, DISTRIBUTOR- 18IN

$81.02

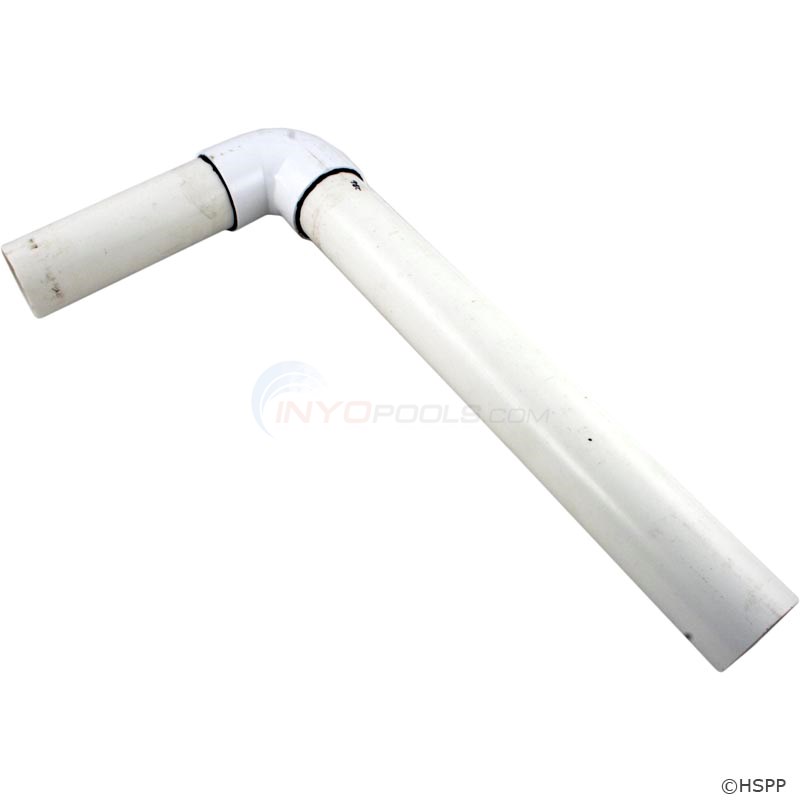

HEADER, DISTRIBUTOR- 36IN

Part # 4640-11C Mfg # 15B0226

HEADER, DISTRIBUTOR- 36IN

$101.27 IN STOCK

Qty:

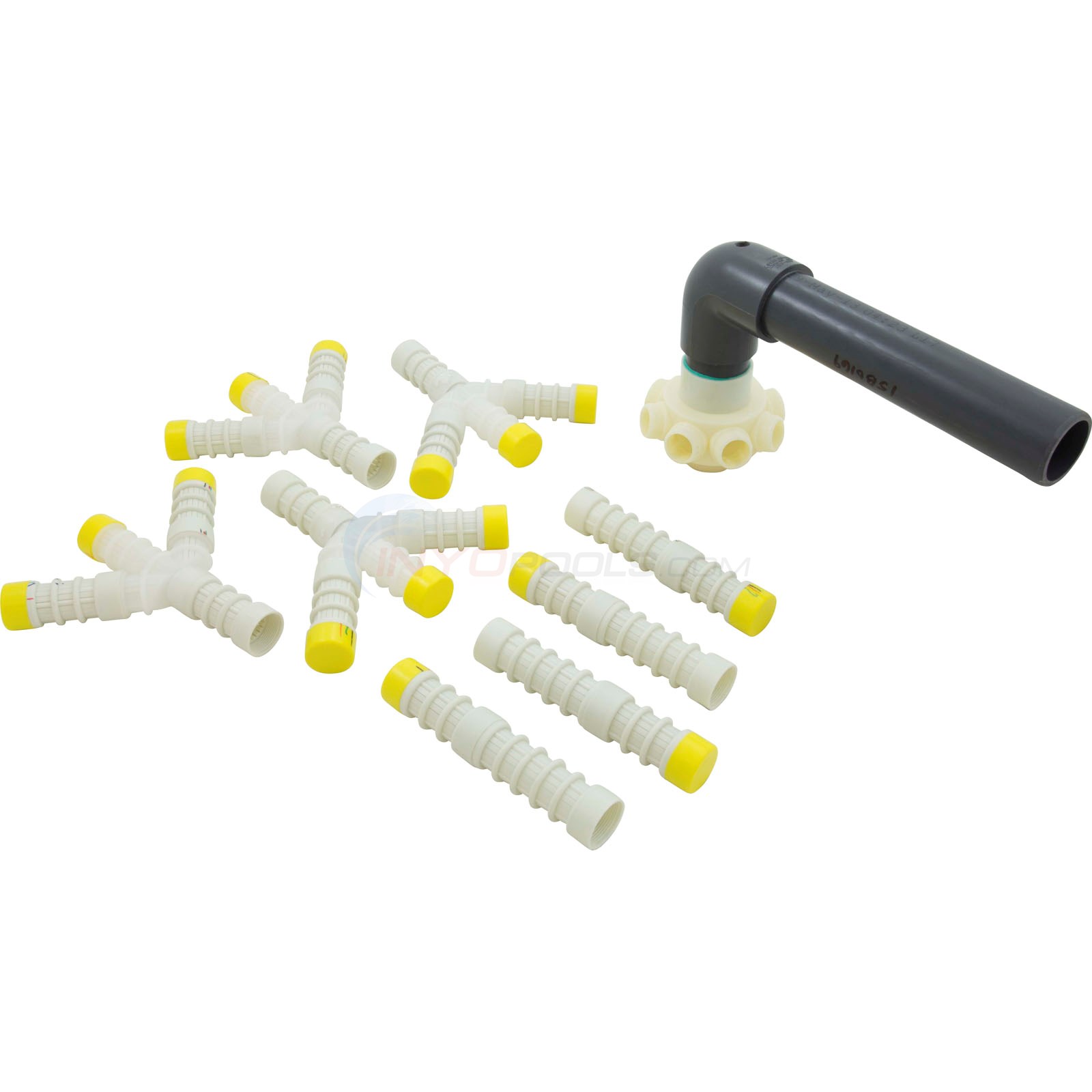

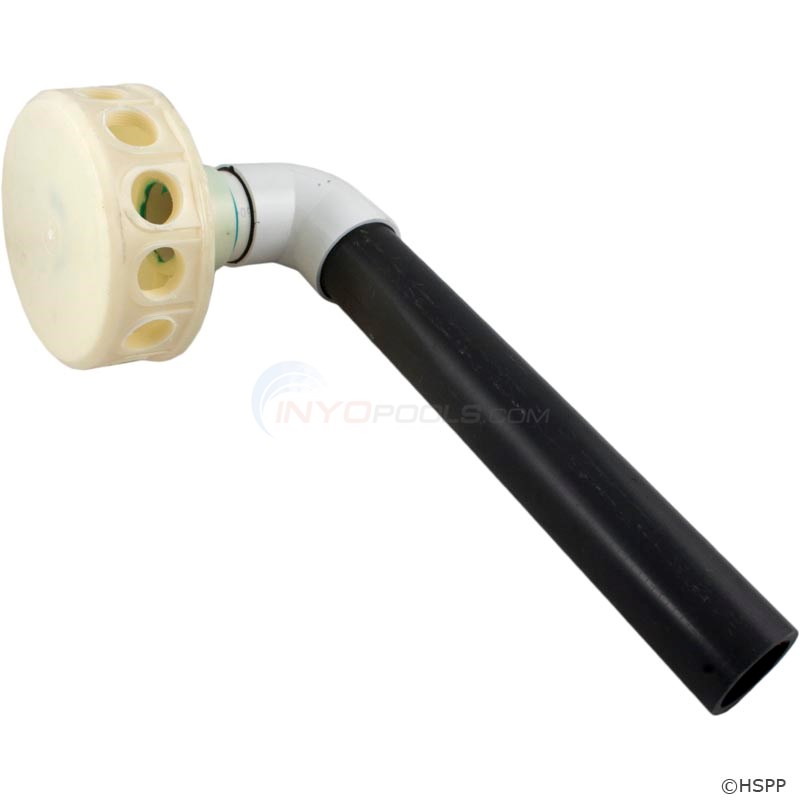

COLLECTOR, ASSEMBLY 24" HRV

Part # 4640-12 Mfg # 15B0169

COLLECTOR, ASSEMBLY 24" HRV

$226.02 IN STOCK

Qty:

COLLECTOR, ASSEMBLY 30" HRV

Part # 4640-12A Mfg # 15B0170

COLLECTOR, ASSEMBLY 30" HRV

$320.91

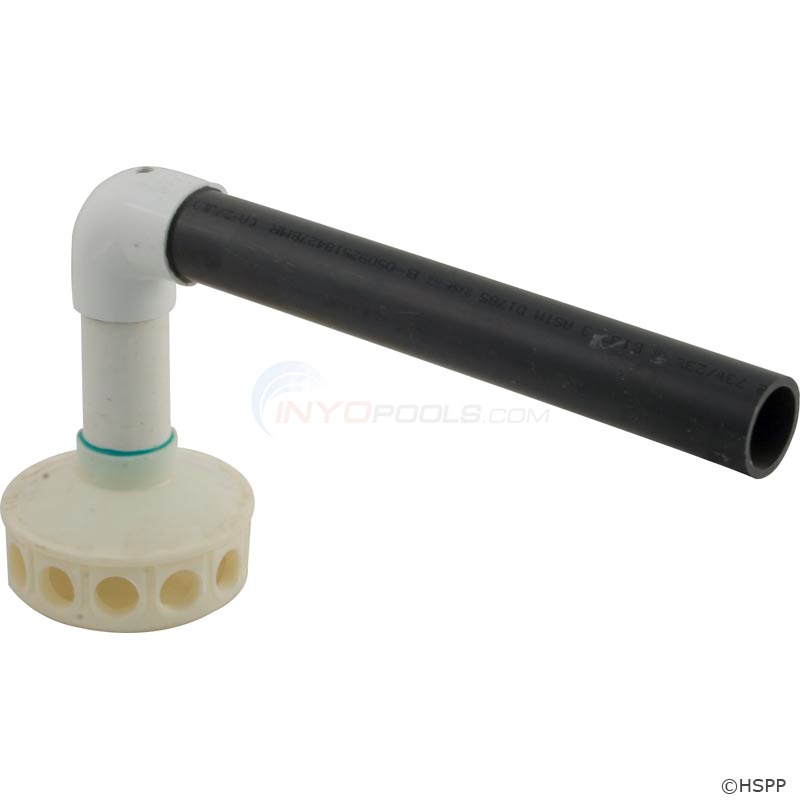

COLLECTOR, ASSEMBLY 36 HRV

Part # 4640-12B Mfg # 15B0227

COLLECTOR, ASSEMBLY 36 HRV

$223.89

LATERAL, THREADED 18IN AND 24IN (10 REQ.)

Part # 4640-13 Mfg # 15B0125

LATERAL, THREADED 18IN AND 24IN (10 REQ.)

$24.50

LATERAL, THREADED 30IN AND 36IN

Part # 4640-13A Mfg # 15B0124

LATERAL, THREADED 30IN AND 36IN

$15.98

TUBE, VENT. ASSY.-24" TANK

Part # 4640-14 Mfg # 15B0101

TUBE, VENT. ASSY.-24" TANK

$19.94

TUBE, VENT. ASSY.-30" TANK

Part # 4640-14A Mfg # 15B0102

TUBE, VENT. ASSY.-30" TANK

$19.18 IN STOCK

Qty:

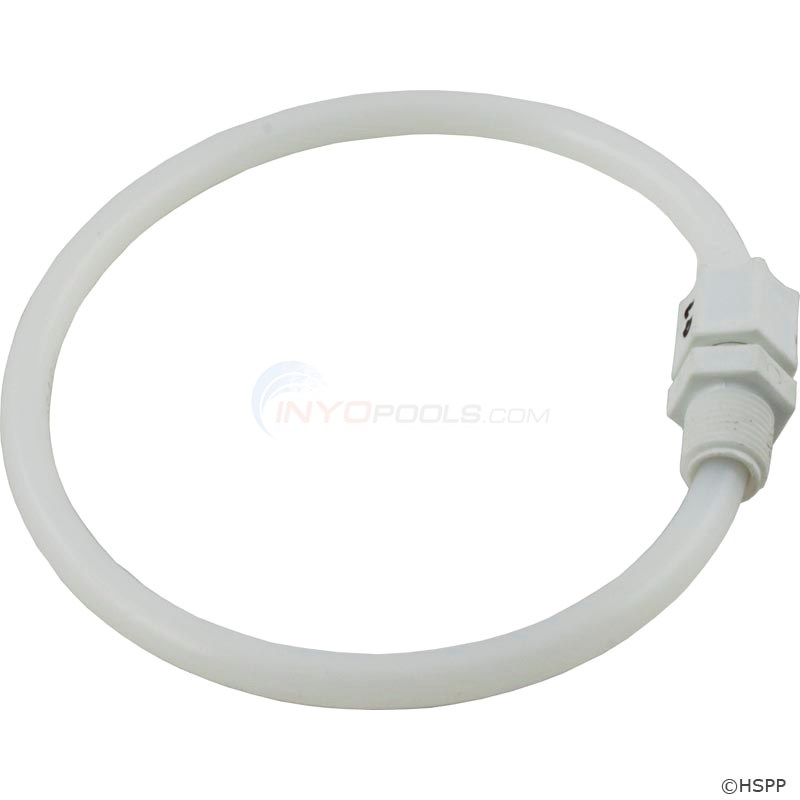

TUBE, VENT. ASSY.-18" TANK

Part # 4640-14B Mfg # 15B0183

TUBE, VENT. ASSY.-18" TANK

$19.18

TUBE, VENT. ASSY.-36" TANK

Part # 4640-14C Mfg # 15B0232

TUBE, VENT. ASSY.-36" TANK

$19.18

ADAPTER, UNION WITHOUT O-RING

Part # 4640-49 Mfg # 31B0077

ADAPTER, UNION WITHOUT O-RING

$33.58 IN STOCK

Qty:

O-RING

Part # 4600-3062 Mfg # 227

O-RING

$6.73 IN STOCK

Qty:

WASHER, KEY 18IN & 24IN

Part # 4640-43 Mfg # 31B9033

WASHER, KEY 18IN & 24IN

$23.44 IN STOCK

Qty:

WASHER, KEY 30IN & 36IN

Part # 4640-43A Mfg # 31B9034

WASHER, KEY 30IN & 36IN

$21.31 IN STOCK

Qty:

GASKET, BULKHEAD SEAL 18IN & 24IN

Part # 4640-44 Mfg # 31B9035

GASKET, BULKHEAD SEAL 18IN & 24IN

$13.84 IN STOCK

Qty:

GASKET, BULKHEAD SEAL 30IN & 36IN

Part # 4640-44A Mfg # 31B9036

GASKET, BULKHEAD SEAL 30IN & 36IN

$28.60 IN STOCK

Qty:

BULKHEAD ASSY. 18IN & 24IN

Part # 4640-50 Mfg # 31B9030

BULKHEAD ASSY. 18IN & 24IN

$116.36

BULKHEAD ASSY. 30IN & 36IN

Part # 4640-51 Mfg # 31B9031

BULKHEAD ASSY. 30IN & 36IN

$226.02

SCREEN,AIR DRAIN

Part # 4640-23 Mfg # 15B0074

SCREEN,AIR DRAIN

$18.91 IN STOCK

Qty:

Bottom Mount Pressure Gauge 0-60 1/4" NPT

Part # 4726-0 Mfg # 101D-204D

Bottom Mount Pressure Gauge 0-60 1/4" NPT

$15.83 IN STOCK

Qty:

26-28

PARTS NO LONGER AVAILABLE

PARTS NO LONGER AVAILABLE

NOT AVAILABLE

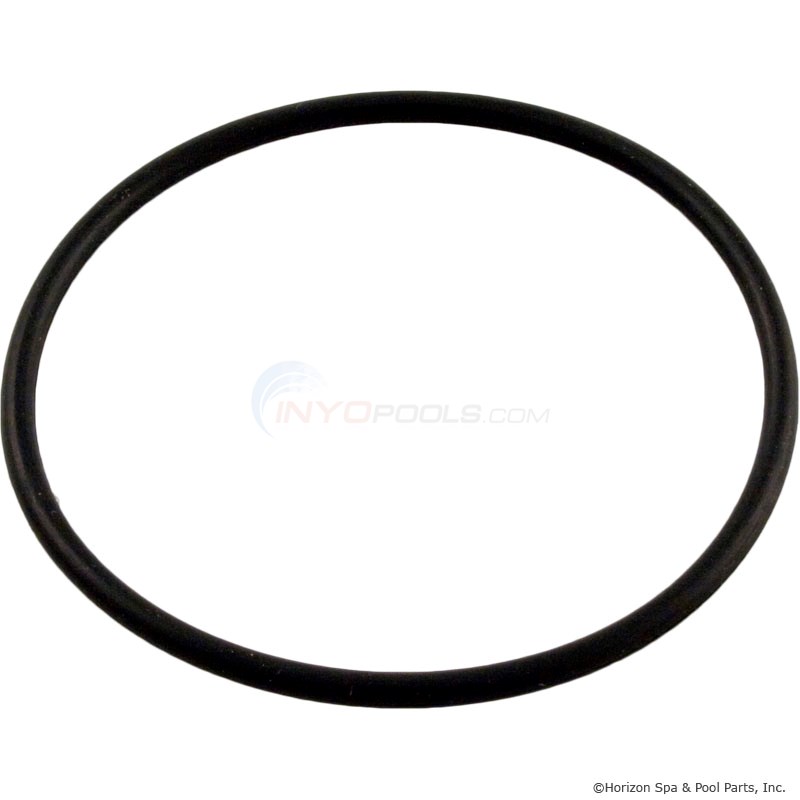

O-RING, BULKHEAD FTG.

Part # 4640-20 Mfg # 139

O-RING, BULKHEAD FTG.

$13.03 IN STOCK

Qty:

30

OBSOLETE COUPLING

Mfg # 31B9009

OBSOLETE COUPLING

NOT AVAILABLE

31

OBSOLETE SCREW

Mfg # 00B1000

OBSOLETE SCREW

NOT AVAILABLE

CLAMP, ASSSEMBLY LID

Part # 4640-03 Mfg # 15B0097

CLAMP, ASSSEMBLY LID

$123.67

LID, V-BAND

Part # 4640-33 Mfg # 15B0299

LID, V-BAND

$131.42 IN STOCK

Qty:

CLAMP ASSEMBLY, V-BAND

Part # 4640-34 Mfg # 00B8083

CLAMP ASSEMBLY, V-BAND

$125.02 IN STOCK

Qty:

SCREEN, WINTERDRAIN 1 1/2IN

Part # 4640-36 Mfg # 15B0319

SCREEN, WINTERDRAIN 1 1/2IN

$35.16 IN STOCK

Qty:

WINTERDRAIN ASSEMBLY With ELBOW

Part # 4642-13 Mfg # 16B0308

WINTERDRAIN ASSEMBLY With ELBOW

$107.67

CAP, 1" FPT

Part # 7129-0 Mfg # 448-010

CAP, 1" FPT

$12.78 IN STOCK

Qty:

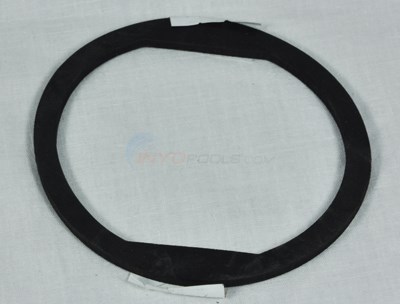

GASKET, BULKHEAD

Part # 4640-21 Mfg # BH 31B9006

GASKET, BULKHEAD

$34.10 IN STOCK

Qty:

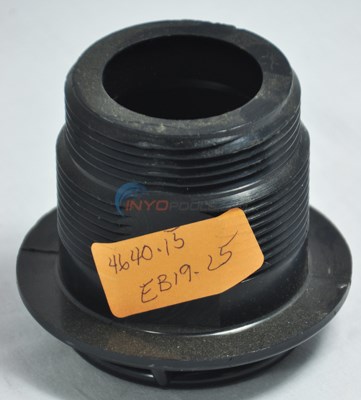

BULKHEAD FITTING COMPLETE

Part # 4640-15 Mfg # 31B9004

BULKHEAD FITTING COMPLETE

$146.05

NUT, 5/16"

Part # 6931-0 Mfg # SAMPLE N-4

NUT, 5/16"

$12.78 IN STOCK

Qty:

CARRIAGE, BOLT 5/16 - 18 X 2 1/2IN

Part # 4643-08 Mfg # 00B1021

CARRIAGE, BOLT 5/16 - 18 X 2 1/2IN

$13.84 IN STOCK

Qty:

WASHER SS 5/16"ID X 3/4"OD

Part # 6981-0

WASHER SS 5/16"ID X 3/4"OD

$14.91 IN STOCK

Qty:

Baker Hydro Multiport Valve 1 1/2" Sidemount Sand

Part # 31B0084 Mfg # 31B0084

Baker Hydro Multiport Valve 1 1/2" Sidemount Sand

$244.20

‘72 TO ‘83 ALSO SOLD UNDER
BRAND NAME TAHITIAN BY PUREX

* 4640-13 LENGTH IS 5 5/8”
4640-13A LENGTH IS 8 5/8”
