Baracuda / Zodiac Baracuda 1500 Parts

Click to zoom in

Diagram #	Part Title
1	No Longer Available FLOW ADJUSTER Replace With 3231-01B
2	CASSETTE, PURPLE, 1500
3	COMPRESSION RING
4	OBSOLETE DIAPHAGM CHAMBER

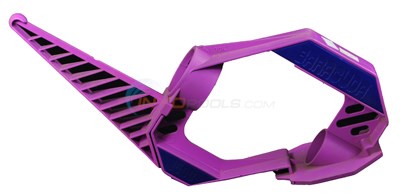

5	BARACUDA 1500 FRAME ASSEMBLY - PURPLE (W40935)
6	FOOT PAD, DARK BLUE, 1500
7	OBSOLETE SLOTTED DISK
8	INNER EXTENSION PIPE, THREADED
9	RETAINING RING, DIAPHRAGM
10	DIAPHRAGM
12	OBSOLETE REGULATOR VALVE
13	OBSOLETE POOL PULSE
14	45 DEG. ELBOW (W90146)
16	SKIMMER CUFF, ABOVE GROUND (W64700)
17	HOSE CONNECTOR
18	HOSE DEFLECTOR, PACK OF 3
19	HOSE, 1 METER (WHITE) (EACH) (3232-26 = 11)
*	LEAF CATCHER

View Parts List

Diagram #	Part Title
1	No Longer Available FLOW ADJUSTER Replace With 3231-01B
2	CASSETTE, PURPLE, 1500
3	COMPRESSION RING
4	OBSOLETE DIAPHAGM CHAMBER
5	BARACUDA 1500 FRAME ASSEMBLY - PURPLE (W40935)
6	FOOT PAD, DARK BLUE, 1500
7	OBSOLETE SLOTTED DISK
8	INNER EXTENSION PIPE, THREADED
9	RETAINING RING, DIAPHRAGM
10	DIAPHRAGM
12	OBSOLETE REGULATOR VALVE
13	OBSOLETE POOL PULSE
14	45 DEG. ELBOW (W90146)
16	SKIMMER CUFF, ABOVE GROUND (W64700)
17	HOSE CONNECTOR
18	HOSE DEFLECTOR, PACK OF 3
19	HOSE, 1 METER (WHITE) (EACH) (3232-26 = 11)
*	LEAF CATCHER
