Barrier Reef 12x24' Oval 52" (Resin Top Rail, Steel Upright, Steel Top/Resin Bottom Stabilizer) Part Parts

PBRF-52RSRTRSAA1

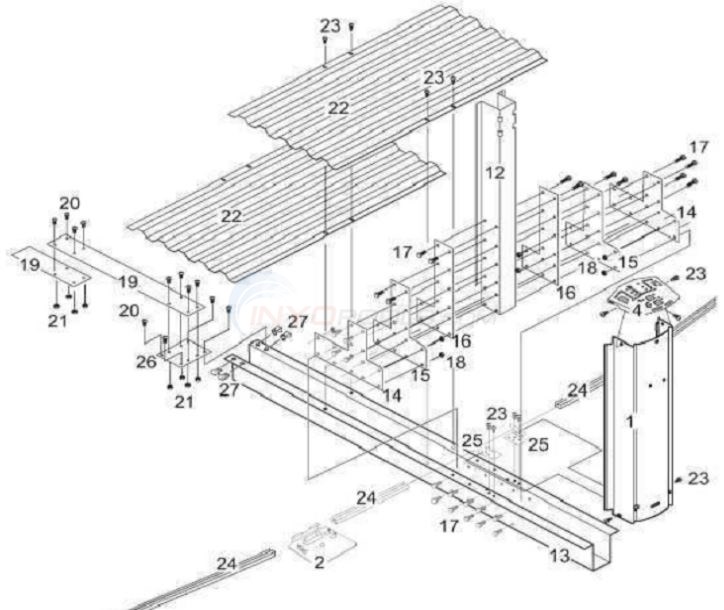

Barrier Reef 12x24' Oval 52" (Resin Top Rail, Steel Upright, Steel Top/Resin Bottom Stabilizer) Part Diagram

Click to zoom in

Diagram #	Part Title
1	Upright 51-1/2" (Single)
2	Bottom Plate RESIN For Neptune (Single)
4	Top Plate Imperial, Liberty, Ambassador, Eden, Admiral, Prestige, Eden, Regatta (Single)
6	Spacer for Ledge Cover (Single)
7	Top Ledge Barrier Reef Champagne Resin 45-9/16" (Single)
8	Ledge Cover - Outer (Single)
9	Ledge Cover - Inner (Single)
10	Foot Cover (Single)
11	Logo Insert (Pack of 4)
12	Upright channel 52" J4000 (single)
13	Bottom Channel J4000 (single)
14	Outside "T" bracket (single)
15	Middle "T" bracket (single)
16	Inside "L" bracket (single)
18	Slotted Tube 44-1/8" For Atlantic Pools
22	Hold Down Plate J4000 (single)
24	Molded Bottom Rail 15' Cut 43-3/8" (Single)
26	Bracket for Strap J4000 (single)
*	6" Slotted Tube Connector (Single)

View Parts List

Diagram #	Part Title
1	Upright 51-1/2" (Single)
2	Bottom Plate RESIN For Neptune (Single)
4	Top Plate Imperial, Liberty, Ambassador, Eden, Admiral, Prestige, Eden, Regatta (Single)
6	Spacer for Ledge Cover (Single)
7	Top Ledge Barrier Reef Champagne Resin 45-9/16" (Single)
8	Ledge Cover - Outer (Single)
9	Ledge Cover - Inner (Single)
10	Foot Cover (Single)
11	Logo Insert (Pack of 4)
12	Upright channel 52" J4000 (single)
13	Bottom Channel J4000 (single)
14	Outside "T" bracket (single)
15	Middle "T" bracket (single)
16	Inside "L" bracket (single)
18	Slotted Tube 44-1/8" For Atlantic Pools
22	Hold Down Plate J4000 (single)
24	Molded Bottom Rail 15' Cut 43-3/8" (Single)
26	Bracket for Strap J4000 (single)
*	6" Slotted Tube Connector (Single)

Available Parts:

Upright 51-1/2" (Single)

Part # 1440509

Upright 51-1/2" (Single)

$85.47

Qty Per Pool 16

Qty Per Pool 16

Bottom Plate RESIN For Neptune (Single)

Part # 1320192

Bottom Plate RESIN For Neptune (Single)

$18.08 IN STOCK

Qty Per Pool 10

Qty Per Pool 10

Qty:

Top Plate Imperial, Liberty, Ambassador, Eden, Admiral, Prestige, Eden, Regatta (Single)

Part # 1320178

Top Plate Imperial, Liberty, Ambassador, Eden, Admiral, Prestige, Eden, Regatta (Single)

$16.07 IN STOCK

Qty Per Pool 16

Qty Per Pool 16

Qty:

Spacer for Ledge Cover (Single)

Part # 1490831

Spacer for Ledge Cover (Single)

$1.57 IN STOCK

Qty Per Pool 16

Qty Per Pool 16

Qty:

Top Ledge Barrier Reef Champagne Resin 45-9/16" (Single)

Part # 1450888

Top Ledge Barrier Reef Champagne Resin 45-9/16" (Single)

$110.79

Qty Per Pool 8

Qty Per Pool 8

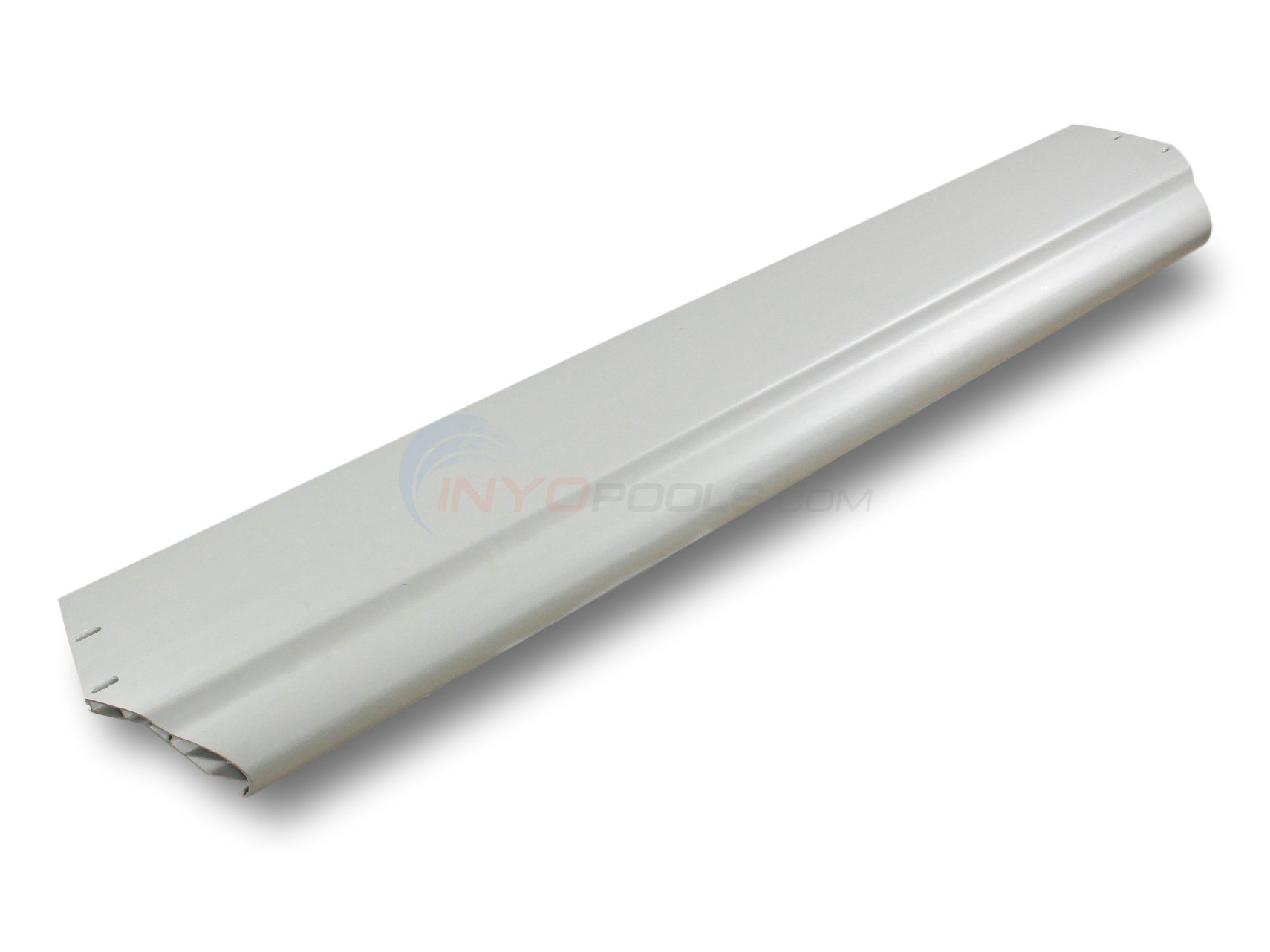

Top Ledge Straight Barrier Reef Champagne Resin 47-29/32" (Single)

Part # 1450890

Top Ledge Straight Barrier Reef Champagne Resin 47-29/32" (Single)

$110.79

Qty Per Pool 4

Qty Per Pool 4

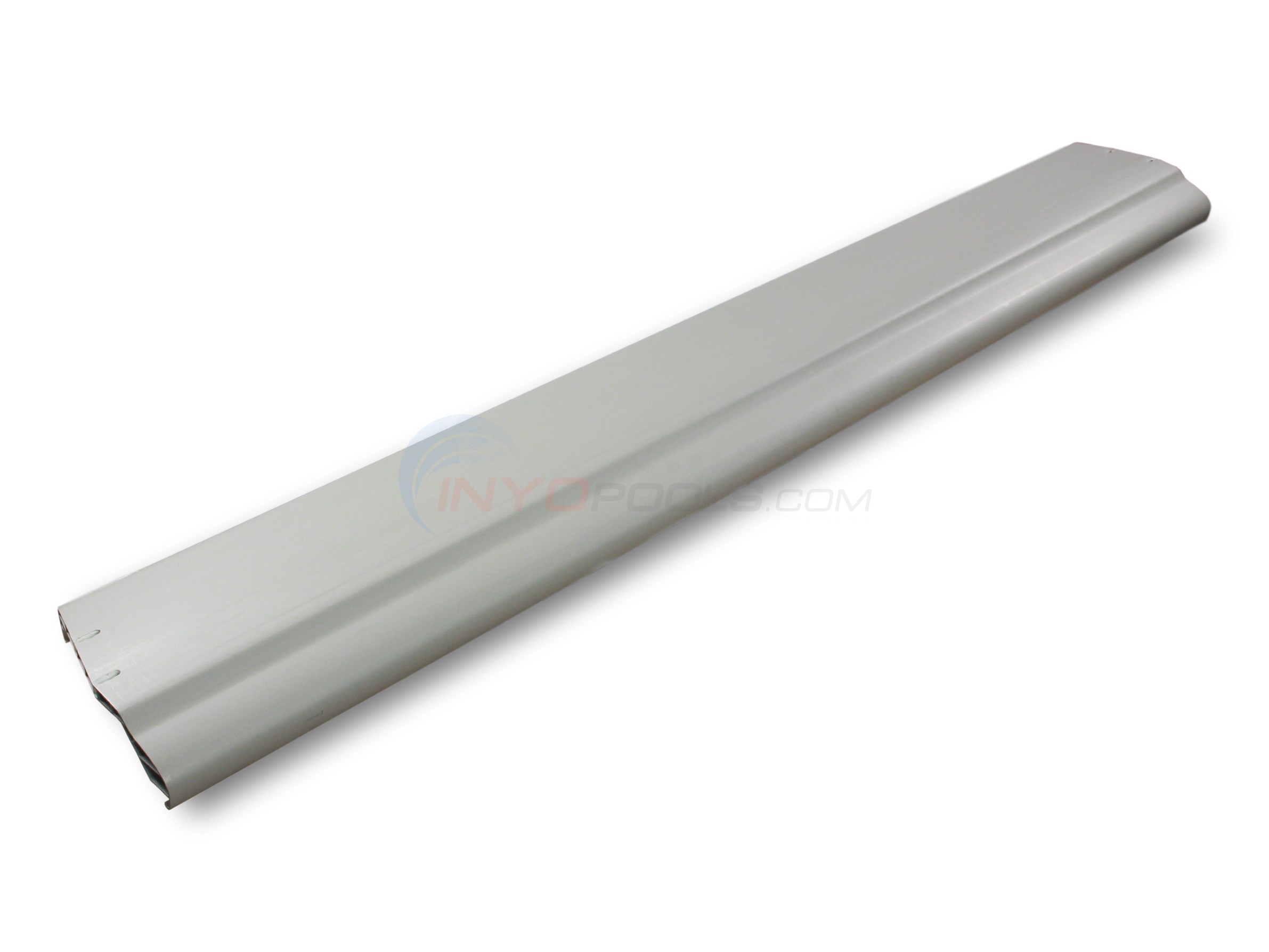

Top Ledge Trans Barrier Reef Champagne Resin 47" (Single)

Part # 1450892

Top Ledge Trans Barrier Reef Champagne Resin 47" (Single)

$110.79

Qty Per Pool 4

Qty Per Pool 4

Ledge Cover - Outer (Single)

Part # 1490830

Ledge Cover - Outer (Single)

$37.98

Qty Per Pool 16

Qty Per Pool 16

Ledge Cover - Inner (Single)

Part # 1490829

Ledge Cover - Inner (Single)

$13.71

Qty Per Pool 16

Qty Per Pool 16

Foot Cover (Single)

Part # 1490832

Foot Cover (Single)

$10.01

Qty Per Pool 16

Qty Per Pool 16

Part # 1490853

Logo Insert (Pack of 4)

$7.90

Qty Per Pool 4

Qty Per Pool 4

Upright channel 52" J4000 (single)

Part # 1440383

Upright channel 52" J4000 (single)

$239.53

Qty Per Pool 6

Qty Per Pool 6

Bottom Channel J4000 (single)

Part # 1440335

Bottom Channel J4000 (single)

$240.59

Qty Per Pool 6

Qty Per Pool 6

Outside "T" bracket (single)

Part # 1320139

Outside "T" bracket (single)

$21.09 IN STOCK

Qty Per Pool 12

Qty Per Pool 12

Qty:

Middle "T" bracket (single)

Part # 1320138

Middle "T" bracket (single)

$65.42 IN STOCK

Qty Per Pool 12

Qty Per Pool 12

Qty:

Inside "L" bracket (single)

Part # 1320147

Inside "L" bracket (single)

$65.42

Qty Per Pool 12

Qty Per Pool 12

Slotted Tube 44-1/8" For Atlantic Pools

Part # 1470104

Slotted Tube 44-1/8" For Atlantic Pools

$35.87

Qty Per Pool 4

Qty Per Pool 4

Slotted tube - white 44-1/8" J4000 (single)

Part # 1470105

Slotted tube - white 44-1/8" J4000 (single)

$23.21

Qty Per Pool 4

Qty Per Pool 4

Hold Down Plate J4000 (single)

Part # 1320166

Hold Down Plate J4000 (single)

$93.91

Qty Per Pool 12

Qty Per Pool 12

Molded Bottom Rail 15' Cut 43-3/8" (Single)

Part # 1324315

Molded Bottom Rail 15' Cut 43-3/8" (Single)

$18.98 IN STOCK

Qty Per Pool 8

Qty Per Pool 8

Qty:

Molded Bottom Rail 15' Cut 44"(Single)

Part # 1324415

Molded Bottom Rail 15' Cut 44"(Single)

$50.64

Qty Per Pool 4

Qty Per Pool 4

Molded Bottom Rail 24' Cut 44-1/2" (Single)

Part # 1324424

Molded Bottom Rail 24' Cut 44-1/2" (Single)

$50.64

Qty Per Pool 4

Qty Per Pool 4

Bracket for Strap J4000 (single)

Part # 1320164

Bracket for Strap J4000 (single)

$37.98 IN STOCK

Qty Per Pool 6

Qty Per Pool 6

Qty:

6" Slotted Tube Connector (Single)

Part # 1470108

6" Slotted Tube Connector (Single)

$15.06

Qty Per Pool 10

Qty Per Pool 10

Wall Joiner Bar

Part # 11823

Wall Joiner Bar

$33.76

Qty Per Pool 2

Qty Per Pool 2

Bulletin - Connectors

Part # 1920788

Bulletin - Connectors

$14.23

Qty Per Pool 1

Qty Per Pool 1

*NOT SHOWN
