Cayman 12'x17' Oval (Steel Top Rail, Steel Upright) Parts

PCAY-YM52SSRSRD2, PCAY-YM52SSPSSD3 & PCAY-YM52SSPSSD2

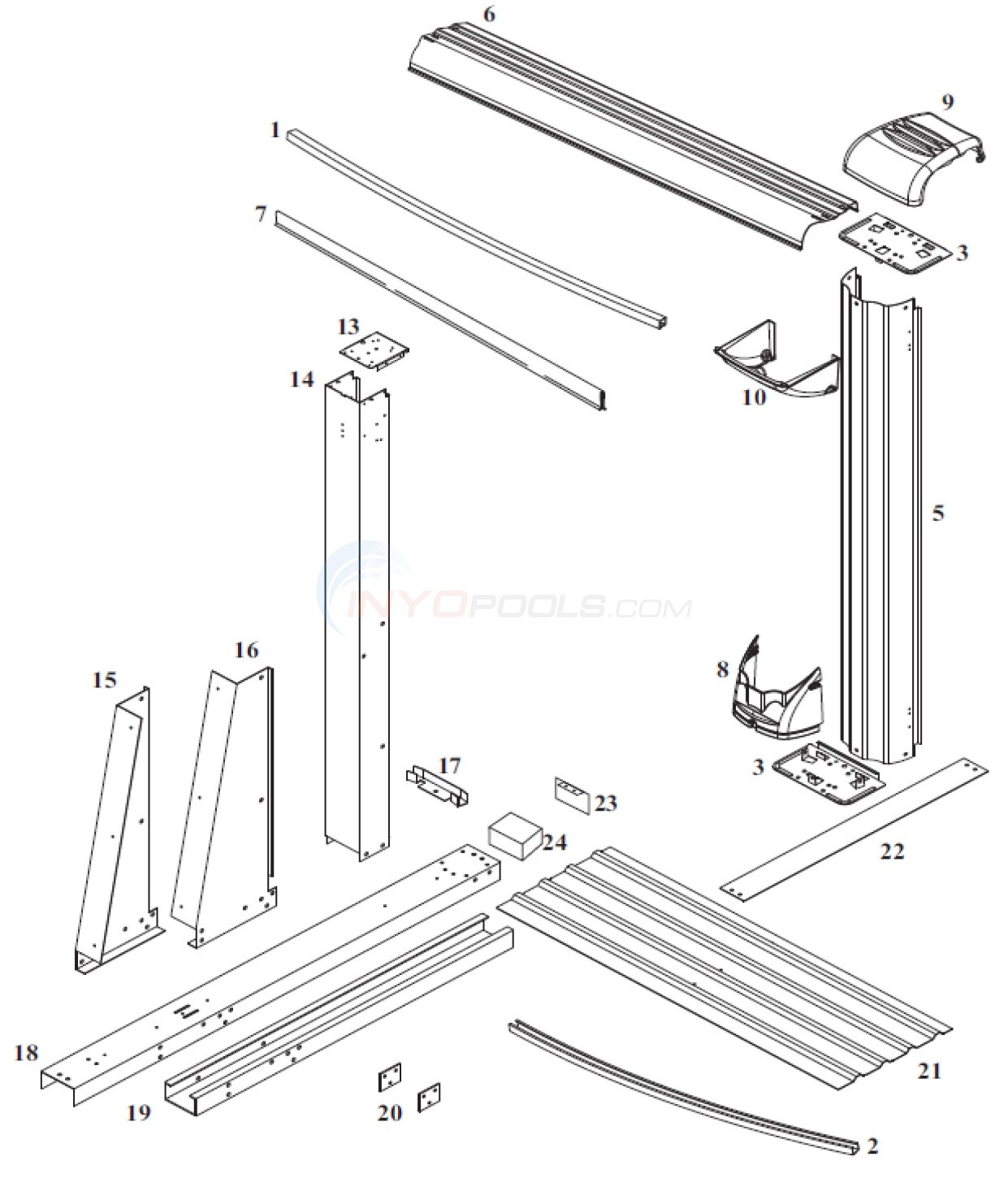

Cayman 12'x17' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail 38" (Single)
2	Bottom Rail Steel Straight Side 37-3/4" (4-PACK)
3	Top/Bottom Plate 8" for Round & Curved Side (Single)
5	Steel Upright - Cayman 51.8125" (Single)
6	Top Rail Curved (Single) Cayman
7	Plastic Coping 48" (Single)
9	Top Cap Curved Side Support Champagne (Single)
10	Top Cap 8" Champagne (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright 51-13/16" (Single)
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*Liner	12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail 38" (Single)
2	Bottom Rail Steel Straight Side 37-3/4" (4-PACK)
3	Top/Bottom Plate 8" for Round & Curved Side (Single)
5	Steel Upright - Cayman 51.8125" (Single)
6	Top Rail Curved (Single) Cayman
7	Plastic Coping 48" (Single)
9	Top Cap Curved Side Support Champagne (Single)
10	Top Cap 8" Champagne (Single)
13	Top Plate Oval 4" (Single)
14	Wrap Upright 51-13/16" (Single)
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1217ASO

12'x17' 48"-54" Depth All Swirl Overlap Standard Gauge

$301.49 IN STOCK

Qty:

Inner Stabilizer Steel 42-5/8" (Single)

Part # 38501

Inner Stabilizer Steel 42-5/8" (Single)

$44.04 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$9.76

Quantity Per Pool 4

Quantity Per Pool 4

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$27.42 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

38501 Resin Stabilizer Upgrade Kit for 12' x 17' Oval Pool

Part # 38501-1217-RESKIT

38501 Resin Stabilizer Upgrade Kit for 12' x 17' Oval Pool

$850.67 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Bottom Rail 38" (Single)

Part # 38736

Bottom Rail 38" (Single)

$40.23

Quantity Per Pool 12

Quantity Per Pool 12

Bottom Rail Steel Straight Side 37.5"

Part # 16713

Bottom Rail Steel Straight Side 37.5"

$40.23 IN STOCK

Quantity Per Pool 2

Quantity Per Pool 2

Qty:

38736 Resin Bottom Rail Upgrade Kit for 12' x 17' Oval Pool

Part # 38736-1217-RESKIT

38736 Resin Bottom Rail Upgrade Kit for 12' x 17' Oval Pool

$694.66

Quantity Per Pool 1

Quantity Per Pool 1

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$108.72 IN STOCK

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$321.84

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$149.79

Bottom Rail Steel Corner 39-1/4" (8-PACK)

Part # 16714-PACK8

Bottom Rail Steel Corner 39-1/4" (8-PACK)

$149.79

Top/Bottom Plate 8" for Round & Curved Side (Single)

Part # 19164

Top/Bottom Plate 8" for Round & Curved Side (Single)

$17.07 IN STOCK

Quantity Per Pool 20

Quantity Per Pool 20

Qty:

19164 Bottom Plate 8" Resin Upgrade Kit for 12' x 17' Oval Pool Pool

Part # 19164-1217-RESKIT

19164 Bottom Plate 8" Resin Upgrade Kit for 12' x 17' Oval Pool Pool

$136.58 IN STOCK

Quantity Per Pool 1

Quantity Per Pool 1

Qty:

Steel Upright - Cayman 51.8125" (Single)

Part # 19611

Steel Upright - Cayman 51.8125" (Single)

$65.54

Quantity Per Pool 10

Quantity Per Pool 10

Top Rail Curved (Single) Cayman

Part # 27622

Top Rail Curved (Single) Cayman

$41.15 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Rail Straight Side (Single) Cayman

Part # 27627

Top Rail Straight Side (Single) Cayman

$41.15

Quantity Per Pool 2

Quantity Per Pool 2

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.60 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap Curved Side Support Champagne (Single)

Part # 27392

Top Cap Curved Side Support Champagne (Single)

$17.93 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Top Cap Support - Straight Side (Single) Cayman

Part # 21177

Top Cap Support - Straight Side (Single) Cayman

$21.62 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Top Cap 8" Champagne (Single)

Part # 27393

Top Cap 8" Champagne (Single)

$30.14

Quantity Per Pool 14

Quantity Per Pool 14

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$11.77 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Wrap Upright 51-13/16" (Single)

Part # 14572

Wrap Upright 51-13/16" (Single)

$75.97

Quantity Per Pool 4

Quantity Per Pool 4

Yardmore Gusset Left Steel (Single)

Part # 19619

Yardmore Gusset Left Steel (Single)

$86.52

Quantity Per Pool 4

Quantity Per Pool 4

Yardmore Gusset Right Steel (Single)

Part # 19620

Yardmore Gusset Right Steel (Single)

$85.47

Quantity Per Pool 4

Quantity Per Pool 4

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$36.05 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$111.85

Quantity Per Pool 4

Quantity Per Pool 4

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$105.51 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$80.39 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Strap Section 41-11/16" (Single)

Part # 16724

Strap Section 41-11/16" (Single)

$7.36

Quantity Per Pool 4

Quantity Per Pool 4

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$10.78

Quantity Per Pool 4

Quantity Per Pool 4

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.21

Quantity Per Pool 4

Quantity Per Pool 4

* NOT ALL CAYMAN MODELS REQUIRE BOOT (KEY 8)
