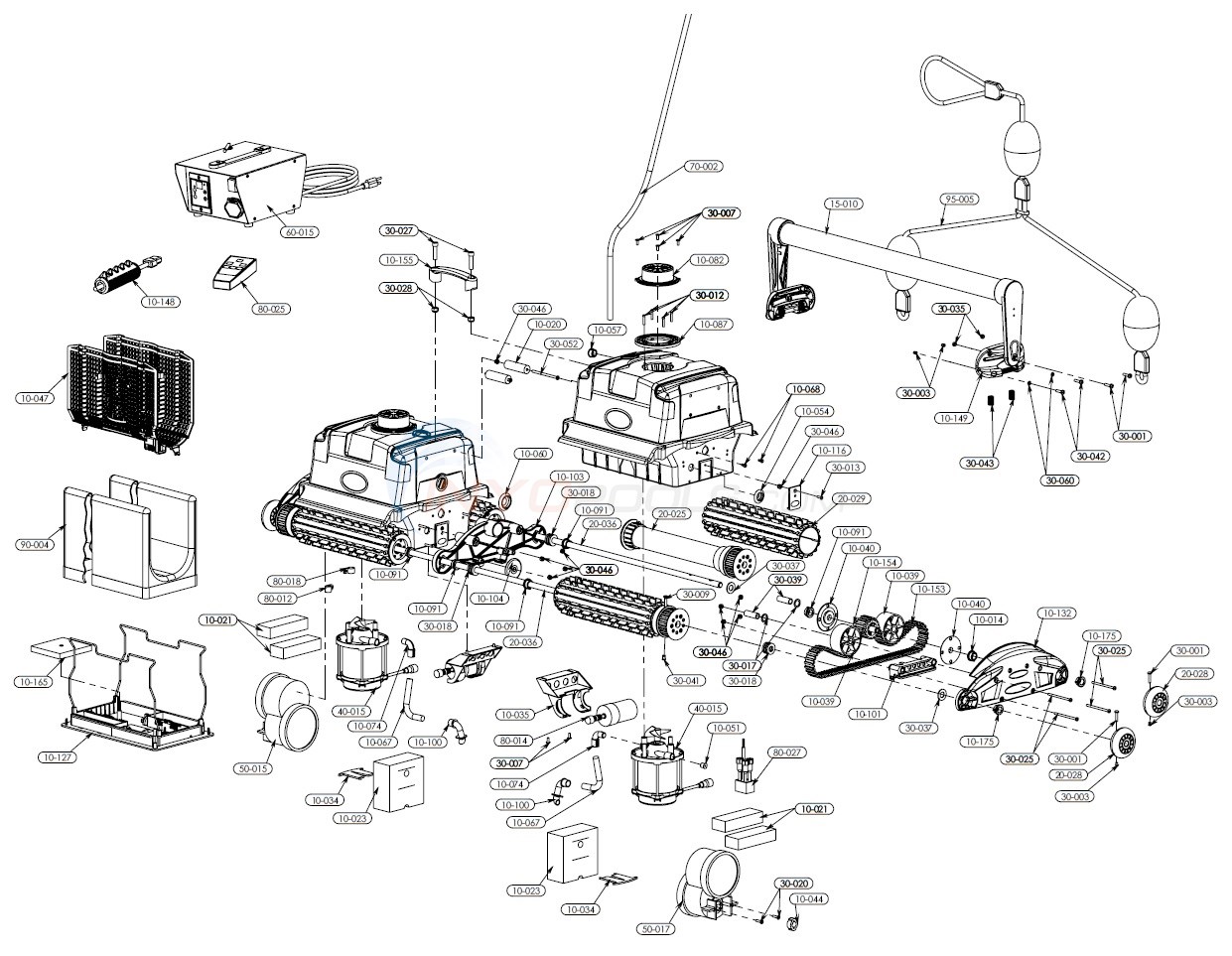

Duramax Duo Parts

Click to zoom in

Diagram #	Part Title
90-005	Filter Bag, Fine Mesh; Generic (Single)
90-004	Replacement Fine Filter Bag for Aquabot
10-014	BUSHING, .5 ID, NYLON, WHITE; (EA/4/4)
10-020	SPACER , BLACK; (EA/1/1)
10-021	FLOAT, UNDER MOTOR; (EA/1/1)
10-023	FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)
10-034	BRACKET, FLOAT; (EA/1/1)
10-035	HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
10-039	TENSION ROLLER, BLACK; (EA/2/2)
10-040	FLANGE, PULLEY, BLACK; (EA/2/2)
10-044	GROOVED PIN COVER; (EA/1/1)
10-047	FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
10-051	PLUG, PLASTIC, PUSH IN; (EA/2/2)
10-054	PLUG, DOME, BLACK; (EA/2/2)
10-057	BUSHING; (EA/4/4)
10-060	CAP PLUG, WHITE, 1.125"; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-068	RIVET, PLASTIC, SNAP HEAD; (EA/10/10)
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-082	OUTLET, TOP, BLUE; (EA/1/1)
10-087	OUTLET, BOTTOM, BLUE, LARGE; (EA/1/1)
10-091	BUSHING, NYLON, BLACK; (EA/2/2)
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-101	BRACKET, PP, BLUE, PW NOZZLE SUPPORT; (EA/2/2)
10-103	MIDDLE PLATE, BLUE; (EA/1/1)
10-104	WHEEL- BLACK-SMALL
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-132	SIDE PLATE ASSY, BLUE, ROUND, 4 HOLES; (EA/1/1)
10-148	SWIVEL ASSY, EZ, W/HRDWARE, INSTRCT; (EA/1/1)
10-149	SK HANDLE BRACKET, OVAL, BLUE;(EA/1/1)
10-153	SK DRIVE BELT SET; DMX DRIVE BELT (2), ROLLERS, WASHERS; (1/1/EA)
10-154	SK DRIVE PULLY ASSY, W FLANGE WASHERS (2); (EA/1/1)
10-155	SK HANDLE ASSY; PLASTIC, BLACK, INC SCREWS/NUTS; (EA/1/1)
10-165	SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
10-175	BUSHING, PET, PRESS FIT, FOR COMMERCIAL SIDE PLATE
15-010	HANDLE ASSY, BLUE, W/OVAL BRACKET, ADMXDUO, COMPLT; (EA/1/1)
20-025	WHEEL TUBE ASSY; 12", ADMXDUO, ADMXTRIO; (EA/1/1)
20-028	SK WHEEL, ASSY, 2.75" ODx1/2" ID”, DRILLED, INSERT, SCREW (EA/2/2)
20-029	SK BRUSH, RUBBER EZ, BLUE, 12", 2 BRUSHES, 2 PINS;(EA/1/1)
20-036	SK AXLE REPLACEMENT KIT, DMXDUO; (EA/1/1)
20-040	SPARE PARTS KIT, HI HARD BRUSH, 12", 4 BRUSHES, 4 PINS; (EA/1/1)
30-001	SCREW, S/S, PH-PN; (EA/4/4)
30-003	INSERT, BRASS, PRESS-IN; (EA/4/4)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-009	SCREW, 10-32, .200” X 2.5”, S/S 304, PN-SL; (EA/1/1)
30-012	SCREW, 8-18 .75", S/S, PH-PN TC; (EA/4/4)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-017	WASHER, 510/515 X .750 X .032, DELRIN; (EA/2/2)
30-018	WASHER, .515 X 1.00 X .125, DELRIN ACETAL; (EA/2/2)
30-020	SCREW, #8 .6875", S/S, PH-PN; (Single)
30-025	SCREW, 8-32 2.75", S/S, PH-PN; (EA/4/4)
30-027	SCREW, 5/16-18 1.250", S/S, ALLEN CAP (EA/2/2)
30-028	NUT, 5/16-18, S/S, HEX W/NYLON INSERT; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-039	BUSHING, S/S, ADMXX; (EA/4/4)
30-041	BLOCK INSERT - REVERSO; BRASS; (EA/2/2)
30-042	SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
30-043	SPRING, FOR HANDLE BRKT; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)
30-052	SCREW, S/S, 3.25"; (EA/2/2)
30-060	WASHER, S/S, 5/32; (EA/2/2)
60-015	POWER SUPPLY, ASSY, US, 120/36V, 2 PRF, RC, ADMXDUO, ADMXDUOJR, UMX (EA/1/1)
70-002	CABLE, 2C/120', 14AWG, TPE, GRAY, 2PRM
80-002	TIE, PANDUIT, 7.4"; (EA/4/4)
80-012	P CLIP, 11/16", S/S, 9 WIRE; (EA/2/2)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-018	P CLIP, S/S, 2 WIRE; (EA/2/2)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-025	TRANSMITTER, 6 BUTTON; (EA/1/1)
80-027	SK JUNCTION BOX, ADMXDUO, ADMXBTTRC, 2-SKMS03; (EA/1/1)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
90-004	Replacement Fine Filter Bag for Aquabot
95-005	ROPE, ASSY, 9.5', 3 FLOATS; (EA/1/1)

View Parts List

Diagram #	Part Title
90-005	Filter Bag, Fine Mesh; Generic (Single)
90-004	Replacement Fine Filter Bag for Aquabot
10-014	BUSHING, .5 ID, NYLON, WHITE; (EA/4/4)
10-020	SPACER , BLACK; (EA/1/1)
10-021	FLOAT, UNDER MOTOR; (EA/1/1)
10-023	FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)
10-034	BRACKET, FLOAT; (EA/1/1)
10-035	HOLDER, EXTERNAL CAPACITOR; (EA/1/1)
10-039	TENSION ROLLER, BLACK; (EA/2/2)
10-040	FLANGE, PULLEY, BLACK; (EA/2/2)
10-044	GROOVED PIN COVER; (EA/1/1)
10-047	FILTER SCREEN, RECTANGLE, BLUE, NO STRINGS, (EA/1/1)
10-051	PLUG, PLASTIC, PUSH IN; (EA/2/2)
10-054	PLUG, DOME, BLACK; (EA/2/2)
10-057	BUSHING; (EA/4/4)
10-060	CAP PLUG, WHITE, 1.125"; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-068	RIVET, PLASTIC, SNAP HEAD; (EA/10/10)
10-074	ELBOW, NATURAL, PW SYSTEM; (EA/2/2)
10-082	OUTLET, TOP, BLUE; (EA/1/1)
10-087	OUTLET, BOTTOM, BLUE, LARGE; (EA/1/1)
10-091	BUSHING, NYLON, BLACK; (EA/2/2)
10-100	NOZZLE, JET TUBE, WHITE; (EA/2/2)
10-101	BRACKET, PP, BLUE, PW NOZZLE SUPPORT; (EA/2/2)
10-103	MIDDLE PLATE, BLUE; (EA/1/1)
10-104	WHEEL- BLACK-SMALL
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-127	BOTTOM LID, ASSY, BLUE, ADVANCED, W/WHEELS; (EA/1/1)
10-132	SIDE PLATE ASSY, BLUE, ROUND, 4 HOLES; (EA/1/1)
10-148	SWIVEL ASSY, EZ, W/HRDWARE, INSTRCT; (EA/1/1)
10-149	SK HANDLE BRACKET, OVAL, BLUE;(EA/1/1)
10-153	SK DRIVE BELT SET; DMX DRIVE BELT (2), ROLLERS, WASHERS; (1/1/EA)
10-154	SK DRIVE PULLY ASSY, W FLANGE WASHERS (2); (EA/1/1)
10-155	SK HANDLE ASSY; PLASTIC, BLACK, INC SCREWS/NUTS; (EA/1/1)
10-165	SPARE PARTS KIT, BOTTOM LID W/ROLLERS; (EA/1/1)
10-175	BUSHING, PET, PRESS FIT, FOR COMMERCIAL SIDE PLATE
15-010	HANDLE ASSY, BLUE, W/OVAL BRACKET, ADMXDUO, COMPLT; (EA/1/1)
20-025	WHEEL TUBE ASSY; 12", ADMXDUO, ADMXTRIO; (EA/1/1)
20-028	SK WHEEL, ASSY, 2.75" ODx1/2" ID”, DRILLED, INSERT, SCREW (EA/2/2)
20-029	SK BRUSH, RUBBER EZ, BLUE, 12", 2 BRUSHES, 2 PINS;(EA/1/1)
20-036	SK AXLE REPLACEMENT KIT, DMXDUO; (EA/1/1)
20-040	SPARE PARTS KIT, HI HARD BRUSH, 12", 4 BRUSHES, 4 PINS; (EA/1/1)
30-001	SCREW, S/S, PH-PN; (EA/4/4)
30-003	INSERT, BRASS, PRESS-IN; (EA/4/4)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-009	SCREW, 10-32, .200” X 2.5”, S/S 304, PN-SL; (EA/1/1)
30-012	SCREW, 8-18 .75", S/S, PH-PN TC; (EA/4/4)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-017	WASHER, 510/515 X .750 X .032, DELRIN; (EA/2/2)
30-018	WASHER, .515 X 1.00 X .125, DELRIN ACETAL; (EA/2/2)
30-020	SCREW, #8 .6875", S/S, PH-PN; (Single)
30-025	SCREW, 8-32 2.75", S/S, PH-PN; (EA/4/4)
30-027	SCREW, 5/16-18 1.250", S/S, ALLEN CAP (EA/2/2)
30-028	NUT, 5/16-18, S/S, HEX W/NYLON INSERT; (EA/2/2)
30-035	NUT, S/S, HEX LOCK M5; (EA/2/2)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-039	BUSHING, S/S, ADMXX; (EA/4/4)
30-041	BLOCK INSERT - REVERSO; BRASS; (EA/2/2)
30-042	SCREW, S/S, PH-PN, 6/32 x 5/8; (EA/1/1)
30-043	SPRING, FOR HANDLE BRKT; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)
30-052	SCREW, S/S, 3.25"; (EA/2/2)
30-060	WASHER, S/S, 5/32; (EA/2/2)
60-015	POWER SUPPLY, ASSY, US, 120/36V, 2 PRF, RC, ADMXDUO, ADMXDUOJR, UMX (EA/1/1)
70-002	CABLE, 2C/120', 14AWG, TPE, GRAY, 2PRM
80-002	TIE, PANDUIT, 7.4"; (EA/4/4)
80-012	P CLIP, 11/16", S/S, 9 WIRE; (EA/2/2)
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-018	P CLIP, S/S, 2 WIRE; (EA/2/2)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-025	TRANSMITTER, 6 BUTTON; (EA/1/1)
80-027	SK JUNCTION BOX, ADMXDUO, ADMXBTTRC, 2-SKMS03; (EA/1/1)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
90-004	Replacement Fine Filter Bag for Aquabot
95-005	ROPE, ASSY, 9.5', 3 FLOATS; (EA/1/1)

Available Parts:

90-005

Part # PL8112

Filter Bag, Fine Mesh; Generic (Single)

$41.40 IN STOCK

Qty:

ADD TO CART

90-004

Part # PL8111 Mfg # 8111

Replacement Fine Filter Bag for Aquabot

$24.83
