Jacuzzi DV-5 - DV-7 Dial 1 1/2" Parts

REPLACEMENT FOR ORGINAL DV-5 VALVE

Click to zoom in

Diagram #	Part Title
A*	COMPLETE VALVE KIT, DV5 - PLASTIC EQFV (39000302)
1	HANDLE-ALUMINUM (39029327R000)
2	OBSOLETE PIN
3	OBSOLETE PLATE, WEAR
4	OBSOLETE SHIM WASHER, .008 INCHES
5	OBSOLETE COVER, PLASTIC
6	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
7	SCREW, CAP 1/4-20 X 1IN
7A	LTD QTY (SA) SCREW, CAP
8	O-RING, SHAFT
9	OBSOLETE RETAINER, SHAFT
10	Star Clear O-ring (110)
11	OBSOLETE RETAINER, SPRING

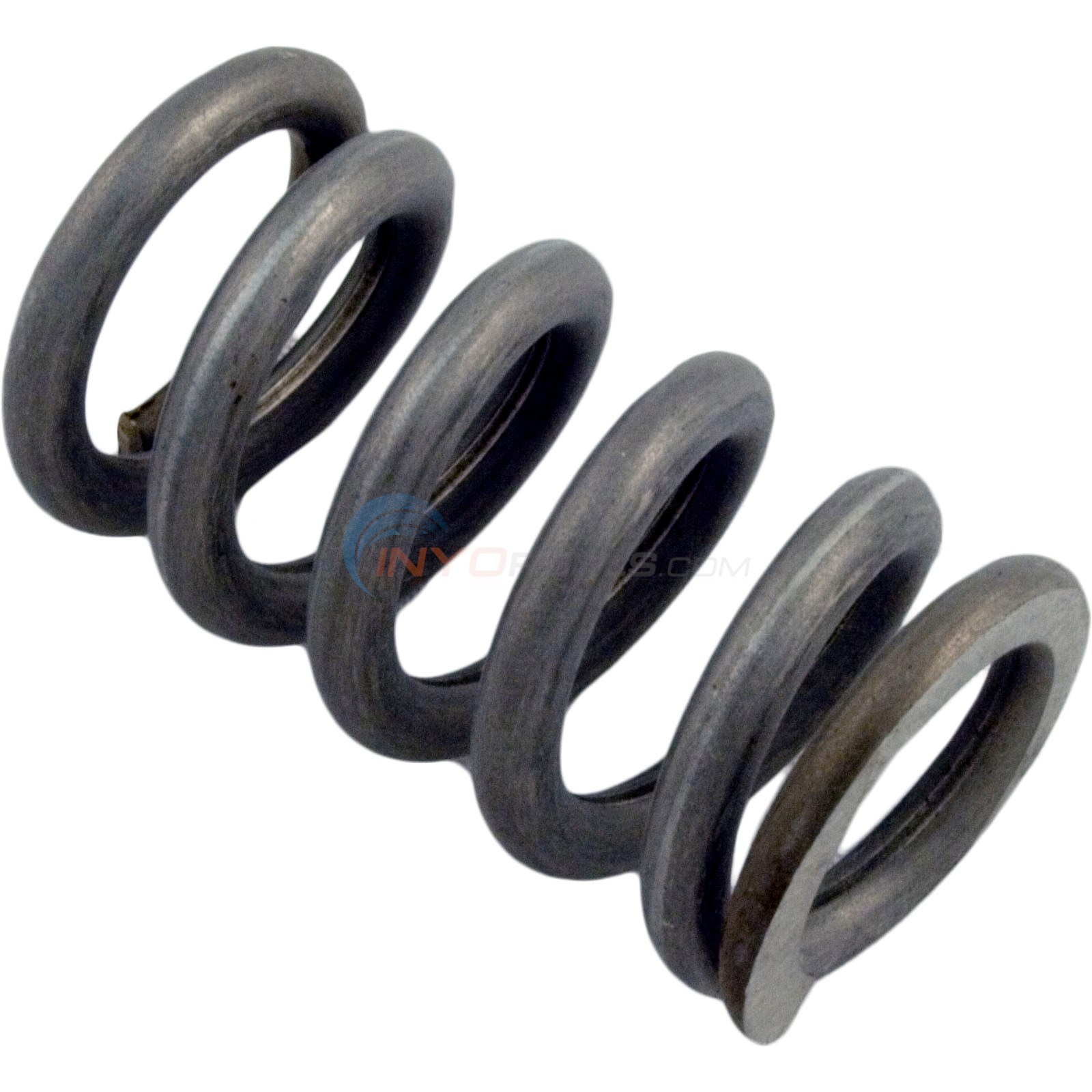

12	SPRING (22169502RKIT)
13	OBSOLETE DIVERTER
14	OBSOLETE PIN, CENTER
15	OBSOLETE GASKET
16	SCREW, CAP 3/8-16 X 3-4" (SAMPLE S-5)

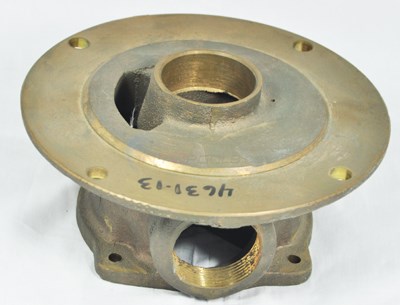

17	LTD QTY (SA) VALVE BODY
18	GASKET, FLANGE (SQUARE RING)
19	OBSOLETE FLANGE
20	NIPPLE 1 1/2IN X 2.75IN DV-6 1 1/2IN
