Dynasty 12'x17' Oval 52" Wall (Resin Top Rail, Steel Upright) Parts

PDYN-YM-52RSPSRH1

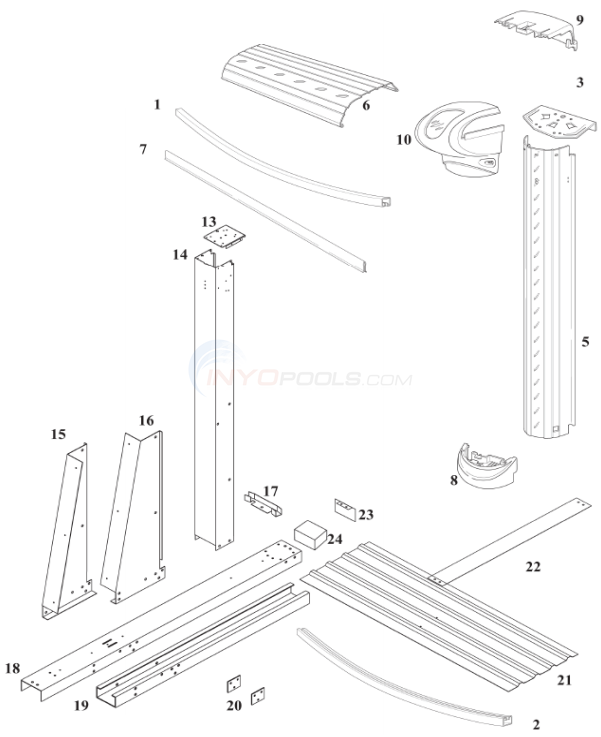

Dynasty 12'x17' Oval 52" Wall (Resin Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*	12' x 17' Oval 48"-52" Depth Overlap Solid Blue Standard Gauge Liner
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail 38-1/2" (Single)
3	Top Plate 6" for Round & Oval Curved Side (Single)
5	Up Right 51-5/8" (Single) Heritage, Vision, Signature Upright
6	Top Rail 40-9/16" Resin (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 7" (Single)
9	Top Cap Small Half Inner 7" for Saltwater 5000, Heritage, Signature Pools (Single)
10	Top Cap Large Half Outer 7" STRAIGHT SIDE (Single) LIMITED QUANTITY AVAILABLE!!
13	Top Plate 6" Straight Side Uprights for Oval Cameo, Heritage, Saltwater 5000, Celebration Pools (Sin
14	Up Right 51 13/16" (Single)

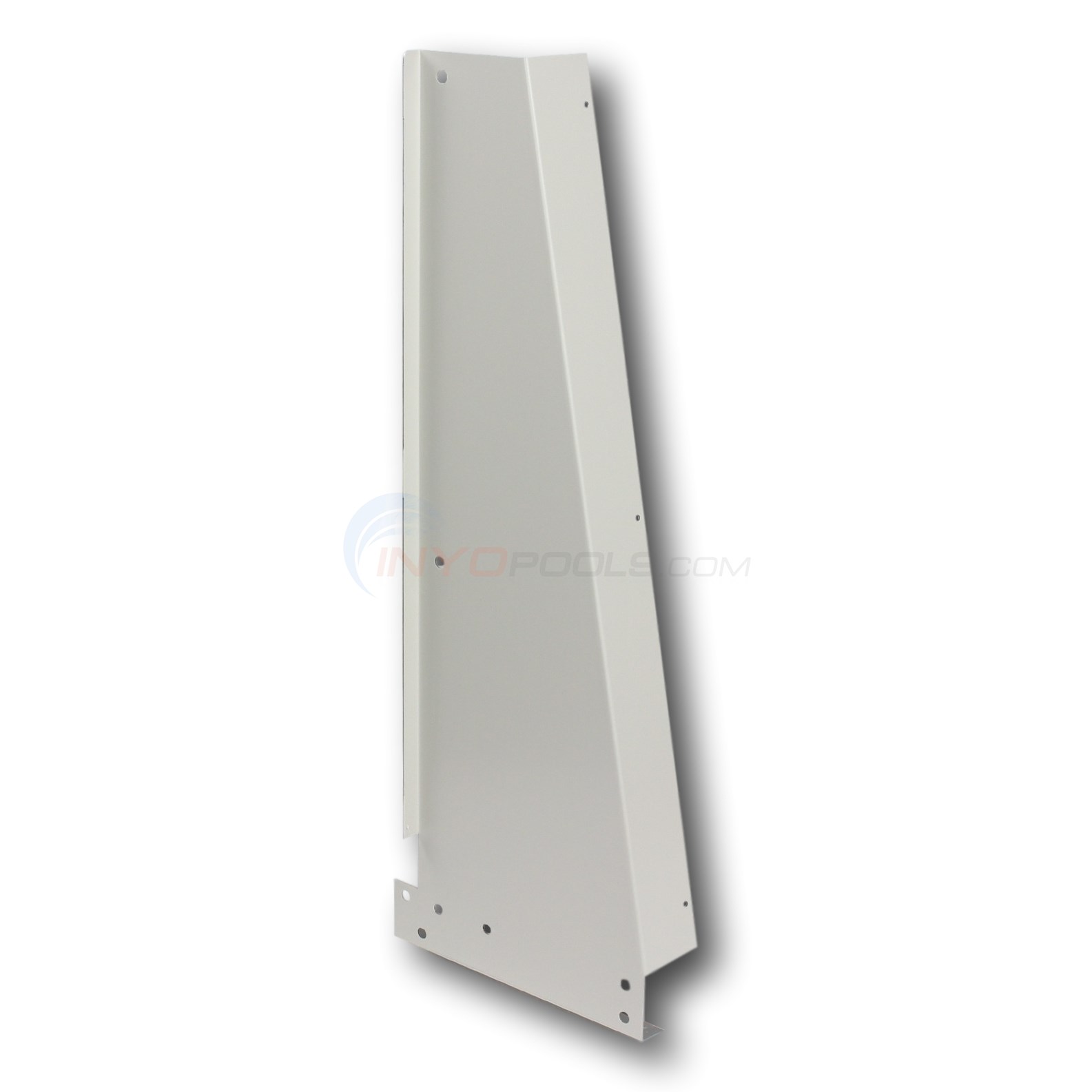

15	Yardmore Gusset Right (Single)
16	Yardmore Gusset Left (single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*	12' x 17' Oval 48"-52" Depth Overlap Solid Blue Standard Gauge Liner
1	Inner Stabilizer Steel 42-5/8" (Single)
2	Bottom Rail 38-1/2" (Single)
3	Top Plate 6" for Round & Oval Curved Side (Single)
5	Up Right 51-5/8" (Single) Heritage, Vision, Signature Upright
6	Top Rail 40-9/16" Resin (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 7" (Single)
9	Top Cap Small Half Inner 7" for Saltwater 5000, Heritage, Signature Pools (Single)
10	Top Cap Large Half Outer 7" STRAIGHT SIDE (Single) LIMITED QUANTITY AVAILABLE!!
13	Top Plate 6" Straight Side Uprights for Oval Cameo, Heritage, Saltwater 5000, Celebration Pools (Sin
14	Up Right 51 13/16" (Single)
15	Yardmore Gusset Right (Single)
16	Yardmore Gusset Left (single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
21	Pressure Plate 44" (Single)
22	Strap Section 41-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)
