American Products/Pentair Eclipse and Meteor TM Parts

TOP MOUNT SAND FILTERS - 18", 20", 22", 26", 30"

ALSO SOLD UNDER THE BRAND NAME LAGUNA

American Products/Pentair Eclipse and Meteor TM Diagram

Click to zoom in

Diagram #	Part Title
1	Top Mount Backwash Valve for 18" & 20" Eclipse & Meteor Filters
1	Top Mount Backwash Valve for 22" Eclipse & Meteor Filters
1	Top Mount Backwash Valve for 26" Eclipse & Meteor Filters
1	Top Mount Backwash Valve for 30" Eclipse & Meteor Filters
1	No Longer Available VALVE 26 FILTER Replace With 4650-01A
1A	VALVE, TOP MOUNT CLAMP, 7.5IN
1A	VALVE, TOP MOUNT CLAMP 8.22IN
1A	VALVE, 2" TOP MT. CLAMP STYLE WG (261185)
2	O-RING, LID (NEW STLYE)
2	GASKET, MULTIPORT VALVE (51021700)
*	Gauge Press W/indicator Rear Mount
3	O-RING, STANDPIPE
4	OBSOLETE CLAMP FOR 18", 20" & 22" SS
4	CLAMP FOR 18, 20, & 22"(AFTER 12-15-95)
4	CLAMP FOR 26IN AND 30IN
5	Standpipe For 18" Meteor
6	OBSOLETE ADAPTER, STANDPIPE F/30”-1 1/2”
7	Lateral Eclipse & Meteor TM
8	PLUG, INSPECTION
9	DRAIN ASSEMBLY
9A	Drain Assembly
10	OBSOLETE BASE (ALL PRIOR TO 10-04)
12	Cup, Overdrain 6 1/2in F/2in
13	BASKET - 2" PIPE
14	SCREW, PAN HEAD
15	NUT
*	Ag System Skid Base F/20" & 22" Filter

View Parts List

Diagram #	Part Title
1	Top Mount Backwash Valve for 18" & 20" Eclipse & Meteor Filters
1	Top Mount Backwash Valve for 22" Eclipse & Meteor Filters
1	Top Mount Backwash Valve for 26" Eclipse & Meteor Filters
1	Top Mount Backwash Valve for 30" Eclipse & Meteor Filters
1	No Longer Available VALVE 26 FILTER Replace With 4650-01A
1A	VALVE, TOP MOUNT CLAMP, 7.5IN
1A	VALVE, TOP MOUNT CLAMP 8.22IN
1A	VALVE, 2" TOP MT. CLAMP STYLE WG (261185)
2	O-RING, LID (NEW STLYE)
2	GASKET, MULTIPORT VALVE (51021700)
*	Gauge Press W/indicator Rear Mount
3	O-RING, STANDPIPE
4	OBSOLETE CLAMP FOR 18", 20" & 22" SS
4	CLAMP FOR 18, 20, & 22"(AFTER 12-15-95)
4	CLAMP FOR 26IN AND 30IN
5	Standpipe For 18" Meteor
6	OBSOLETE ADAPTER, STANDPIPE F/30”-1 1/2”
7	Lateral Eclipse & Meteor TM
8	PLUG, INSPECTION
9	DRAIN ASSEMBLY
9A	Drain Assembly
10	OBSOLETE BASE (ALL PRIOR TO 10-04)
12	Cup, Overdrain 6 1/2in F/2in
13	BASKET - 2" PIPE
14	SCREW, PAN HEAD
15	NUT
*	Ag System Skid Base F/20" & 22" Filter

Available Parts:

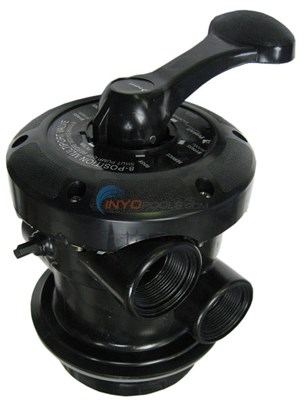

Top Mount Backwash Valve for 18" & 20" Eclipse & Meteor Filters

Part # 4650-01C Mfg # 50118100

Top Mount Backwash Valve for 18" & 20" Eclipse & Meteor Filters

$264.99

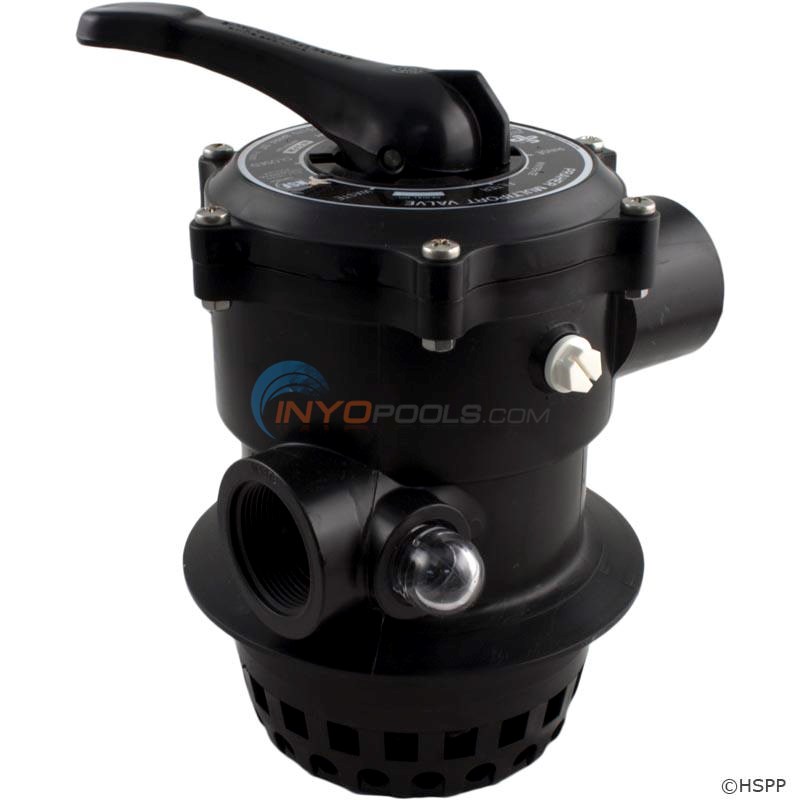

Top Mount Backwash Valve for 22" Eclipse & Meteor Filters

Part # 4650-01 Mfg # 50118200

Top Mount Backwash Valve for 22" Eclipse & Meteor Filters

$314.68

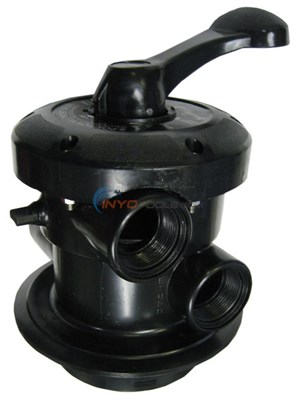

Top Mount Backwash Valve for 26" Eclipse & Meteor Filters

Part # 4650-01A Mfg # 50118300

Top Mount Backwash Valve for 26" Eclipse & Meteor Filters

$311.56

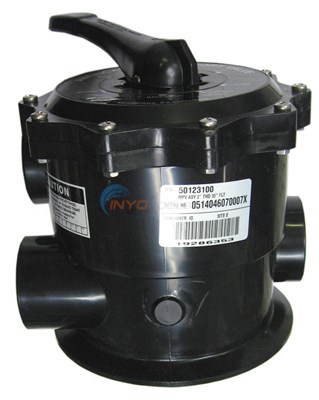

Top Mount Backwash Valve for 30" Eclipse & Meteor Filters

Part # 4650-01B Mfg # 50123100

Top Mount Backwash Valve for 30" Eclipse & Meteor Filters

$231.86

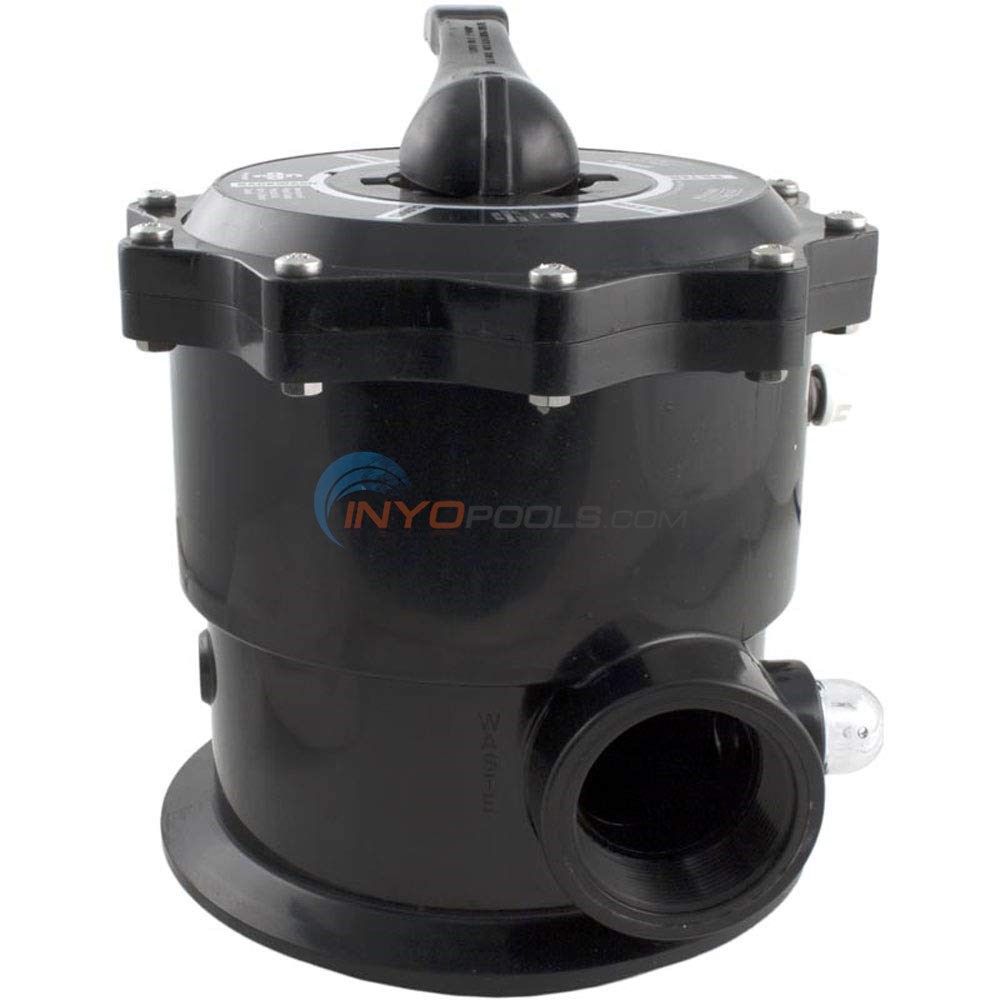

Generic Top Mount Backwash Valve for 30" Eclipse & Meteor Filters

Part # TM-22PA Mfg # TM-22PA

Generic Top Mount Backwash Valve for 30" Eclipse & Meteor Filters

$105.58

1

No Longer Available VALVE 26 FILTER Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028294.htm">4650-01A</a>

Mfg # 50118000

No Longer Available VALVE 26 FILTER Replace With 4650-01A

NOT AVAILABLE

1

No Longer Available VALVE UPGRADE 30 Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352028294.htm">4650-01A</a>

Mfg # 50118400

No Longer Available VALVE UPGRADE 30 Replace With 4650-01A

NOT AVAILABLE

1

OBSOLETE 2” VALVE UPGRADE 30 FILTER

Mfg # 50123200

OBSOLETE 2” VALVE UPGRADE 30 FILTER

NOT AVAILABLE

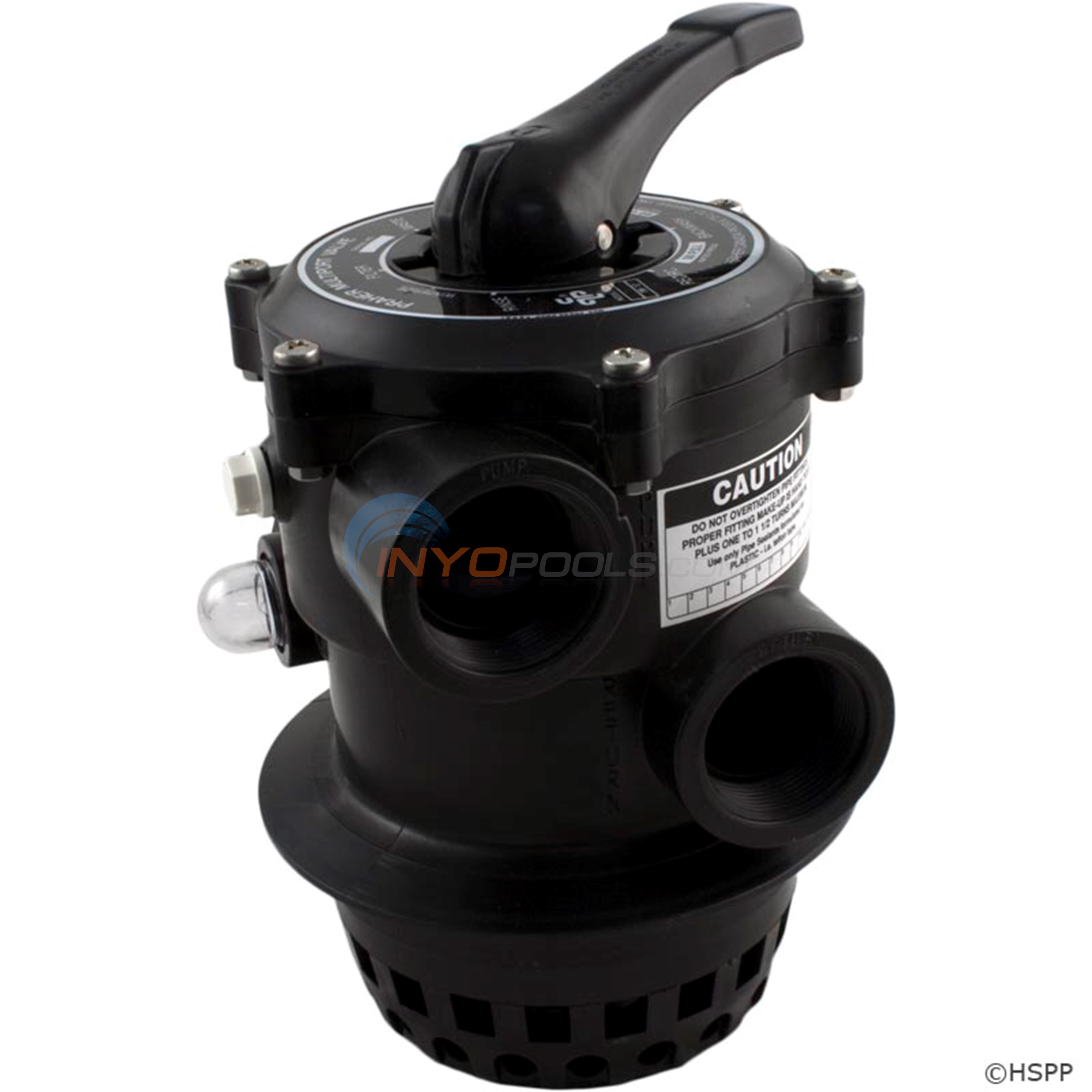

VALVE, TOP MOUNT CLAMP, 7.5IN

Part # 4709-0 Mfg # TM-12-S

VALVE, TOP MOUNT CLAMP, 7.5IN

$165.10 IN STOCK

Qty:

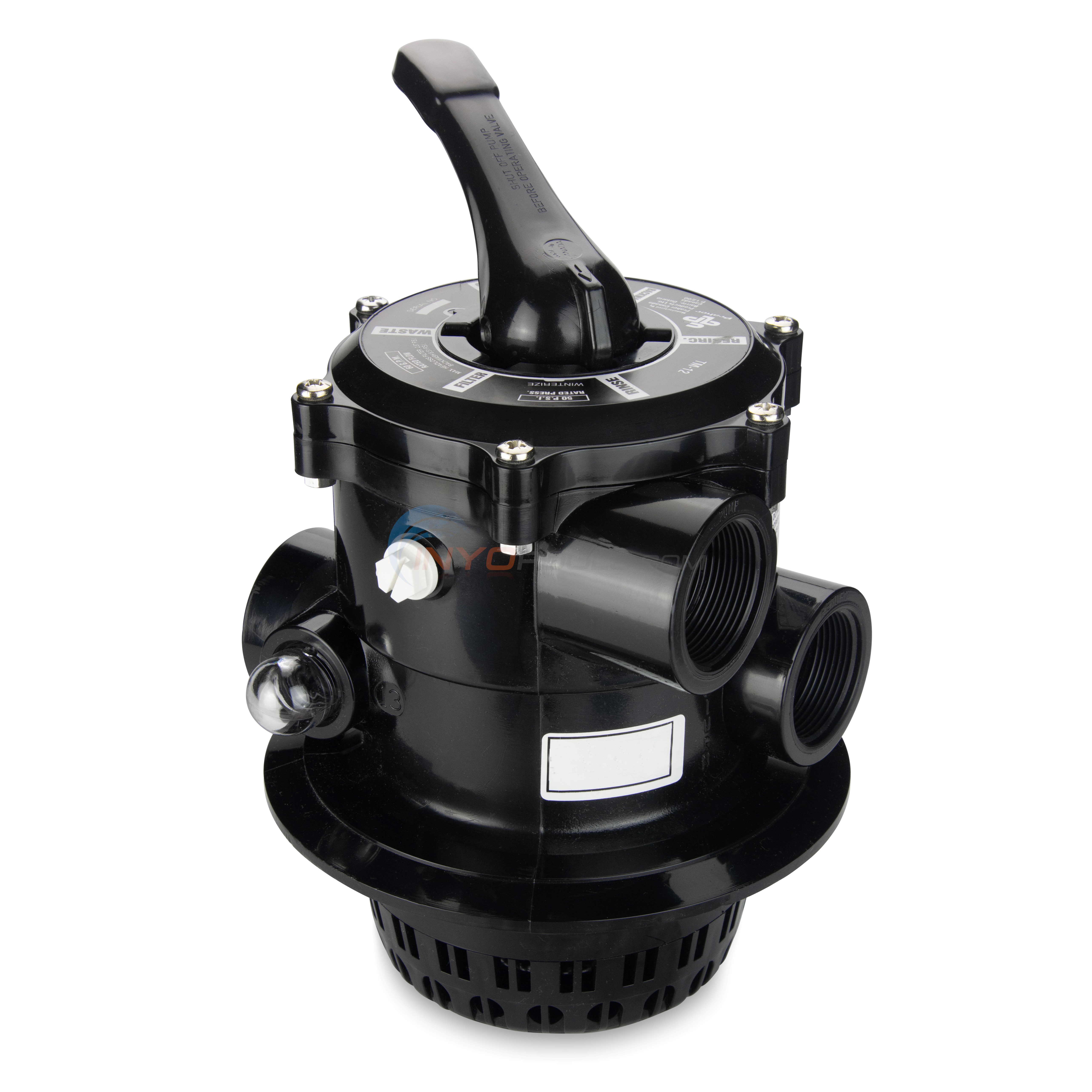

VALVE, TOP MOUNT CLAMP 8.22IN

Part # 4709A Mfg # TM-12-S8

VALVE, TOP MOUNT CLAMP 8.22IN

$222.54 IN STOCK

Qty:

VALVE, 2" TOP MT. CLAMP STYLE WG (261185)

Part # 4600-1185 Mfg # TM-22-PB

VALVE, 2" TOP MT. CLAMP STYLE WG (261185)

$175.97 IN STOCK

Qty:

Valve, 2" Top Mount Flanged - TM-22-PB

Part # 4601-1185 Mfg # TM-22-PB

Valve, 2" Top Mount Flanged - TM-22-PB

$191.12 IN STOCK

Qty:

O-RING, LID (NEW STLYE)

Part # 5106-06 Mfg # 39300600

O-RING, LID (NEW STLYE)

$17.22 IN STOCK

Qty:

Gasket, Multiport Valve (51021700)

Part # 4650-29 Mfg # G415

Gasket, Multiport Valve (51021700)

$11.10 IN STOCK

Qty:

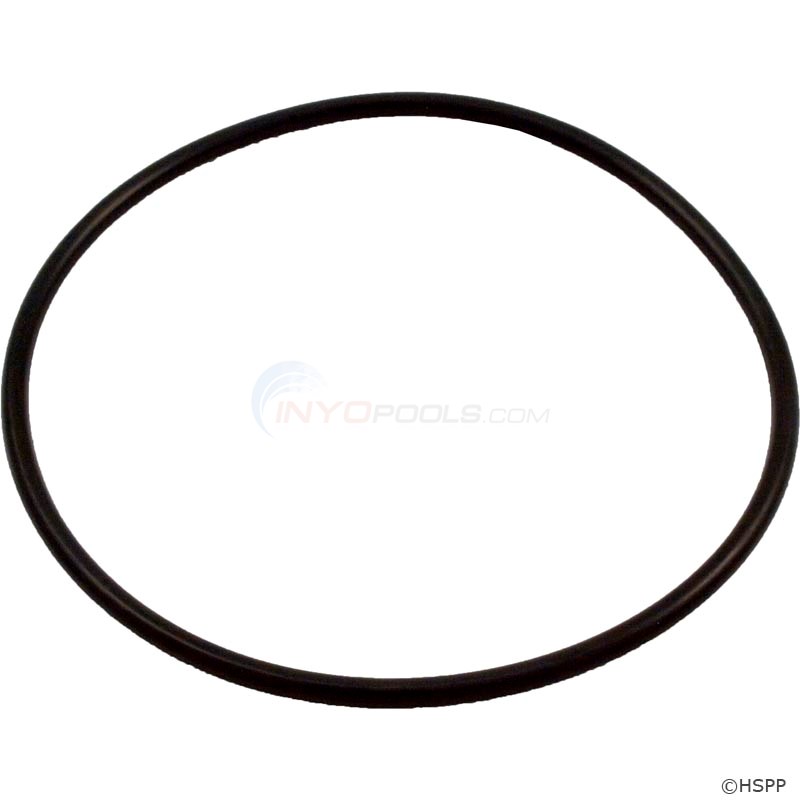

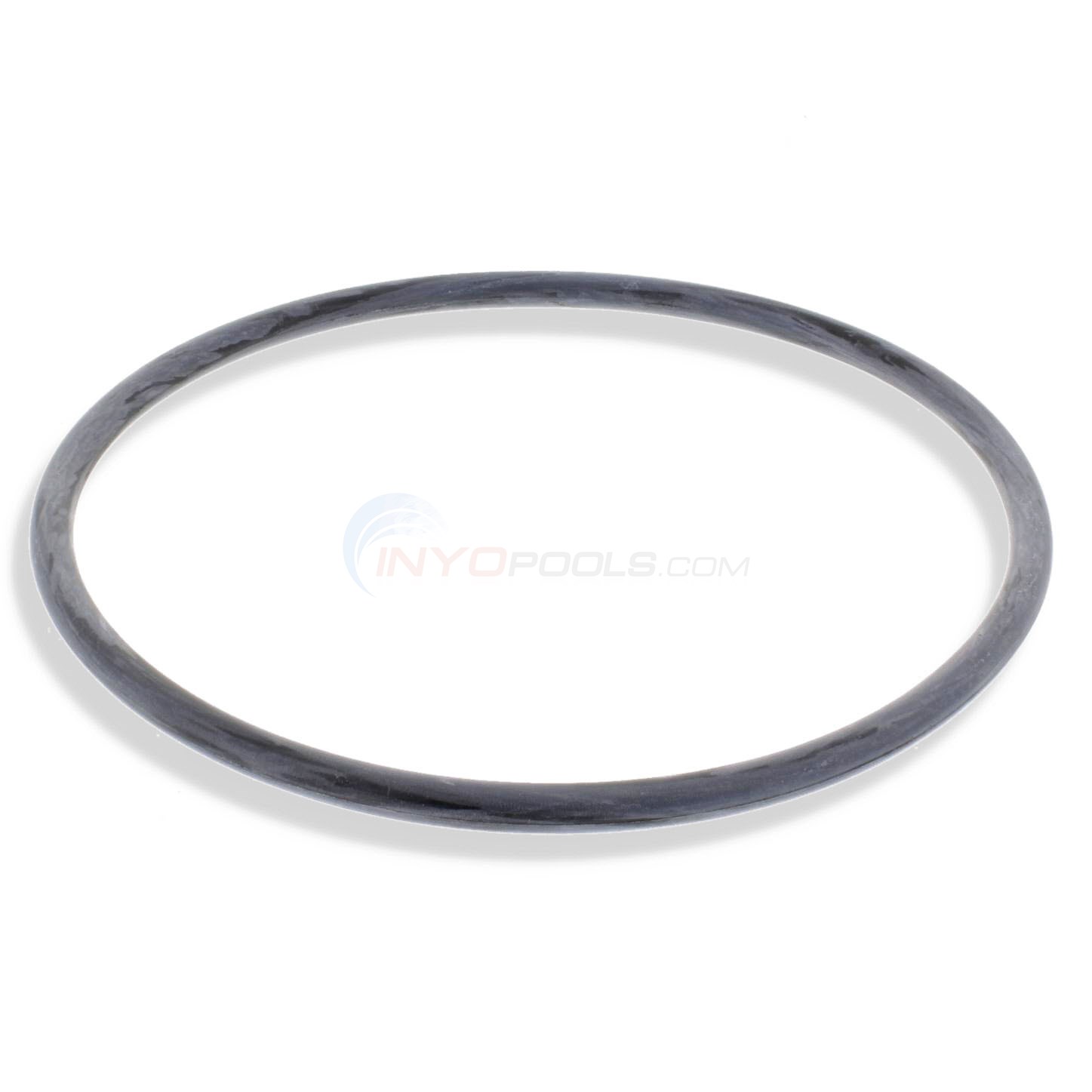

O-ring

Part # 4654-03 Mfg # 52000500

O-ring

$24.28 IN STOCK

Qty:

O-ring

Part # 4650-03 Mfg # 51011900

O-ring

$15.51 IN STOCK

Qty:

GASKET, MULTIPORT VALVE (51021700)

Part # 4650-29 Mfg # G415

GASKET, MULTIPORT VALVE (51021700)

$11.10 IN STOCK

Qty:

Gauge Press W/indicator Rear Mount

Part # 4727-1 Mfg # 190059

Gauge Press W/indicator Rear Mount

$55.92 IN STOCK

Qty:

O-RING, STANDPIPE

Part # 4600-5064 Mfg # 225

O-RING, STANDPIPE

$11.10 IN STOCK

Qty:

4

OBSOLETE CLAMP FOR 18", 20" & 22" SS

Mfg # 58913000

OBSOLETE CLAMP FOR 18", 20" & 22" SS

NOT AVAILABLE

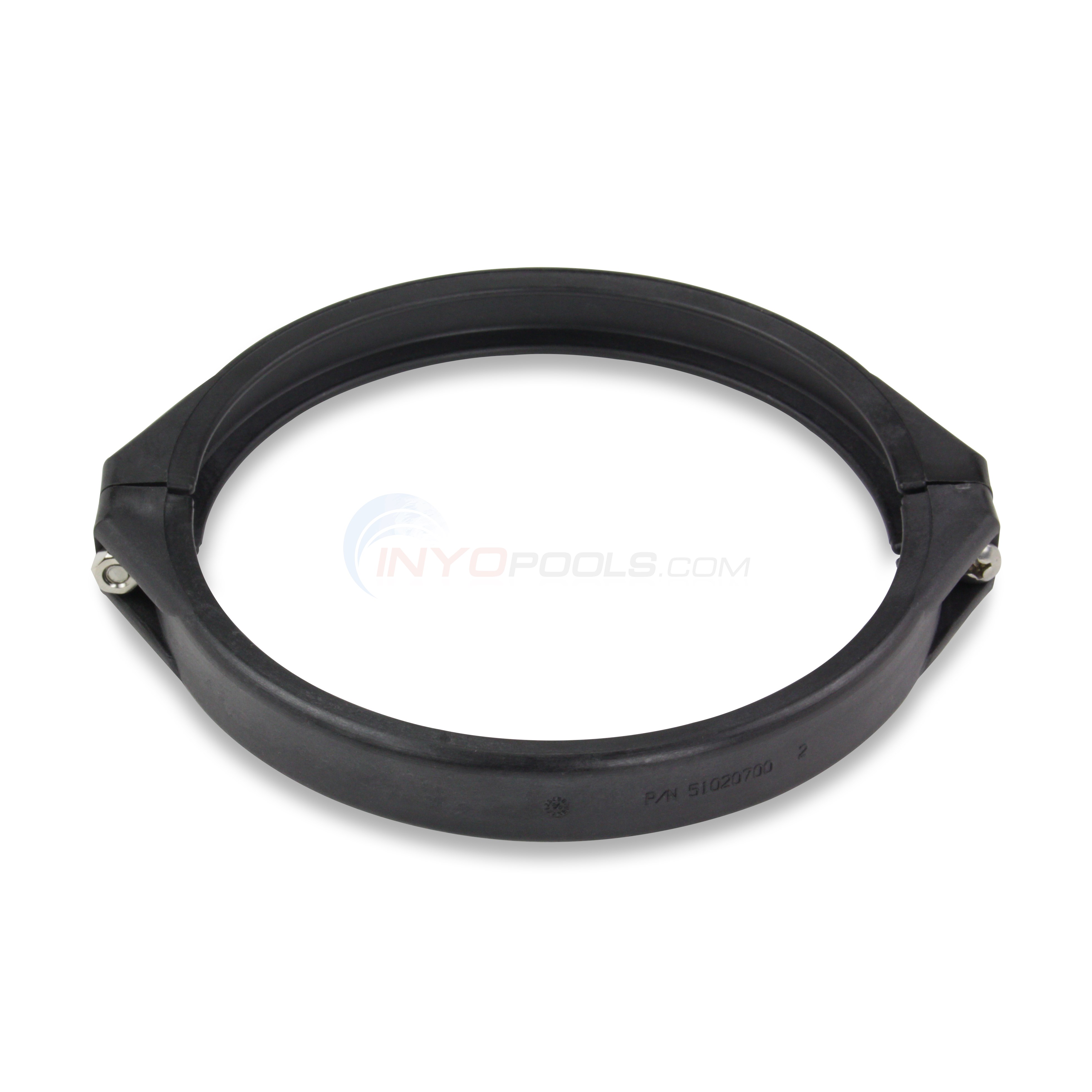

CLAMP FOR 18, 20, & 22"(AFTER 12-15-95)

Part # 4650-04B Mfg # 51020900

CLAMP FOR 18, 20, & 22"(AFTER 12-15-95)

$78.13 IN STOCK

Qty:

CLAMP FOR 26IN AND 30IN

Part # 4650-04A Mfg # 58915000

CLAMP FOR 26IN AND 30IN

$143.87

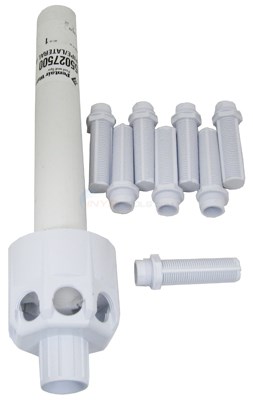

Standpipe For 18" Meteor

Part # 4650-052 Mfg # 55027500

Standpipe For 18" Meteor

$130.42 IN STOCK

Used On Size 18" Prior to 10-2004

Used On Size 18" Prior to 10-2004

Qty:

Standpipe Assembly, 18" Meteor After 10-2004

Part # 4600-2223 Mfg # 152223

Standpipe Assembly, 18" Meteor After 10-2004

$120.59 IN STOCK

Used On Size 18" After 10-2004

Used On Size 18" After 10-2004

Qty:

Standpipe Assy., 20"

Part # 4650-05D Mfg # 55027600

Standpipe Assy., 20"

$81.76 IN STOCK

Used On Size 20" Prior to 10-2004

Used On Size 20" Prior to 10-2004

Qty:

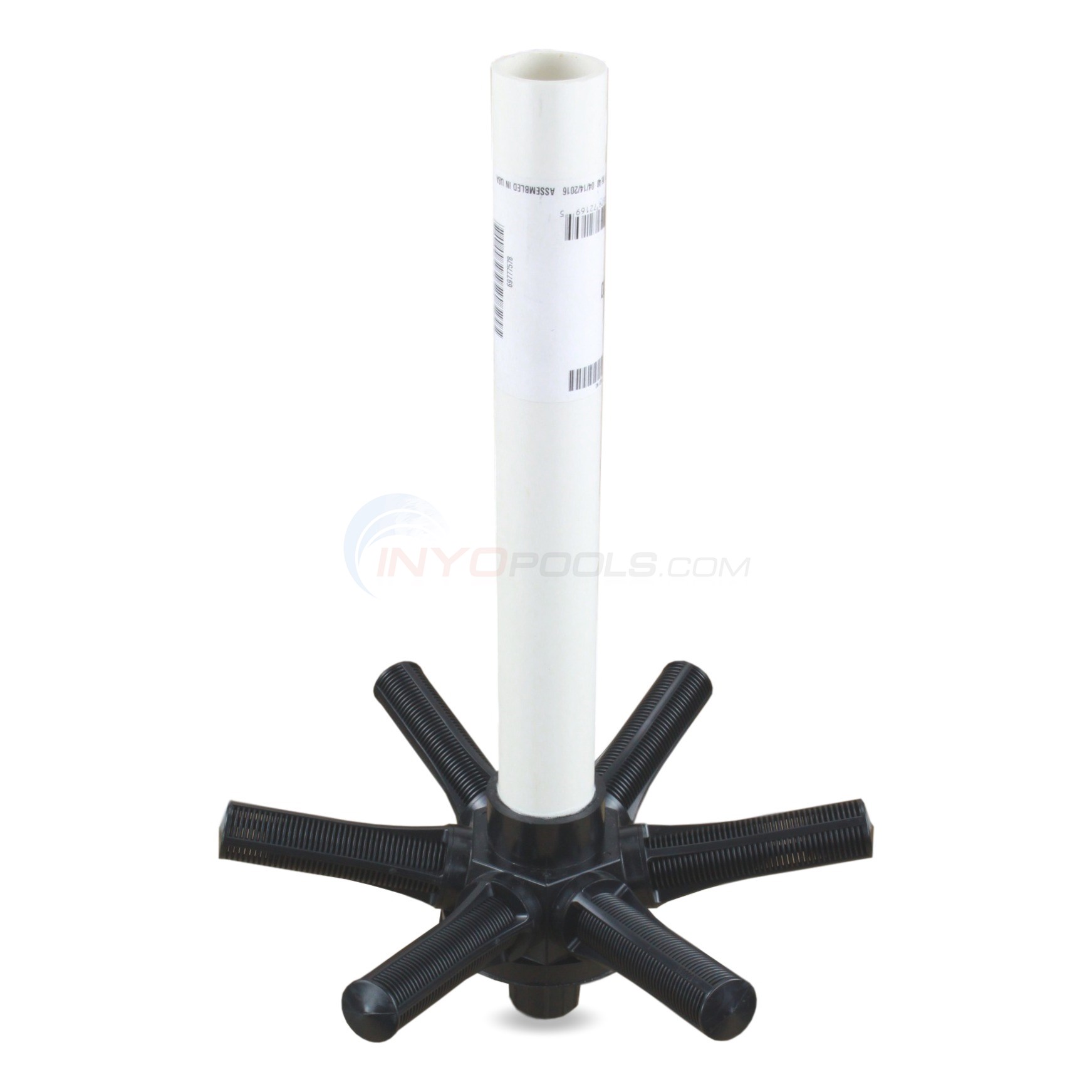

Standpipe Assembly, 20" Meteor After 10-2004

Part # 4600-2224 Mfg # 152224

Standpipe Assembly, 20" Meteor After 10-2004

$157.33 IN STOCK

Used On Size 20" After 10-2004

Used On Size 20" After 10-2004

Qty:

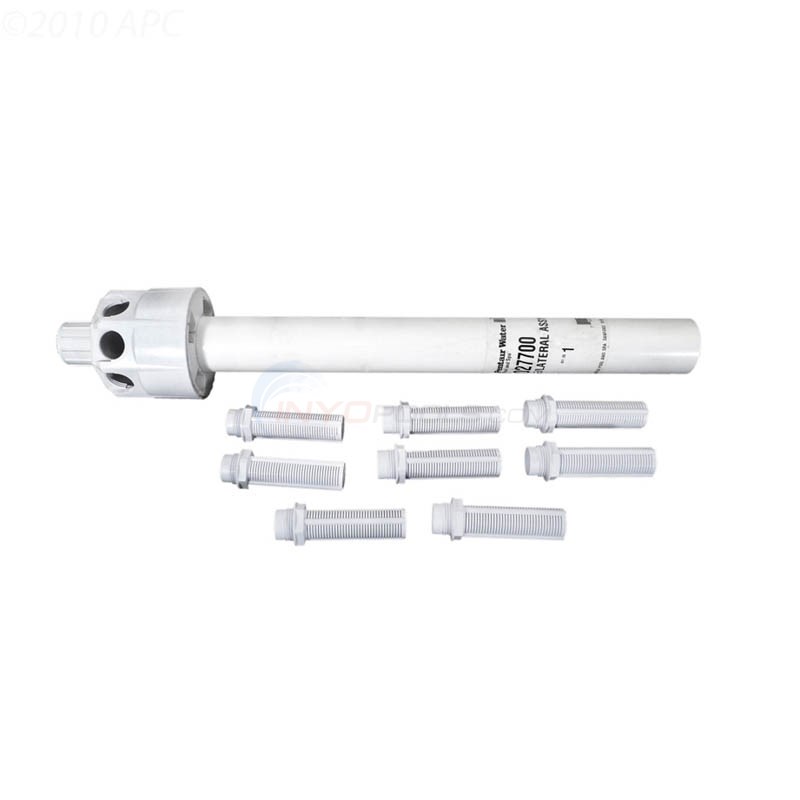

Standpipe Lateral Assy 22"

Part # 4650-051 Mfg # 55027700

Standpipe Lateral Assy 22"

$134.56 IN STOCK

Used On Size 22" Prior to 10-2004

Used On Size 22" Prior to 10-2004

Qty:

Standpipe Assembly, 22" Meteor After 10-2004

Part # 4600-2225 Mfg # 152225

Standpipe Assembly, 22" Meteor After 10-2004

$155.26

Used On Size 22" After 10-2004

Used On Size 22" After 10-2004

5

OBSOLETE STANDPIPE FOR 26"

Mfg # 55025200

OBSOLETE STANDPIPE FOR 26"

NOT AVAILABLE

Used On Size OBSOLETE

Used On Size OBSOLETE

5

OBSOLETE STANDPIPE FOR 30"

Mfg # 55029800

OBSOLETE STANDPIPE FOR 30"

NOT AVAILABLE

Used On Size OBSOLETE

Used On Size OBSOLETE

6

OBSOLETE ADAPTER, STANDPIPE F/30”-1 1/2”

Mfg # 51011700

OBSOLETE ADAPTER, STANDPIPE F/30”-1 1/2”

NOT AVAILABLE

ADAPTER, STANDPIPE F/30"- 2" VALVE

Part # 4650-06A Mfg # 51011400

ADAPTER, STANDPIPE F/30"- 2" VALVE

$34.14

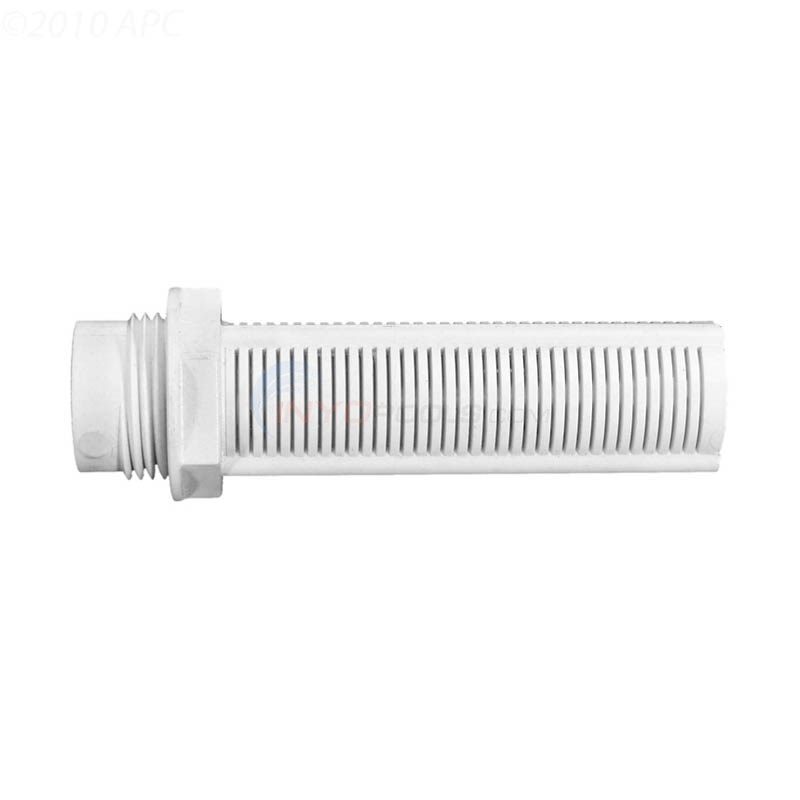

Lateral Eclipse & Meteor TM

Part # 4650-070 Mfg # 55025700

Lateral Eclipse & Meteor TM

$21.72 IN STOCK

Used On Size 18", 20", 22" Prior to 10-2004

Used On Size 18", 20", 22" Prior to 10-2004

Qty:

Lateral, Sd35, Sd40

Part # 4600-0084 Mfg # 150084

Lateral, Sd35, Sd40

$8.79 IN STOCK

Used On Size 18" & 20" After 10-2004

Used On Size 18" & 20" After 10-2004

Qty:

Lateral Sd60 And Sd80 Extra Long

Part # 4600-0085 Mfg # 150085

Lateral Sd60 And Sd80 Extra Long

$15.78 IN STOCK

Used On Size 22" After 10-2004

Used On Size 22" After 10-2004

Qty:

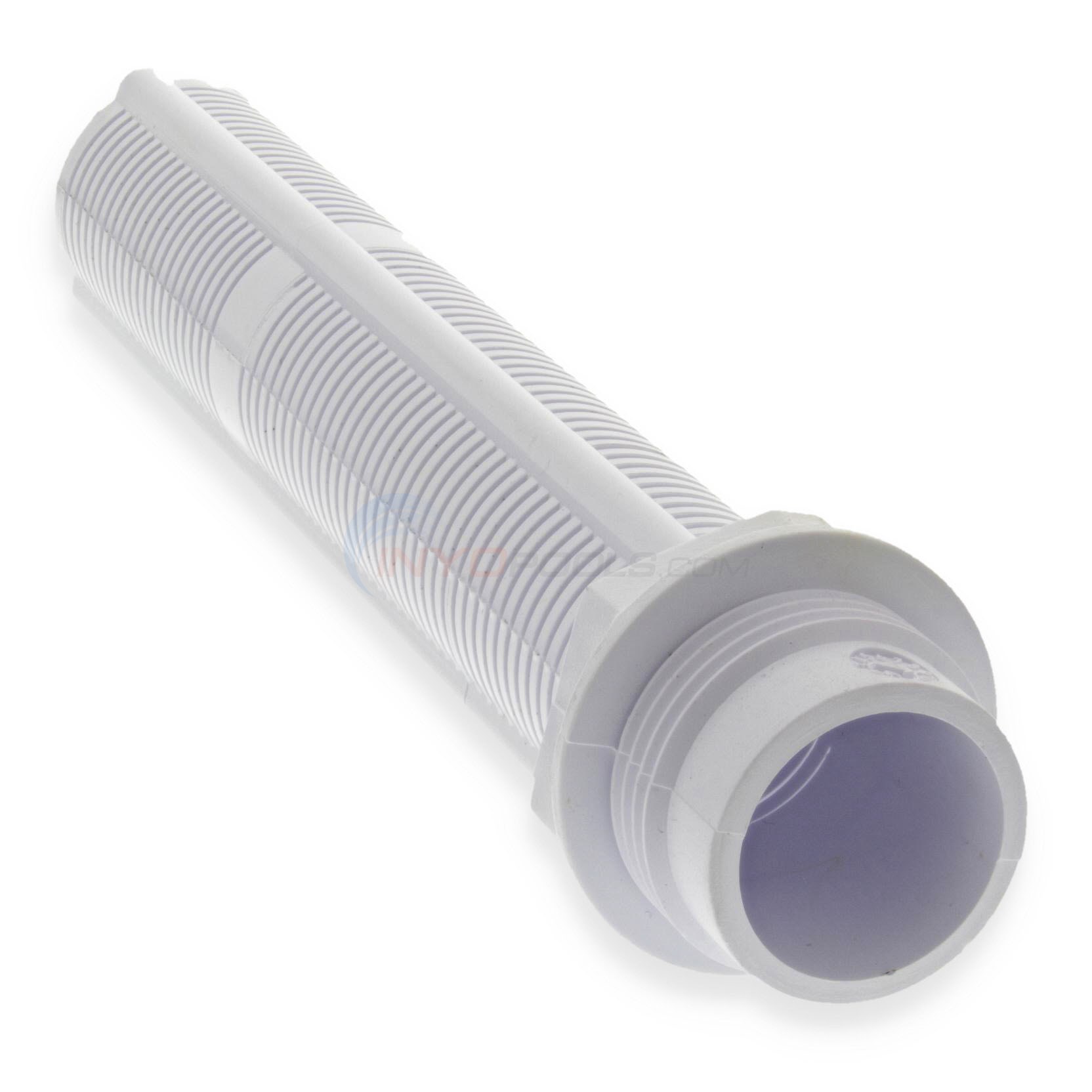

Lateral Eclipse & Meteor TM 26" (after 1/96)

Part # 4650-071 Mfg # 55025800

Lateral Eclipse & Meteor TM 26" (after 1/96)

$23.79 IN STOCK

Used On Size 26"

Used On Size 26"

Qty:

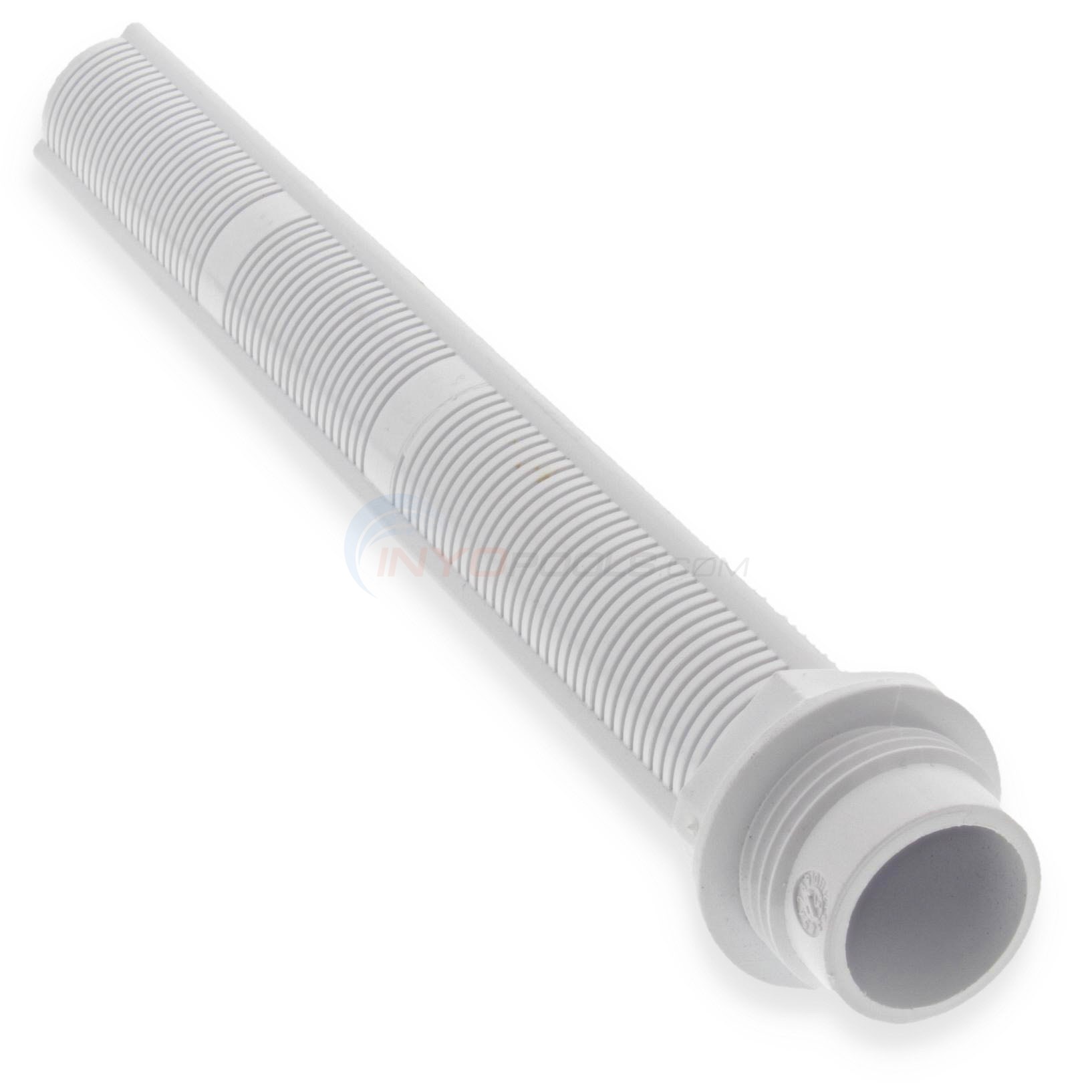

Lateral Eclipse & Meteor 30" (after 1/96) 7 7/8"

Part # 4650-072 Mfg # 55025900

Lateral Eclipse & Meteor 30" (after 1/96) 7 7/8"

$30.00

Used On Size 30"

Used On Size 30"

PLUG, INSPECTION

Part # 4650-08 Mfg # 86202000

PLUG, INSPECTION

$20.69 IN STOCK

Qty:

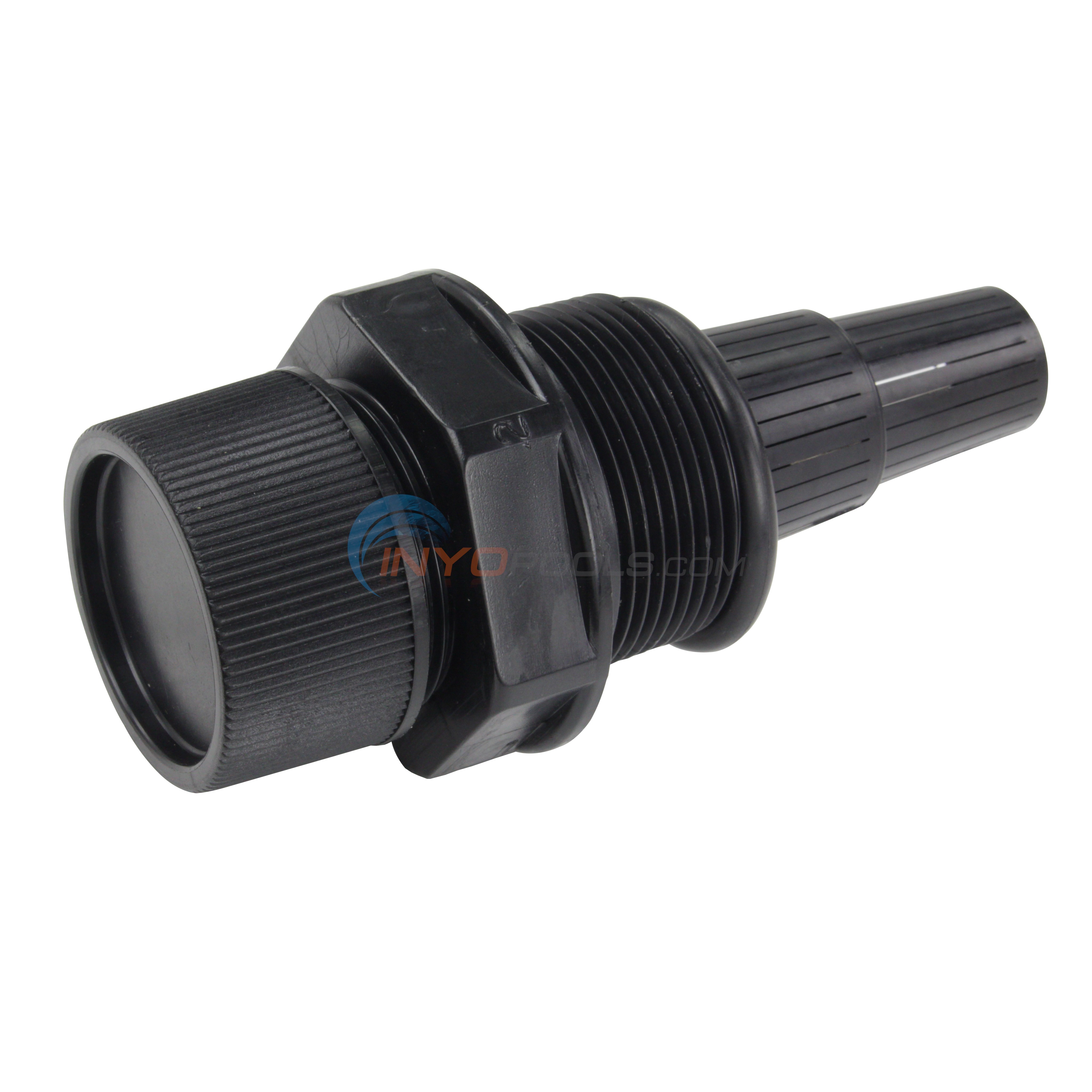

DRAIN ASSEMBLY

Part # 4650-09 Mfg # 55007800

DRAIN ASSEMBLY

$38.29 IN STOCK

Qty:

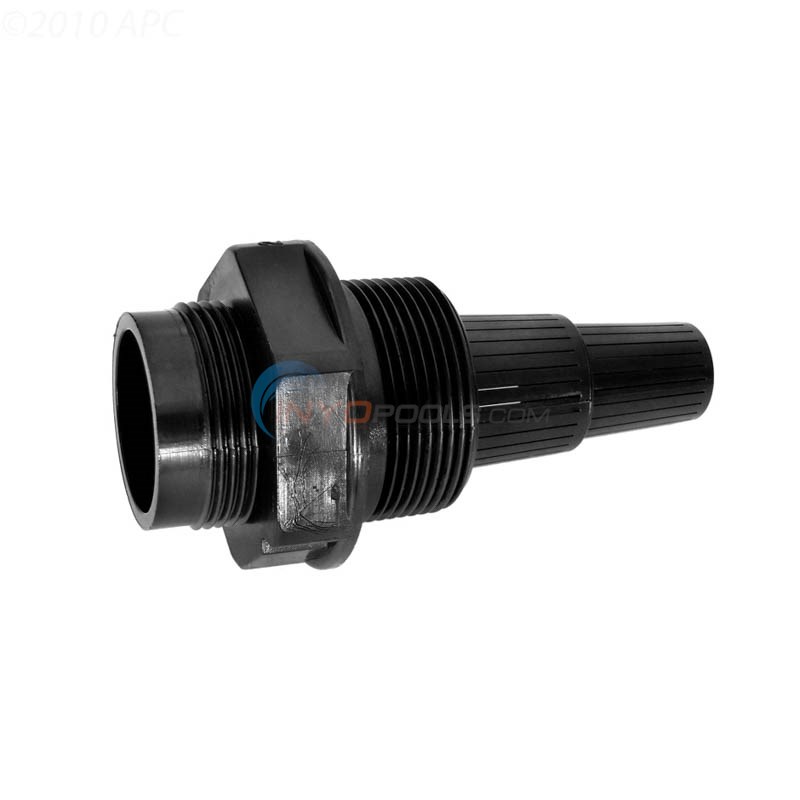

FITTING, DRAIN

Part # 4650-10 Mfg # 86300300

FITTING, DRAIN

$27.93 IN STOCK

Qty:

O-RING

Part # 4656-06 Mfg # 325

O-RING

$8.13 IN STOCK

Qty:

Drain Assembly

Part # 4650-09 Mfg # 55007800

Drain Assembly

$38.29 IN STOCK

Qty:

Fitting, Drain

Part # 4650-10 Mfg # 86300300

Fitting, Drain

$27.93 IN STOCK

Qty:

O-ring

Part # 4656-06 Mfg # 325

O-ring

$8.13 IN STOCK

Qty:

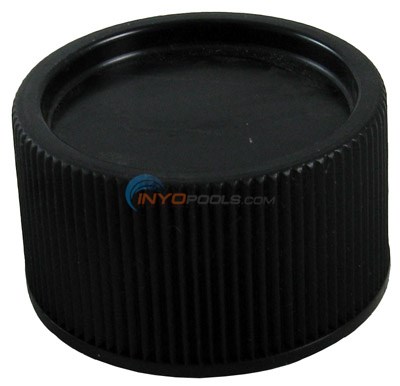

Cap, Drain

Part # 4650-14 Mfg # 86300400

Cap, Drain

$7.69 IN STOCK

Qty:

Gasket, Drain Cap

Part # 4650-11 Mfg # 86300500

Gasket, Drain Cap

$9.30 IN STOCK

Qty:

Drain Assembly After 6-2004 Meteor

Part # 4650-091 Mfg # 150055

Drain Assembly After 6-2004 Meteor

$78.13 IN STOCK

Qty:

Sand Drain

Part # 4601-4711 Mfg # 154711

Sand Drain

$16.76 IN STOCK

Qty:

Gasket, Sand Drain

Part # 4600-4715 Mfg # 154715

Gasket, Sand Drain

$10.34 IN STOCK

Qty:

Drain Cap

Part # 4600-4712 Mfg # 154712

Drain Cap

$31.94 IN STOCK

Qty:

10

OBSOLETE BASE (ALL PRIOR TO 10-04)

OBSOLETE BASE (ALL PRIOR TO 10-04)

NOT AVAILABLE

Foot, Tank,ta35,40,50,60, And D Version

Part # 4600-4926 Mfg # 154926

Foot, Tank,ta35,40,50,60, And D Version

$130.42 IN STOCK

Qty:

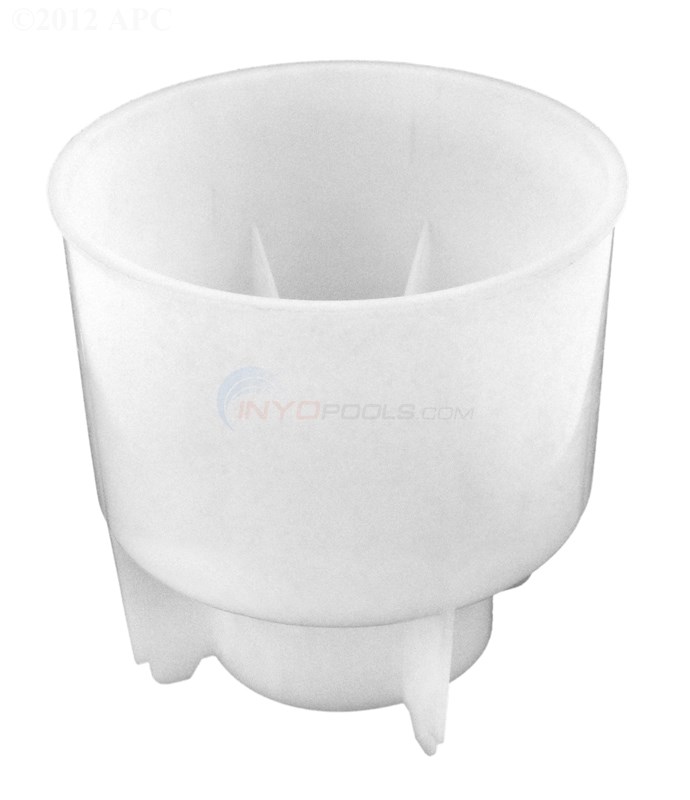

Cup, Overdrain 6 1/2in F/2in

Part # 4650-12 Mfg # 51031200

Cup, Overdrain 6 1/2in F/2in

$62.10

12

OBSOLETE OVERDRAIN CUP

Mfg # 51031100

OBSOLETE OVERDRAIN CUP

NOT AVAILABLE

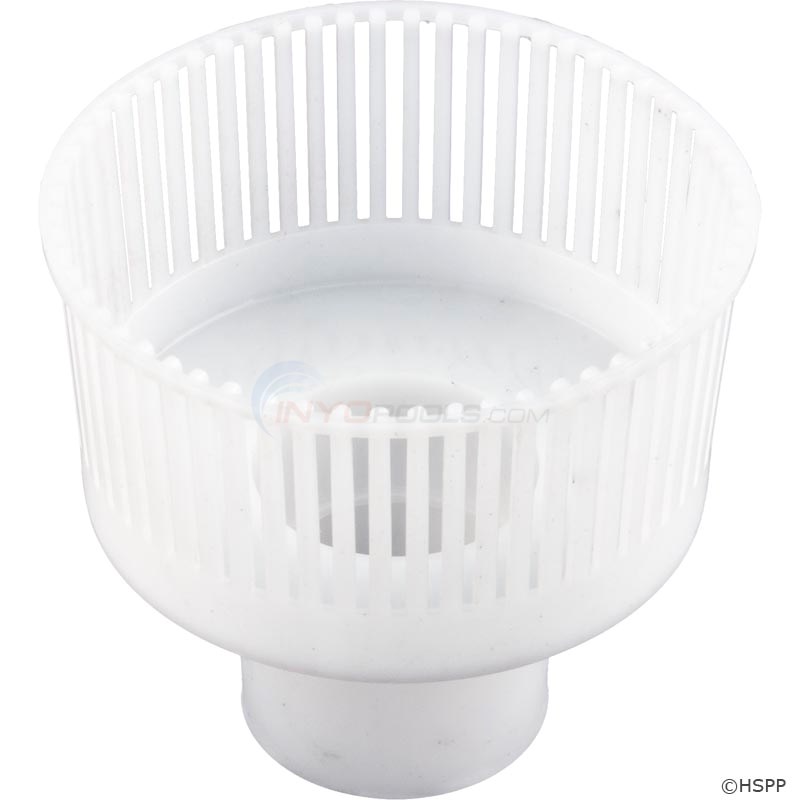

BASKET - 2" PIPE

Part # 4650-13 Mfg # 51030200

BASKET - 2" PIPE

$67.27

BASKET - 1 1/2" PIPE

Part # 4650-13A Mfg # 51030100

BASKET - 1 1/2" PIPE

$54.85

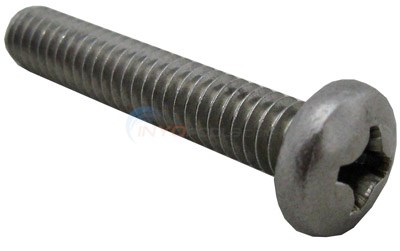

SCREW, PAN HEAD

Part # 4659-05 Mfg # 98209000

SCREW, PAN HEAD

$12.41 IN STOCK

Qty:

NUT

Part # 4659-19 Mfg # 98211400

NUT

$12.41 IN STOCK

Qty:

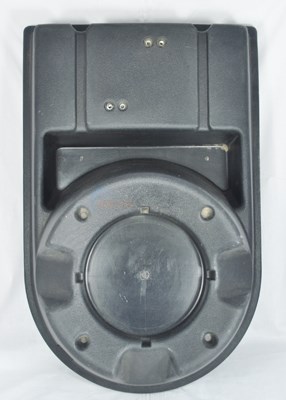

Ag System Skid Base F/20" & 22" Filter

Part # 4650-50 Mfg # 55215000

Ag System Skid Base F/20" & 22" Filter

$258.78

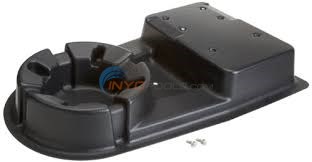

Ag System Base

Part # 4650-52 Mfg # 152901

Ag System Base

$191.49

System Base 2009/current

Part # 4657-131 Mfg # 155333P

System Base 2009/current

$135.09 IN STOCK

Qty:

* NOT SHOWN

ORIGINAL VALVE HAD THE DIFFUSER ATTACHED TO THE BOTTOM OF THE VALVE
THE STAND PIPE HAD NO CUP OR OVERDRAIN ATTACHED
THESE MAY BE REPLACED WITH THE PRAHER EQUIVALENT VALVE
ORIGINAL STANDPIPE IS NOT AVAILABLE
