Escalade & Tahitian 18' Round 54" Wall (Resin Top Rail, Wall Printed Steel Upright) Parts

Model PESC-54RWAAAR1 (Resin Top Rail, Wall Printed Steel Upright)

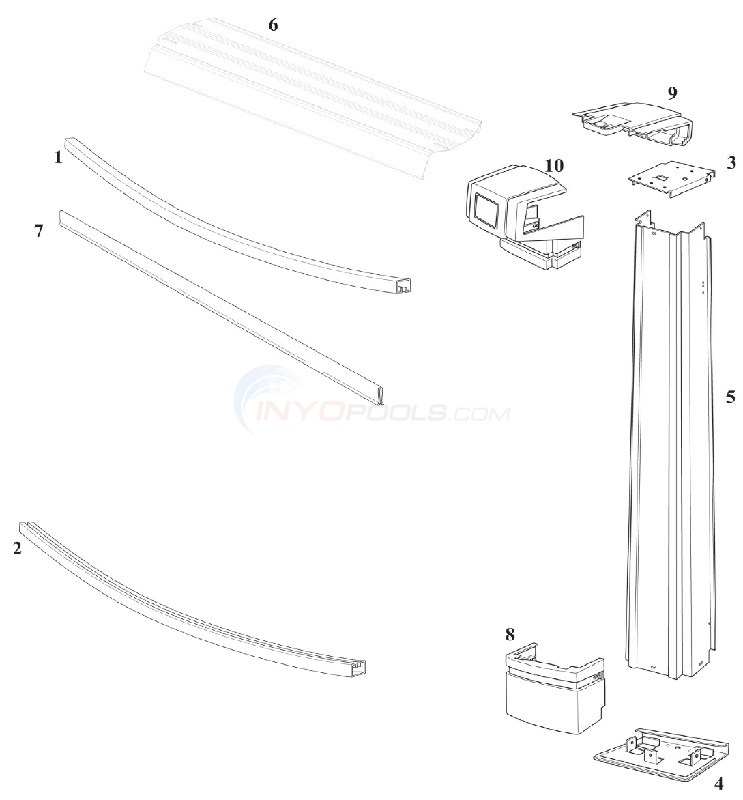

Escalade & Tahitian 18' Round 54" Wall (Resin Top Rail, Wall Printed Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	18' Round 48"-54" Depth Caribbean Tile Overlap Liner Standard Gauge
1	Inner Stabilizer 54-1/8"( Single)
2	Bottom Rail Aluminum 54-7/16" (Single)
3	Bottom Plate 6" Tapered
4	Bottom Plate 8" Aluminum
5	Up Right 8" 55 13/16" (Single)
6	Top Rail 8" Resin 55 13/16" (ESC) Single
7	Plastic Coping 48" (Single)
8	Top Cap 8" Curved Only
9	Top Cap 8" 1/2 Inner CVD/STR
10	Top Cover Cap CVD 8"
*	Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)
*	Hardware SS 18'
*	Envelope Safety Stickers
*	Sharkline Consumer DVD

View Parts List

Diagram #	Part Title
*Liner	18' Round 48"-54" Depth Caribbean Tile Overlap Liner Standard Gauge
1	Inner Stabilizer 54-1/8"( Single)
2	Bottom Rail Aluminum 54-7/16" (Single)
3	Bottom Plate 6" Tapered
4	Bottom Plate 8" Aluminum
5	Up Right 8" 55 13/16" (Single)
6	Top Rail 8" Resin 55 13/16" (ESC) Single
7	Plastic Coping 48" (Single)
8	Top Cap 8" Curved Only
9	Top Cap 8" 1/2 Inner CVD/STR
10	Top Cover Cap CVD 8"
*	Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)
*	Hardware SS 18'
*	Envelope Safety Stickers
*	Sharkline Consumer DVD

Available Parts:

18' Round 48"-54" Depth Caribbean Tile Overlap Liner Standard Gauge

Part # LI1848CFO

18' Round 48"-54" Depth Caribbean Tile Overlap Liner Standard Gauge

$339.68

18' Round 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1848ASO

18' Round 48"-54" Depth All Swirl Overlap Standard Gauge

$301.49

Findlay Vinyl 18' Country Stone Overlap

Part # FC1852OL

Findlay Vinyl 18' Country Stone Overlap

$246.21

Inner Stabilizer 54-1/8"( Single)

Part # 10308

Inner Stabilizer 54-1/8"( Single)

$31.65 IN STOCK

Quantity Per Pool 13

Quantity Per Pool 13

Qty:

Inner Stabilizer 54-1/8"(4 Pack)

Part # 10308-PACK4

Inner Stabilizer 54-1/8"(4 Pack)

$94.93 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Bottom Rail Aluminum 54-7/16" (Single)

Part # 14075

Bottom Rail Aluminum 54-7/16" (Single)

$47.32 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

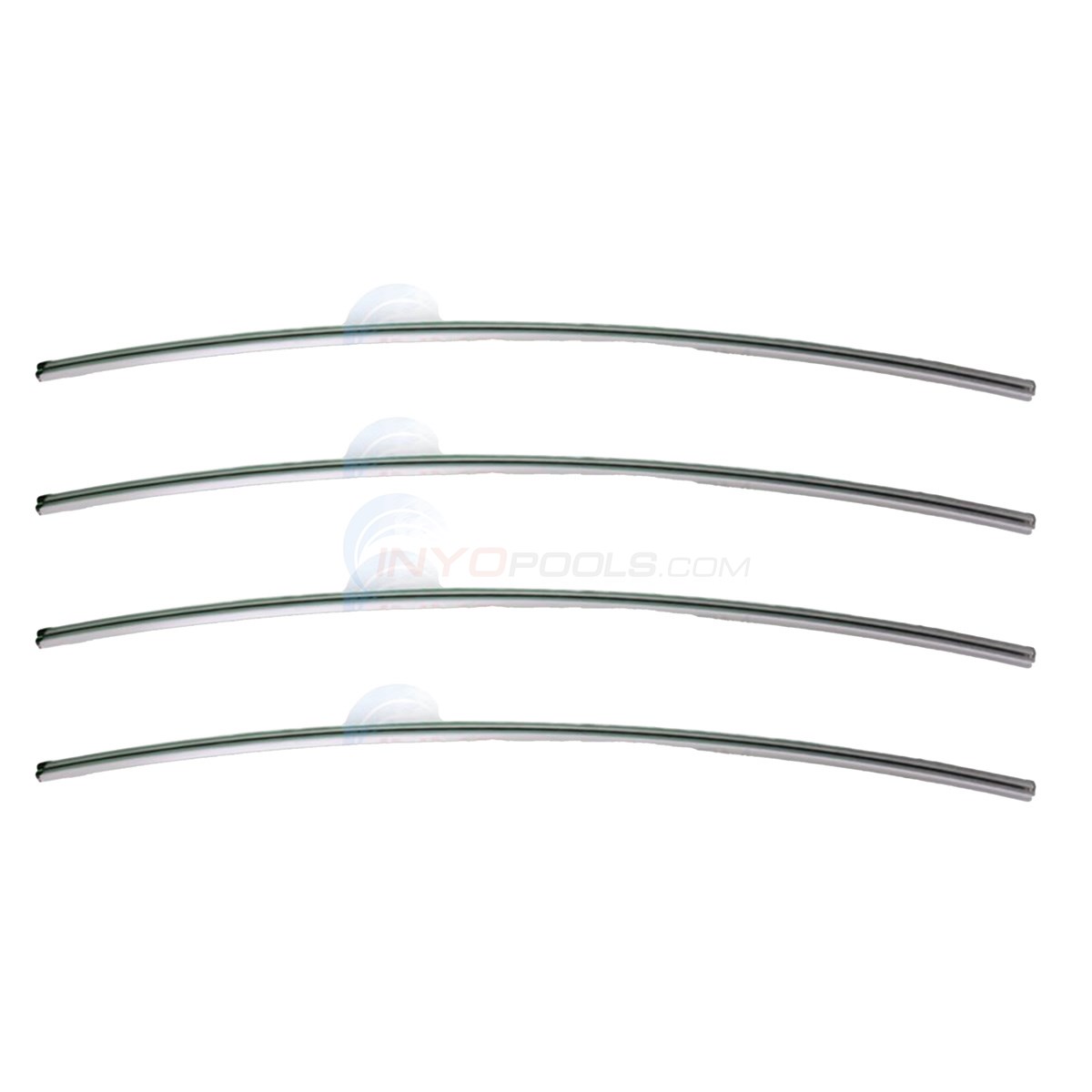

Bottom Rail Aluminum 54-7/16" (4 Pack)

Part # 14075-PACK4

Bottom Rail Aluminum 54-7/16" (4 Pack)

$105.42 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Bottom Plate 6" Tapered

Part # 14439

Bottom Plate 6" Tapered

$18.39 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Bottom Plate 8" Aluminum

Part # 14438

Bottom Plate 8" Aluminum

$16.87

Quantity Per Pool 12

Quantity Per Pool 12

Up Right 8" 55 13/16" (Single)

Part # 21444

Up Right 8" 55 13/16" (Single)

$93.91 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Upright 8" Windrift 53 13/16" (4 pack)

Part # 21444-PACK4

Upright 8" Windrift 53 13/16" (4 pack)

$316.53 IN STOCK

Quantity Per Pool

Quantity Per Pool

Qty:

Top Rail 8" Resin 55 13/16" (ESC) Single

Part # 20977

Top Rail 8" Resin 55 13/16" (ESC) Single

$116.07 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.60 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap 8" Curved Only

Part # 14443

Top Cap 8" Curved Only

$15.60 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Top Cap 8" 1/2 Inner CVD/STR

Part # 14442

Top Cap 8" 1/2 Inner CVD/STR

$21.09

Quantity Per Pool 12

Quantity Per Pool 12

Top Cover Cap CVD 8"

Part # 14440

Top Cover Cap CVD 8"

$17.94 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)

Part # 10019

Wall Saver Panel WM 54"T X 51.6"W Sand Single Bolt Pattern (Single)

$129.79

Quantity Per Pool 1

Quantity Per Pool 1

Hardware SS 18'

Part # 10180

Hardware SS 18'

$182.55

Quantity Per Pool 1

Quantity Per Pool 1

Hardware S/S TR Resin 18'

Part # 19081

Hardware S/S TR Resin 18'

$69.64

Quantity Per Pool 1

Quantity Per Pool 1

Envelope Safety Stickers

Part # 95-0007

Envelope Safety Stickers

$15.82

Quantity Per Pool 1

Quantity Per Pool 1

Sharkline Consumer DVD

Part # 36879

Sharkline Consumer DVD

$21.09

Quantity Per Pool 1

Quantity Per Pool 1
