Evolution 18' x 33' Yardmore Oval 52" Wall (Steel Top Rail, Steel Upright) Parts

PEVOCLX-YM52LLPSRG1 *Not Shown

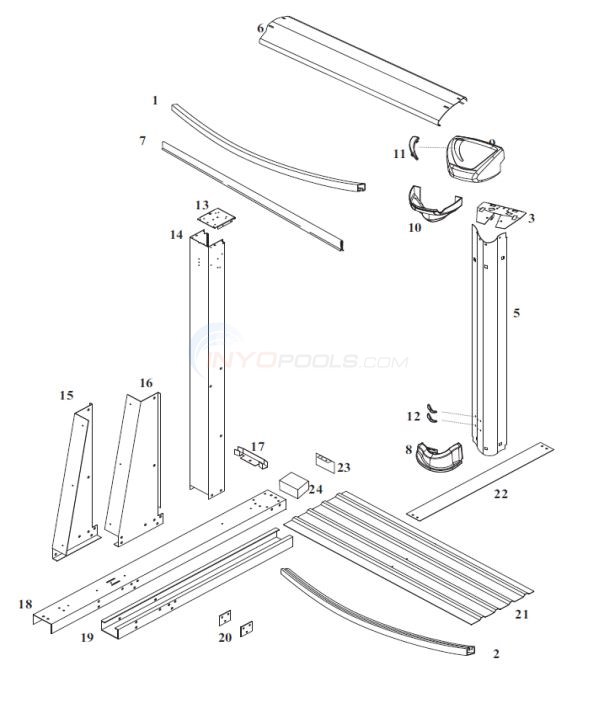

Evolution 18' x 33' Yardmore Oval 52" Wall (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*	18' x 33' Oval 48"-52" Depth Overlap Solid Blue Standard Gauge Liner
1	Inner Stabilizer Steel 54-1/8" (Single)
2	Bottom Rail Steel Straight Side 37-3/4"
3	Top Plate 9" (Single)
5	Upright 51-13/16" (Single)
6	Top Rail 9" Straight Side 41-1/4" (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 9" (Single)
9	Top Cap 9" CHAMPAGNE (Single)
10	Top Cap Support Curved End (Single)
11	Accent Clip Large Top Cap
12	Accent Clip Small Upright (Single)
13	Top Plate Oval 4" (Single)
14	WRAP UR OVAL CHAMPAGNE KK 52" (53" OVERALL LENGTH)
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Fastener Pack
21	Pressure Plate 44" (Single)
22	Strap Section 52-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

View Parts List

Diagram #	Part Title
*	18' x 33' Oval 48"-52" Depth Overlap Solid Blue Standard Gauge Liner
1	Inner Stabilizer Steel 54-1/8" (Single)
2	Bottom Rail Steel Straight Side 37-3/4"
3	Top Plate 9" (Single)
5	Upright 51-13/16" (Single)
6	Top Rail 9" Straight Side 41-1/4" (Single)
7	Plastic Coping 48" (Single)
8	Bottom Boot 9" (Single)
9	Top Cap 9" CHAMPAGNE (Single)
10	Top Cap Support Curved End (Single)
11	Accent Clip Large Top Cap
12	Accent Clip Small Upright (Single)
13	Top Plate Oval 4" (Single)
14	WRAP UR OVAL CHAMPAGNE KK 52" (53" OVERALL LENGTH)
15	Yardmore Gusset Left Steel (Single)
16	Yardmore Gusset Right Steel (Single)
17	Connector Btm Rail Str Side Aluminum (Single)
18	Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)
19	Under Channel Yardmore 49-9/16" (single)
20	Fastener Pack
21	Pressure Plate 44" (Single)
22	Strap Section 52-11/16" (Single)
23	Oval Top Channel End Cap (Single)
24	Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Available Parts:

*

18' x 33' Oval 48"-52" Depth Overlap Solid Blue Standard Gauge Liner

Part # NL232-20 Mfg # NL232-20

18' x 33' Oval 48"-52" Depth Overlap Solid Blue Standard Gauge Liner

NOT AVAILABLE

Liner Options / Quantity Per Pool 1

Liner Options / Quantity Per Pool 1

18' x 33' Oval 52" Depth Unibead Manor Standard Gauge Liner

Part # LI183352MNU

18' x 33' Oval 52" Depth Unibead Manor Standard Gauge Liner

$473.34

Liner Options / Quantity Per Pool 1

Liner Options / Quantity Per Pool 1

18' x 33' Oval 52" Depth Unibead Portofino Heavy Gauge Liner

Part # LI1833452PTU25

18' x 33' Oval 52" Depth Unibead Portofino Heavy Gauge Liner

$594.95

Liner Options / Quantity Per Pool 1

Liner Options / Quantity Per Pool 1

Inner Stabilizer Steel 54-1/8" (Single)

Part # 38503

Inner Stabilizer Steel 54-1/8" (Single)

$43.02 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Rim 33" Steel (Single) Xylon Black

Part # 38512

Rim 33" Steel (Single) Xylon Black

$27.42 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Rim 8" Steel (Single)

Part # 38513

Rim 8" Steel (Single)

$9.76

Quantity Per Pool 8

Quantity Per Pool 8

Rim 37 " (Single) Xylon Black

Part # 38511

Rim 37 " (Single) Xylon Black

$41.12 IN STOCK

Quantity Per Pool 4

Quantity Per Pool 4

Qty:

Bottom Rail Steel Straight Side 37-3/4"

Part # 16713

Bottom Rail Steel Straight Side 37-3/4"

$40.23 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Bottom Rail Steel 50" (Ponderosa, Eclipse, Reprieve, Cameo, Voyager, Concord) Single

Part # 14949

Bottom Rail Steel 50" (Ponderosa, Eclipse, Reprieve, Cameo, Voyager, Concord) Single

$44.01 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Bottom Rail Steel Corner 39-1/4"

Part # 16714

Bottom Rail Steel Corner 39-1/4"

$40.23

Quantity Per Pool 4

Quantity Per Pool 4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

Part # 16713-PACK4

Bottom Rail Steel Straight Side 37-3/4" (4-PACK)

$108.72 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

Part # 16713-PACK8

Bottom Rail Steel Straight Side 37-3/4" (8-PACK)

$321.84

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Top Plate 9" (Single)

Part # 17829

Top Plate 9" (Single)

$11.60

Quantity Per Pool 14

Quantity Per Pool 14

Upright 51-13/16" (Single)

Part # 27046

Upright 51-13/16" (Single)

$100.24 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

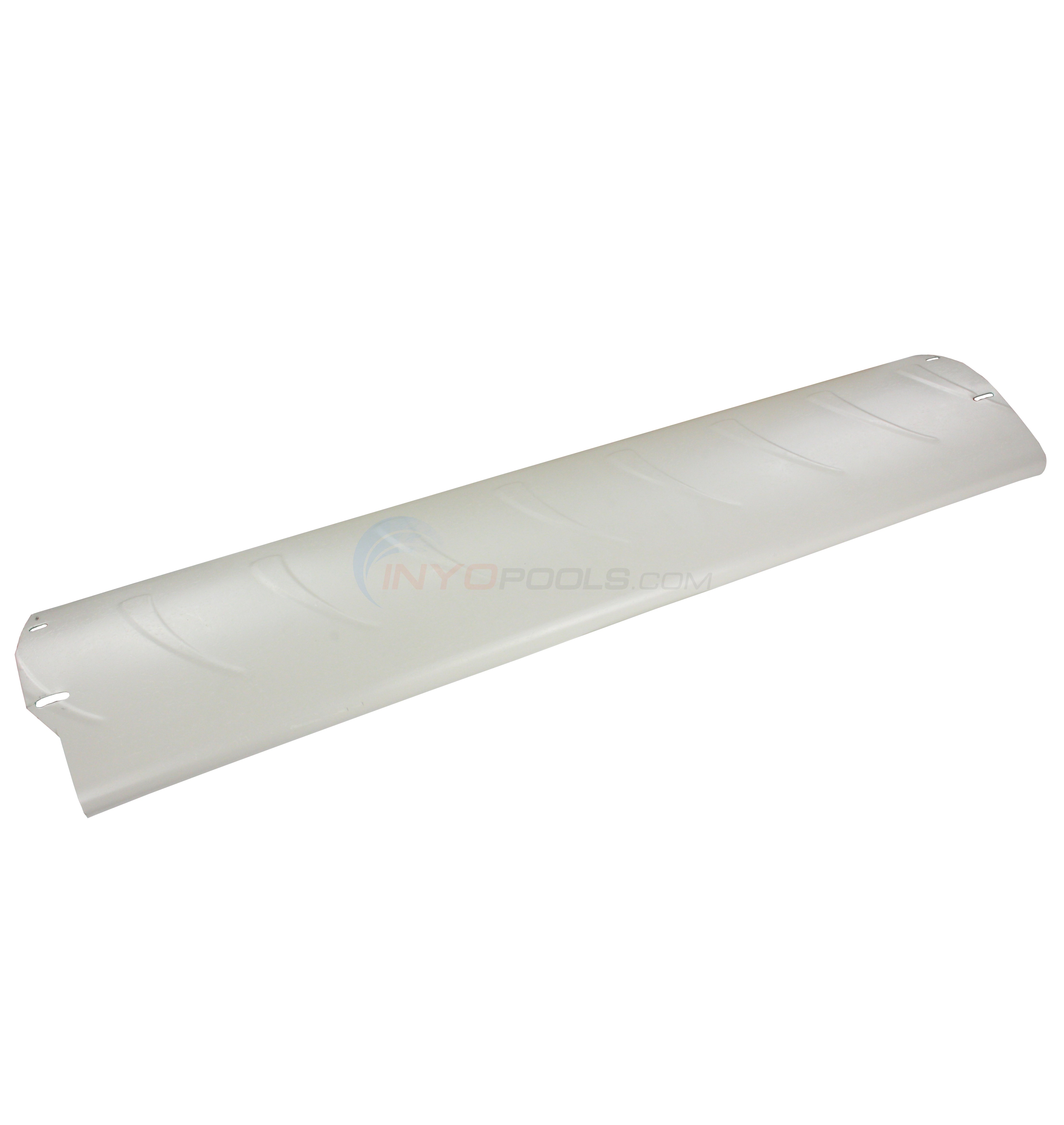

Top Rail 9" Straight Side 41-1/4" (Single)

Part # 27045

Top Rail 9" Straight Side 41-1/4" (Single)

$63.30

Quantity Per Pool 10

Quantity Per Pool 10

Top Rail 9" Curved End 51-29/32" (Single)

Part # 27041

Top Rail 9" Curved End 51-29/32" (Single)

$98.90

Quantity Per Pool 12

Quantity Per Pool 12

Plastic Coping 48" (Single)

Part # 10296

Plastic Coping 48" (Single)

$11.60 IN STOCK

Quantity Per Pool 21

Quantity Per Pool 21

Qty:

Bottom Boot 9" (Single)

Part # 27050

Bottom Boot 9" (Single)

$14.76

Quantity Per Pool 14

Quantity Per Pool 14

Top Cap 9" CHAMPAGNE (Single)

Part # 27047

Top Cap 9" CHAMPAGNE (Single)

$37.86

Quantity Per Pool 22

Quantity Per Pool 22

Top Cap Support Curved End (Single)

Part # 27048

Top Cap Support Curved End (Single)

$9.47 IN STOCK

Quantity Per Pool 14

Quantity Per Pool 14

Qty:

Top Cap Support Straight End

Part # 27049

Top Cap Support Straight End

$11.07

Quantity Per Pool 8

Quantity Per Pool 8

Accent Clip Large Top Cap

Part # 27078

Accent Clip Large Top Cap

$14.23

Quantity Per Pool 22

Quantity Per Pool 22

Accent Clip Small Upright (Single)

Part # 27077

Accent Clip Small Upright (Single)

$9.49

Quantity Per Pool 28

Quantity Per Pool 28

Top Plate Oval 4" (Single)

Part # 10136

Top Plate Oval 4" (Single)

$11.77 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

WRAP UR OVAL CHAMPAGNE KK 52" (53" OVERALL LENGTH)

Part # 14572

WRAP UR OVAL CHAMPAGNE KK 52" (53" OVERALL LENGTH)

$75.97

Quantity Per Pool 8

Quantity Per Pool 8

Yardmore Gusset Left Steel (Single)

Part # 19619

Yardmore Gusset Left Steel (Single)

$86.52

Quantity Per Pool 8

Quantity Per Pool 8

Yardmore Gusset Right Steel (Single)

Part # 19620

Yardmore Gusset Right Steel (Single)

$85.47

Quantity Per Pool 8

Quantity Per Pool 8

Connector Btm Rail Str Side Aluminum (Single)

Part # 16542

Connector Btm Rail Str Side Aluminum (Single)

$36.05 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

Part # 16539

Top Channel Support Beam for Sharkline & Saltwater Pools 52-3/8" (Single)

$111.85

Quantity Per Pool 8

Quantity Per Pool 8

Under Channel Yardmore 49-9/16" (single)

Part # 15933

Under Channel Yardmore 49-9/16" (single)

$105.51 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Fastener Pack

Part # 22-16720

Fastener Pack

$88.43

Quantity Per Pool 2

Quantity Per Pool 2

Pressure Plate 44" (Single)

Part # 16549

Pressure Plate 44" (Single)

$80.39 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Strap Section 52-11/16" (Single)

Part # 16726

Strap Section 52-11/16" (Single)

$43.26 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Oval Top Channel End Cap (Single)

Part # 22726 Mfg # 22726

Oval Top Channel End Cap (Single)

$10.78

Quantity Per Pool 8

Quantity Per Pool 8

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

Part # 29917

Oval Channel Foam Block for All Sharkline, Saltwater 5000, Saltwater 8000 Pools (single)

$4.21

Quantity Per Pool 8

Quantity Per Pool 8

*Not Shown
