Pentair - Pac Fab Full Flow Valve Side Mount Parts

7 1/2" VERSIONS ARE USED ON FILTERS WITH 7 1/2" CENTERLINE SPACING ON THE BULKHEAD FITTINGS

8" VERSIONS ARE USED ON FILTERS WITH 8" CENTERLINE SPACING ON THE BULKHEAD FITTINGS, INCLUDING THE ECLIPSE FILTERS

BLACK IN COLOR

Pentair - Pac Fab Full Flow Valve Side Mount Diagram

Click to zoom in

Diagram #	Part Title
A	OBSOLETE COMPLETE VALVE, SAND
B	OBSOLETE COMPLETE VALVE, D.E.
1	HANDLE

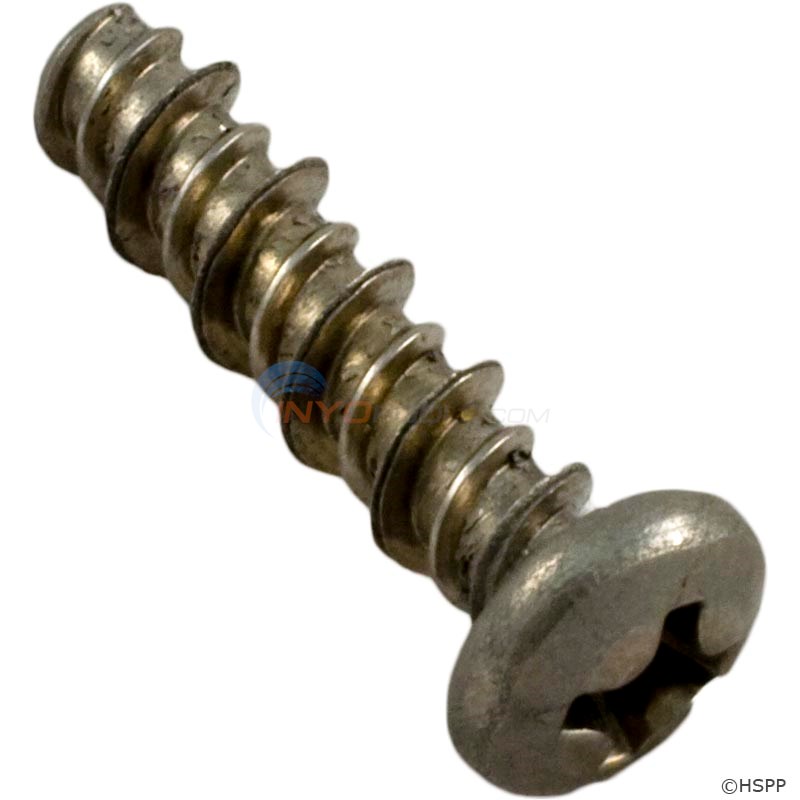

2	COVER SCREW, #8 X 5/8"
3	CAP NUT

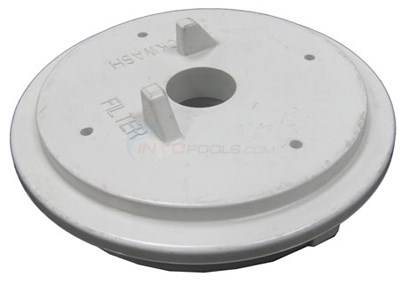

4	CAP INSERT
5	O-RING, SHAFT

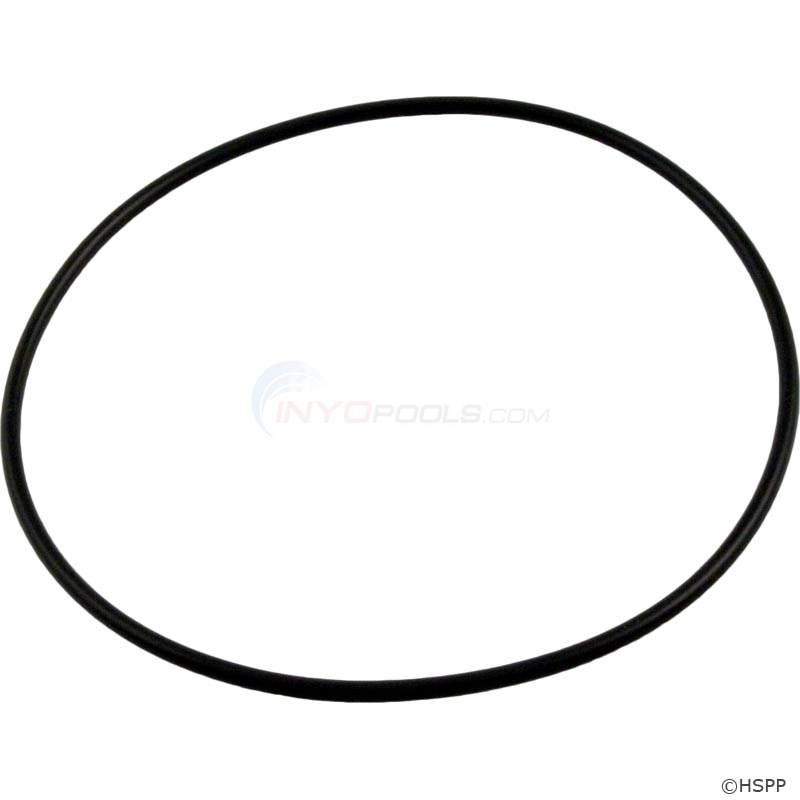

6	O-RING

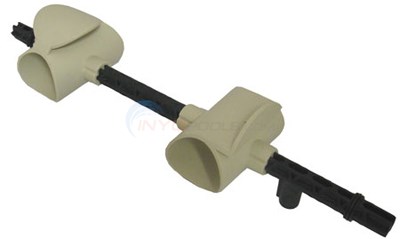

7	SHAFT ASSY NCLUDES KEYS 7A, 7B, 7D, 7E, 7F, 10, 9, & (2) OF KEY# 5
7A*	STEM, WASTE SEAL
7B*	PORT, DIFVERTER
7D*	SHAFT, 7 1/2" VALVE
7E*	PORT, BLOCK
7F*	STEM

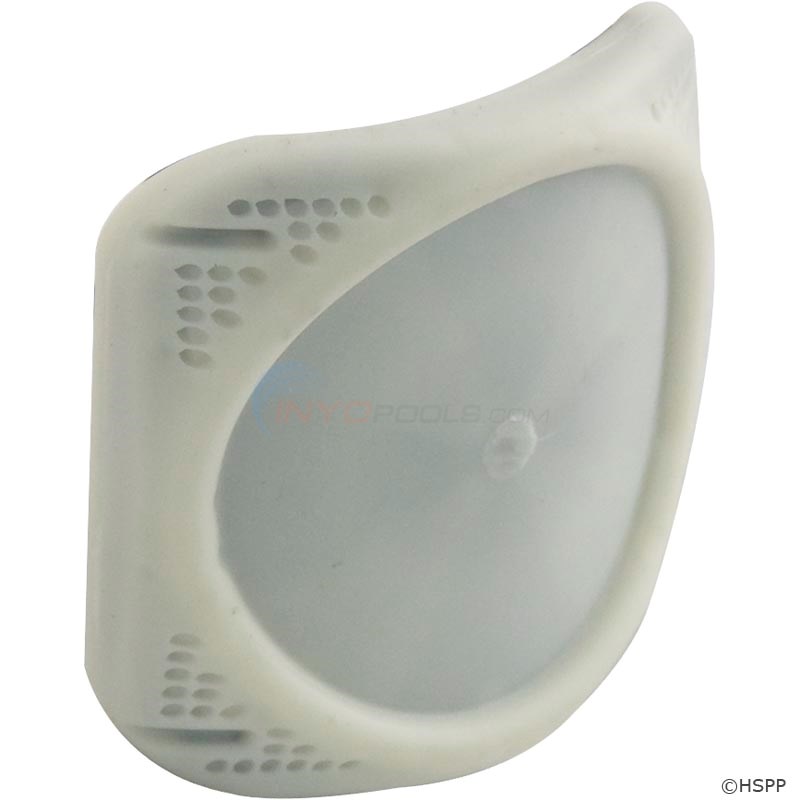

8	SEAL, WASTE

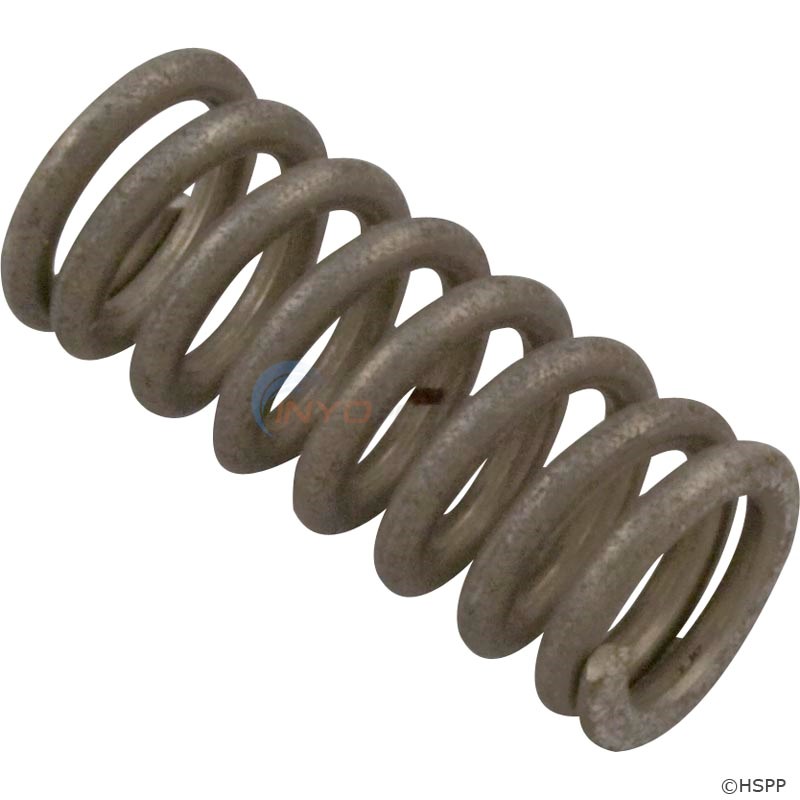

9	SPRING

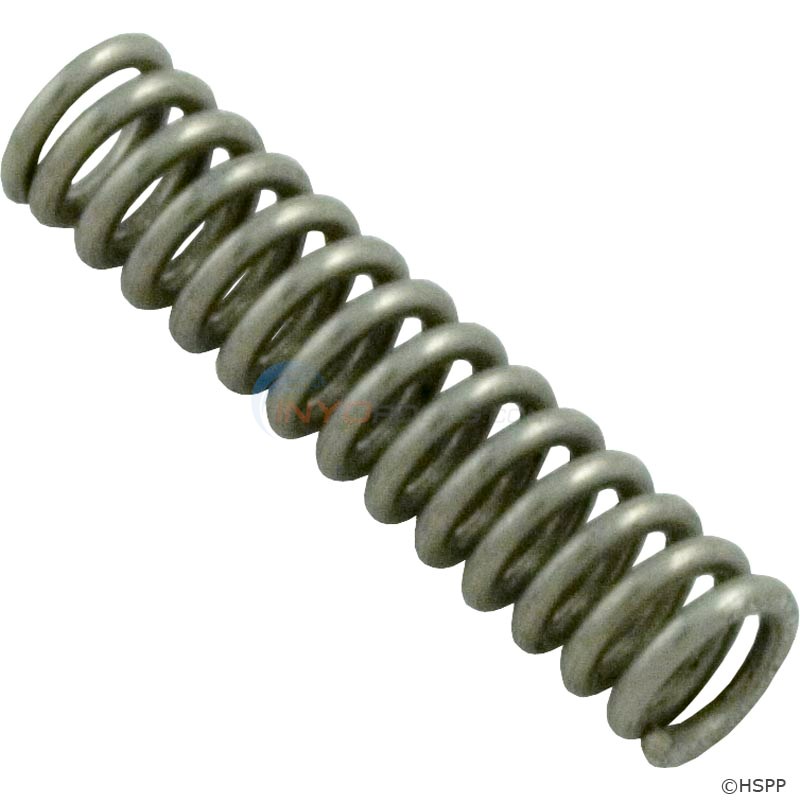

10	SPRING, .24 O.D.

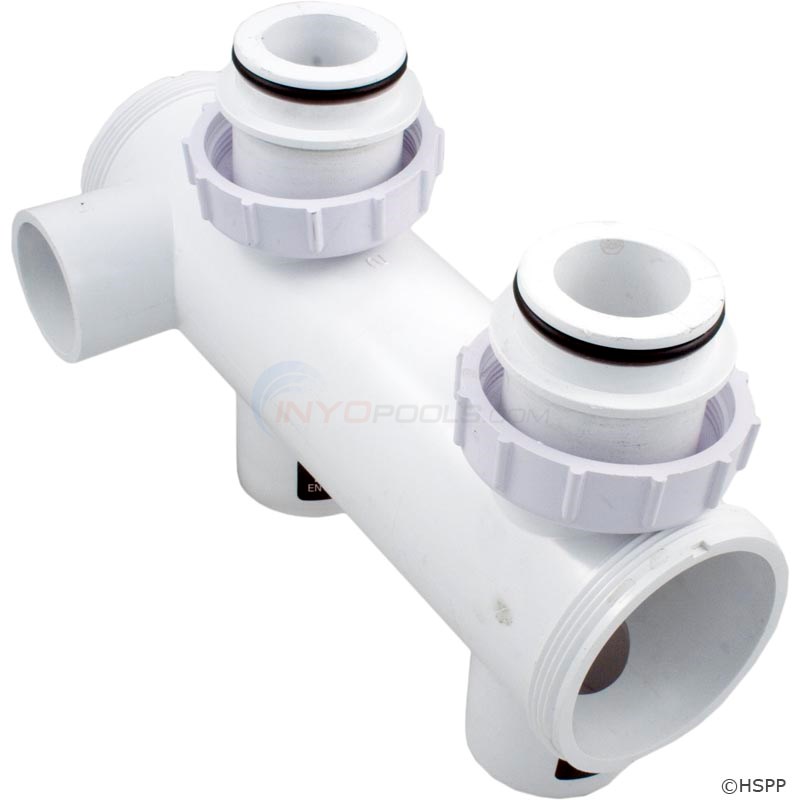

12A**	BODY ASSY., 7 1/2" SAND
12B**	BODY ASSY., 7 1/2" D.E.
12C**	OBSOLETE BODY, 8" SAND
12D**	OBSOLETE BODY ASSY., 8" D.E.
13A**	ADAPTER, BULKHEAD
13B**	NUT, ADAPTER
14	O-RING, VALVE ADAPTER (4620-529) 2 REQ.
19	CAP INSERT, BOTTOM
