Grid 2 & 3 Way Parts

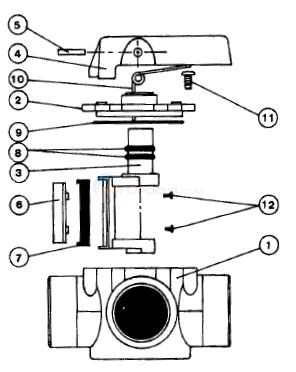

Grid 2 & 3 Way Diagram
 Click to zoom in

Available Parts:

Part # 6653-01 Mfg # 32-V3-3001-WHT

BODY VALVE (3001)

$37.26
Part # 6653-10 Mfg # 33-V3-3008-000

SPRING, HANDLE (3010)

$18.62
Part # 6653-11 Mfg # H1-00-0832-008

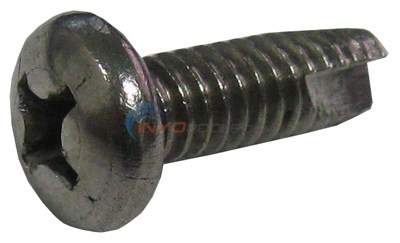

SCREWS, COVER (8 REQ.) (3011)

$11.37
Part # 6653-12 Mfg # 0620

SCREWS, RETAINER (2 REQ.)

$11.37
Part # 6653-02 Mfg # 32V33002WHT

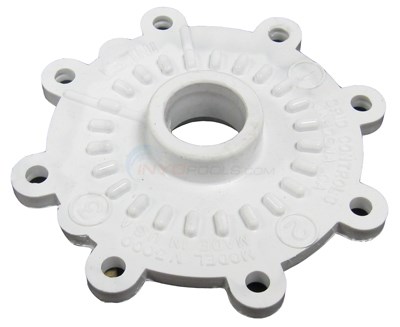

COVER, VALVE (3002)

$22.76
Part # 6653-13 Mfg # 32-V3-3003-GRY

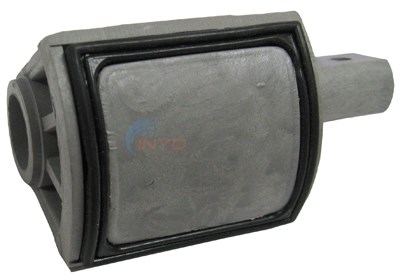

DIVERTER (67-V3-3003-30G)

$31.04
Part # 6653-04 Mfg # 32-V3-3004-WHT

HANDLE (3004)

$20.69
Part # 6653-05 Mfg # 3005

PIN, HANDLE

$11.37 IN STOCK
Part # 6653-06 Mfg # 3006

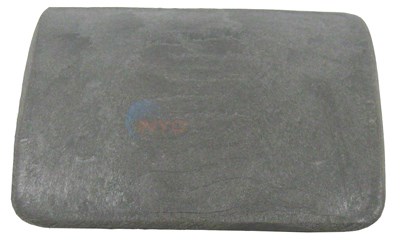

SEAL RETAINER

$15.51 IN STOCK
Part # 6653-07 Mfg # 3007

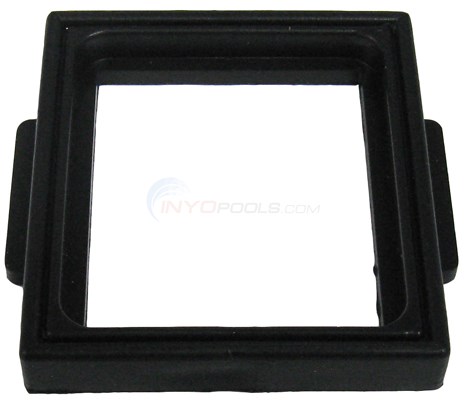

SEAL

$20.69
Part # 4654-02 Mfg # 119

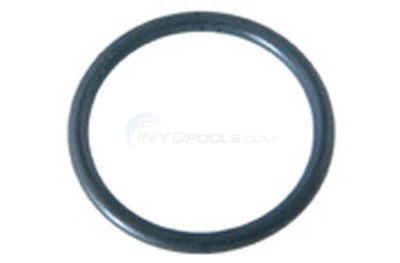

O-RING

$13.17 IN STOCK
Part # 6653-09 Mfg # 21-A2-3018-BLK

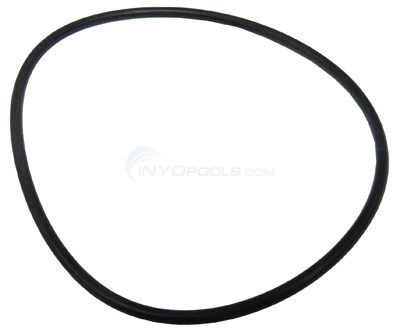

O-RING, VALVE BODY COVER (6652-05--)

$10.58 IN STOCK
