Hayward AquaNaut 400 & 450 Parts

Hayward AquaNaut 400 - PHS41CST & 450 - PBS42CST

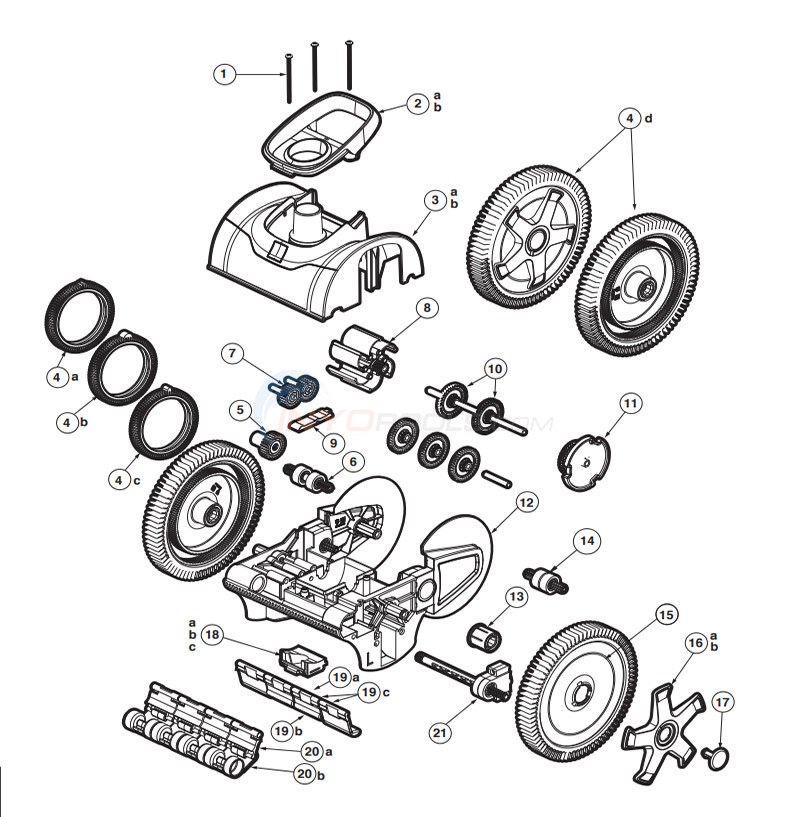

Hayward AquaNaut 400 & 450 Parts Diagram

Click to zoom in

Diagram #	Part Title
1	Screw, #10 x 3 18-8 (3 pk)
2a	Handle, 400 Blue Met, Upper Body 400, Blue Logo
3a	Upper Body, Blue
4a	Wheel Tread, Finger Hump, Blue Met (2 pk)
5	Gear, Drive, Large
6	Shaft Bearing
7	Gear, Drive, Small (2 pk)
8	Turbine, 6-Vane Kit
9	Shaft Retainer, White Plastic
10	Gear, Reduction (5 pk)
11	Steering Cam 4 Wheel
12	Lower Body, 4 Wheel, Black Met
13	Wheel Bearing (2 pk)
14	Gear Shaft 4 Wheel
15	Wheel Hub, Black Met
16a	Wheel Style 400, 5-Spoke Gray Met (2 pk)
17	Wheel Retainer, Gray Met
18a	Inlet, Suction, Small, Gray
19a	Bracket Skirt (4 pk)
20a	Bracket Skirt (4 pk)
21	Steering Bracket Roller

View Parts List

Diagram #	Part Title
1	Screw, #10 x 3 18-8 (3 pk)
2a	Handle, 400 Blue Met, Upper Body 400, Blue Logo
3a	Upper Body, Blue
4a	Wheel Tread, Finger Hump, Blue Met (2 pk)
5	Gear, Drive, Large
6	Shaft Bearing
7	Gear, Drive, Small (2 pk)
8	Turbine, 6-Vane Kit
9	Shaft Retainer, White Plastic
10	Gear, Reduction (5 pk)
11	Steering Cam 4 Wheel
12	Lower Body, 4 Wheel, Black Met
13	Wheel Bearing (2 pk)
14	Gear Shaft 4 Wheel
15	Wheel Hub, Black Met
16a	Wheel Style 400, 5-Spoke Gray Met (2 pk)
17	Wheel Retainer, Gray Met
18a	Inlet, Suction, Small, Gray
19a	Bracket Skirt (4 pk)
20a	Bracket Skirt (4 pk)
21	Steering Bracket Roller

Available Parts:

Screw, #10 x 3 18-8 (3 pk)

Part # SCRX4012PK3

Screw, #10 x 3 18-8 (3 pk)

$25.11

Part # PVXS0002-234-02

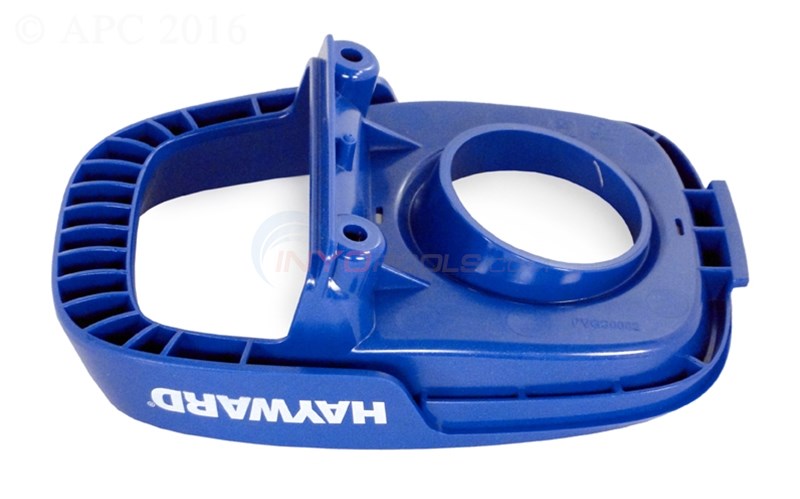

Handle, 400 Blue Met, Upper Body 400, Blue Logo

$59.28 IN STOCK

Qty:

Handle, 450 Blue Met

Part # PVXE0002-234-02

Handle, 450 Blue Met

$64.31

Upper Body, Blue

Part # PVXS01SA-237-01

Upper Body, Blue

$82.40

Upper Body, 450 Blue

Part # PVXE0001SA-237

Upper Body, 450 Blue

$76.37

Wheel Tread, Finger Hump, Blue Met (2 pk)

Part # PVX075PK2-234

Wheel Tread, Finger Hump, Blue Met (2 pk)

$77.90 IN STOCK

Surface Vinyl & Fiberglass

Surface Vinyl & Fiberglass

Qty:

Wheel Tread, Super, Blue Met (2 pk)

Part # PVXS11PK2-234

Wheel Tread, Super, Blue Met (2 pk)

$63.03 IN STOCK

Surface Concrete

Surface Concrete

Qty:

Wheel Tread, Super Super, Blue (2 pk)

Part # PVX679PK2

Wheel Tread, Super Super, Blue (2 pk)

$89.17 IN STOCK

Surface PebbleTec

Surface PebbleTec

Qty:

Wheel Tread, Blue Met - Optional (2 pk)

Part # PVXS16PK2-234

Wheel Tread, Blue Met - Optional (2 pk)

$65.31 IN STOCK

Surface

Surface

Qty:

Gear, Drive, Large

Part # PVXH007

Gear, Drive, Large

$22.10 IN STOCK

Qty:

Shaft Bearing

Part # PVXH019SA

Shaft Bearing

$61.46 IN STOCK

Qty:

Gear, Drive, Small (2 pk)

Part # PVXH008PK2

Gear, Drive, Small (2 pk)

$25.11 IN STOCK

Qty:

Turbine, 6-Vane Kit

Part # PVXH038SA

Turbine, 6-Vane Kit

$68.33 IN STOCK

Qty:

Shaft Retainer, White Plastic

Part # PVXS0007

Shaft Retainer, White Plastic

$20.99 IN STOCK

Qty:

Gear, Reduction (5 pk)

Part # PVXH009PK5

Gear, Reduction (5 pk)

$26.84 IN STOCK

Qty:

Steering Cam 4 Wheel

Part # PVXH010009

Steering Cam 4 Wheel

$30.14 IN STOCK

Qty:

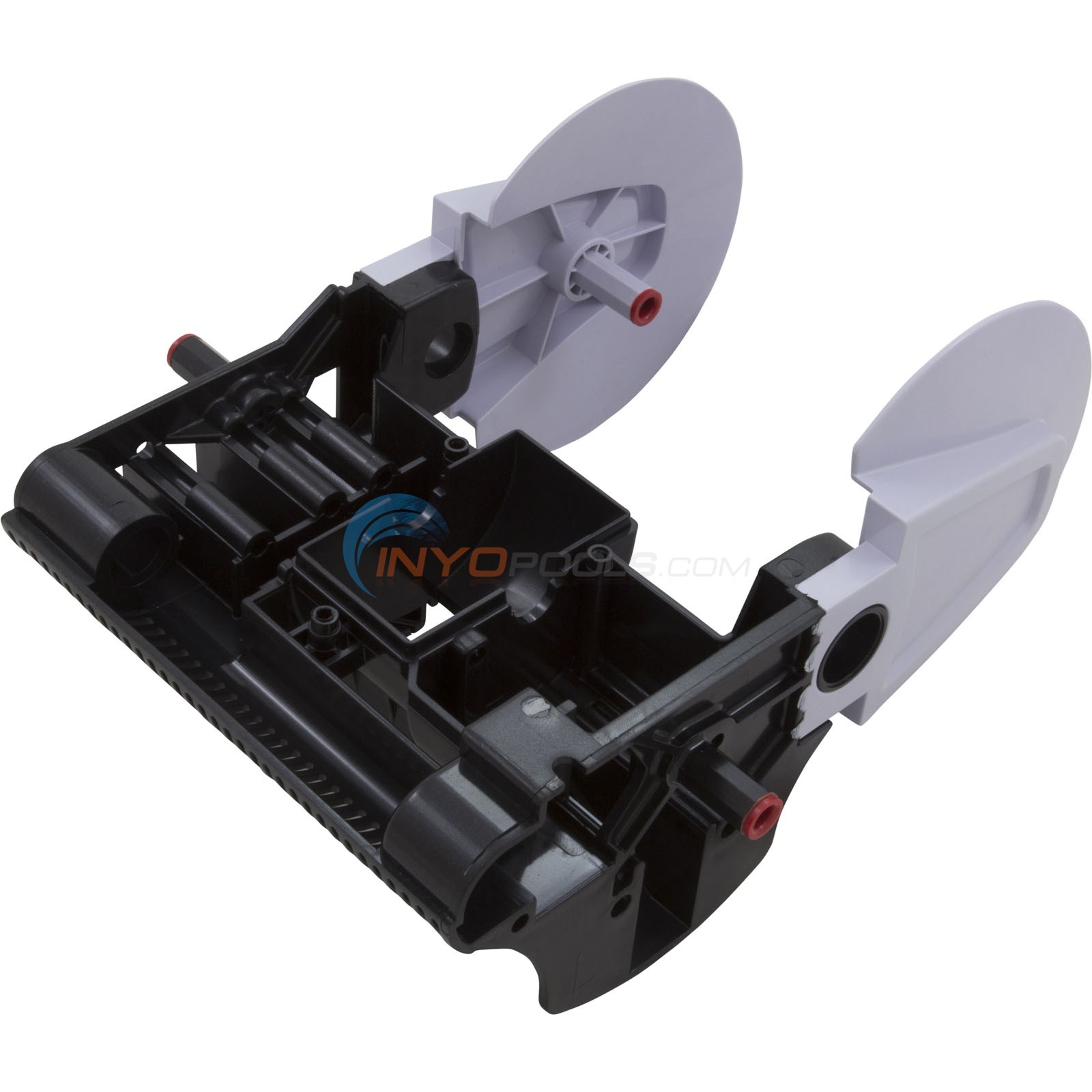

Lower Body, 4 Wheel, Black Met

Part # PVXS0009-236

Lower Body, 4 Wheel, Black Met

$91.44

Wheel Bearing (2 pk)

Part # PVX976PK2 Mfg # PVX976PK2

Wheel Bearing (2 pk)

$30.14 IN STOCK

Qty:

Gear Shaft 4 Wheel

Part # PVXH020SA

Gear Shaft 4 Wheel

$61.19 IN STOCK

Qty:

Wheel Hub, Black Met

Part # PVX051-236

Wheel Hub, Black Met

$42.20 IN STOCK

Qty:

Wheel Style 400, 5-Spoke Gray Met (2 pk)

Part # PVXS005PK2-237

Wheel Style 400, 5-Spoke Gray Met (2 pk)

$23.10 IN STOCK

Qty:

Wheel Style 450, 5-Spoke Gray Met (2 pk)

Part # PVXE003PK2237

Wheel Style 450, 5-Spoke Gray Met (2 pk)

$52.25

Wheel Retainer, Gray Met

Part # PVXS0006-237

Wheel Retainer, Gray Met

$22.05 IN STOCK

Qty:

Inlet, Suction, Small, Gray

Part # PVX990S-207

Inlet, Suction, Small, Gray

$10.04 IN STOCK

Qty:

Inlet, Suction, Medium, Black Met

Part # PVX990M-236

Inlet, Suction, Medium, Black Met

$21.09 IN STOCK

Qty:

Inlet, Suction, Large, Gray

Part # PVX990L-207

Inlet, Suction, Large, Gray

$12.05 IN STOCK

Qty:

Bracket Skirt (4 pk)

Part # PVXH014BKPK4

Bracket Skirt (4 pk)

$30.14 IN STOCK

Qty:

Skirt, Black (4 pk)

Part # PVXH013BKPK4

Skirt, Black (4 pk)

$30.14 IN STOCK

Qty:

Rear Skirt Kit, Black 4 Wheel

Part # PVX013028BK

Rear Skirt Kit, Black 4 Wheel

$39.18

Bracket Skirt (4 pk)

Part # PVXH014BKPK4

Bracket Skirt (4 pk)

$30.14 IN STOCK

Qty:

Roller Skirt, Black (4 pk)

Part # PVX043042BKPK4

Roller Skirt, Black (4 pk)

$42.20

Steering Bracket Roller

Part # PVXH011SA

Steering Bracket Roller

$60.29 IN STOCK

Qty:
