Hayward Astrolite SP-580 Series Parts

MODELS SP580, 581, 582, 583 (PLASTIC) 5805, 5825, 5835 (STAINLESS) 1993- CURRENT

Hayward Astrolite SP-580 Series Diagram

Click to zoom in

Diagram #	Part Title
A	Pool Astrolite 12V 300W 100 Ft Cord SS
1	LOCKSCREW With FASTENER SP-580S
2	GASKET, LENS
2	Hayward Astrolite/Duralite Lens Gasket
3	LENS, CLEAR
4	300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt
4	Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888
5	FACE RIM - PLASTIC
5	FACE RIM - STAINLESS
6	SCREW, LOWER MOUNTING
7	CLAMP With SCREW, NUT AND WASHER
*	LENS KIT, SELECTA-COLOR WG
*	LENS COVER, LIGHT BLUE WG

View Parts List

Diagram #	Part Title
A	Pool Astrolite 12V 300W 100 Ft Cord SS
1	LOCKSCREW With FASTENER SP-580S
2	GASKET, LENS
2	Hayward Astrolite/Duralite Lens Gasket
3	LENS, CLEAR
4	300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt
4	Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888
5	FACE RIM - PLASTIC
5	FACE RIM - STAINLESS
6	SCREW, LOWER MOUNTING
7	CLAMP With SCREW, NUT AND WASHER
*	LENS KIT, SELECTA-COLOR WG
*	LENS COVER, LIGHT BLUE WG

Available Parts:

Pool Astrolite 12V 300W 100 Ft Cord SS

Part # W3SP0581S100 Mfg # W3SP0581S100

Pool Astrolite 12V 300W 100 Ft Cord SS

$539.00

Pool Astrolite 300W 120V 100 Ft Cord

Part # W3SP0582SL100 Mfg # W3SP0582SL100

Pool Astrolite 300W 120V 100 Ft Cord

$399.00

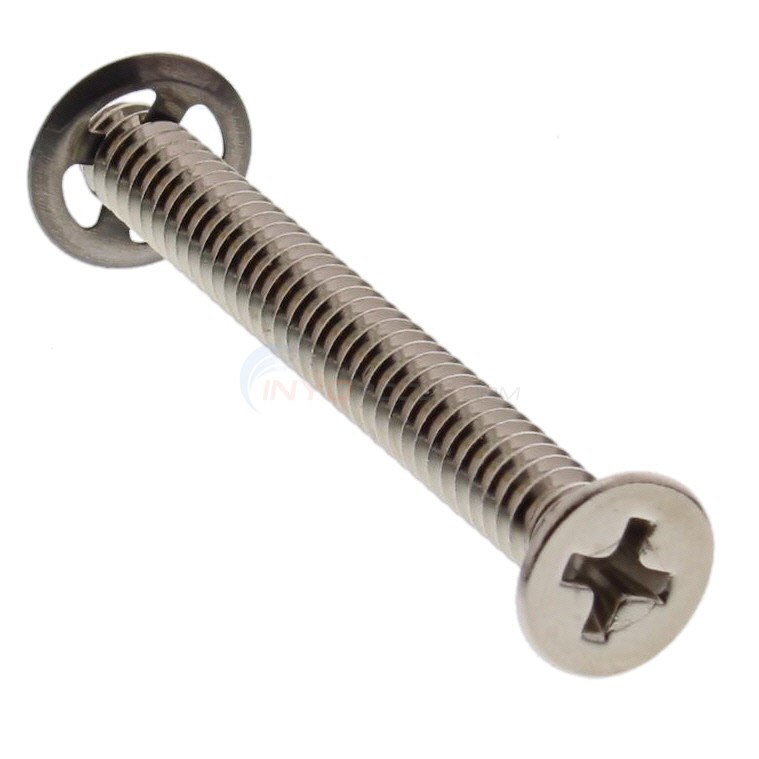

LOCKSCREW With FASTENER SP-580S

Part # 3550-26 Mfg # SPX0580Z3

LOCKSCREW With FASTENER SP-580S

$35.71 IN STOCK

Qty:

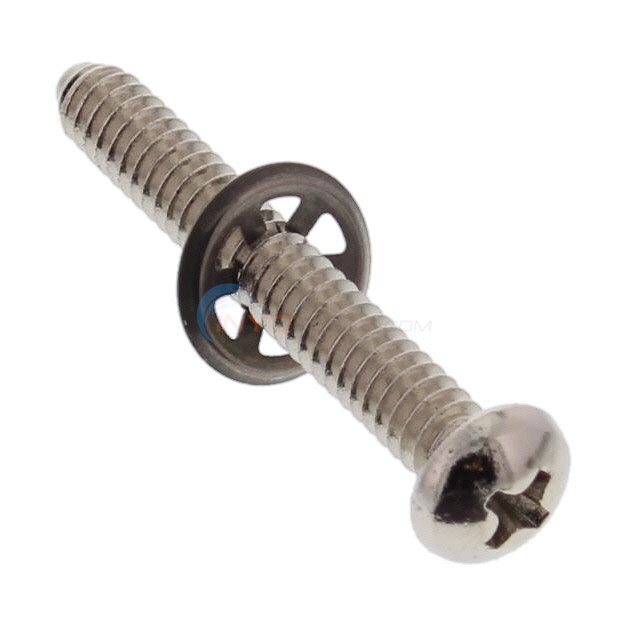

LOCKSCREW With FASTENER SP-580

Part # 3550-26A Mfg # SPX0580Z1

LOCKSCREW With FASTENER SP-580

$17.11 IN STOCK

Qty:

GASKET, LENS

Part # 3550-24 Mfg # SPX0580Z2

GASKET, LENS

$9.58 IN STOCK

Qty:

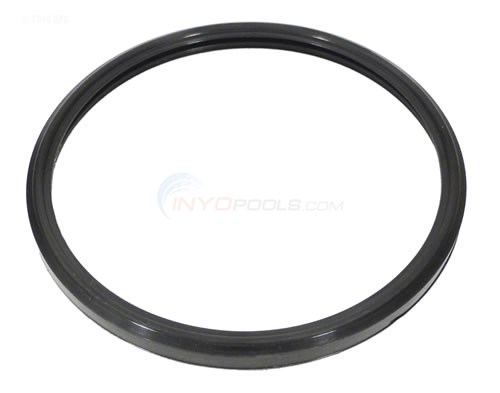

Hayward Astrolite/Duralite Lens Gasket

Part # SPX0580Z2

Hayward Astrolite/Duralite Lens Gasket

$32.16 IN STOCK

Qty:

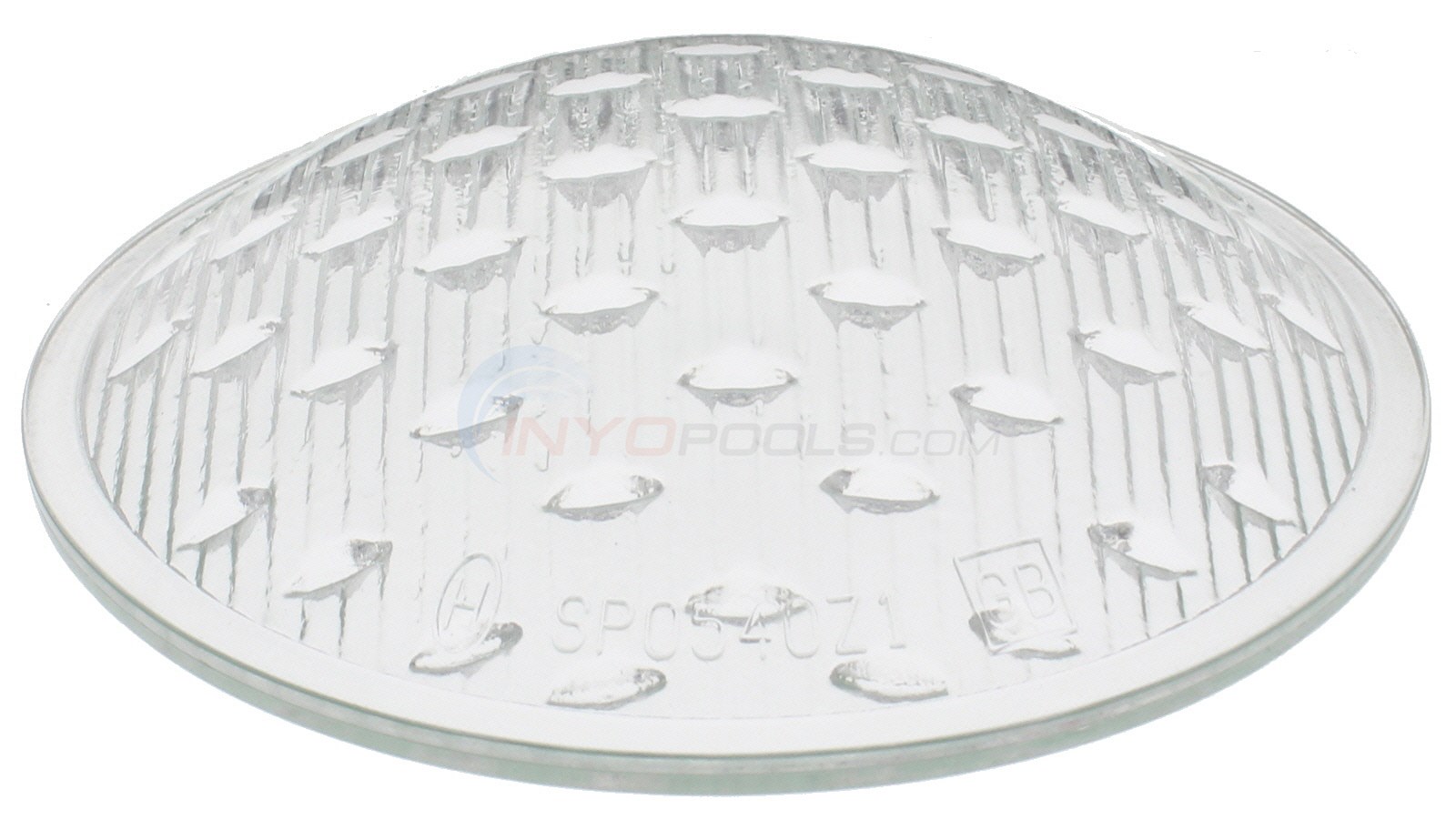

LENS, CLEAR

Part # 3500-04A Mfg # SPX0540Z1

LENS, CLEAR

$61.73 IN STOCK

Qty:

3

BLUE LENS

Mfg # NOT AVAILABLE

BLUE LENS

NOT AVAILABLE

300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt

Part # NA700

300W Flood R-40 6.38" MOL (5.0" Dia.) 12-Volt

$27.71

500W Flood R-40 6.56" MOL (5.0" Dia.) 120-Volt

Part # NA706

500W Flood R-40 6.56" MOL (5.0" Dia.) 120-Volt

$39.44 IN STOCK

Qty:

400W Flood R-40 6.75" MOL (5.0" Dia.) 120-Volt

Part # NA704

400W Flood R-40 6.75" MOL (5.0" Dia.) 120-Volt

$29.99 IN STOCK

Qty:

300W Flood R-40 6.56" MOL (5.0" Dia.) 130-Volt

Part # NA702

300W Flood R-40 6.56" MOL (5.0" Dia.) 130-Volt

$38.18

Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888

Part # PL5888

Pureline LED Pool Light Bulb Color Changing 12V 35W - PL5888

$79.99 IN STOCK

Volts 12 Watts 35

Volts 12 Watts 35

Qty:

Pureline LED Pool Light Bulb Color Changing 120V 35W - PL5889

Part # PL5889

Pureline LED Pool Light Bulb Color Changing 120V 35W - PL5889

$75.99 IN STOCK

Volts 120 Watts 35

Volts 120 Watts 35

Qty:

FACE RIM - PLASTIC

Part # 3550-23 Mfg # SPX0580A

FACE RIM - PLASTIC

$53.30 IN STOCK

Qty:

FACE RIM - STAINLESS

Part # 3550-23A Mfg # SPX0580AS

FACE RIM - STAINLESS

$103.68 IN STOCK

Qty:

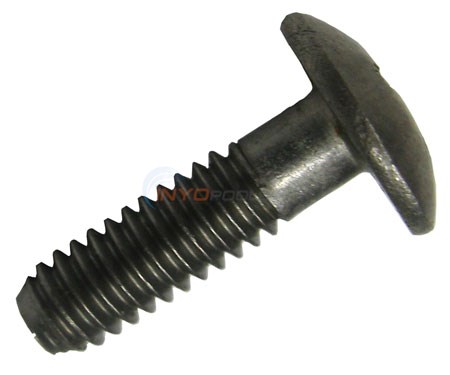

SCREW, LOWER MOUNTING

Part # 3550-05 Mfg # SPX0555Z2

SCREW, LOWER MOUNTING

$14.62 IN STOCK

Qty:

CLAMP With SCREW, NUT AND WASHER

Part # 3550-25 Mfg # SPX0580B

CLAMP With SCREW, NUT AND WASHER

$51.15 IN STOCK

Qty:

LENS KIT, SELECTA-COLOR WG

Part # 3592-0 Mfg # SP0580L

LENS KIT, SELECTA-COLOR WG

$41.57 IN STOCK

Qty:

LENS COVER, LIGHT BLUE WG

Part # 3592-01 Mfg # SP0580LLB

LENS COVER, LIGHT BLUE WG

$18.11 IN STOCK

Qty:

*NOT SHOWN
