Hayward PowerFlo VS 300 - SP1580X15VSP Parts

Hayward PowerFlo VS 300 - SP1580X15VSP

Click to zoom in

Diagram #	Part Title
1	HOUSING BOLT and NUT - SINGLE
2	HOUSING COVER

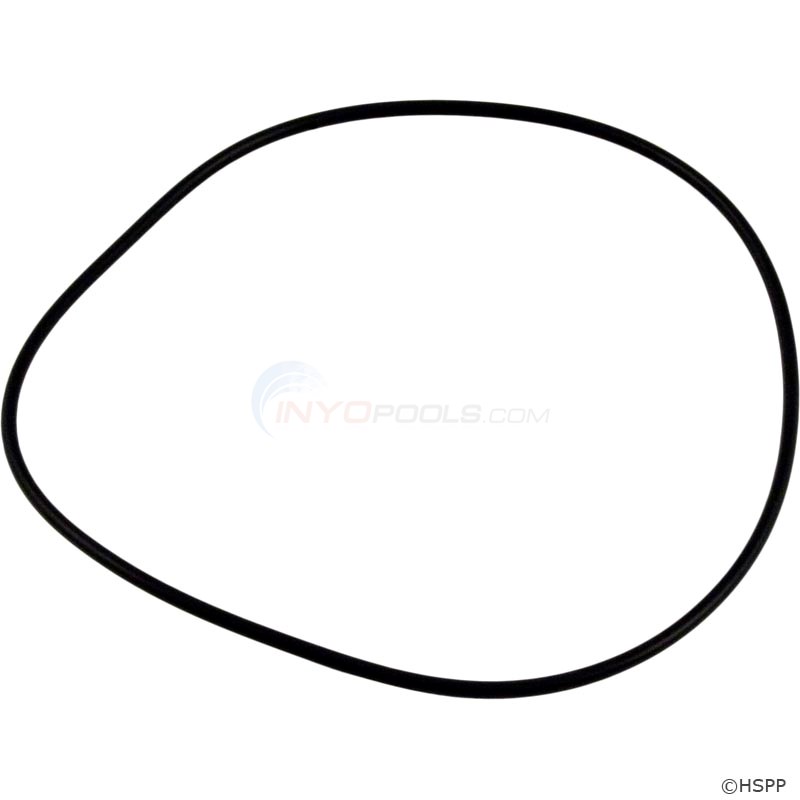

3	HOUSING O-RING
4	STRAINER HOUSING O-RING
5	SEAL ASSEMBLY
6	IMPELLER
7	PUMP HOUSING
8	STRAINER HOUSING with BASKET
9	CHECK VALVE ASSEMBLY (Optional)
10	STRAINER BASKET

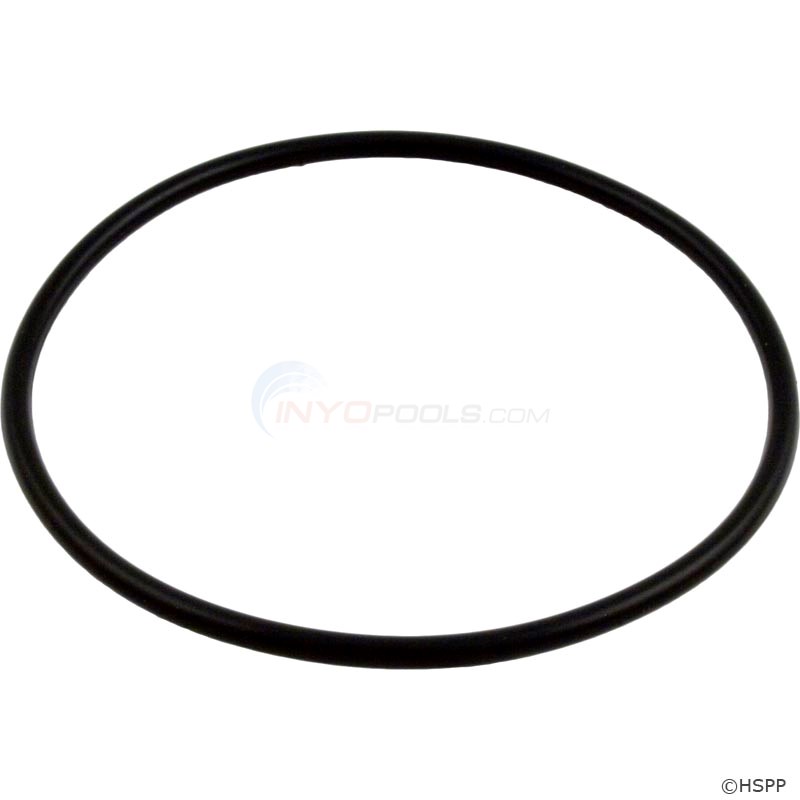

11	STRAINER COVER O-RING
12	STRAINER COVER with O-RING
13	COMPLETE STRAINER ASSEMBLY
14	DRAIN PLUG with O-RING
15	C-CLIP
16	MOTOR 1.0 HP VS

View Parts List

Diagram #	Part Title
1	HOUSING BOLT and NUT - SINGLE
2	HOUSING COVER
3	HOUSING O-RING
4	STRAINER HOUSING O-RING
5	SEAL ASSEMBLY
6	IMPELLER
7	PUMP HOUSING
8	STRAINER HOUSING with BASKET
9	CHECK VALVE ASSEMBLY (Optional)
10	STRAINER BASKET
11	STRAINER COVER O-RING
12	STRAINER COVER with O-RING
13	COMPLETE STRAINER ASSEMBLY
14	DRAIN PLUG with O-RING
15	C-CLIP
16	MOTOR 1.0 HP VS
