Heritage 8' Round 52" Wall (Resin Top Rail, Steel Upright) Parts

Model PHER-52RSPSRH1 (Resin Top Rail, Steel Upright)
Heritage and Signature Pool

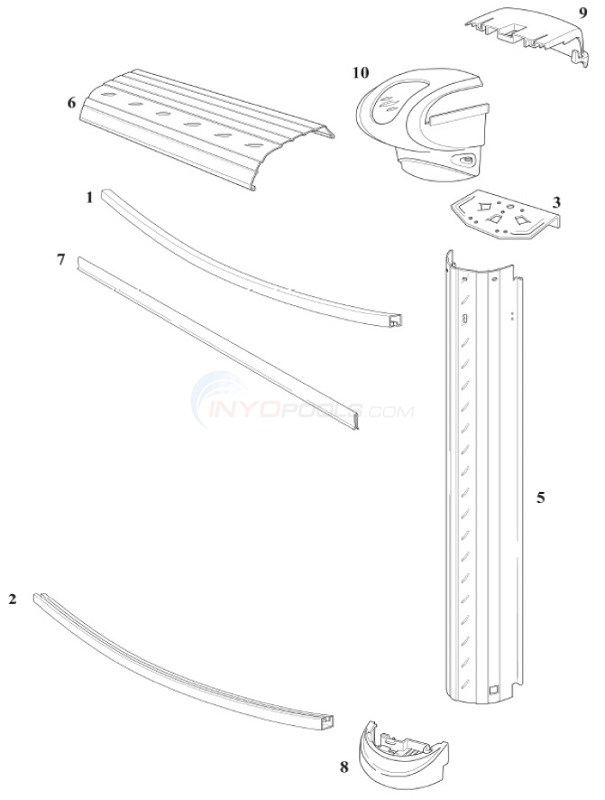

Heritage 8' Round 52" Wall (Resin Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
1	Inner Stabilizer Steel 29-1/2"
2	Bottom Rail Steel 25-1/4" (Single)
3	Top Plate 6"
5	Up Right 51 5/8" (Single)
6	Top Rail 7" Resin 27 1/4" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap Boot (Single)
9	Top Cap Small Half Inner 7" (Single)
10	Top Cap Large Half Outer 7" CVD (Single)
*	Hardware S/S TR Resin 12'/15'
*	Envelope Safety Stickers
*	Backyard Leisure Consumer DVD

View Parts List

Diagram #	Part Title
1	Inner Stabilizer Steel 29-1/2"
2	Bottom Rail Steel 25-1/4" (Single)
3	Top Plate 6"
5	Up Right 51 5/8" (Single)
6	Top Rail 7" Resin 27 1/4" (Single)
7	Plastic Coping 48" (Single)
8	Top Cap Boot (Single)
9	Top Cap Small Half Inner 7" (Single)
10	Top Cap Large Half Outer 7" CVD (Single)
*	Hardware S/S TR Resin 12'/15'
*	Envelope Safety Stickers
*	Backyard Leisure Consumer DVD
