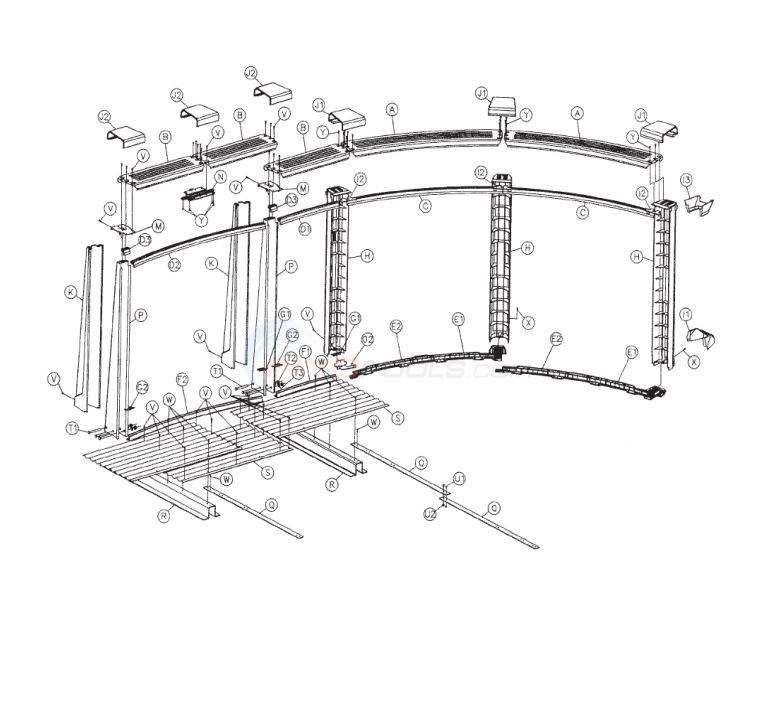

Illusion 15' x 28' RRR Oval Grey 52" Wall Parts

Illusion Grey 52

Available Parts:

Part # 1010033E00

Top Rail - Illusion 53" (Single)

$125.30
Part # 1010033E70

Straight top ledge 29'' (oval)

$79.79
Part # 1080033E11

Bottom Rail with Plate (Single)

$28.34
Part # 1080033E10

Bottom Rail without Plate (Single) NLA!!

$22.04
Part # 1082933E11

Bottom rail - Special left

$49.99
Part # 1082933E10

Bottom rail- Transition

$49.99
Part # 2CLP070

Extrusion clip - Right

$6.99
Part # 2CLP071

Extrusion clip - Left

$6.99
Part # 10233010002

Upright 52" (2000-2005)

$189.99
Part # 1170033E00

Foot cover (2000-2005)

$17.99
Part # 1180033E00

Securing Hook (Single)

$15.13
Part # 1190033E00

Collar (2000-2005)

$17.99
Part # 1030033E00

Aqua Leader Illusion Top Cap 2000-2005 (Single)

$25.19
Part # 1030033E70

Ledge cover straight section

$10.99
Part # 1020033070

Upright Cover 52''

$134.99
Part # 2TPE070

Top plate

$15.99
Part # 2MPE070

Top plate

$15.99
Part # 2RENE70

Bottom plate-transition (right)

$19.99
Part # 2REN071

Bottom plate-transition (right)

$19.99
Part # 2REN070

Straight side steel upright 52

$63.99
Part # 2BDM070

Straps

$29.99
Part # 2OCH070

Omega channel

$50.99
Part # 2ANG070

Pressure plate

$63.99
Part # 2PCB513

Hex bolts 1/2-13x5 1/2''-Gr.5. Galv

$8.99
Part # 2PNZ513

Hex nuts 1/2 - 13 galv.

$5.99
Part # 2PWZ500

Lockwasher 1/2''-galv

$4.99
Part # 2PPS420

Phillips screw 1/4-20 x 3/4'' inox

$5.99
Part # 2FGS422

FLANGE NUTS S/S 1/4-20 SERRATED PER EACH

$7.99
Part # 2PPS101

Phillips screw no.10x1 Self drilling

$5.99
Part # 2PPS102

Phillips screw SS no.10 x 1/2'' Type

$5.99
Part # 2PPS414

Hex washer head 1/4'' x 1 Self drillin

$5.99
Part # 2PPS112

Philips screw/ SS no 12 x 1 1/2''

$5.99
Part # 2PPS121

Stainless screw 12 x 1"

$5.99
