Illusion RRR Pearl 30' Round 52" Wall (Year 2005) Parts

Illusion Pearl 52

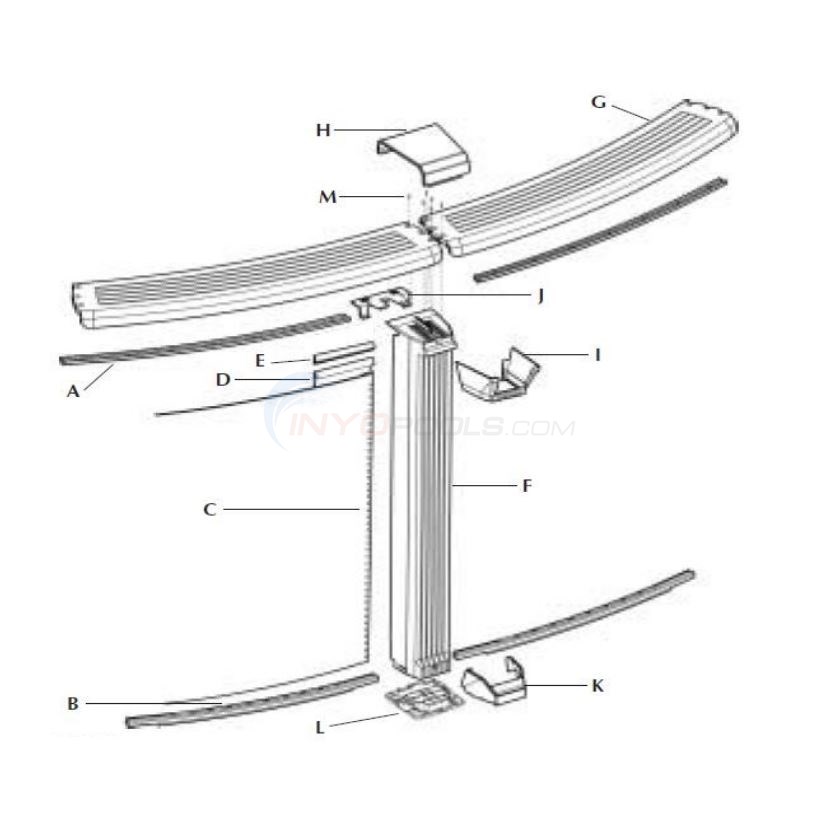

Illusion RRR Pearl 30' Round 52" Wall (Year 2005) Diagram

Click to zoom in

Diagram #	Part Title
A1	Stabilizer (2005)
B	Bottom Rail (Single)
D	30' Round 48"-52" Depth Overlap Findlay Vinyl Country Stone Standard Gauge Liner
E	Plastic Coping 48" (Single)
F	Upright Cover Pearl Sentinelle Resin 52" (Single)
G	Curved top ledge 53" (2000- 2005)
H	Ledge Cover - Illusion Pearl (single)
I	Collar (2000-2005)
J	Securing hook (2000-2005)
K	Foot cover (2000-2005)
L	Bottom & Top Plate (Single)
M	Stainless screw 12 x 1"

View Parts List

Diagram #	Part Title
A1	Stabilizer (2005)
B	Bottom Rail (Single)
D	30' Round 48"-52" Depth Overlap Findlay Vinyl Country Stone Standard Gauge Liner
E	Plastic Coping 48" (Single)
F	Upright Cover Pearl Sentinelle Resin 52" (Single)
G	Curved top ledge 53" (2000- 2005)
H	Ledge Cover - Illusion Pearl (single)
I	Collar (2000-2005)
J	Securing hook (2000-2005)
K	Foot cover (2000-2005)
L	Bottom & Top Plate (Single)
M	Stainless screw 12 x 1"
