Impact 15x30 Oval 54" Wall (Resin Top Rail, Resin Upright) Parts

PIPT-YE54RRBXRXK10

Impact 15x30 Oval 54" Wall (Resin Top Rail, Resin Upright) Parts Diagram

Click to zoom in

Diagram #	Part Title
A	Top Ledge Impact 15'D 56" (Single)
B	Upright Impact Regular 54" (Single)
C	Top Plate 5.5" Enc/Ven 2009 Xylon (Single)
E	Vertical Reinforcement Galvanized 51" (Single)
F	Brace Plate Braceless Galvanized 47" (Single)
G	Cap - Locking Cam Resin (Single)
H	Locking Cam Resin (Single)
J	Bottom Rail Regular Champagne 15'D 55-1/4" (Single)
K	Wall Bar for Wall Saver Panel 10019 (Single)
M	Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)
Q	Steel Strap Galvanized Braceless 59-3/4" (Single)
T	Wall Retainer for Impact (Single)
*	Key - Locking Cam Resin (Single)

View Parts List

Diagram #	Part Title
A	Top Ledge Impact 15'D 56" (Single)
B	Upright Impact Regular 54" (Single)
C	Top Plate 5.5" Enc/Ven 2009 Xylon (Single)
E	Vertical Reinforcement Galvanized 51" (Single)
F	Brace Plate Braceless Galvanized 47" (Single)
G	Cap - Locking Cam Resin (Single)
H	Locking Cam Resin (Single)
J	Bottom Rail Regular Champagne 15'D 55-1/4" (Single)
K	Wall Bar for Wall Saver Panel 10019 (Single)
M	Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)
Q	Steel Strap Galvanized Braceless 59-3/4" (Single)
T	Wall Retainer for Impact (Single)
*	Key - Locking Cam Resin (Single)

Available Parts:

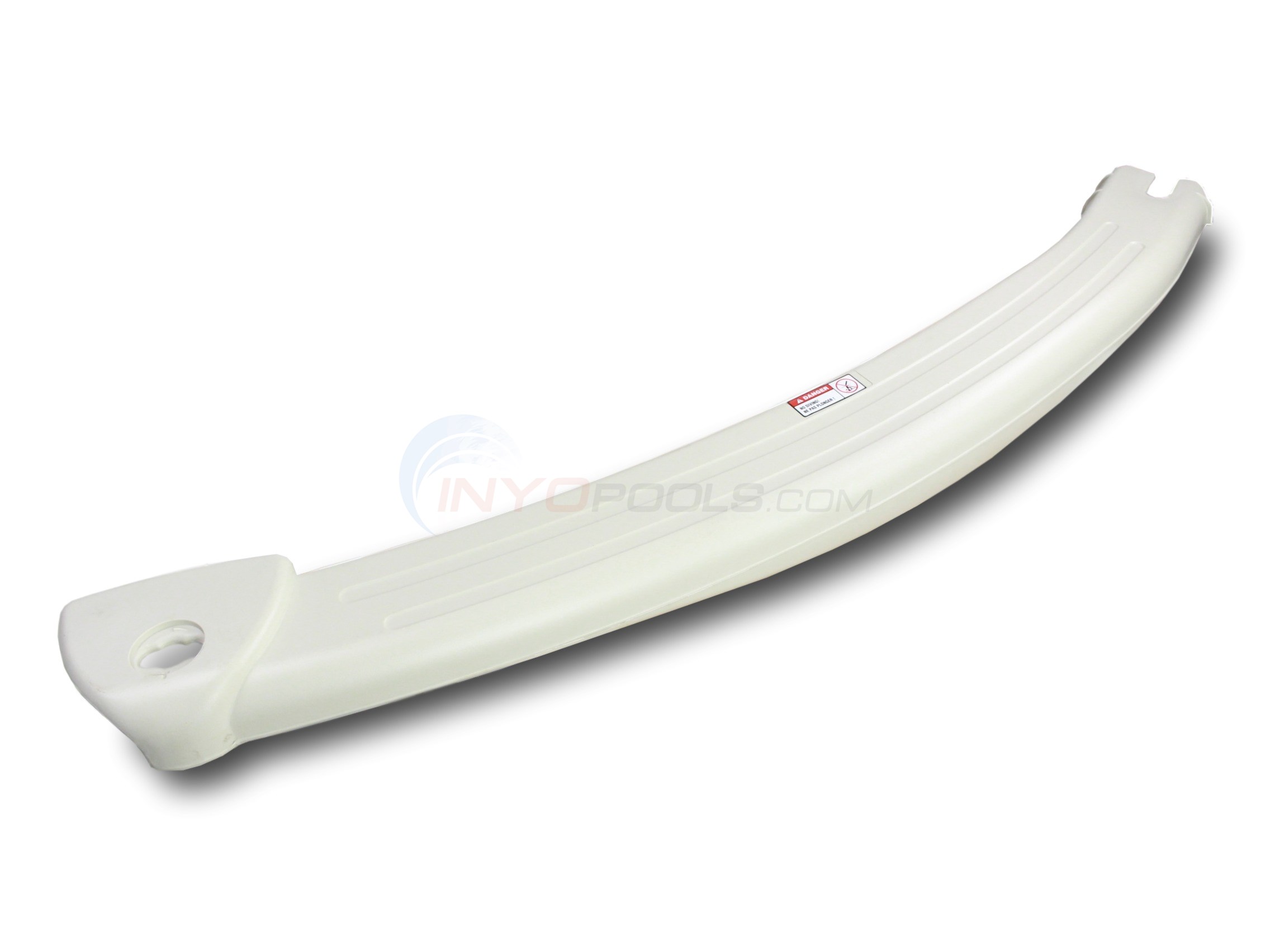

Top Ledge Impact 15'D 56" (Single)

Part # SL201-001-0015

Top Ledge Impact 15'D 56" (Single)

$233.68

Qty Per Pool 10

Qty Per Pool 10

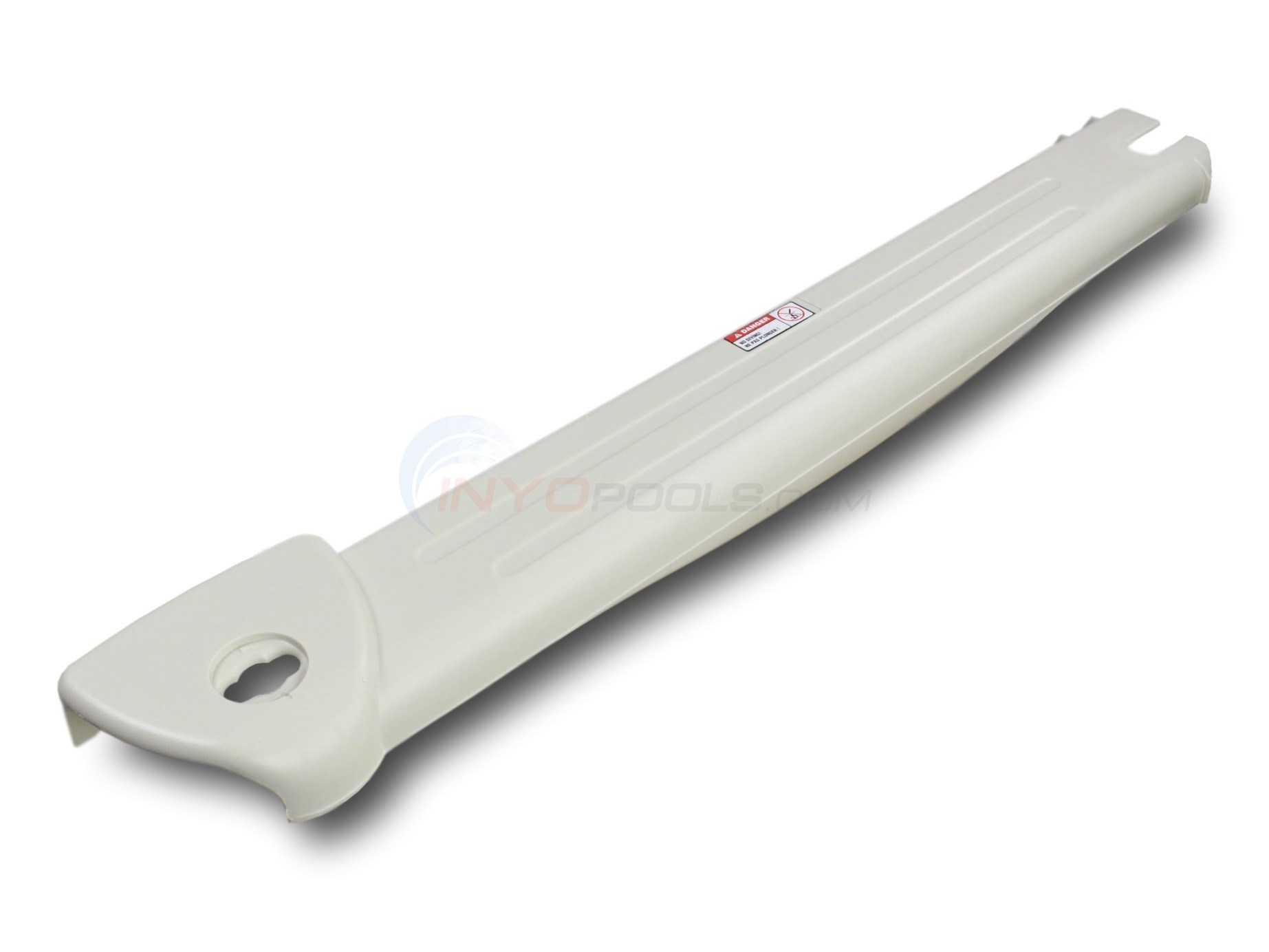

Top Ledge Impact Straight Section 45" (Single)

Part # SL201-001-45

Top Ledge Impact Straight Section 45" (Single)

$198.89

Qty Per Pool 8

Qty Per Pool 8

Upright Impact Regular 54" (Single)

Part # SL801-R002-54

Upright Impact Regular 54" (Single)

$198.89 IN STOCK

Qty Per Pool 8

Qty Per Pool 8

Qty:

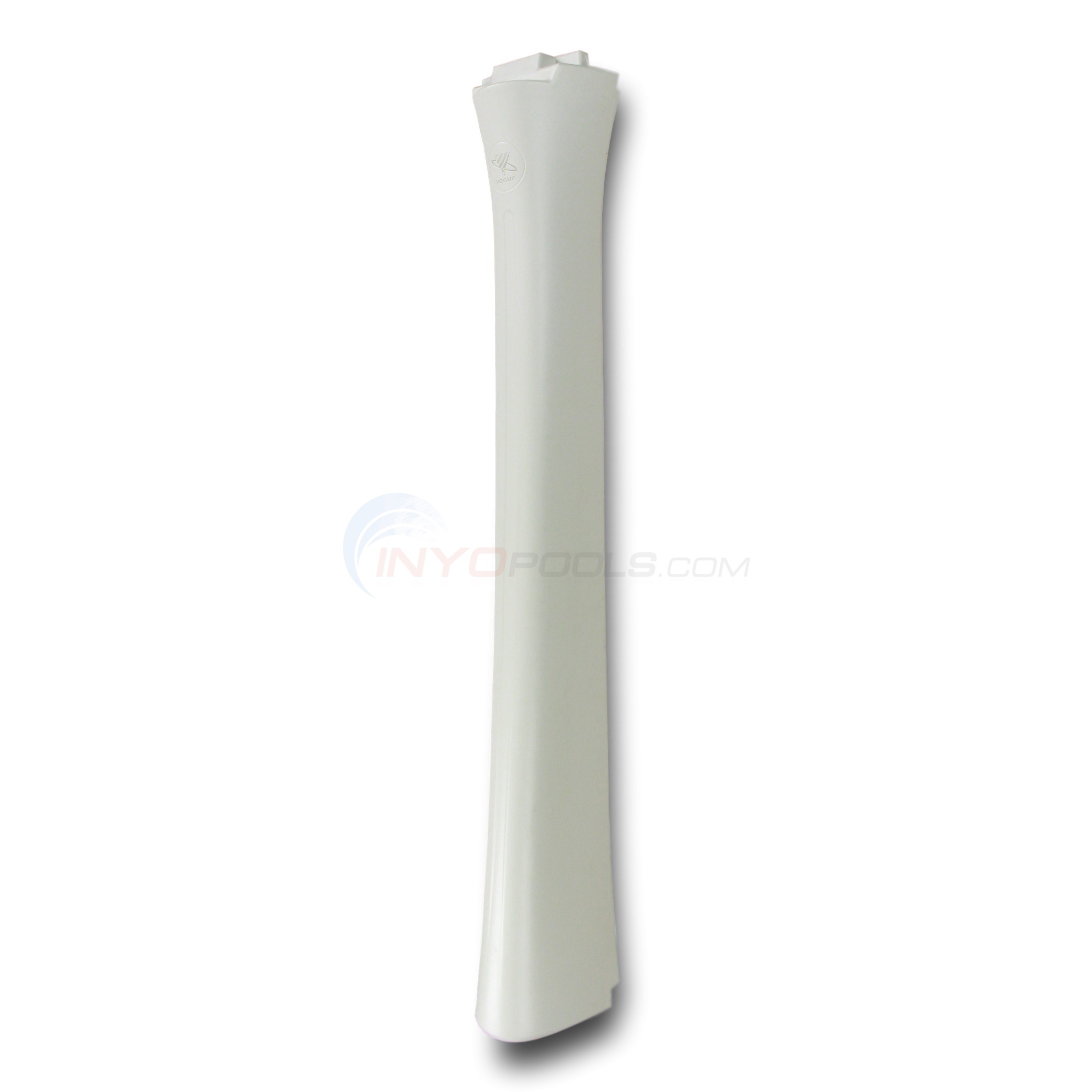

Upright Impact Oval 54"

Part # SL801-O002-54

Upright Impact Oval 54"

$198.89

Qty Per Pool 10

Qty Per Pool 10

Top Plate 5.5" Enc/Ven 2009 Xylon (Single)

Part # 20801

Top Plate 5.5" Enc/Ven 2009 Xylon (Single)

$19.17

Qty Per Pool 10

Qty Per Pool 10

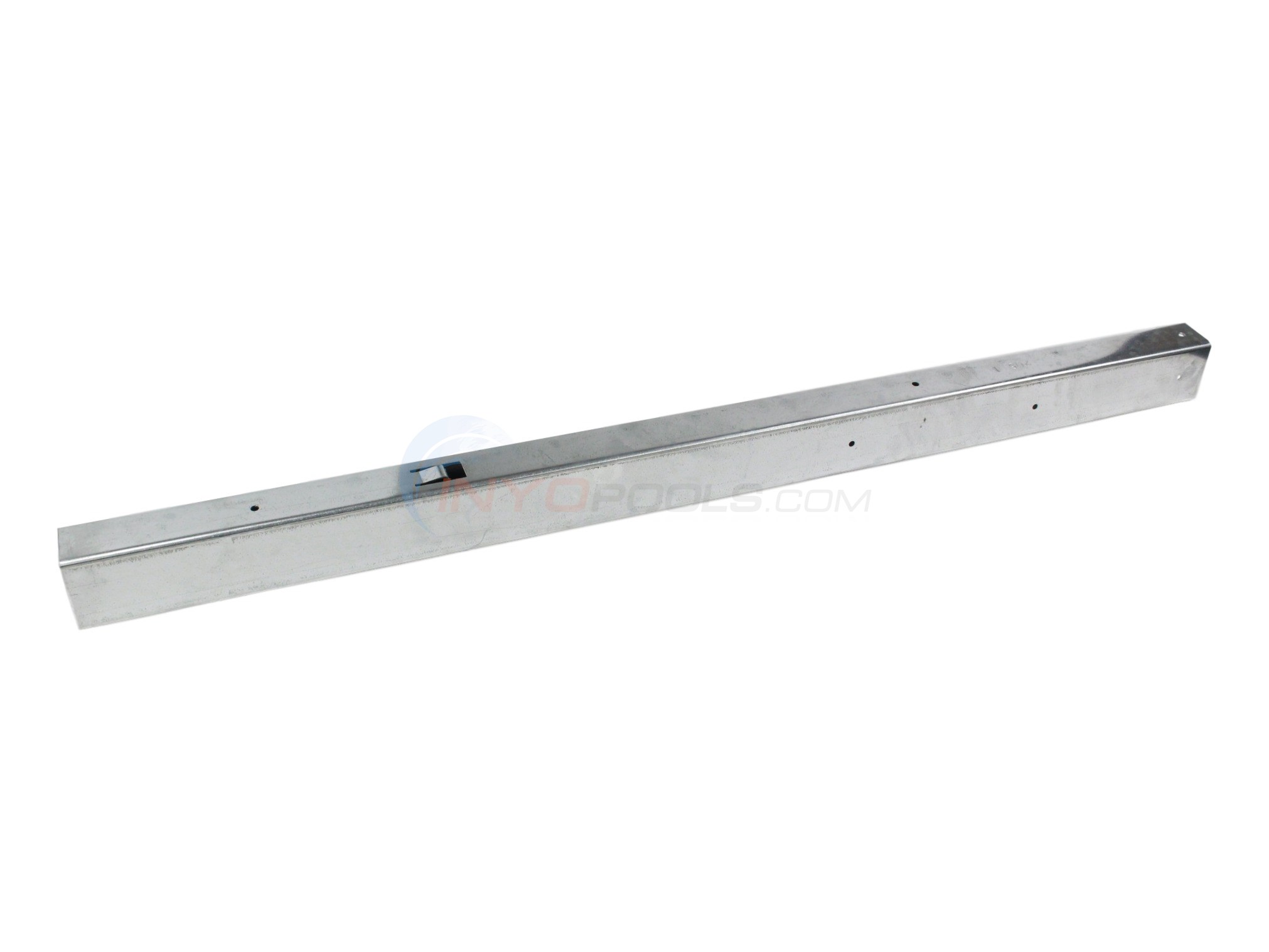

Vertical Reinforcement Galvanized 51" (Single)

Part # 20511

Vertical Reinforcement Galvanized 51" (Single)

$142.38

Qty Per Pool 10

Qty Per Pool 10

Brace Plate Braceless Galvanized 47" (Single)

Part # 20809

Brace Plate Braceless Galvanized 47" (Single)

$143.46

Qty Per Pool 8

Qty Per Pool 8

Cap - Locking Cam Resin (Single)

Part # SL201-006

Cap - Locking Cam Resin (Single)

$10.34 IN STOCK

Qty Per Pool 18

Qty Per Pool 18

Qty:

Locking Cam Resin (Single)

Part # SL201-003 Mfg # SL201-003

Locking Cam Resin (Single)

$15.51 IN STOCK

Qty Per Pool 18

Qty Per Pool 18

Qty:

Bottom Rail Regular Champagne 15'D 55-1/4" (Single)

Part # 1525515

Bottom Rail Regular Champagne 15'D 55-1/4" (Single)

$60.70

Qty Per Pool 10

Qty Per Pool 10

Bottom Rail Straight Side Champagne 42" (Single)

Part # 1514215

Bottom Rail Straight Side Champagne 42" (Single)

$38.03

Qty Per Pool 8

Qty Per Pool 8

Wall Bar for Wall Saver Panel 10019 (Single)

Part # 11825

Wall Bar for Wall Saver Panel 10019 (Single)

$26.08

Qty Per Pool 2

Qty Per Pool 2

Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)

Part # 20810

Horizontal Sleeve Galvanized With Pen Nuts 17" (Single)

$72.81

Qty Per Pool 10

Qty Per Pool 10

Extruded Polystyrene Piece (Single)

Part # 1000100

Extruded Polystyrene Piece (Single)

$7.60 IN STOCK

Qty Per Pool 10

Qty Per Pool 10

Qty:

Steel Strap Galvanized Braceless 59-3/4" (Single)

Part # 20560

Steel Strap Galvanized Braceless 59-3/4" (Single)

$60.85

Qty Per Pool 15

Qty Per Pool 15

Wall Retainer for Impact (Single)

Part # SL201-005

Wall Retainer for Impact (Single)

$13.58 IN STOCK

Qty Per Pool 10

Qty Per Pool 10

Qty:

Key - Locking Cam Resin (Single)

Part # SL201-004

Key - Locking Cam Resin (Single)

$21.72 IN STOCK

Qty Per Pool 1

Qty Per Pool 1

Qty:

*NOT SHOWN
