J2000 18'x33' Oval (Steel Top Rail, Steel Upright) Parts

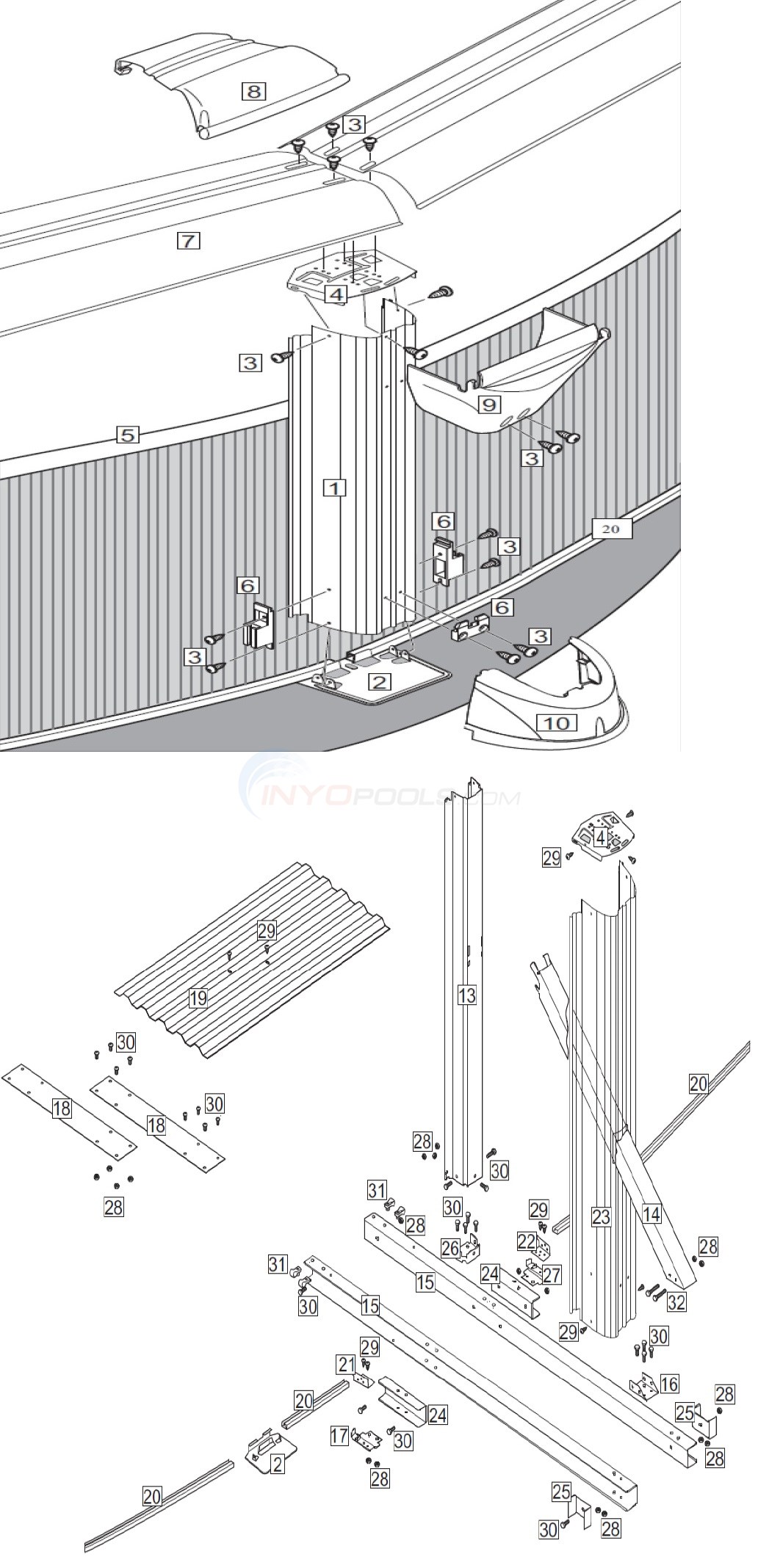

J2000 18'x33' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Steel Upright - 51-1/2" (Single)
2	Base Plate 6" STEEL (Single)
4	Top Plate 7"
5	Slotted Tube 55-1/4" (Single) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,
7	Top ledge - steel 56-27/32" (Single)
8	Upper Top Cap (Single)
9	Lower Top Cap (Single)
10	Foot Cover- J2000 (Single)
13	Buttress Upright (SINGLE) For The Aegean
14	Diagonal (SINGLE)
15	Base Channel (SINGLE) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17/27	Lt/Rt Vertical Support Bracket (Single)
18	Strap 2-7/8x50-1/8 18' (SINGLE) For The Aegean
19	Hold Down Plate
20	Belize Bottom Rail - yellow (Single) J5000, J3000, Sierra, Estate
20	Bottom Rail 54" (Single)
21/22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright - 51-1/2" (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (SINGLE) For The Aegen
26	Oval Base Plate (SINGLE) 1320154 For Atlantis Oval Pool
*	6" Slotted Tube Connector (Single)

View Parts List

Diagram #	Part Title
*Liner	18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Steel Upright - 51-1/2" (Single)
2	Base Plate 6" STEEL (Single)
4	Top Plate 7"
5	Slotted Tube 55-1/4" (Single) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,
7	Top ledge - steel 56-27/32" (Single)
8	Upper Top Cap (Single)
9	Lower Top Cap (Single)
10	Foot Cover- J2000 (Single)
13	Buttress Upright (SINGLE) For The Aegean
14	Diagonal (SINGLE)
15	Base Channel (SINGLE) For The Aegean
16	Diagonal Bracket (SINGLE) For The Aegean And Atlantis
17/27	Lt/Rt Vertical Support Bracket (Single)
18	Strap 2-7/8x50-1/8 18' (SINGLE) For The Aegean
19	Hold Down Plate
20	Belize Bottom Rail - yellow (Single) J5000, J3000, Sierra, Estate
20	Bottom Rail 54" (Single)
21/22	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
23	Notched Upright - 51-1/2" (Single)
24	Reinforcing Bracket (SINGLE) For The Aegean
25	Support Bracket (SINGLE) For The Aegen
26	Oval Base Plate (SINGLE) 1320154 For Atlantis Oval Pool
*	6" Slotted Tube Connector (Single)

Available Parts:

18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1833ASO

18' x 33' 48"-54" Depth All Swirl Overlap Standard Gauge

$564.80 IN STOCK

Qty:

Findlay Vinyl 18' x 33' 48"-54" Depth Country Stone Overlap

Part # FC1833OVOL

Findlay Vinyl 18' x 33' 48"-54" Depth Country Stone Overlap

$574.85

Steel Upright - 51-1/2" (Single)

Part # 1440481

Steel Upright - 51-1/2" (Single)

$78.08

Quantity Per Pool 12

Quantity Per Pool 12

Base Plate 6" STEEL (Single)

Part # NBP2017 Mfg # 1320100

Base Plate 6" STEEL (Single)

$6.02 IN STOCK

Quantity Per Pool 12 Material Steel

Quantity Per Pool 12 Material Steel

Qty:

Base Plate RESIN (Single)

Part # 1320170

Base Plate RESIN (Single)

$12.65

Quantity Per Pool 12 Material Resin

Quantity Per Pool 12 Material Resin

Top Plate 7"

Part # 1320143

Top Plate 7"

$12.05 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Slotted Tube 55-1/4" (Single) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005 Mfg # 1470098

Slotted Tube 55-1/4" (Single) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$30.14 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Slotted Tube 55-1/2'' (Single)

Part # 1470100

Slotted Tube 55-1/2'' (Single)

$35.16 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK4

Slotted Tube 55-1/4" (4-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$96.15 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

Part # NBP2005-PACK8

Slotted Tube 55-1/4" (8-PACK) 1470098 For Atlantic Pools 1470098 J3000, J2000, SIERRA, J5000, J4000,

$185.66

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (4-PACK)

Part # 1470100-PACK4

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (4-PACK)

$112.52 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (8-PACK)

Part # 1470100-PACK8

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (8-PACK)

$281.32

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Top ledge - steel 56-27/32" (Single)

Part # 1450344 Mfg # 1450321

Top ledge - steel 56-27/32" (Single)

$55.92

Quantity Per Pool 10

Quantity Per Pool 10

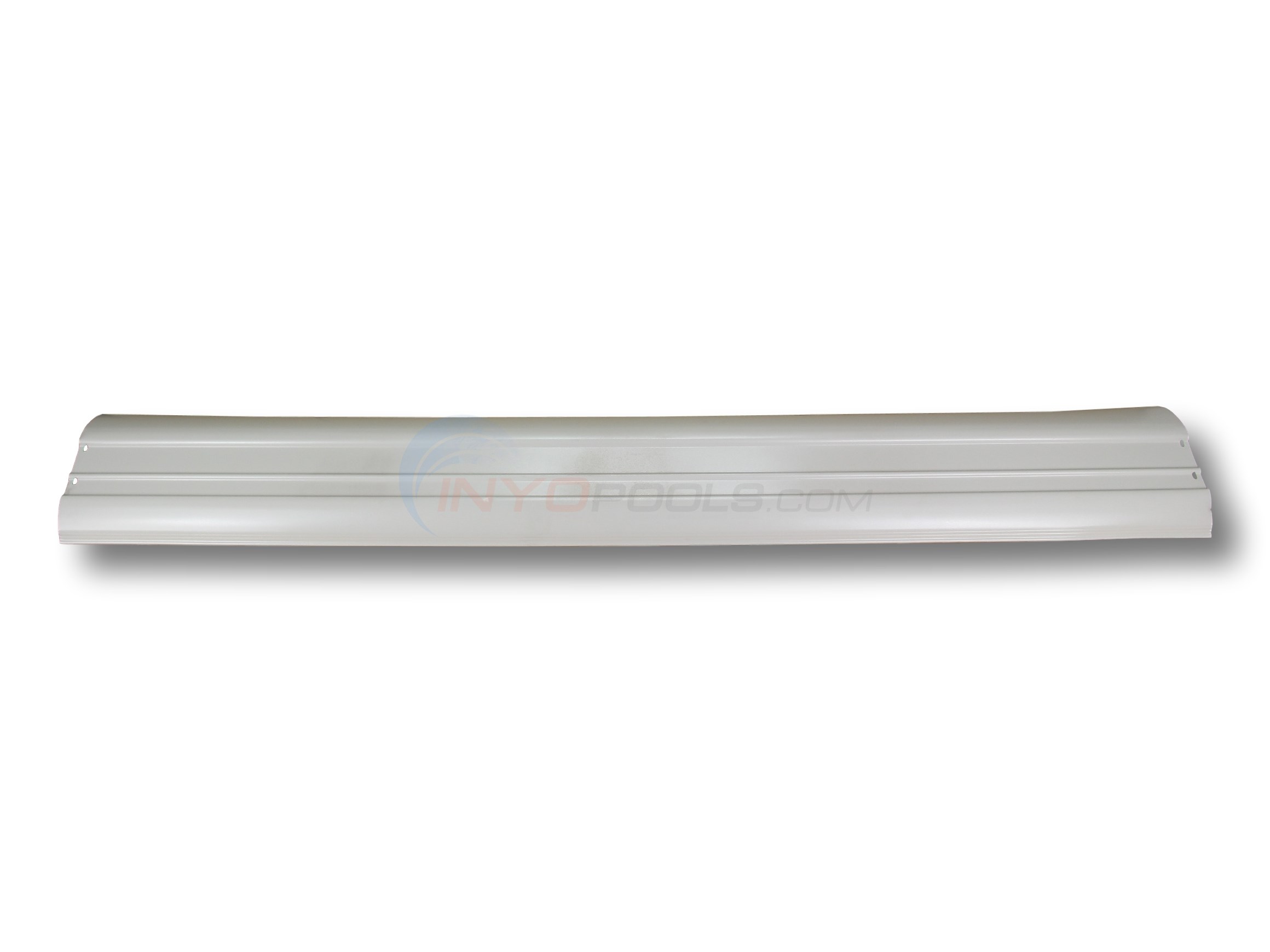

Top Ledge Straight Side- Steel 58-3/4" Malibu (Single)

Part # 1450463

Top Ledge Straight Side- Steel 58-3/4" Malibu (Single)

$69.64

Quantity Per Pool 4

Quantity Per Pool 4

Top ledge transition - steel 58-1/4" J2000 (Single)

Part # 1450480

Top ledge transition - steel 58-1/4" J2000 (Single)

$49.59

Quantity Per Pool 4

Quantity Per Pool 4

Upper Top Cap (Single)

Part # 1490239

Upper Top Cap (Single)

$26.37

Quantity Per Pool 18

Quantity Per Pool 18

Lower Top Cap (Single)

Part # 1490209

Lower Top Cap (Single)

$21.09 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Foot Cover- J2000 (Single)

Part # 1490462

Foot Cover- J2000 (Single)

$11.07 IN STOCK

Quantity Per Pool 18

Quantity Per Pool 18

Qty:

Buttress Upright (SINGLE) For The Aegean

Part # NBP2027 Mfg # 1440455

Buttress Upright (SINGLE) For The Aegean

$109.74

Quantity Per Pool 6

Quantity Per Pool 6

Diagonal (SINGLE)

Part # NBP2023 Mfg # 1440321

Diagonal (SINGLE)

$93.91

Quantity Per Pool 6

Quantity Per Pool 6

Base Channel (SINGLE) For The Aegean

Part # NBP2024 Mfg # 1440336

Base Channel (SINGLE) For The Aegean

$54.86

Quantity Per Pool 12

Quantity Per Pool 12

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

Part # NBP2062 Mfg # 1320152

Diagonal Bracket (SINGLE) For The Aegean And Atlantis

$44.31

Quantity Per Pool 6

Quantity Per Pool 6

Lt/Rt Vertical Support Bracket (Single)

Part # NBP2022 Mfg # 1320177

Lt/Rt Vertical Support Bracket (Single)

$51.70

Quantity Per Pool 6

Quantity Per Pool 6

Strap 2-7/8x50-1/8 18' (SINGLE) For The Aegean

Part # NBP2047 Mfg # 1510137

Strap 2-7/8x50-1/8 18' (SINGLE) For The Aegean

$65.42

Quantity Per Pool 12

Quantity Per Pool 12

Hold Down Plate

Part # NBP2021 Mfg # 1320165

Hold Down Plate

$22.15 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Belize Bottom Rail - yellow (Single) J5000, J3000, Sierra, Estate

Part # 1460031

Belize Bottom Rail - yellow (Single) J5000, J3000, Sierra, Estate

$43.26

Quantity Per Pool 6 Material Steel

Quantity Per Pool 6 Material Steel

Bottom Rail 56-1/4" - steel Belize, J2000 (single)

Part # 1460033

Bottom Rail 56-1/4" - steel Belize, J2000 (single)

$45.21 IN STOCK

Quantity Per Pool 12 Material Steel

Quantity Per Pool 12 Material Steel

Qty:

Bottom Rail 54" (Single)

Part # 1460183

Bottom Rail 54" (Single)

$58.03

Quantity Per Pool 6 Material Resin

Quantity Per Pool 6 Material Resin

Bottom Rail 54-1/4" (Single)

Part # 1460185

Bottom Rail 54-1/4" (Single)

$31.65

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Bottom Rail 55-1/4" (Single)

Part # 1460191

Bottom Rail 55-1/4" (Single)

$50.64

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Bottom Rail 56-1/2" (Single)

Part # 1460193

Bottom Rail 56-1/2" (Single)

$41.14

Quantity Per Pool 4 Material Resin

Quantity Per Pool 4 Material Resin

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

Part # NBP2054 Mfg # 1320169

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

$10.54 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Notched Upright - 51-1/2" (Single)

Part # 1440484

Notched Upright - 51-1/2" (Single)

$119.23

Quantity Per Pool 6

Quantity Per Pool 6

Reinforcing Bracket (SINGLE) For The Aegean

Part # NBP2018 Mfg # 1320150

Reinforcing Bracket (SINGLE) For The Aegean

$51.70 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Support Bracket (SINGLE) For The Aegen

Part # NBP2019 Mfg # 1320151

Support Bracket (SINGLE) For The Aegen

$50.64 IN STOCK

Quantity Per Pool 12

Quantity Per Pool 12

Qty:

Oval Base Plate (SINGLE) 1320154 For Atlantis Oval Pool

Part # NBP2020 Mfg # 1320154

Oval Base Plate (SINGLE) 1320154 For Atlantis Oval Pool

$5.27 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

6" Slotted Tube Connector (Single)

Part # 1470108

6" Slotted Tube Connector (Single)

$15.06

Quantity Per Pool 12 Material Steel

Quantity Per Pool 12 Material Steel

Resin Slotted Tube 1470087 (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BE

Part # NBP2002 Mfg # 1470087

Resin Slotted Tube 1470087 (SINGLE) Conn For Atlantic Pools, J3000, SIERRA, J5000, J4000, ESPRIT, BE

$4.71 IN STOCK

Quantity Per Pool 6 Material Resin

Quantity Per Pool 6 Material Resin
