J5000 Mist 15'x30' Oval (Steel Top Rail, Steel Upright) Parts

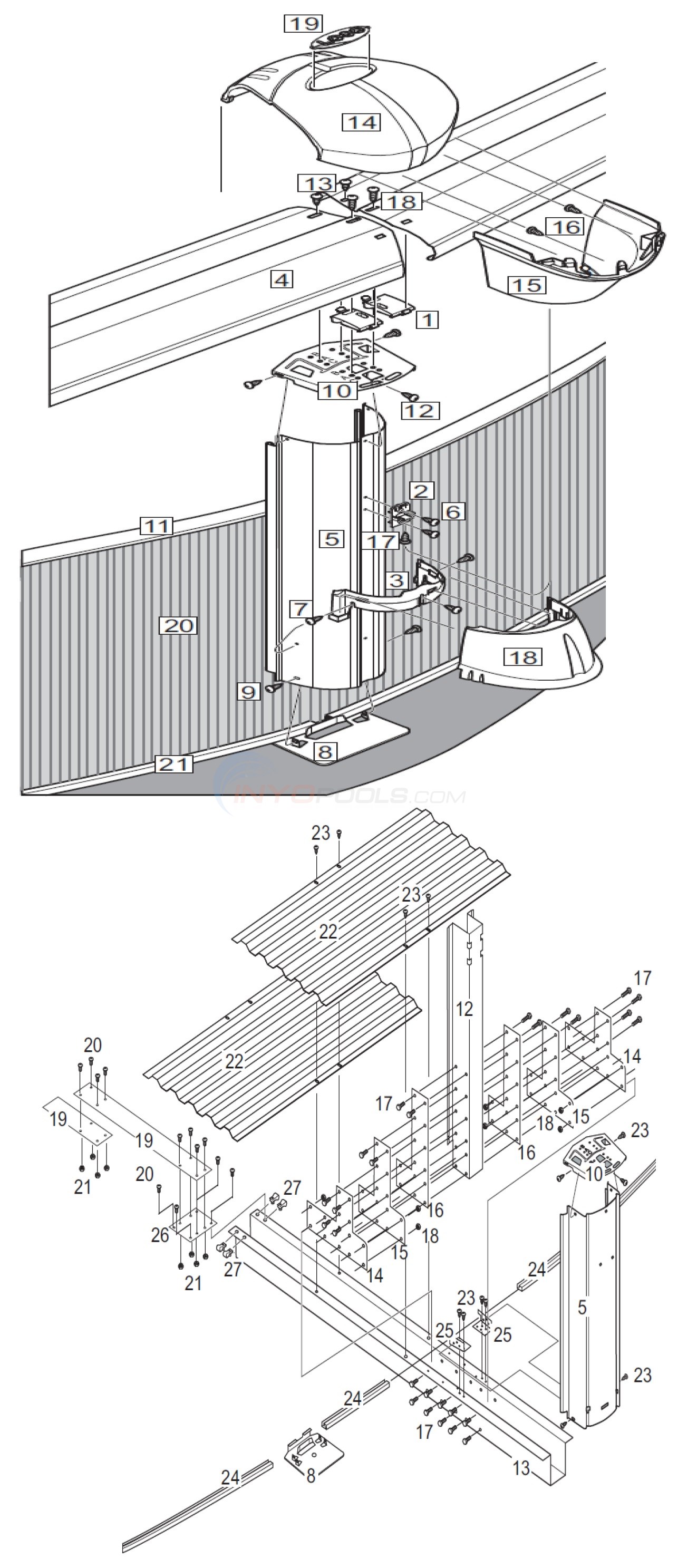

J5000 Mist 15'x30' Oval (Steel Top Rail, Steel Upright) Diagram

Click to zoom in

Diagram #	Part Title
*Liner	15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Clip Pack (Single)
3	Clip Pack for Foot Cover (Single)
4	Top Ledge J5000 (Single)
5	Upright 51-1/2" J5000 - Steel (single)
8	Bottom Plate - Steel (single)
10	Top Plate (Single)
11	Slotted Tube 55-1/2" (Single)
13	Hardware Pack for Top Ledge (Single)
14	Ledge Cover - Upper Vantage, J5000 (Single)
15	Atlantic Lower Cap Vantage (Single)
16	Hardware Pack for Ledge Cover (Single)
18	Foot Cover (Single)
19	Strap - GIB 44-7/16" J4000 (Single)
21 & 24	Bottom Rail 56" - Steel (Single)
23 & 25	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
26	Bracket for Strap (single)
*	6" Slotted Tube Connector - Steel (Single)

View Parts List

Diagram #	Part Title
*Liner	15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge
1	Clip Pack (Single)
3	Clip Pack for Foot Cover (Single)
4	Top Ledge J5000 (Single)
5	Upright 51-1/2" J5000 - Steel (single)
8	Bottom Plate - Steel (single)
10	Top Plate (Single)
11	Slotted Tube 55-1/2" (Single)
13	Hardware Pack for Top Ledge (Single)
14	Ledge Cover - Upper Vantage, J5000 (Single)
15	Atlantic Lower Cap Vantage (Single)
16	Hardware Pack for Ledge Cover (Single)
18	Foot Cover (Single)
19	Strap - GIB 44-7/16" J4000 (Single)
21 & 24	Bottom Rail 56" - Steel (Single)
23 & 25	Vertical Bracket 1320169 For Aegean, Aruba, And St Croix
26	Bracket for Strap (single)
*	6" Slotted Tube Connector - Steel (Single)

Available Parts:

15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge

Part # LI1530ASO

15' x 30' 48"-54" Depth All Swirl Overlap Standard Gauge

$471.33 IN STOCK

Qty:

Findlay Vinyl 15' x 30' Country Stone Overlap

Part # FC1530OVOL

Findlay Vinyl 15' x 30' Country Stone Overlap

$419.07

Clip Pack (Single)

Part # 1490476

Clip Pack (Single)

$12.12

Quantity Per Pool 16

Quantity Per Pool 16

Clip Pack for Foot Cover (Single)

Part # 1490469

Clip Pack for Foot Cover (Single)

$4.19 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Top Ledge J5000 (Single)

Part # 1450534

Top Ledge J5000 (Single)

$64.36

Quantity Per Pool 8

Quantity Per Pool 8

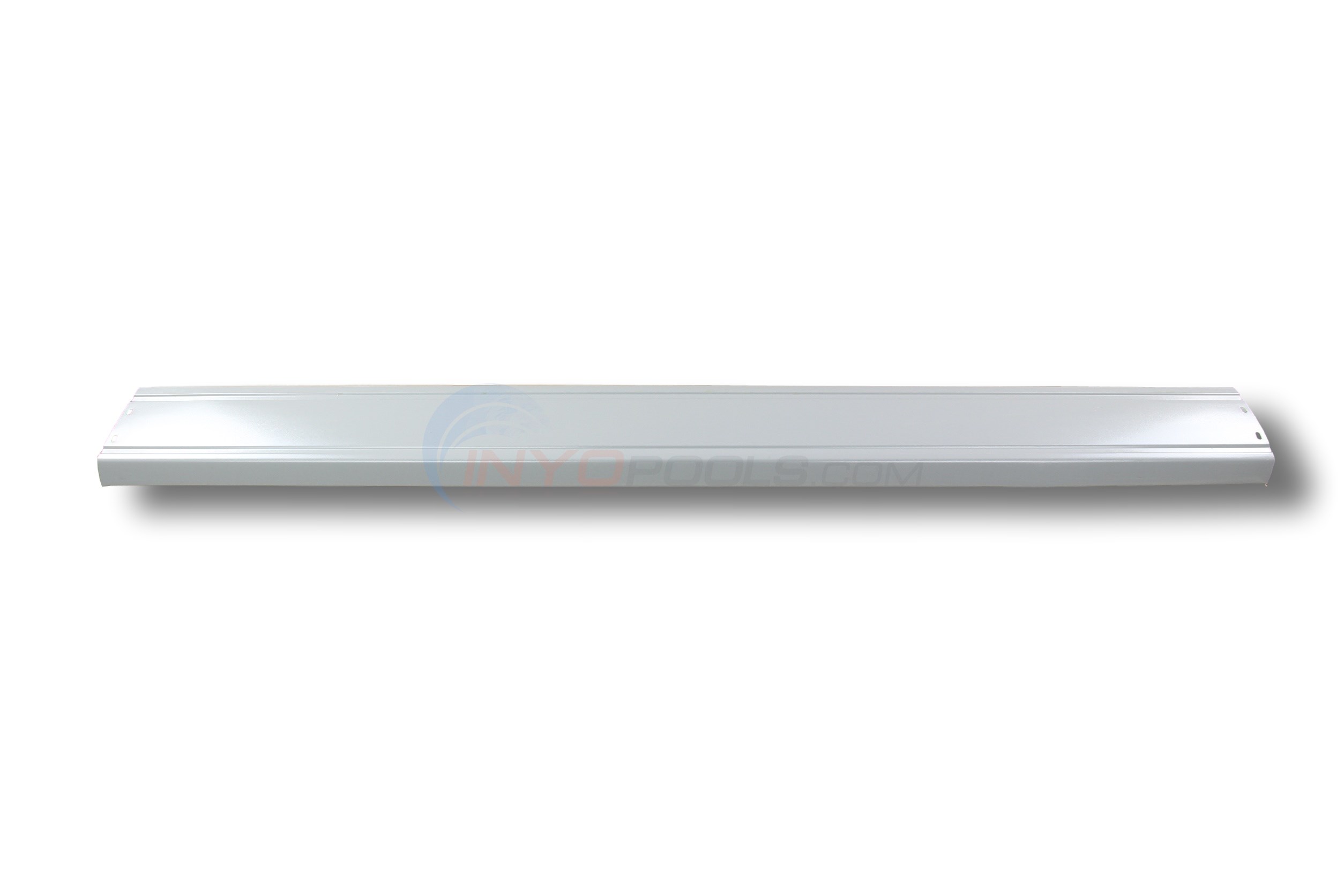

Top Ledge Side - Steel (Single)

Part # 1450538

Top Ledge Side - Steel (Single)

$97.07

Quantity Per Pool 4

Quantity Per Pool 4

Top Rail Transition Section Steel (Single)

Part # 1450535

Top Rail Transition Section Steel (Single)

$69.64

Quantity Per Pool 4

Quantity Per Pool 4

Upright 51-1/2" J5000 - Steel (single)

Part # 1440380

Upright 51-1/2" J5000 - Steel (single)

$105.51

Quantity Per Pool 16

Quantity Per Pool 16

Bottom Plate - Steel (single)

Part # 1320144

Bottom Plate - Steel (single)

$15.06 IN STOCK

Quantity Per Pool 10

Quantity Per Pool 10

Qty:

Bottom Plate - Resin (single)

Part # 1320149

Bottom Plate - Resin (single)

$16.34

Quantity Per Pool 10

Quantity Per Pool 10

Top Plate (Single)

Part # 1320143

Top Plate (Single)

$12.05 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Slotted Tube 55-1/2" (Single)

Part # NBP2004 Mfg # 1470097

Slotted Tube 55-1/2" (Single)

$41.75 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Slotted Tube 55-3/4" (Single)

Part # 1470100

Slotted Tube 55-3/4" (Single)

$35.16 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Slotted Tube (4-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

Part # NBP2004-PACK4

Slotted Tube (4-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

$92.71 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube (8-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

Part # NBP2004-PACK8

Slotted Tube (8-PACK) 1470097 For Atlantic Pools 55-1/2" 1470097 J3000, J2000, SIERRA, J5000, ESTAE

$213.08

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (4-PACK)

Part # 1470100-PACK4

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (4-PACK)

$112.52 IN STOCK

Quantity Per Pool 4-PACK

Quantity Per Pool 4-PACK

Qty:

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (8-PACK)

Part # 1470100-PACK8

Slotted Tube 55-3/4'' J2000, J4000, BELIZE, J5000, URBANIA, MALIBU, CHATEAU, ATLANTIS (8-PACK)

$281.32

Quantity Per Pool 8-PACK

Quantity Per Pool 8-PACK

Hardware Pack for Top Ledge (Single)

Part # 1184036

Hardware Pack for Top Ledge (Single)

$17.93

Quantity Per Pool 1

Quantity Per Pool 1

Ledge Cover - Upper Vantage, J5000 (Single)

Part # 1490465

Ledge Cover - Upper Vantage, J5000 (Single)

$40.19 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Atlantic Lower Cap Vantage (Single)

Part # 1490464

Atlantic Lower Cap Vantage (Single)

$7.76 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Hardware Pack for Ledge Cover (Single)

Part # 1184258

Hardware Pack for Ledge Cover (Single)

$42.20

Quantity Per Pool 5

Quantity Per Pool 5

Foot Cover (Single)

Part # 1490466

Foot Cover (Single)

$8.95 IN STOCK

Quantity Per Pool 16

Quantity Per Pool 16

Qty:

Strap - GIB 44-7/16" J4000 (Single)

Part # 1510140

Strap - GIB 44-7/16" J4000 (Single)

$59.08

Quantity Per Pool 9

Quantity Per Pool 9

Bottom Rail 56" - Steel (Single)

Part # 1460030

Bottom Rail 56" - Steel (Single)

$45.21 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Bottom Rail 56-1/4" - Steel (Single)

Part # 1460033

Bottom Rail 56-1/4" - Steel (Single)

$45.21 IN STOCK

Quantity Per Pool 8

Quantity Per Pool 8

Qty:

Bottom Rail 54" - Resin (Single)

Part # 1460182

Bottom Rail 54" - Resin (Single)

$51.70

Quantity Per Pool 8

Quantity Per Pool 8

Bottom Rail 55-1/4" - Resin (Single)

Part # 1460191

Bottom Rail 55-1/4" - Resin (Single)

$50.64

Quantity Per Pool 4

Quantity Per Pool 4

Bottom Rail 56-1/4" - Resin (Single)

Part # 1460193

Bottom Rail 56-1/4" - Resin (Single)

$41.14

Quantity Per Pool 4

Quantity Per Pool 4

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

Part # NBP2054 Mfg # 1320169

Vertical Bracket 1320169 For Aegean, Aruba, And St Croix

$10.54 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

Bracket for Strap (single)

Part # 1320164

Bracket for Strap (single)

$37.98 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:

6" Slotted Tube Connector - Steel (Single)

Part # 1470108

6" Slotted Tube Connector - Steel (Single)

$15.06

Quantity Per Pool 10

Quantity Per Pool 10

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools

Part # NBP2002 Mfg # 1470087

Resin Slotted Tube (SINGLE) Conn For Atlantic Pools

$4.71 IN STOCK

Quantity Per Pool 6

Quantity Per Pool 6

Qty:
