Jacuzzi Sand Trap Filter - 27" & 33" Parts

SAND FILTER MODELS ST27, ST33

Jacuzzi Sand Trap Filter - 27" & 33" Diagram

Click to zoom in

Diagram #	Part Title
1A	Valve, 6-way 15vk-24 Eqfv (39258405)
2	LOCK NUT (JACUZZI FILTERS) (42285007R000)
3	No Longer Available UNION ADAPTER Replace With 4627-25
4	SCREW, CAP 5/16-18 X 1IN (98219800)
6A	O-RING
7A	ADAPTER, 6 POSITION 1 1/2IN (42350702R000)
8	O-RING, 9.8 X 10.55 X 3/8 (42292706R000)
9	DIVERTER, FLOW (43071505R000)
10A	OBSOLETE PIPE, UPPER STAND
11	BASKET ASSY., UPPER STANDPIPE (88158001R000)
12	NIPPLE 1 1/2IN X 2.75IN DV-6 1 1/2IN
13A	COUPLING, REDUCER DV-6 1 1/2IN (31165400R000)
14	OBSOLETE PIPE ASSY., MANIFOLD STAND (ST27)
15	LATERALS With "Y" ADAPTER (8 REQ) ST 27 (42297804R8)
18	PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)
20	PLUG ASSY., DRAIN ST27/ST33 (42287401R000)
21	O-RING, INSPECTION AND DRAIN ST27/ST33 (4620-525)
22	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
23	PLUG, 3/4 NPT With O-RING (31164908R000)
24	O-RING
25	UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

View Parts List

Diagram #	Part Title
1A	Valve, 6-way 15vk-24 Eqfv (39258405)
2	LOCK NUT (JACUZZI FILTERS) (42285007R000)
3	No Longer Available UNION ADAPTER Replace With 4627-25
4	SCREW, CAP 5/16-18 X 1IN (98219800)
6A	O-RING
7A	ADAPTER, 6 POSITION 1 1/2IN (42350702R000)
8	O-RING, 9.8 X 10.55 X 3/8 (42292706R000)
9	DIVERTER, FLOW (43071505R000)
10A	OBSOLETE PIPE, UPPER STAND
11	BASKET ASSY., UPPER STANDPIPE (88158001R000)
12	NIPPLE 1 1/2IN X 2.75IN DV-6 1 1/2IN
13A	COUPLING, REDUCER DV-6 1 1/2IN (31165400R000)
14	OBSOLETE PIPE ASSY., MANIFOLD STAND (ST27)
15	LATERALS With "Y" ADAPTER (8 REQ) ST 27 (42297804R8)
18	PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)
20	PLUG ASSY., DRAIN ST27/ST33 (42287401R000)
21	O-RING, INSPECTION AND DRAIN ST27/ST33 (4620-525)
22	Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK
23	PLUG, 3/4 NPT With O-RING (31164908R000)
24	O-RING
25	UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

Available Parts:

Valve, 6-way 15vk-24 Eqfv (39258405)

Part # 4627-16 Mfg # 39258405R

Valve, 6-way 15vk-24 Eqfv (39258405)

$226.02 IN STOCK

Qty:

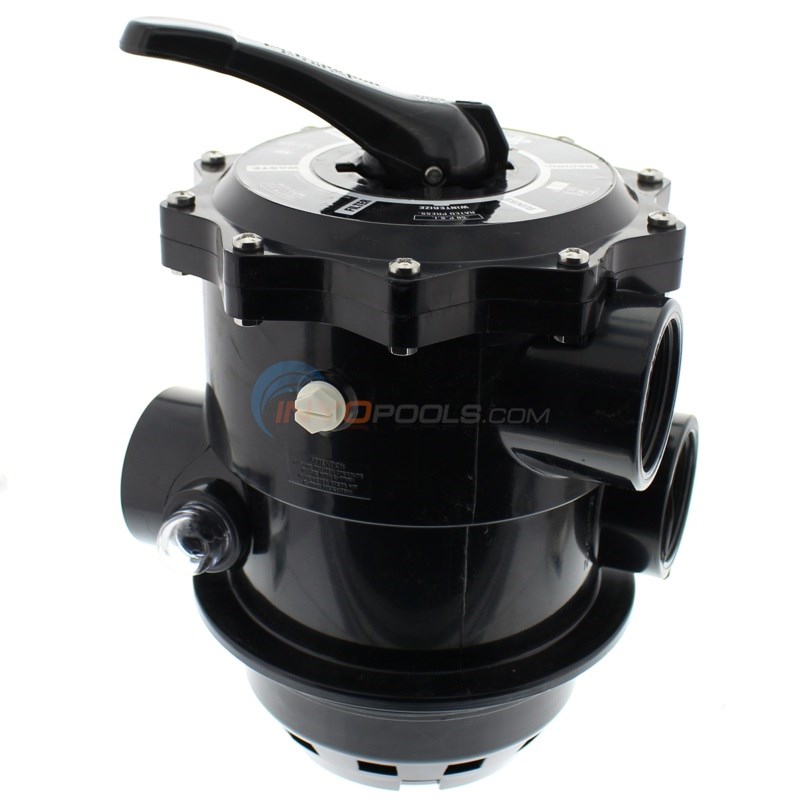

VALVE TOP MT. 7 1/16" BUTTRESS

Part # 4710-0 Mfg # TM-22-JAC

VALVE TOP MT. 7 1/16" BUTTRESS

$188.71 IN STOCK

Qty:

1C

OBSOLETE DVK-6 VALVE

Mfg # 39-2588-00-R

OBSOLETE DVK-6 VALVE

NOT AVAILABLE

Top Mount Valve, Jacuzzi Dv-6 / 7 Bolt On Replacement

Part # 4625-80 Mfg # TM-12-JL7

Top Mount Valve, Jacuzzi Dv-6 / 7 Bolt On Replacement

$164.82 IN STOCK

Qty:

LOCK NUT (JACUZZI FILTERS) (42285007R000)

Part # 4666-10 Mfg # 42285007R

LOCK NUT (JACUZZI FILTERS) (42285007R000)

$51.23 IN STOCK

Qty:

3

No Longer Available UNION ADAPTER Replace With <a class="productlink" href="http://www.inyopools.com/Products/07501352027819.htm">4627-25</a>

Mfg # 31-0860-02

No Longer Available UNION ADAPTER Replace With 4627-25

NOT AVAILABLE

Self Aligning Half Union, 1 1/2" / 2" (set Of 2)

Part # 4627-25 Mfg # 31158603R2

Self Aligning Half Union, 1 1/2" / 2" (set Of 2)

$44.29 IN STOCK

Qty:

SCREW, CAP 5/16-18 X 1IN (98219800)

Part # 6915-0 Mfg # U30-62ZP

SCREW, CAP 5/16-18 X 1IN (98219800)

$10.58 IN STOCK

Qty:

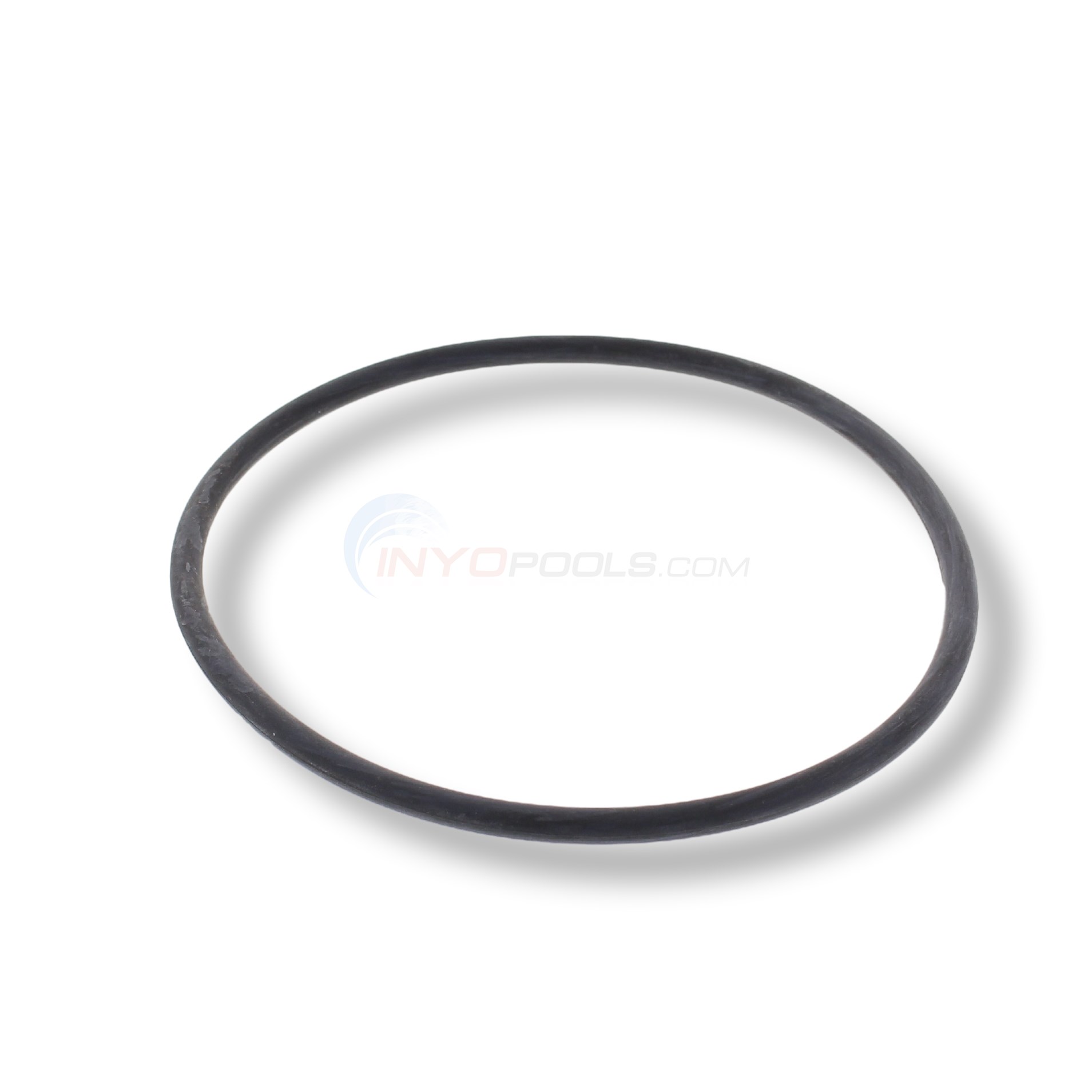

O-RING

Part # 5068-03 Mfg # 355

O-RING

$22.76 IN STOCK

Qty:

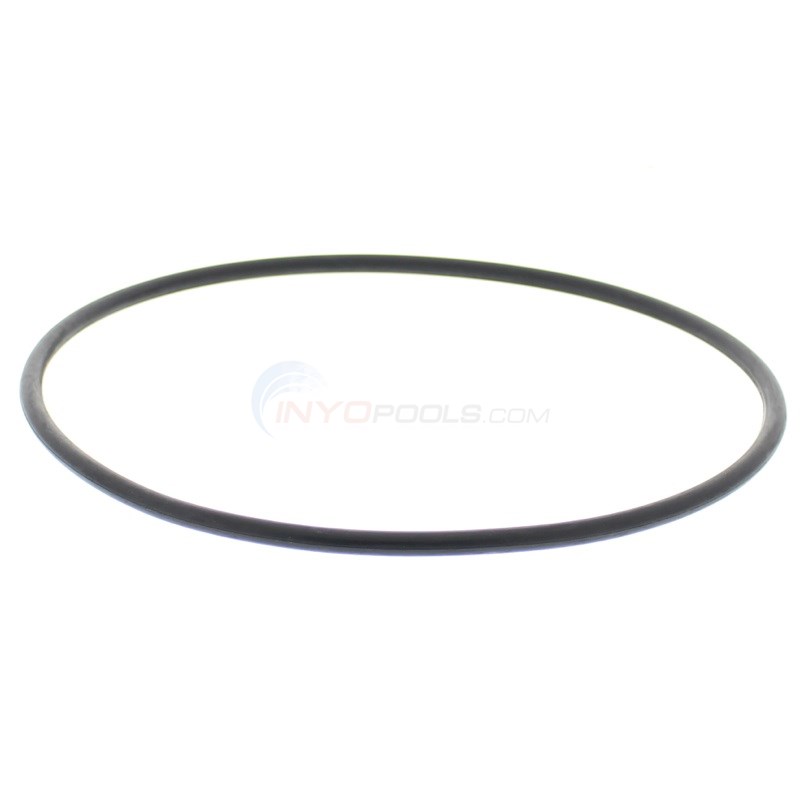

O-RING

Part # 4627-22 Mfg # 443

O-RING

$36.21 IN STOCK

Qty:

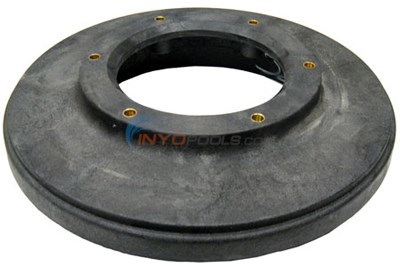

ADAPTER, 6 POSITION 1 1/2IN (42350702R000)

Part # 4627-02 Mfg # 42350702R

ADAPTER, 6 POSITION 1 1/2IN (42350702R000)

$136.63 IN STOCK

Qty:

ADAPTER, 6 POSITION 2IN (42298802R000)

Part # 4627-02A Mfg # 42298802R

ADAPTER, 6 POSITION 2IN (42298802R000)

$128.35

O-RING, 9.8 X 10.55 X 3/8 (42292706R000)

Part # 4627-04 Mfg # 42292706R

O-RING, 9.8 X 10.55 X 3/8 (42292706R000)

$78.66 IN STOCK

Qty:

DIVERTER, FLOW (43071505R000)

Part # 4625-02 Mfg # 43071505R

DIVERTER, FLOW (43071505R000)

$25.86

10A

OBSOLETE PIPE, UPPER STAND

Mfg # 31-0113-64-R004

OBSOLETE PIPE, UPPER STAND

NOT AVAILABLE

PIPE, UPPER STAND 2IN X 7.12IN DV-6 2IN

Part # 4627-05 Mfg # 31011463R007

PIPE, UPPER STAND 2IN X 7.12IN DV-6 2IN

$25.86

BASKET ASSY., UPPER STANDPIPE (88158001R000)

Part # 4625-03 Mfg # 88158001R

BASKET ASSY., UPPER STANDPIPE (88158001R000)

$23.79 IN STOCK

Qty:

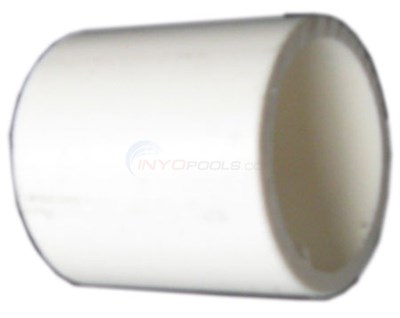

NIPPLE 1 1/2IN X 2.75IN DV-6 1 1/2IN

Part # 4627-07 Mfg # 31011364R002

NIPPLE 1 1/2IN X 2.75IN DV-6 1 1/2IN

$30.00

COUPLING, REDUCER DV-6 1 1/2IN (31165400R000)

Part # 4627-08 Mfg # 31165400R

COUPLING, REDUCER DV-6 1 1/2IN (31165400R000)

$53.82

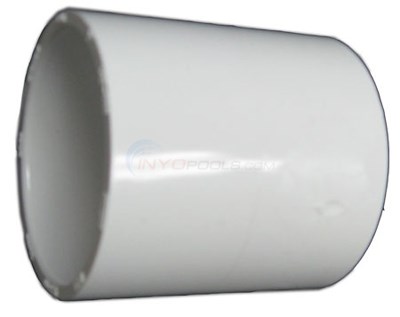

COUPLING, DV6 2" (31-0676-06)

Part # 4627-09 Mfg # 31067606R

COUPLING, DV6 2" (31-0676-06)

$22.76 IN STOCK

Qty:

14

OBSOLETE PIPE ASSY., MANIFOLD STAND (ST27)

Mfg # 42-2923-00-R

OBSOLETE PIPE ASSY., MANIFOLD STAND (ST27)

NOT AVAILABLE

PIPE ASSY., MANIFOLD STAND ST 33IN (42292409R000)

Part # 4627-10A Mfg # 42292409R

PIPE ASSY., MANIFOLD STAND ST 33IN (42292409R000)

$103.50

LATERALS With "Y" ADAPTER (8 REQ) ST 27 (42297804R8)

Part # 4627-11 Mfg # 42297804R

LATERALS With "Y" ADAPTER (8 REQ) ST 27 (42297804R8)

$93.15

15

OBSOLETE LATERALS W/”Y” ADAPT

Mfg # 42-2979-03-R

OBSOLETE LATERALS W/”Y” ADAPT

NOT AVAILABLE

PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)

Part # 4627-12 Mfg # 42290403R

PLUG ASSY., INSPECTION ST27/ST33 (42290403R000)

$19.65 IN STOCK

Qty:

PLUG ASSY., DRAIN ST27/ST33 (42287401R000)

Part # 4627-13 Mfg # 42287401R

PLUG ASSY., DRAIN ST27/ST33 (42287401R000)

$73.48

O-RING, INSPECTION AND DRAIN ST27/ST33 (4620-525)

Part # 4627-14 Mfg # 47032602R

O-RING, INSPECTION AND DRAIN ST27/ST33 (4620-525)

$20.69 IN STOCK

Qty:

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

Part # 4727-0 Mfg # 102D-204D

Back Mount Pressure Gauge 0-60 1/4" NPT REAR/BACK

$10.34 IN STOCK

Qty:

PLUG, 3/4 NPT With O-RING (31164908R000)

Part # 4627-15 Mfg # 31164908R

PLUG, 3/4 NPT With O-RING (31164908R000)

$30.00

O-RING

Part # 4670-E Mfg # 213

O-RING

$11.37 IN STOCK

Qty:

UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

Part # 9173F Mfg # B0602-15

UNION, S15UNS HALF, 1-1/2" SLIP (31175607)

$15.51 IN STOCK

Qty:
