Jandy AquaPure Models 700 & 1400 Parts

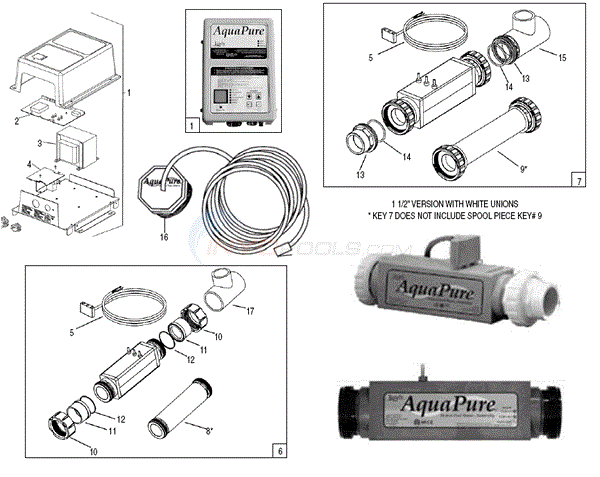

Jandy AquaPure Models 700 & 1400 Diagram

Click to zoom in

Diagram #	Part Title
6**	Jandy Aqua Pure 700 3-port cell, 15,000 Gallon
1	"CONTROL BOX, PURE700"
2	PCB, FRONT LED, ALL MODELS, REV B
3	"TRANSFORMER, 50/60HZ"
4	PCB, BACK, PURE700
5	"8 CORD, DC"
6**	Jandy Aqua Pure 700 3-port cell, 15,000 Gallon
7**	NLA CELL W/ 8’ DC CORD, PURE700, 1 1/2" WHITE UNION REP W/2803-102 or GRC/J12-3
8	SPOOL PIECE, 2" BLACK UNIONS
9	OBSOLETE SPOOL PIECE, 1-1/2" UNIONS
10	2" UNION NUT, BLACK
11	2" UNION HALF, BLACK
12	UNION O-RING FOR 2" BLACK UNION
13	"UNION HALF, 1-1/2"" WHITE UNION"
14	"UNION O-RING FOR 1-1/2"" WHITE UNION"
15	"SENSOR TEE WITH 1-1/2"" WHITE UNION"
16	AQUAPURE FLOW SENSOR With 8' CABLE
*	Control Box Top Decal Replacement for Zodiac AquaPure Salt System
*	SALINITY METER
*	Universal Union Tailpiec Kit, 3 Port Cell, 2"x2.5"

View Parts List

Diagram #	Part Title
6**	Jandy Aqua Pure 700 3-port cell, 15,000 Gallon
1	"CONTROL BOX, PURE700"
2	PCB, FRONT LED, ALL MODELS, REV B
3	"TRANSFORMER, 50/60HZ"
4	PCB, BACK, PURE700
5	"8 CORD, DC"
6**	Jandy Aqua Pure 700 3-port cell, 15,000 Gallon
7**	NLA CELL W/ 8’ DC CORD, PURE700, 1 1/2" WHITE UNION REP W/2803-102 or GRC/J12-3
8	SPOOL PIECE, 2" BLACK UNIONS
9	OBSOLETE SPOOL PIECE, 1-1/2" UNIONS
10	2" UNION NUT, BLACK
11	2" UNION HALF, BLACK
12	UNION O-RING FOR 2" BLACK UNION
13	"UNION HALF, 1-1/2"" WHITE UNION"
14	"UNION O-RING FOR 1-1/2"" WHITE UNION"
15	"SENSOR TEE WITH 1-1/2"" WHITE UNION"
16	AQUAPURE FLOW SENSOR With 8' CABLE
*	Control Box Top Decal Replacement for Zodiac AquaPure Salt System
*	SALINITY METER
*	Universal Union Tailpiec Kit, 3 Port Cell, 2"x2.5"

Available Parts:

Jandy Aqua Pure 700 3-port cell, 15,000 Gallon

Part # GRCJ12-3

Jandy Aqua Pure 700 3-port cell, 15,000 Gallon

$266.99

Jandy Aqua Pure 1400 3-port cell, 40,000 Gallon

Part # GRCJ40-3

Jandy Aqua Pure 1400 3-port cell, 40,000 Gallon

$464.99

Jandy AquaPure 700 3-Port Cell Kit, 12,000 Gallon (O.E.M) - PLC700

Part # PLC700 Mfg # PLC700

Jandy AquaPure 700 3-Port Cell Kit, 12,000 Gallon (O.E.M) - PLC700

$749.99 IN STOCK

Qty:

Jandy AquaPure 1400 Replacement Cell, 40,000 Gal Pool, 16ft Cord, Tri-Sensor - Model PLC1400

Part # PLC1400 Mfg # PLC1400

Jandy AquaPure 1400 Replacement Cell, 40,000 Gal Pool, 16ft Cord, Tri-Sensor - Model PLC1400

$1098.00 IN STOCK

Qty:

Jandy Aqua Pure 700 2-port cell, 15,000 Gallon

Part # GRCJ12-2

Jandy Aqua Pure 700 2-port cell, 15,000 Gallon

$326.99 IN STOCK

Qty:

Jandy Aqua Pure 1400 2-port cell, 40,000 Gallon

Part # GRCJ40-2

Jandy Aqua Pure 1400 2-port cell, 40,000 Gallon

$464.99

"CONTROL BOX, PURE700"

Part # 2803-015 Mfg # R0402900

"CONTROL BOX, PURE700"

$1274.99

"CONTROL BOX, PURE1400"

Part # 2803-016 Mfg # R0403000

"CONTROL BOX, PURE1400"

$1342.99

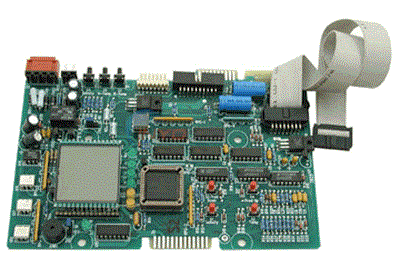

PCB, FRONT LED, ALL MODELS, REV B

Part # 2803-101 Mfg # R0403900

PCB, FRONT LED, ALL MODELS, REV B

$482.99

"TRANSFORMER, 50/60HZ"

Part # 2803-032 Mfg # R0481400

"TRANSFORMER, 50/60HZ"

$466.99 IN STOCK

Qty:

PCB, BACK, PURE700

Part # 2803-100 Mfg # R0404000

PCB, BACK, PURE700

$257.99 IN STOCK

Qty:

"PCB, BACK, PURE1400"

Part # 2803-027 Mfg # R0404100

"PCB, BACK, PURE1400"

$207.38

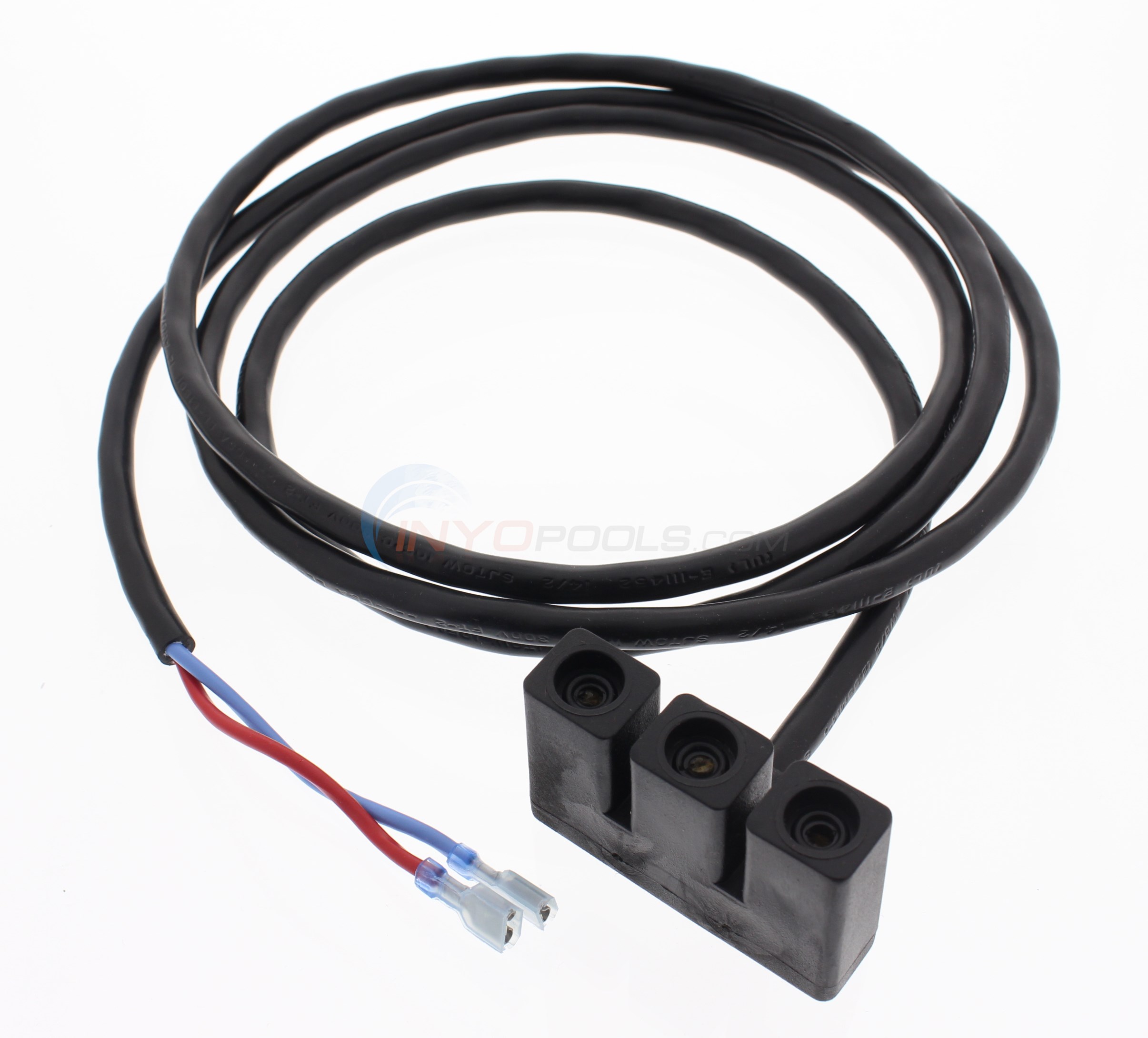

"8 CORD, DC"

Part # 2803-013 Mfg # R0402700

"8 CORD, DC"

$98.99 IN STOCK

Qty:

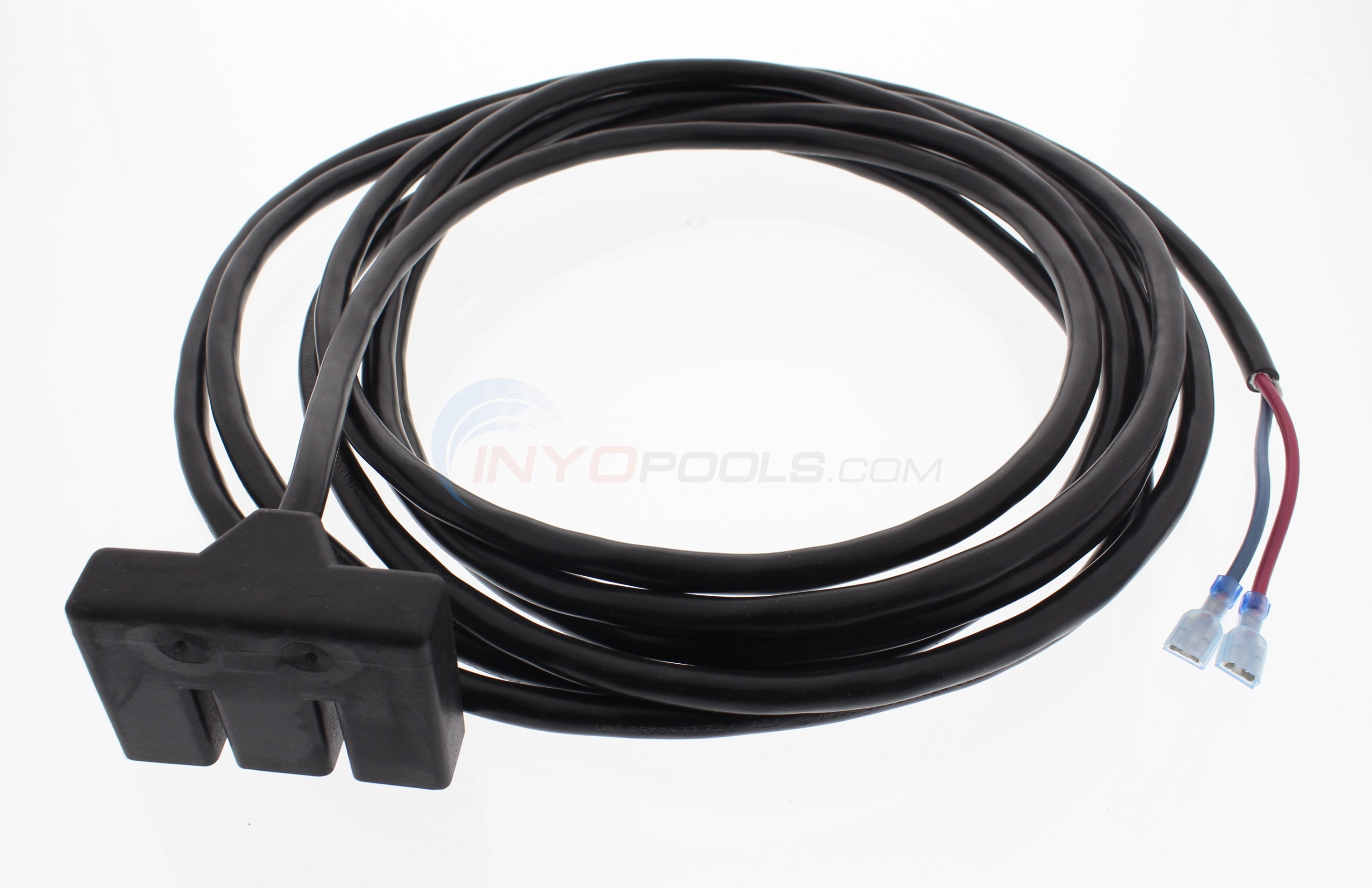

"16 CORD,DC"

Part # 2803-014 Mfg # R0402800

"16 CORD,DC"

$151.99 IN STOCK

Qty:

6**

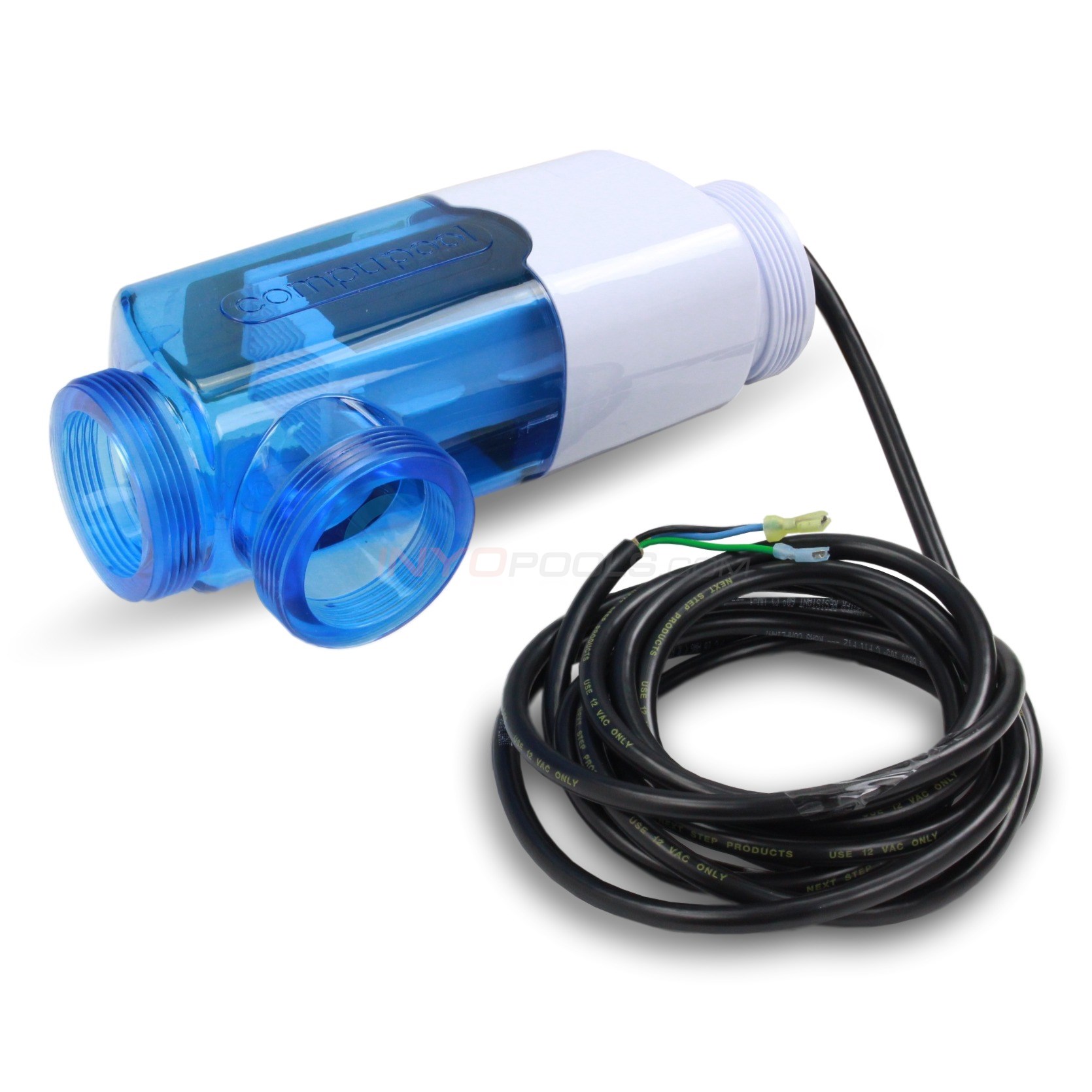

Jandy Aqua Pure 700 3-port cell, 15,000 Gallon

Part # GRC/J12-3 Mfg # R0412400

Jandy Aqua Pure 700 3-port cell, 15,000 Gallon

NOT AVAILABLE

Type After Market Ports 3-Ports

Type After Market Ports 3-Ports

6**

Jandy Aqua Pure 1400 3-port cell, 40,000 Gallon

Part # GRC/J40-3 Mfg # R0412300

Jandy Aqua Pure 1400 3-port cell, 40,000 Gallon

NOT AVAILABLE

Type After Market Ports 3-Ports

Type After Market Ports 3-Ports

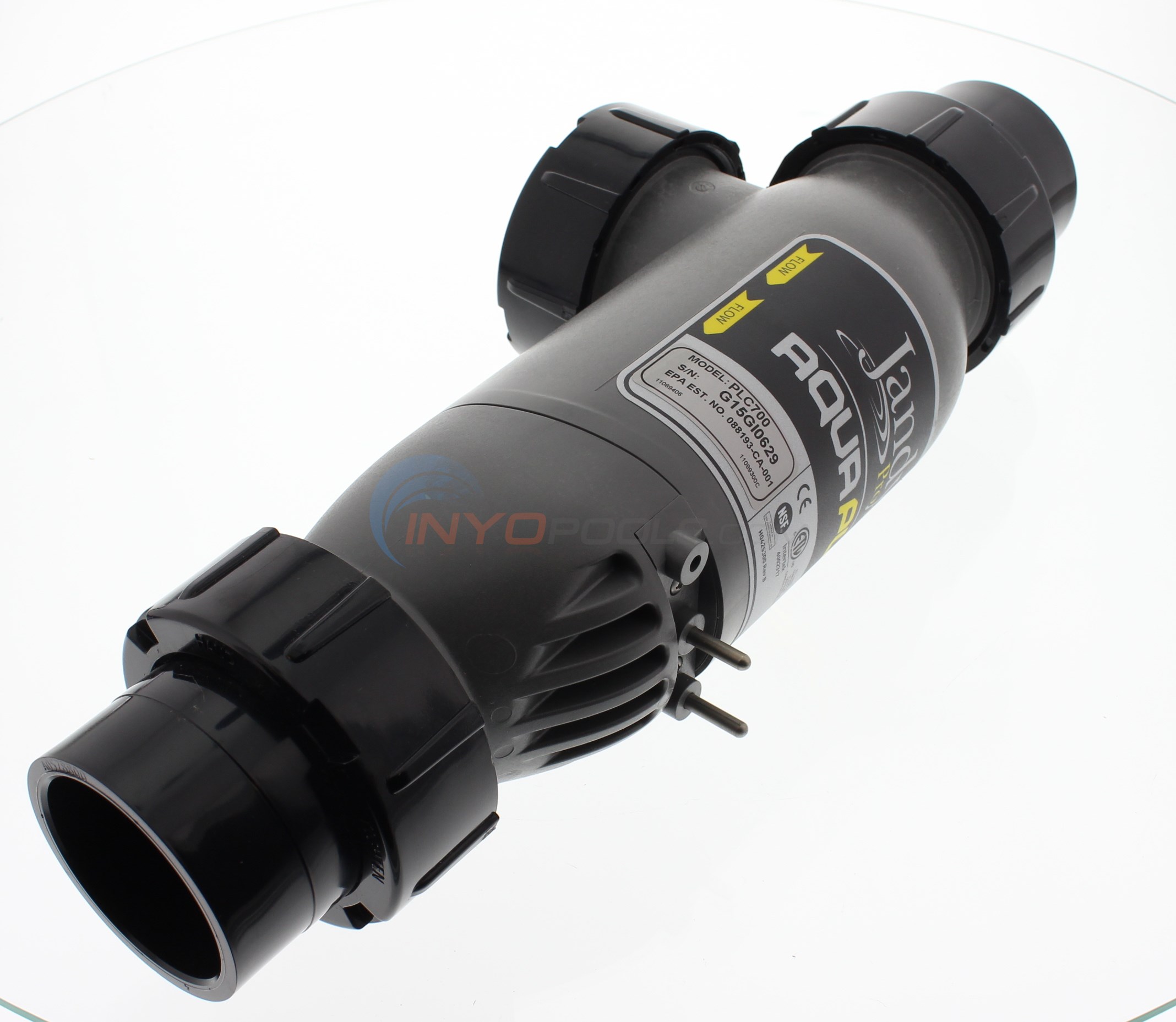

Jandy Aqua Pure 700 3-port cell, 15,000 Gallon

Part # 2803-102 Mfg # PLC700

Jandy Aqua Pure 700 3-port cell, 15,000 Gallon

$831.20 IN STOCK

Type O.E.M Ports 3-Ports

Type O.E.M Ports 3-Ports

Qty:

Jandy Aqua Pure 1400 3-port cell, 40,000 Gallon

Part # 2803-103 Mfg # PLC1400

Jandy Aqua Pure 1400 3-port cell, 40,000 Gallon

$1099.00 IN STOCK

Type O.E.M Ports 3-Ports

Type O.E.M Ports 3-Ports

Qty:

6**

Jandy Aqua Pure 700 2-port cell, 15,000 Gallon

Part # GRC/J12-2 Mfg # GRC/J12-2

Jandy Aqua Pure 700 2-port cell, 15,000 Gallon

NOT AVAILABLE

Type After Market Ports 2-Ports

Type After Market Ports 2-Ports

6**

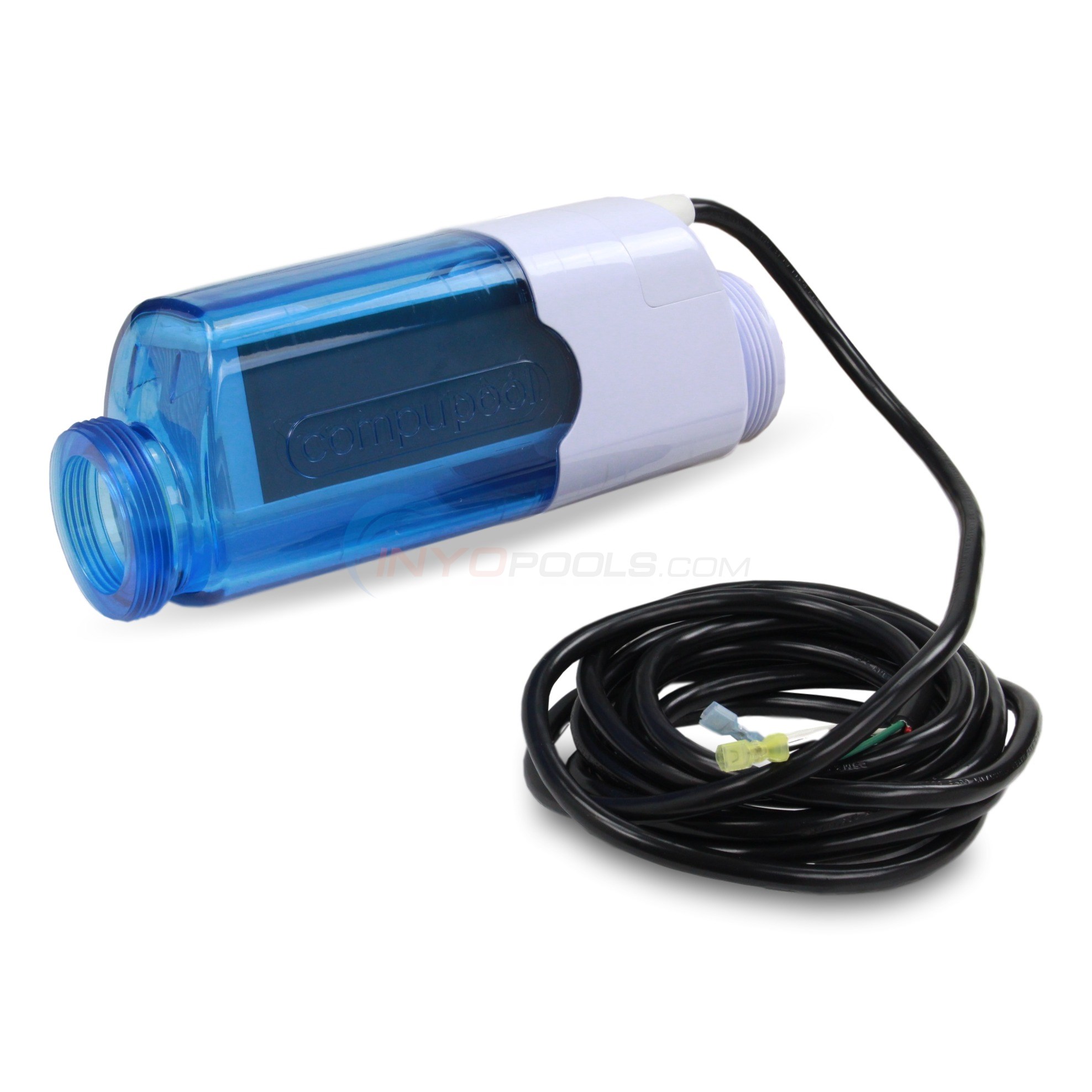

Jandy Aqua Pure 1400 2-port cell, 40,000 Gallon

Part # GRC/J40-2 Mfg # GRC/J40-2

Jandy Aqua Pure 1400 2-port cell, 40,000 Gallon

NOT AVAILABLE

Type After Market Ports 2-Ports

Type After Market Ports 2-Ports

7**

NLA CELL W/ 8’ DC CORD, PURE700, 1 1/2" WHITE UNION REP W/2803-102 or GRC/J12-3

Mfg # R0403300

NLA CELL W/ 8’ DC CORD, PURE700, 1 1/2" WHITE UNION REP W/2803-102 or GRC/J12-3

NOT AVAILABLE

7**

NLA CELL W/ 16 DC CORD 1 1/2" WHITE UNION REPLACE W/2803-102 or GRC/J12-3

Mfg # R0403400

NLA CELL W/ 16 DC CORD 1 1/2" WHITE UNION REPLACE W/2803-102 or GRC/J12-3

NOT AVAILABLE

7**

NLA CELL W/ 8’ DC CORD, PURE1400, 1 1/2" WHITE UNION REPLACE W/2803-103 or GRC/J40-3

Mfg # NOT AVAILABLE

NLA CELL W/ 8’ DC CORD, PURE1400, 1 1/2" WHITE UNION REPLACE W/2803-103 or GRC/J40-3

NOT AVAILABLE

7**

NLA CELL W/ 16’ DC CORD, PURE1400, 1 1/2" WHITE UNION REPLACE W/2803-103 or GRC/J40-3

Mfg # NOT AVAILABLE

NLA CELL W/ 16’ DC CORD, PURE1400, 1 1/2" WHITE UNION REPLACE W/2803-103 or GRC/J40-3

NOT AVAILABLE

SPOOL PIECE, 2" BLACK UNIONS

Part # 2803-040 Mfg # SP3PLX

SPOOL PIECE, 2" BLACK UNIONS

$184.99 IN STOCK

Qty:

9

OBSOLETE SPOOL PIECE, 1-1/2" UNIONS

Mfg # AZ003

OBSOLETE SPOOL PIECE, 1-1/2" UNIONS

NOT AVAILABLE

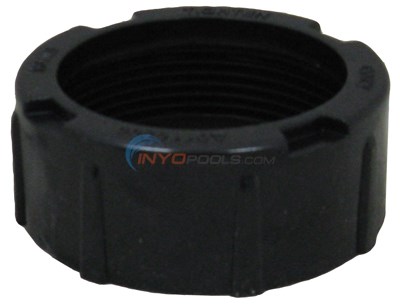

2" UNION NUT, BLACK

Part # 2803-041 Mfg # R0412500

2" UNION NUT, BLACK

$14.35 IN STOCK

Qty:

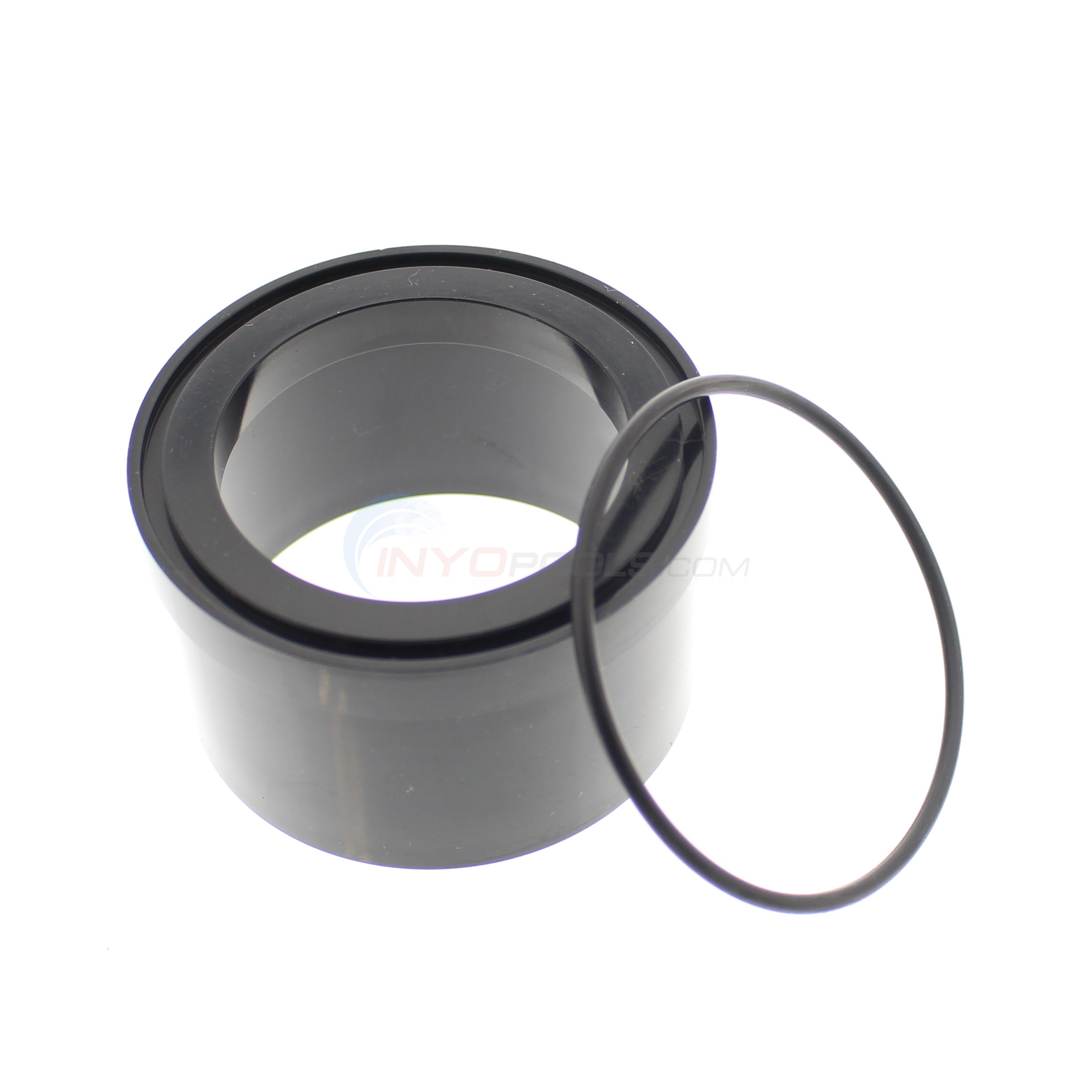

2" UNION HALF, BLACK

Part # 2803-042 Mfg # R0412600

2" UNION HALF, BLACK

$13.32 IN STOCK

Qty:

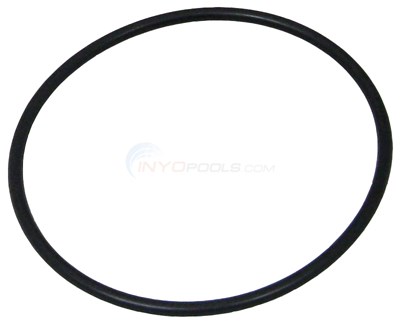

UNION O-RING FOR 2" BLACK UNION

Part # 2803-043 Mfg # R0412700

UNION O-RING FOR 2" BLACK UNION

$12.22 IN STOCK

Qty:

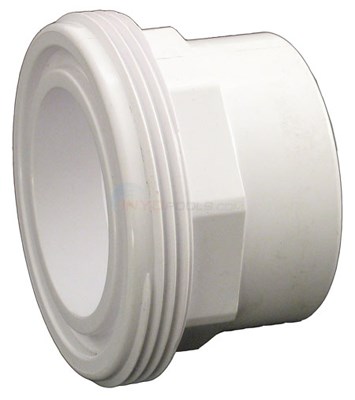

"UNION HALF, 1-1/2"" WHITE UNION"

Part # 2803-007 Mfg # PI1019

"UNION HALF, 1-1/2"" WHITE UNION"

$56.99

"UNION O-RING FOR 1-1/2"" WHITE UNION"

Part # 2803-008 Mfg # PI1024

"UNION O-RING FOR 1-1/2"" WHITE UNION"

$20.99

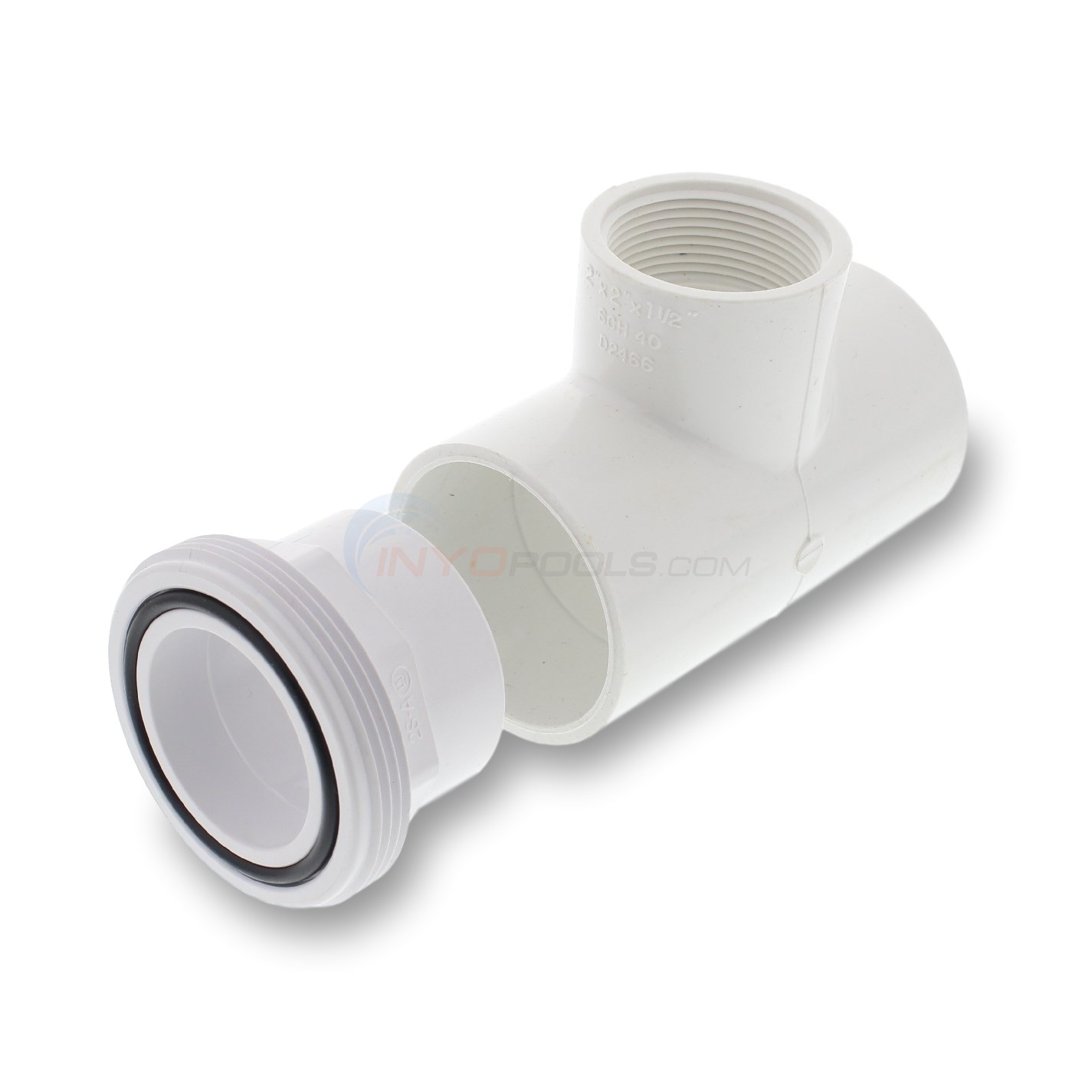

"SENSOR TEE WITH 1-1/2"" WHITE UNION"

Part # 2803-005 Mfg # AZ009

"SENSOR TEE WITH 1-1/2"" WHITE UNION"

$21.99 IN STOCK

Qty:

AQUAPURE FLOW SENSOR With 8' CABLE

Part # 2803-023 Mfg # R0403700

AQUAPURE FLOW SENSOR With 8' CABLE

$363.99

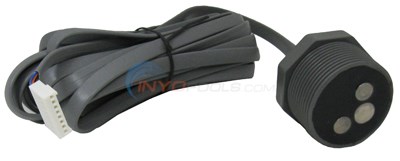

FLOW SENSOR With 16 CABLE

Part # 2803-024 Mfg # R0403800

FLOW SENSOR With 16 CABLE

$471.99

Port Sensor Kit, For 3 Port Cell, 16' Cable

Part # 2803-085 Mfg # R0452500

Port Sensor Kit, For 3 Port Cell, 16' Cable

$329.99 IN STOCK

Qty:

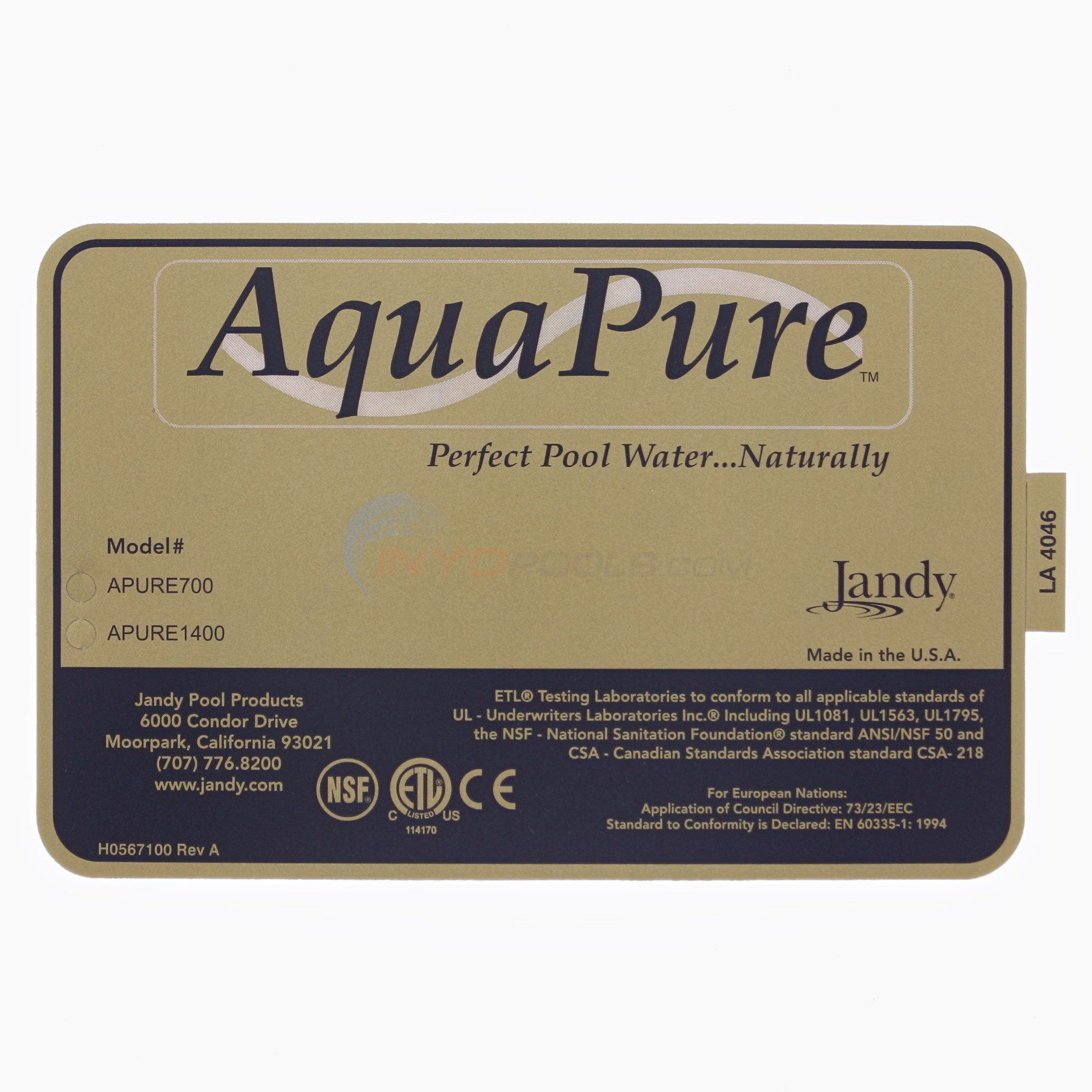

Control Box Top Decal Replacement for Zodiac AquaPure Salt System

Part # R0404300

Control Box Top Decal Replacement for Zodiac AquaPure Salt System

$60.99

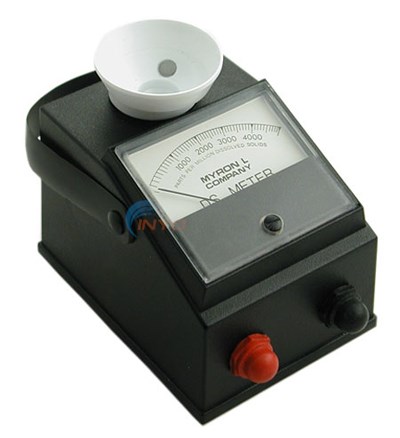

SALINITY METER

Part # 2803-006 Mfg # M1003

SALINITY METER

$557.99

Universal Union Tailpiec Kit, 3 Port Cell, 2"x2.5"

Part # 2803-075 Mfg # R0452100

Universal Union Tailpiec Kit, 3 Port Cell, 2"x2.5"

$57.96 IN STOCK

Qty:

* NOT SHOWN
** CELLS DO NOT INCLUDE SPOOL PIECE
* KEY 7 DOES NOT INCLUDE SPOOL PIECE KEY# 9
* KEY 6 DOES NOT INCLUDE SPOOL PIECE KEY# 8
