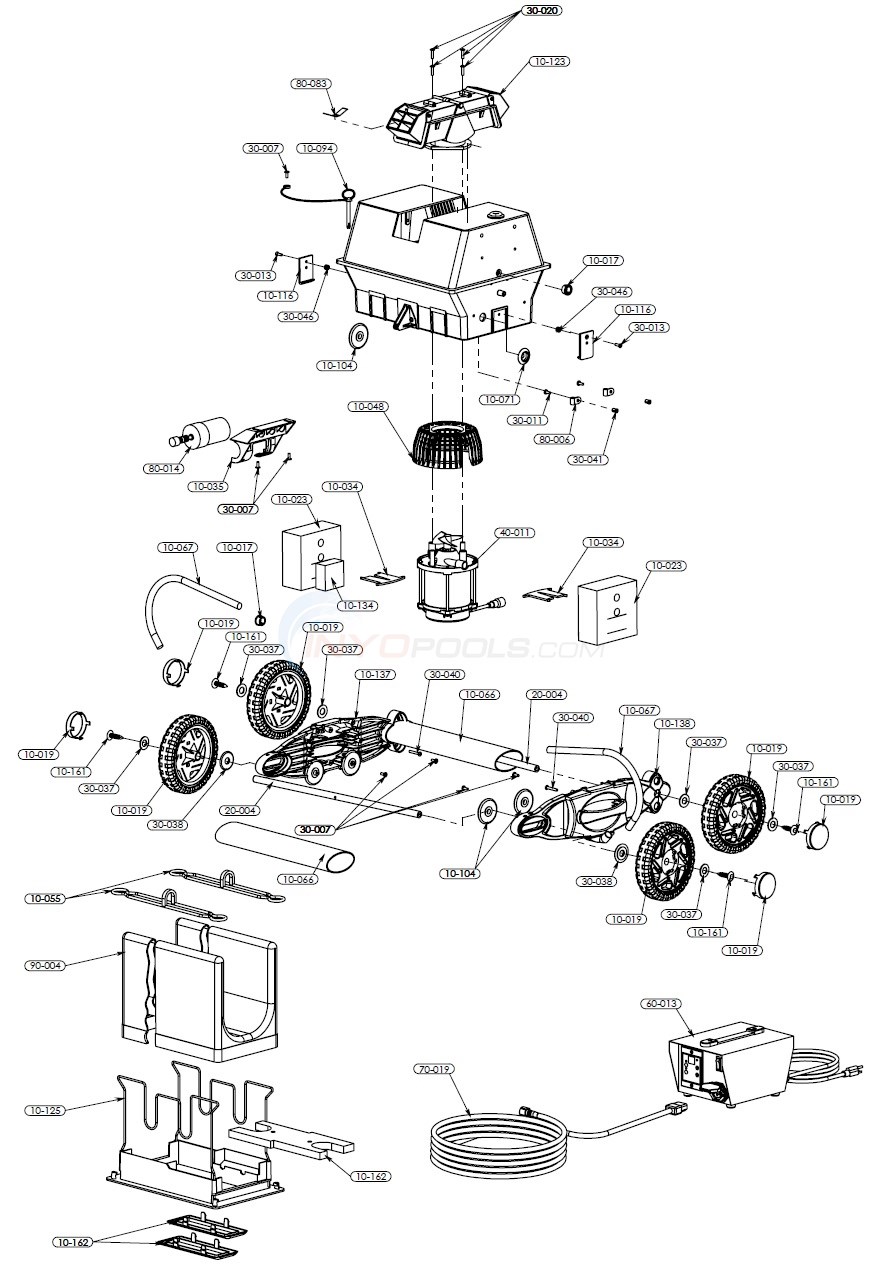

Jetmax Junior Parts

Click to zoom in

Diagram #	Part Title
90-004	Fine Filter Bag - Generic
10-017	BUSHING, .5" ID, PLASTIC, BLACK; (EA/2/2)
10-019	WHEEL, 6", TIRE, RIM, CAP, BLACK; (EA/1/1)

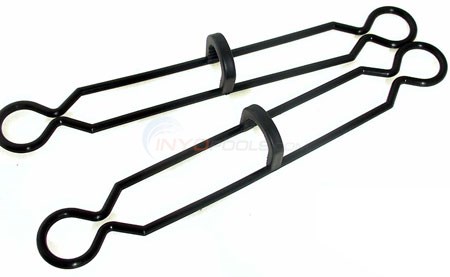

10-055	Filter Bag Clips (set Of 2) (8000)

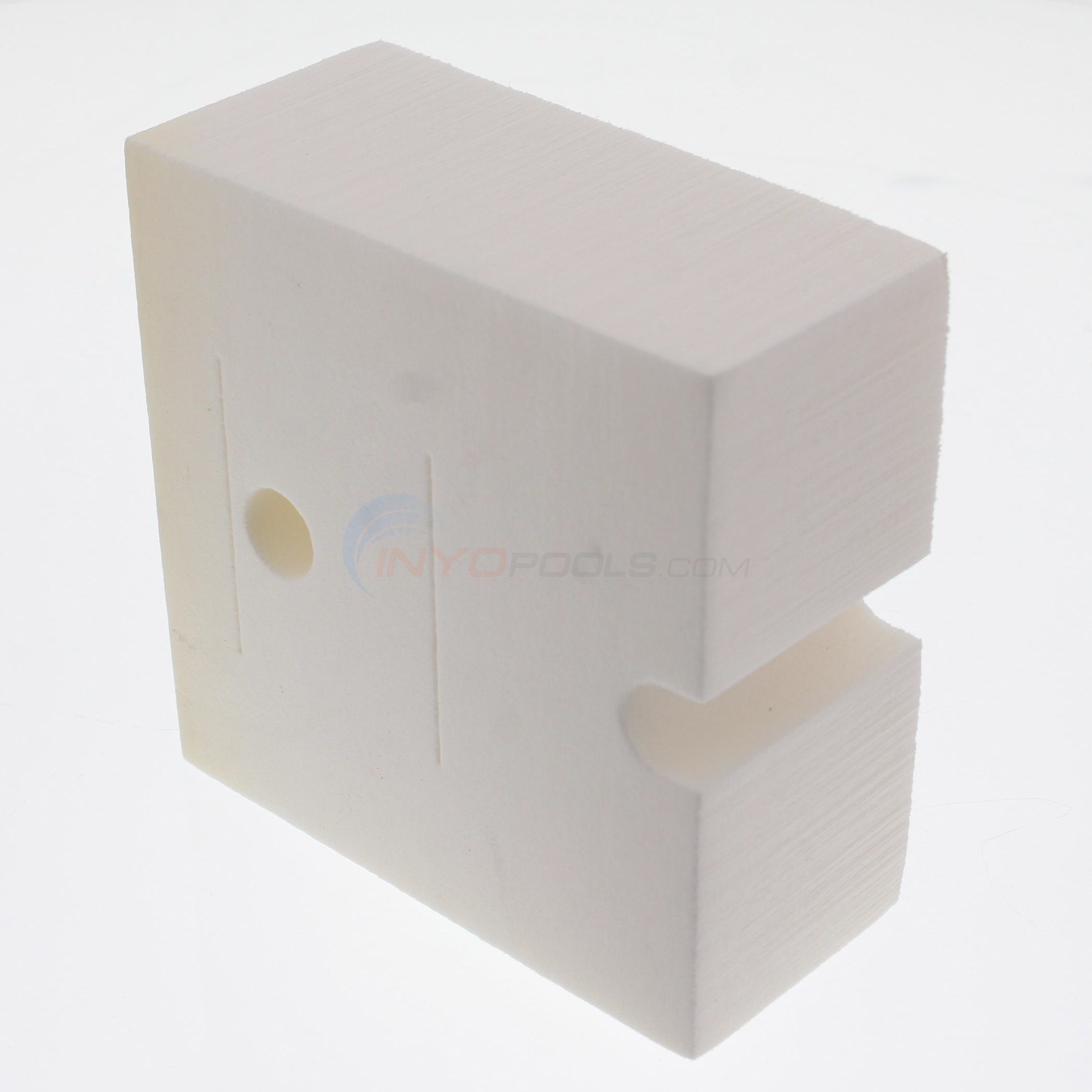

10-023	FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)

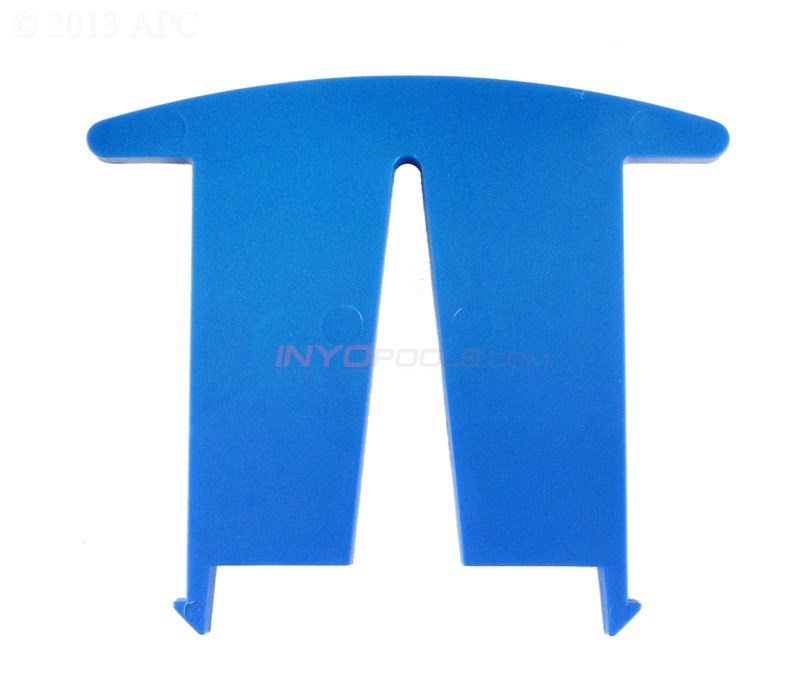

10-034	BRACKET, FLOAT; (EA/1/1)

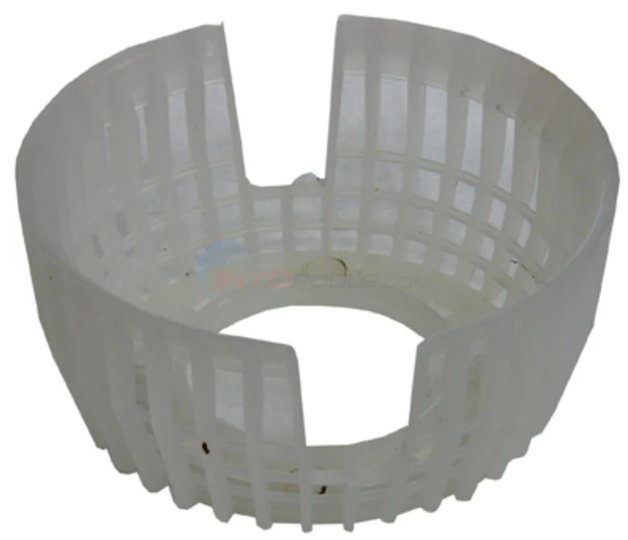

10-048	FILTER SCREEN, NYLON, ROUND, BLUE; (EA/1/1)
10-066	TUBE, OVAL, 12", BLACK, JETS; (EA/1/1)

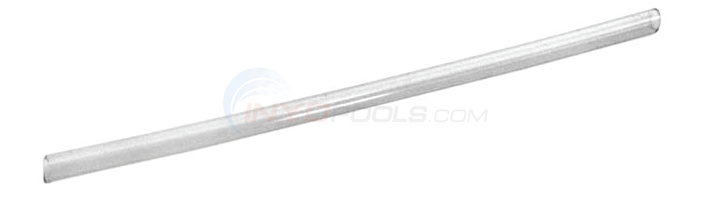

10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-070	HANDLE, WHITE, SNAP; (EA/1/1)
10-071	PLUG, CAP, BLACK; (EA/1/1)
10-094	PIN, PLASTIC LOCKING, BLACK, JET UNITS; (EA/1/1)
10-104	WHEEL- BLACK-SMALL
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-119	SK, MGA KIT, BLACK, INC PLATES, SCREWS, HANDLE; (EA/1/1)
10-123	VALVE HOUSING ASSY, BLACK, 4 OPENINGS; (EA/1/1)

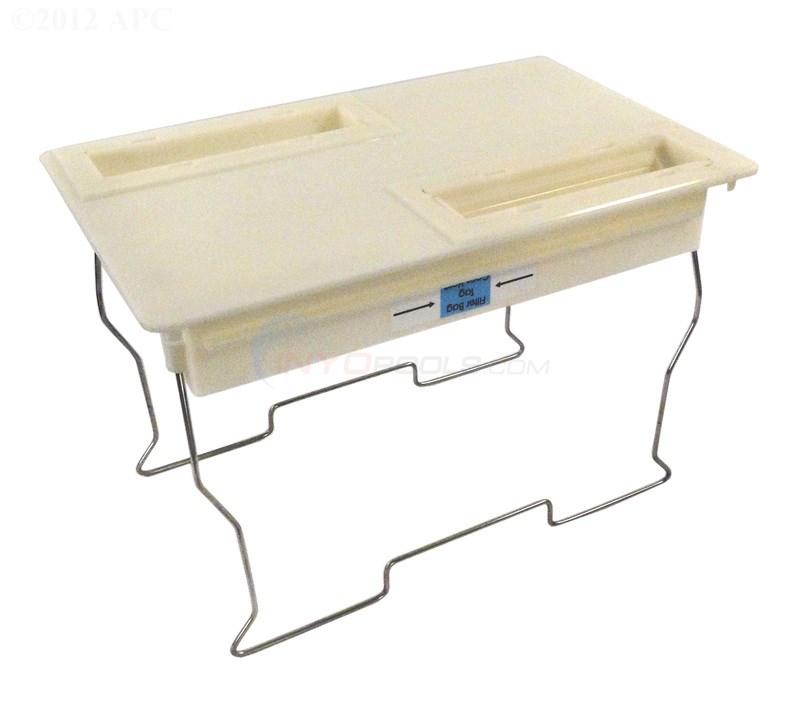

10-125	BOTTOM LID, ASSY, BASIC, NATURAL; (EA/1/1)
10-134	FLOAT ASSY, UNDER MOTOR CUT TO 1"X2"X2"; (EA/1/1)
10-137	SIDE PLATE, BLACK, LEFT, W PW NOZZLE; (EA/1/1)
0-138	SIDE PLATE, BLACK, RIGHT, W PW NOZZLE; (EA/1/1)

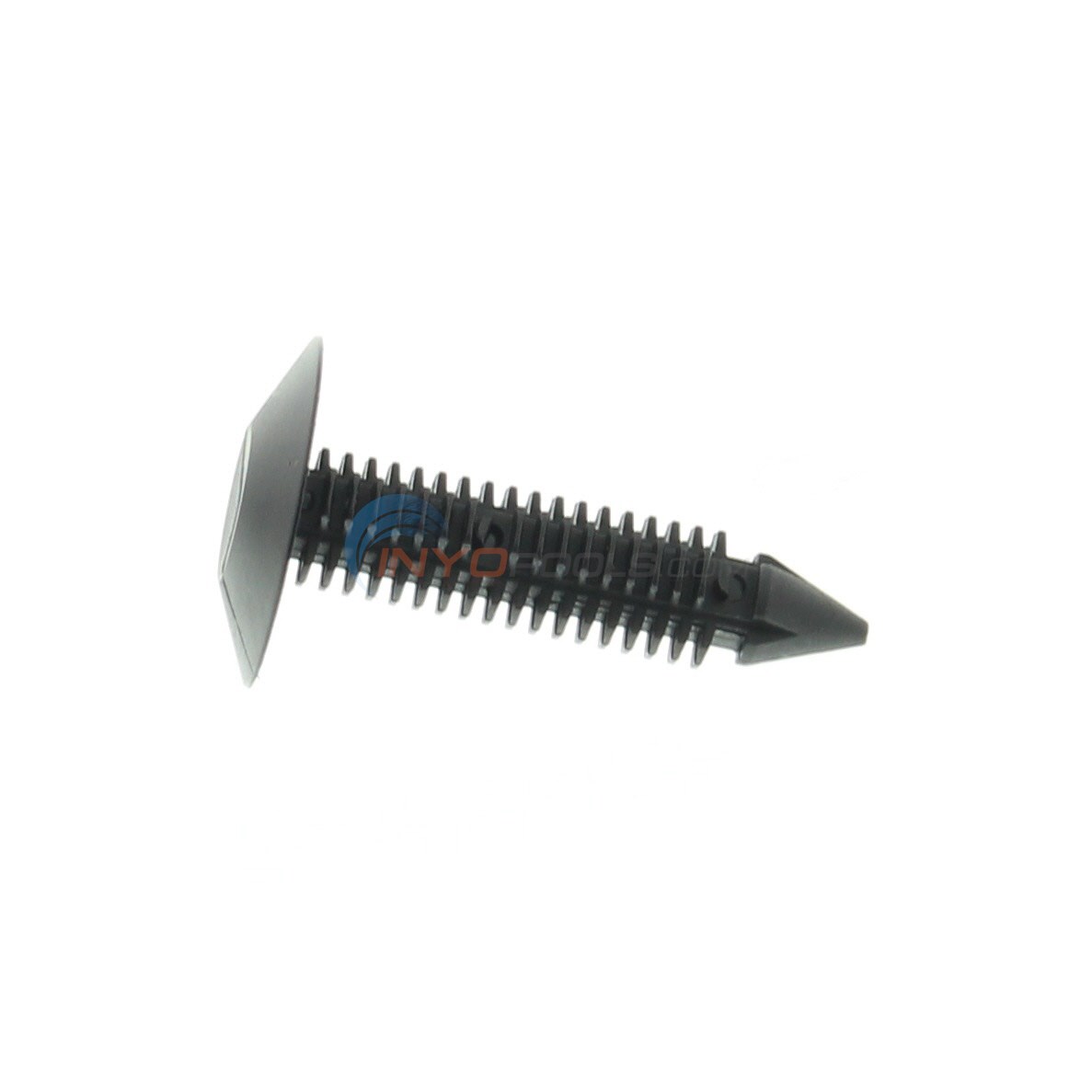

10-161	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (EA/1/1)
10-162	SK, FLOATS, U, SIDE FLOATS; (EA/1/1)
10-162	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (EA/1/1)
20-004	AXLE, FG TUBING, 16.156", JET UNITS; (EA/1/1)

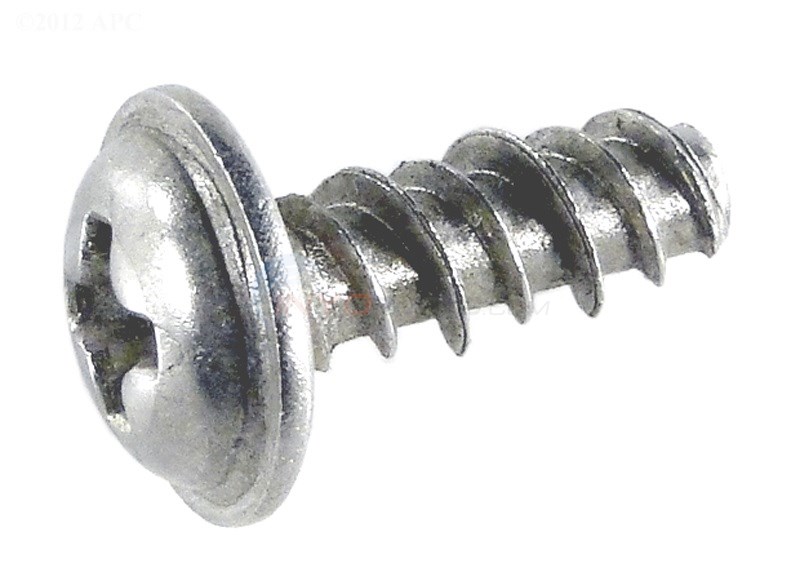

30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-011	SCREW, 10-32 .5", S/S, PH-PN; (EA/2/2)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX

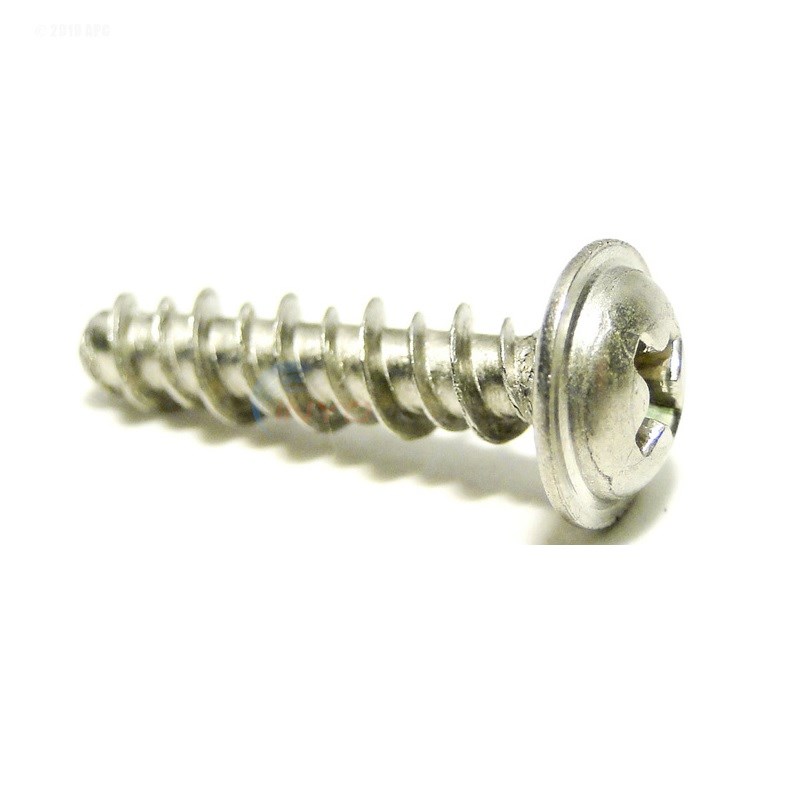

30-020	SCREW, #8 .6875", S/S, PH-PN; (Single)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)

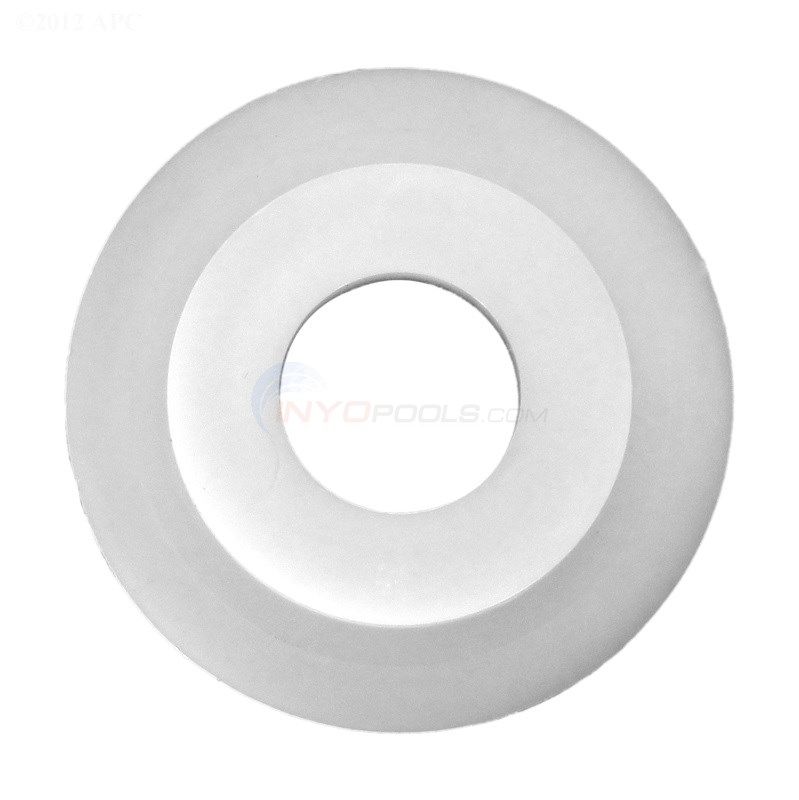

30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-040	SCREW, S/S, #8x1" PH, PH, HL, BP; (EA/4/4)
30-041	BLOCK INSERT - REVERSO; BRASS; (EA/2/2)

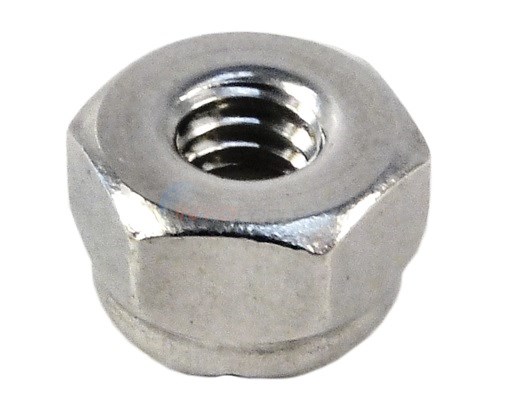

30-046	NUT, S/S, LOCK; (EA/1/1)
30-060	WASHER, S/S, 5/32; (EA/2/2)
60-013	POWER SUPPLY ASSY, 115V/38V, 90S D, JETMAX ONLY; (EA/1/1)
70-019	CABLE ASSY, 2C/75', 17AWG, FLT, BLUE, LDP, 2PRM, 2PRM, GROMMET; (EA/1/1)
80-001	PLUG, FEMALE, 3 PIN, FOR CABLE; (EA/1/1)
80-006	P CLIP, SIZE P4
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)

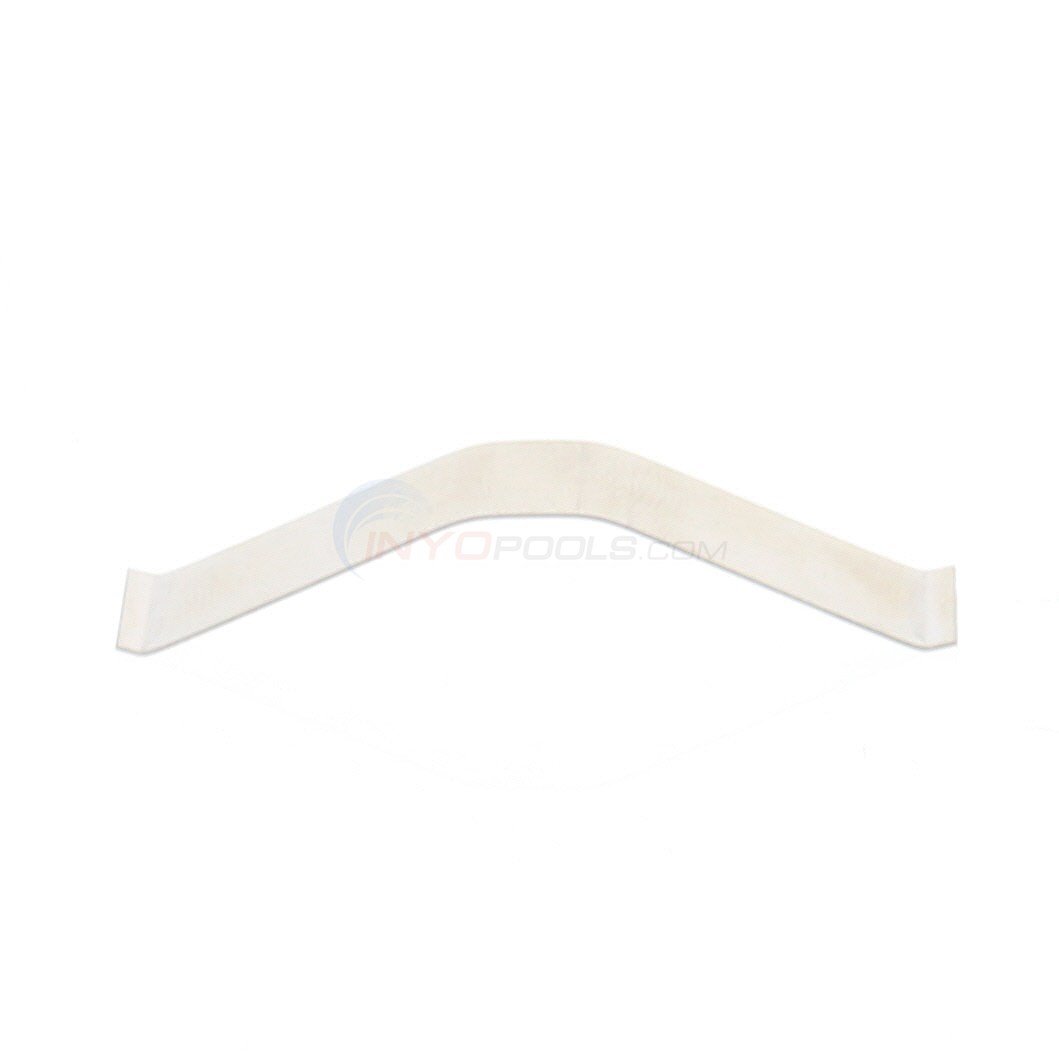

80-083	SPRING, TEMPERED S/S 301 COIL.010"THICK. COMPLETE WILL REPL,S8371
90-006	Aquabot T4 & Pool Rover Jr Mesh Bag

View Parts List

Diagram #	Part Title
90-004	Fine Filter Bag - Generic
10-017	BUSHING, .5" ID, PLASTIC, BLACK; (EA/2/2)
10-019	WHEEL, 6", TIRE, RIM, CAP, BLACK; (EA/1/1)
10-055	Filter Bag Clips (set Of 2) (8000)
10-023	FLOAT, 4.3" SQ X 2"T, GRAY OR WHITE, IG JETS; (EA/2/2)
10-034	BRACKET, FLOAT; (EA/1/1)
10-048	FILTER SCREEN, NYLON, ROUND, BLUE; (EA/1/1)
10-066	TUBE, OVAL, 12", BLACK, JETS; (EA/1/1)
10-067	TUBING, CLEAR, POWER WASH; (EA/2/2)
10-070	HANDLE, WHITE, SNAP; (EA/1/1)
10-071	PLUG, CAP, BLACK; (EA/1/1)
10-094	PIN, PLASTIC LOCKING, BLACK, JET UNITS; (EA/1/1)
10-104	WHEEL- BLACK-SMALL
10-116	LOCK TAB, NATURAL; (EA/2/2)
10-119	SK, MGA KIT, BLACK, INC PLATES, SCREWS, HANDLE; (EA/1/1)
10-123	VALVE HOUSING ASSY, BLACK, 4 OPENINGS; (EA/1/1)
10-125	BOTTOM LID, ASSY, BASIC, NATURAL; (EA/1/1)
10-134	FLOAT ASSY, UNDER MOTOR CUT TO 1"X2"X2"; (EA/1/1)
10-137	SIDE PLATE, BLACK, LEFT, W PW NOZZLE; (EA/1/1)
0-138	SIDE PLATE, BLACK, RIGHT, W PW NOZZLE; (EA/1/1)
10-161	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (EA/1/1)
10-162	SK, FLOATS, U, SIDE FLOATS; (EA/1/1)
10-162	SPARE PARTS KIT, PLASTIC NAILS(2), FOR AXLE; (EA/1/1)
20-004	AXLE, FG TUBING, 16.156", JET UNITS; (EA/1/1)
30-007	SCREW, #8 X 7/16", S/S, PH-PN; (EA/2/2)
30-011	SCREW, 10-32 .5", S/S, PH-PN; (EA/2/2)
30-013	SCREW - LOCK TAB -BODY ASS./DUMAX
30-020	SCREW, #8 .6875", S/S, PH-PN; (Single)
30-037	WASHER, NYLON, FLAT, 1" OD X 1/2" ID X .0625"T; (EA/2/2)
30-038	WASHER, ACETYL, 1.5" OD X .5" ID X .125"T; (EA/2/2)
30-040	SCREW, S/S, #8x1" PH, PH, HL, BP; (EA/4/4)
30-041	BLOCK INSERT - REVERSO; BRASS; (EA/2/2)
30-046	NUT, S/S, LOCK; (EA/1/1)
30-060	WASHER, S/S, 5/32; (EA/2/2)
60-013	POWER SUPPLY ASSY, 115V/38V, 90S D, JETMAX ONLY; (EA/1/1)
70-019	CABLE ASSY, 2C/75', 17AWG, FLT, BLUE, LDP, 2PRM, 2PRM, GROMMET; (EA/1/1)
80-001	PLUG, FEMALE, 3 PIN, FOR CABLE; (EA/1/1)
80-006	P CLIP, SIZE P4
80-014	CAPACITOR, EXTERNAL, BLUE; (EA/1/1)
80-020	TIE, PLT PANDUIT, 6"; (EA/4/4)
80-037	SK MOTOR INSTALL KIT 3; 1 (1611) 2", 1 (1633); (EA/1/1)
80-083	SPRING, TEMPERED S/S 301 COIL.010"THICK. COMPLETE WILL REPL,S8371
90-006	Aquabot T4 & Pool Rover Jr Mesh Bag

Available Parts:

90-004

Part # PL8111 Mfg # 8111

Fine Filter Bag - Generic

$25.57
